The CF Parameter SetThis class knows how to serialise and deserialise the CF Parameter Set. More...

#include "cf-parameter-set.h"

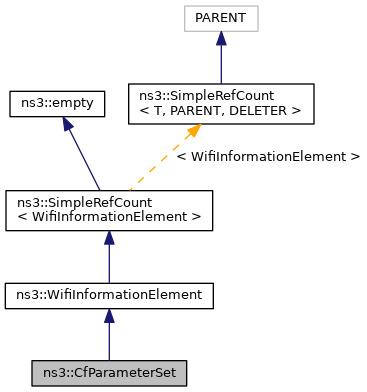

Inheritance diagram for ns3::CfParameterSet:

Collaboration diagram for ns3::CfParameterSet:

Public Member Functions
	CfParameterSet ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const

uint8_t	GetCFPCount (void) const
	Return the CFP Count in DTIM frames unit. More...

uint64_t	GetCFPDurRemainingUs (void) const
	Return the remaining CFP duration in microseconds. More...

uint64_t	GetCFPMaxDurationUs (void) const
	Return the maximum CFP duration in microseconds. More...

uint8_t	GetCFPPeriod (void) const
	Return the CFP Period in DTIM frames unit. More...

uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint16_t	GetSerializedSize () const

Buffer::Iterator	Serialize (Buffer::Iterator start) const

void	SerializeInformationField (Buffer::Iterator start) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetCFPCount (uint8_t count)
	Set the CFP Count in DTIM frames unit. More...

void	SetCFPDurRemainingUs (uint64_t durRemaining)
	Set the remaining CFP duration in microseconds. More...

void	SetCFPMaxDurationUs (uint64_t maxDuration)
	Set the maximum CFP duration in microseconds. More...

void	SetCFPPeriod (uint8_t period)
	Set the CFP Period in DTIM frames unit. More...

void	SetPcfSupported (uint8_t pcfSupported)
	Set PCF supported function. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_CFPCount
	CFP Count. More...

uint64_t	m_CFPDurRemaining
	CFP remaining duration in microseconds. More...

uint64_t	m_CFPMaxDuration
	CFP maximum duration in microseconds. More...

uint8_t	m_CFPPeriod
	CFP Period. More...

uint8_t	m_pcfSupported
	This is used to decide if this element should be added to the frame or not. More...

Detailed Description

The CF Parameter Set

This class knows how to serialise and deserialise the CF Parameter Set.

Definition at line 34 of file cf-parameter-set.h.

Constructor & Destructor Documentation

◆ CfParameterSet()

ns3::CfParameterSet::CfParameterSet ( )

Definition at line 25 of file cf-parameter-set.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::CfParameterSet::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 87 of file cf-parameter-set.cc.

References m_CFPCount, m_CFPDurRemaining, m_CFPMaxDuration, m_CFPPeriod, NS_ASSERT, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

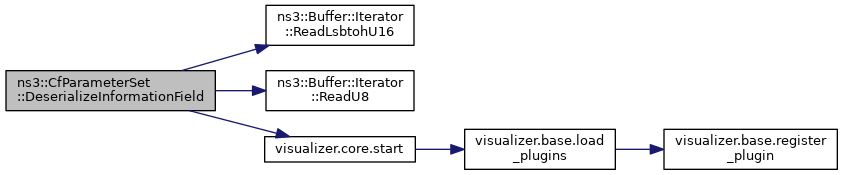

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::CfParameterSet::ElementId ( ) const

virtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 35 of file cf-parameter-set.cc.

References IE_CF_PARAMETER_SET.

◆ GetCFPCount()

uint8_t ns3::CfParameterSet::GetCFPCount ( void ) const

Return the CFP Count in DTIM frames unit.

Returns: the CFP Count in DTIM frames unit

Definition at line 102 of file cf-parameter-set.cc.

References m_CFPCount.

Referenced by ns3::operator<<(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetCFPDurRemainingUs()

uint64_t ns3::CfParameterSet::GetCFPDurRemainingUs ( void ) const

Return the remaining CFP duration in microseconds.

Returns: the remaining CFP duration in microseconds

Definition at line 120 of file cf-parameter-set.cc.

References m_CFPDurRemaining.

Referenced by ns3::operator<<(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetCFPMaxDurationUs()

uint64_t ns3::CfParameterSet::GetCFPMaxDurationUs ( void ) const

Return the maximum CFP duration in microseconds.

Returns: the maximum CFP duration in microseconds.

Definition at line 114 of file cf-parameter-set.cc.

References m_CFPMaxDuration.

Referenced by ns3::operator<<(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetCFPPeriod()

uint8_t ns3::CfParameterSet::GetCFPPeriod ( void ) const

Return the CFP Period in DTIM frames unit.

Returns: the CFP Period in DTIM frames unit

Definition at line 108 of file cf-parameter-set.cc.

References m_CFPPeriod.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint8_t ns3::CfParameterSet::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 47 of file cf-parameter-set.cc.

References m_pcfSupported, and NS_ASSERT.

◆ GetSerializedSize()

uint16_t ns3::CfParameterSet::GetSerializedSize ( void ) const

Definition at line 65 of file cf-parameter-set.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_pcfSupported.

Referenced by ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::CfParameterSet::Serialize ( Buffer::Iterator start ) const

Definition at line 55 of file cf-parameter-set.cc.

References m_pcfSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtProbeResponseHeader::Serialize().

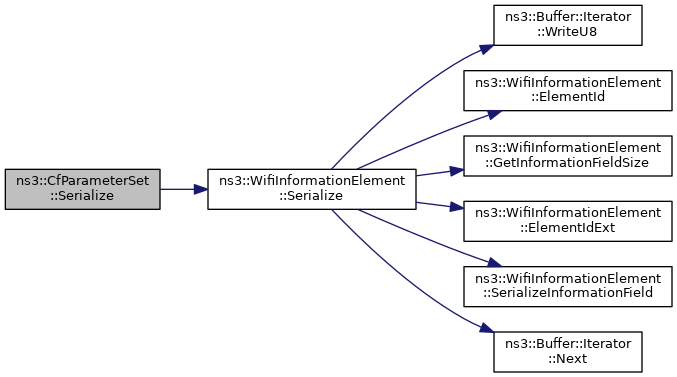

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::CfParameterSet::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 75 of file cf-parameter-set.cc.

References m_CFPCount, m_CFPDurRemaining, m_CFPMaxDuration, m_CFPPeriod, m_pcfSupported, and visualizer.core::start().

Here is the call graph for this function:

◆ SetCFPCount()

void ns3::CfParameterSet::SetCFPCount ( uint8_t count )

Set the CFP Count in DTIM frames unit.

Parameters

count the CFP Count in DTIM frames unit

Definition at line 126 of file cf-parameter-set.cc.

References m_CFPCount.

Referenced by ns3::ApWifiMac::GetCfParameterSet().

Here is the caller graph for this function:

◆ SetCFPDurRemainingUs()

void ns3::CfParameterSet::SetCFPDurRemainingUs ( uint64_t durRemaining )

Set the remaining CFP duration in microseconds.

Parameters

durRemaining the remaining CFP duration in microseconds

Definition at line 144 of file cf-parameter-set.cc.

References m_CFPDurRemaining.

Referenced by ns3::ApWifiMac::GetCfParameterSet().

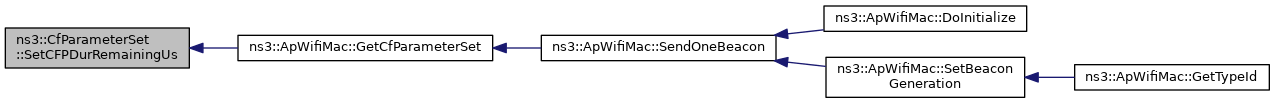

Here is the caller graph for this function:

◆ SetCFPMaxDurationUs()

void ns3::CfParameterSet::SetCFPMaxDurationUs ( uint64_t maxDuration )

Set the maximum CFP duration in microseconds.

Parameters

maxDuration the maximum CFP duration in microseconds

Definition at line 138 of file cf-parameter-set.cc.

References m_CFPMaxDuration.

Referenced by ns3::ApWifiMac::GetCfParameterSet().

Here is the caller graph for this function:

◆ SetCFPPeriod()

void ns3::CfParameterSet::SetCFPPeriod ( uint8_t period )

Set the CFP Period in DTIM frames unit.

Parameters

period the CFP Period in DTIM frames unit

Definition at line 132 of file cf-parameter-set.cc.

References m_CFPPeriod.

Referenced by ns3::ApWifiMac::GetCfParameterSet().

Here is the caller graph for this function:

◆ SetPcfSupported()

void ns3::CfParameterSet::SetPcfSupported ( uint8_t pcfSupported )

Set PCF supported function.

Parameters

pcfSupported the PCF supported indicator

Definition at line 41 of file cf-parameter-set.cc.

References m_pcfSupported.

Referenced by ns3::ApWifiMac::GetCfParameterSet().

Here is the caller graph for this function:

Member Data Documentation

◆ m_CFPCount

uint8_t ns3::CfParameterSet::m_CFPCount

private

CFP Count.

Definition at line 109 of file cf-parameter-set.h.

Referenced by DeserializeInformationField(), GetCFPCount(), SerializeInformationField(), and SetCFPCount().

◆ m_CFPDurRemaining

uint64_t ns3::CfParameterSet::m_CFPDurRemaining

private

CFP remaining duration in microseconds.

Definition at line 112 of file cf-parameter-set.h.

Referenced by DeserializeInformationField(), GetCFPDurRemainingUs(), SerializeInformationField(), and SetCFPDurRemainingUs().

◆ m_CFPMaxDuration

uint64_t ns3::CfParameterSet::m_CFPMaxDuration

private

CFP maximum duration in microseconds.

Definition at line 111 of file cf-parameter-set.h.

Referenced by DeserializeInformationField(), GetCFPMaxDurationUs(), SerializeInformationField(), and SetCFPMaxDurationUs().

◆ m_CFPPeriod

uint8_t ns3::CfParameterSet::m_CFPPeriod

private

CFP Period.

Definition at line 110 of file cf-parameter-set.h.

Referenced by DeserializeInformationField(), GetCFPPeriod(), SerializeInformationField(), and SetCFPPeriod().

◆ m_pcfSupported

uint8_t ns3::CfParameterSet::m_pcfSupported

private

This is used to decide if this element should be added to the frame or not.

Definition at line 115 of file cf-parameter-set.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetPcfSupported().

The documentation for this class was generated from the following files:

src/wifi/model/cf-parameter-set.h
src/wifi/model/cf-parameter-set.cc
