ns3::ChannelCoordinationListener Class Reference

receive notifications about channel coordination events. More...

#include "channel-coordinator.h"

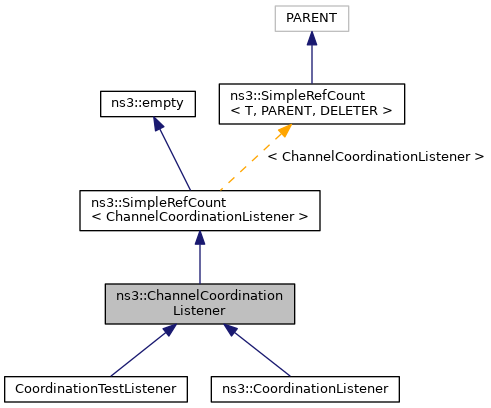

Inheritance diagram for ns3::ChannelCoordinationListener:

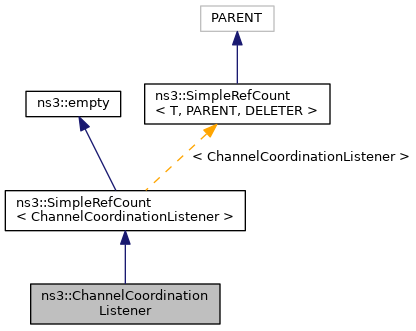

Collaboration diagram for ns3::ChannelCoordinationListener:

Public Member Functions
virtual	~ChannelCoordinationListener (void)
virtual void	NotifyCchSlotStart (Time duration)=0
virtual void	NotifyGuardSlotStart (Time duration, bool cchi)=0
virtual void	NotifySchSlotStart (Time duration)=0
Public Member Functions inherited from ns3::SimpleRefCount< ChannelCoordinationListener >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Detailed Description

receive notifications about channel coordination events.

Definition at line 30 of file channel-coordinator.h.

Constructor & Destructor Documentation

~ChannelCoordinationListener()

ns3::ChannelCoordinationListener::~ChannelCoordinationListener ( void  )

virtual

Definition at line 30 of file channel-coordinator.cc.

Member Function Documentation

NotifyCchSlotStart()

virtual void ns3::ChannelCoordinationListener::NotifyCchSlotStart ( Time  duration )

pure virtual

Parameters

duration

the CCH access time (CCHI - GI) continues,

Implemented in CoordinationTestListener, and ns3::CoordinationListener.

NotifyGuardSlotStart()

virtual void ns3::ChannelCoordinationListener::NotifyGuardSlotStart ( Time  duration, bool  cchi  )

pure virtual

Parameters

duration	the time Guard access time (GI) continues
cchi	indicate whether the guard slot is in the GI of CCHI or SCHI.

Implemented in CoordinationTestListener, and ns3::CoordinationListener.

NotifySchSlotStart()

virtual void ns3::ChannelCoordinationListener::NotifySchSlotStart ( Time  duration )

pure virtual

Parameters

duration

the SCH access time (SCHI - GI) continues,

Implemented in CoordinationTestListener, and ns3::CoordinationListener.

---

The documentation for this class was generated from the following files:

• src/wave/model/channel-coordinator.h
• src/wave/model/channel-coordinator.cc
