Headers for BlockAck response. More...

#include "ctrl-headers.h"

Inheritance diagram for ns3::CtrlBAckResponseHeader:

Collaboration diagram for ns3::CtrlBAckResponseHeader:

Public Member Functions
	CtrlBAckResponseHeader ()

	~CtrlBAckResponseHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

const uint16_t *	GetBitmap (void) const
	Return the bitmap from the BlockAck response header. More...

uint64_t	GetCompressedBitmap (void) const
	Return the compressed bitmap from the BlockAck response header. More...

const uint64_t *	GetExtendedCompressedBitmap (void) const
	Return the extended compressed bitmap from the BlockAck response header. More...

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

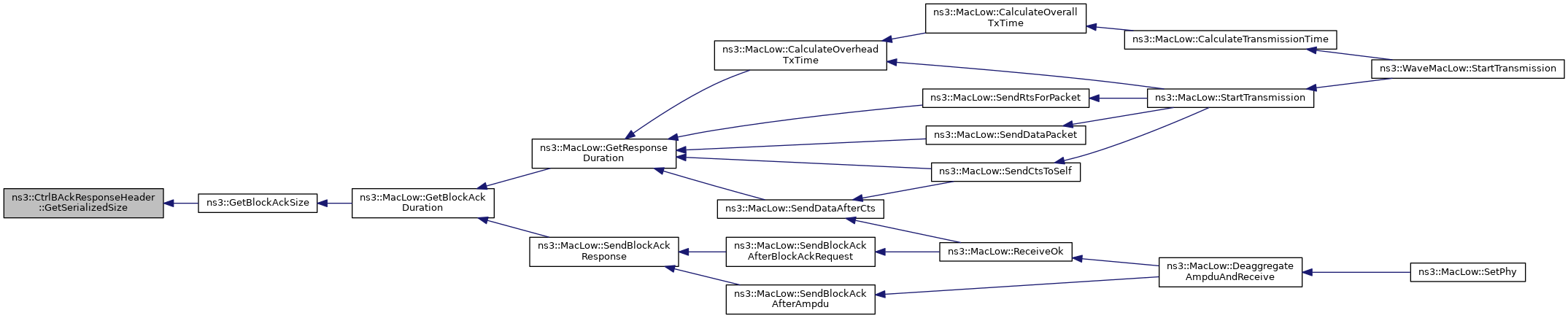

uint32_t	GetSerializedSize (void) const

uint16_t	GetStartingSequence (void) const
	Return the starting sequence number. More...

uint16_t	GetStartingSequenceControl (void) const
	Return the starting sequence control. More...

uint8_t	GetTidInfo (void) const
	Return the Traffic ID (TID). More...

BlockAckType	GetType (void) const
	Return the block ack type ID. More...

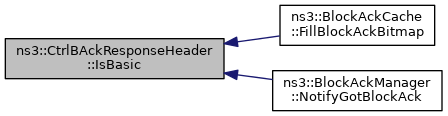

bool	IsBasic (void) const
	Check if the current BA policy is Basic Block Ack. More...

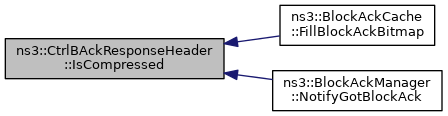

bool	IsCompressed (void) const
	Check if the current BA policy is Compressed Block Ack. More...

bool	IsExtendedCompressed (void) const
	Check if the current BA policy is Extended Compressed Block Ack. More...

bool	IsFragmentReceived (uint16_t seq, uint8_t frag) const
	Check if the packet with the given sequence number and fragment number was acknowledged in this BlockAck response. More...

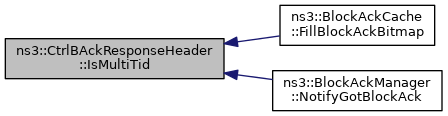

bool	IsMultiTid (void) const
	Check if the current BA policy is Multi-TID Block Ack. More...

bool	IsPacketReceived (uint16_t seq) const
	Check if the packet with the given sequence number was acknowledged in this BlockAck response. More...

bool	MustSendHtImmediateAck (void) const
	Check if the current Ack Policy is immediate. More...

void	Print (std::ostream &os) const

void	ResetBitmap (void)
	Reset the bitmap to 0. More...

void	Serialize (Buffer::Iterator start) const

void	SetHtImmediateAck (bool immediateAck)
	Enable or disable HT immediate Ack. More...

void	SetReceivedFragment (uint16_t seq, uint8_t frag)
	Set the bitmap that the packet with the given sequence number and fragment number was received. More...

void	SetReceivedPacket (uint16_t seq)
	Set the bitmap that the packet with the given sequence number was received. More...

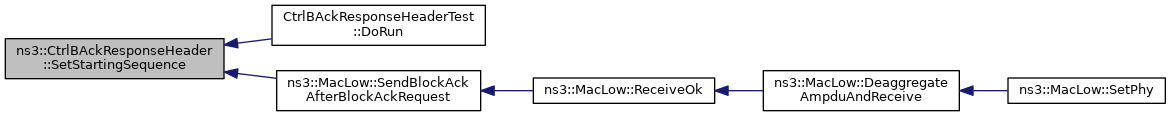

void	SetStartingSequence (uint16_t seq)
	Set the starting sequence number from the given raw sequence control field. More...

void	SetStartingSequenceControl (uint16_t seqControl)
	Set the starting sequence control with the given sequence control value. More...

void	SetTidInfo (uint8_t tid)
	Set Traffic ID (TID). More...

void	SetType (BlockAckType type)
	Set the block ack type. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
Buffer::Iterator	DeserializeBitmap (Buffer::Iterator start)
	Deserialize bitmap from the given buffer. More...

uint16_t	GetBaControl (void) const
	Return the Block Ack control. More...

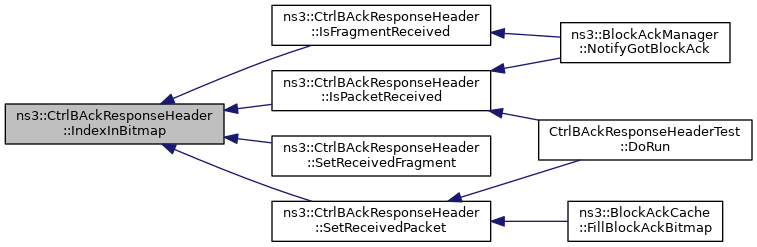

uint16_t	IndexInBitmap (uint16_t seq) const
	This function is used to correctly index in both bitmap and compressed bitmap, one bit or one block of 16 bits respectively. More...

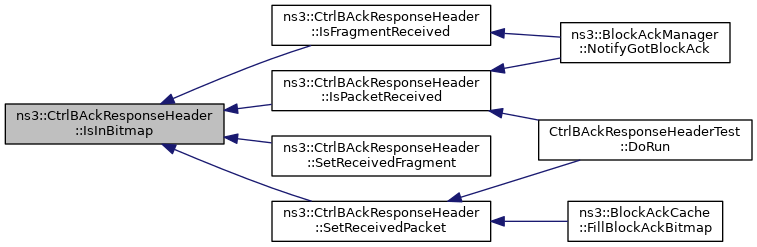

bool	IsInBitmap (uint16_t seq) const
	Checks if sequence number seq can be acknowledged in the bitmap. More...

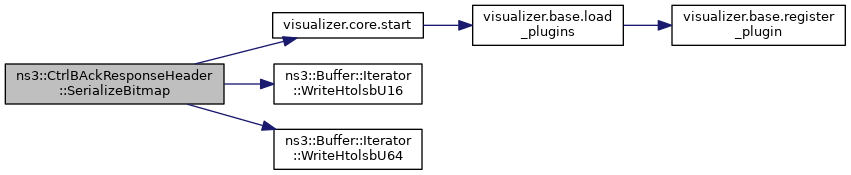

Buffer::Iterator	SerializeBitmap (Buffer::Iterator start) const
	Serialize bitmap to the given buffer. More...

void	SetBaControl (uint16_t ba)
	Set the Block Ack control. More...

Private Attributes
union {
uint16_t m_bitmap [64]
	the basic BlockAck bitmap More...

uint64_t m_compressedBitmap
	the compressed BlockAck bitmap More...

uint64_t m_extendedCompressedBitmap [4]
	the extended compressed BlockAck bitmap More...

}	bitmap
	bitmap union type More...

bool	m_baAckPolicy
	The LSB bit of the BA control field is used only for the HT (High Throughput) delayed block ack configuration. More...

BlockAckType	m_baType
	BA type. More...

uint16_t	m_startingSeq
	starting sequence number More...

uint16_t	m_tidInfo
	TID info. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Headers for BlockAck response.

Introspection did not find any typical Config paths.

802.11n standard includes three types of BlockAck:

Basic BlockAck (unique type in 802.11e)
Compressed BlockAck
Multi-TID BlockAck For now only basic BlockAck and compressed BlockAck are supported. Basic BlockAck is also default variant.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 152 bytes (on a 64-bit architecture).

Definition at line 193 of file ctrl-headers.h.

Constructor & Destructor Documentation

◆ CtrlBAckResponseHeader()

ns3::CtrlBAckResponseHeader::CtrlBAckResponseHeader ( )

Definition at line 270 of file ctrl-headers.cc.

References bitmap.

◆ ~CtrlBAckResponseHeader()

ns3::CtrlBAckResponseHeader::~CtrlBAckResponseHeader ( )

Definition at line 277 of file ctrl-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::CtrlBAckResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 353 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, DeserializeBitmap(), ns3::EXTENDED_COMPRESSED_BLOCK_ACK, ns3::Buffer::Iterator::GetDistanceFrom(), m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadLsbtohU16(), SetBaControl(), SetStartingSequenceControl(), and visualizer.core::start().

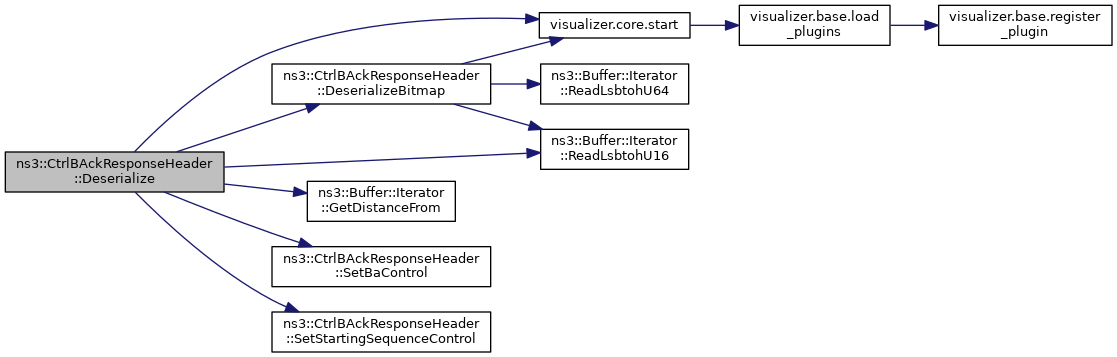

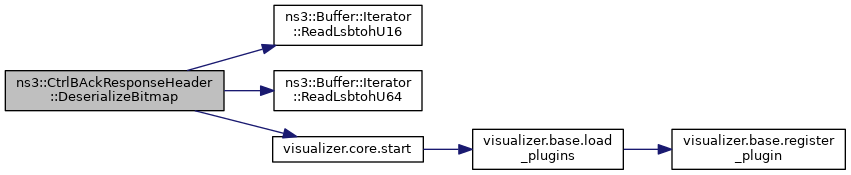

Here is the call graph for this function:

◆ DeserializeBitmap()

Buffer::Iterator ns3::CtrlBAckResponseHeader::DeserializeBitmap ( Buffer::Iterator start )

private

Deserialize bitmap from the given buffer.

Parameters

start the iterator

Returns: Buffer::Iterator to the next available buffer

Definition at line 544 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), and visualizer.core::start().

Referenced by Deserialize().

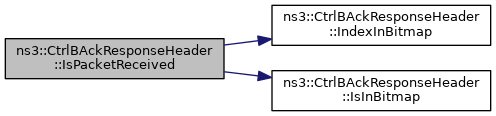

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBaControl()

uint16_t ns3::CtrlBAckResponseHeader::GetBaControl ( void ) const

private

Return the Block Ack control.

Returns: the Block Ack control

Definition at line 449 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baAckPolicy, m_baType, m_tidInfo, ns3::MULTI_TID_BLOCK_ACK, and NS_FATAL_ERROR.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetBitmap()

const uint16_t * ns3::CtrlBAckResponseHeader::GetBitmap ( void ) const

Return the bitmap from the BlockAck response header.

Returns: the bitmap from the BlockAck response header

Definition at line 762 of file ctrl-headers.cc.

References bitmap.

◆ GetCompressedBitmap()

uint64_t ns3::CtrlBAckResponseHeader::GetCompressedBitmap ( void ) const

Return the compressed bitmap from the BlockAck response header.

Returns: the compressed bitmap from the BlockAck response header

Definition at line 768 of file ctrl-headers.cc.

References bitmap.

Referenced by CtrlBAckResponseHeaderTest::DoRun().

Here is the caller graph for this function:

◆ GetExtendedCompressedBitmap()

const uint64_t * ns3::CtrlBAckResponseHeader::GetExtendedCompressedBitmap ( void ) const

Return the extended compressed bitmap from the BlockAck response header.

Returns: the extended compressed bitmap from the BlockAck response header

Definition at line 774 of file ctrl-headers.cc.

References bitmap.

◆ GetInstanceTypeId()

TypeId ns3::CtrlBAckResponseHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 293 of file ctrl-headers.cc.

References GetTypeId().

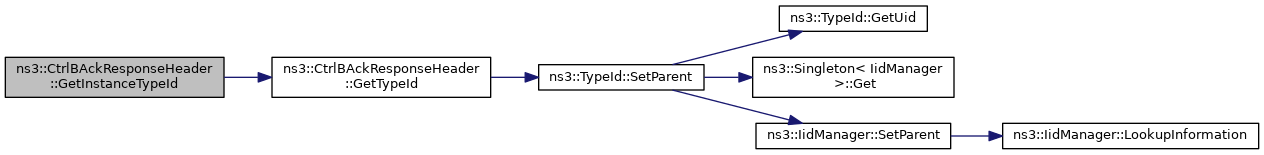

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::CtrlBAckResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 305 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baType, m_tidInfo, ns3::MULTI_TID_BLOCK_ACK, and NS_FATAL_ERROR.

Referenced by ns3::GetBlockAckSize().

Here is the caller graph for this function:

◆ GetStartingSequence()

uint16_t ns3::CtrlBAckResponseHeader::GetStartingSequence ( void ) const

Return the starting sequence number.

Returns: the starting sequence number

Definition at line 419 of file ctrl-headers.cc.

References m_startingSeq.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap().

Here is the caller graph for this function:

◆ GetStartingSequenceControl()

uint16_t ns3::CtrlBAckResponseHeader::GetStartingSequenceControl ( void ) const

Return the starting sequence control.

Returns: the starting sequence control

Definition at line 501 of file ctrl-headers.cc.

References m_startingSeq.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetTidInfo()

uint8_t ns3::CtrlBAckResponseHeader::GetTidInfo ( void ) const

Return the Traffic ID (TID).

Returns: TID

Definition at line 412 of file ctrl-headers.cc.

References m_tidInfo.

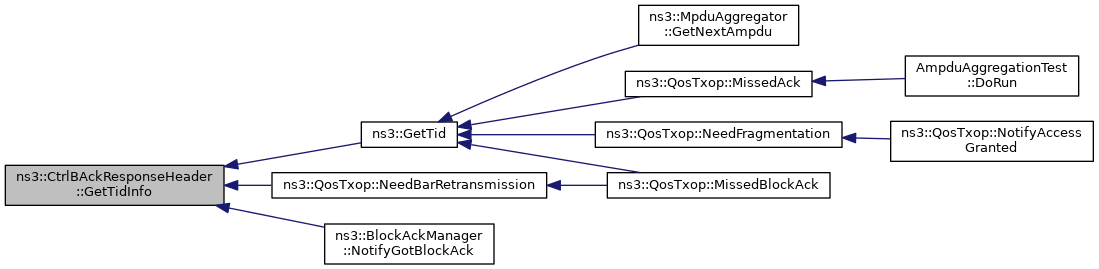

Referenced by ns3::GetTid(), ns3::QosTxop::NeedBarRetransmission(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

◆ GetType()

BlockAckType ns3::CtrlBAckResponseHeader::GetType ( void ) const

Return the block ack type ID.

Returns: type

Definition at line 388 of file ctrl-headers.cc.

References m_baType.

Referenced by ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::CtrlBAckResponseHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 282 of file ctrl-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IndexInBitmap()

uint16_t ns3::CtrlBAckResponseHeader::IndexInBitmap ( uint16_t seq ) const

private

This function is used to correctly index in both bitmap and compressed bitmap, one bit or one block of 16 bits respectively.

for more details see 7.2.1.8 in IEEE 802.11n/D4.00

Parameters

seq	the sequence number

Returns: If we are using basic block ack, return value represents index of block of 16 bits for packet having sequence number equals to seq. If we are using compressed block ack, return value represents bit to set to 1 in the compressed bitmap to indicate that packet having sequence number equals to seq was correctly received.

Definition at line 726 of file ctrl-headers.cc.

References ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baType, m_startingSeq, and NS_ASSERT.

Referenced by IsFragmentReceived(), IsPacketReceived(), SetReceivedFragment(), and SetReceivedPacket().

Here is the caller graph for this function:

◆ IsBasic()

bool ns3::CtrlBAckResponseHeader::IsBasic ( void ) const

Check if the current BA policy is Basic Block Ack.

Returns: true if the current BA policy is Basic Block Ack, false otherwise

Definition at line 425 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, and m_baType.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

◆ IsCompressed()

bool ns3::CtrlBAckResponseHeader::IsCompressed ( void ) const

Check if the current BA policy is Compressed Block Ack.

Returns: true if the current BA policy is Compressed Block Ack, false otherwise

Definition at line 431 of file ctrl-headers.cc.

References ns3::COMPRESSED_BLOCK_ACK, and m_baType.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

◆ IsExtendedCompressed()

bool ns3::CtrlBAckResponseHeader::IsExtendedCompressed ( void ) const

Check if the current BA policy is Extended Compressed Block Ack.

Returns: true if the current BA policy is Extended Compressed Block Ack, false otherwise

Definition at line 437 of file ctrl-headers.cc.

References ns3::EXTENDED_COMPRESSED_BLOCK_ACK, and m_baType.

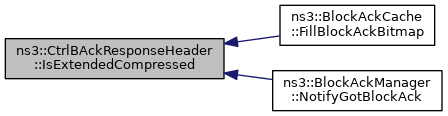

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

◆ IsFragmentReceived()

bool ns3::CtrlBAckResponseHeader::IsFragmentReceived	(	uint16_t	seq,
		uint8_t	frag
	)		const

Check if the packet with the given sequence number and fragment number was acknowledged in this BlockAck response.

Parameters

seq	the sequence number
frag	the fragment number

Returns: true if the packet with the given sequence number and sequence number was acknowledged in this BlockAck response, false otherwise

Definition at line 684 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, IndexInBitmap(), IsInBitmap(), m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_ASSERT, and NS_FATAL_ERROR.

Referenced by ns3::BlockAckManager::NotifyGotBlockAck().

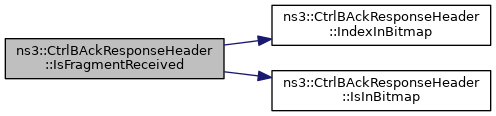

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsInBitmap()

bool ns3::CtrlBAckResponseHeader::IsInBitmap ( uint16_t seq ) const

private

Checks if sequence number seq can be acknowledged in the bitmap.

Parameters

seq	the sequence number

Returns: true if the sequence number is concerned by the bitmap

Definition at line 749 of file ctrl-headers.cc.

References ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baType, and m_startingSeq.

Referenced by IsFragmentReceived(), IsPacketReceived(), SetReceivedFragment(), and SetReceivedPacket().

Here is the caller graph for this function:

◆ IsMultiTid()

bool ns3::CtrlBAckResponseHeader::IsMultiTid ( void ) const

Check if the current BA policy is Multi-TID Block Ack.

Returns: true if the current BA policy is Multi-TID Block Ack, false otherwise

Definition at line 443 of file ctrl-headers.cc.

References m_baType, and ns3::MULTI_TID_BLOCK_ACK.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

◆ IsPacketReceived()

bool ns3::CtrlBAckResponseHeader::IsPacketReceived ( uint16_t seq ) const

Check if the packet with the given sequence number was acknowledged in this BlockAck response.

Parameters

seq	the sequence number

Returns: true if the packet with the given sequence number was ACKed in this BlockAck response, false otherwise

Definition at line 642 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, IndexInBitmap(), IsInBitmap(), m_baType, ns3::MULTI_TID_BLOCK_ACK, and NS_FATAL_ERROR.

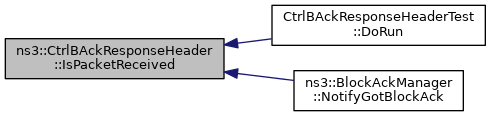

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MustSendHtImmediateAck()

bool ns3::CtrlBAckResponseHeader::MustSendHtImmediateAck ( void ) const

Check if the current Ack Policy is immediate.

Returns: true if the current Ack Policy is immediate, false otherwise

Definition at line 406 of file ctrl-headers.cc.

References m_baAckPolicy.

◆ Print()

void ns3::CtrlBAckResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 299 of file ctrl-headers.cc.

References m_startingSeq, and m_tidInfo.

◆ ResetBitmap()

void ns3::CtrlBAckResponseHeader::ResetBitmap ( void )

Reset the bitmap to 0.

Definition at line 780 of file ctrl-headers.cc.

References bitmap.

Referenced by CtrlBAckResponseHeaderTest::DoRun().

Here is the caller graph for this function:

◆ Serialize()

void ns3::CtrlBAckResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 331 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, GetBaControl(), GetStartingSequenceControl(), m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, SerializeBitmap(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

Here is the call graph for this function:

◆ SerializeBitmap()

Buffer::Iterator ns3::CtrlBAckResponseHeader::SerializeBitmap ( Buffer::Iterator start ) const

private

Serialize bitmap to the given buffer.

Parameters

start the iterator

Returns: Buffer::Iterator to the next available buffer

Definition at line 513 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteHtolsbU64().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBaControl()

void ns3::CtrlBAckResponseHeader::SetBaControl ( uint16_t ba )

private

Set the Block Ack control.

Parameters

ba	the BA control to set

Definition at line 478 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, m_baAckPolicy, m_baType, m_tidInfo, and ns3::MULTI_TID_BLOCK_ACK.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetHtImmediateAck()

void ns3::CtrlBAckResponseHeader::SetHtImmediateAck ( bool immediateAck )

Enable or disable HT immediate Ack.

Parameters

immediateAck enable or disable HT immediate Ack

Definition at line 376 of file ctrl-headers.cc.

References m_baAckPolicy.

◆ SetReceivedFragment()

void ns3::CtrlBAckResponseHeader::SetReceivedFragment	(	uint16_t	seq,
		uint8_t	frag
	)

Set the bitmap that the packet with the given sequence number and fragment number was received.

Parameters

seq	the sequence number
frag	the fragment number

Definition at line 615 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, IndexInBitmap(), IsInBitmap(), m_baType, ns3::MULTI_TID_BLOCK_ACK, NS_ASSERT, and NS_FATAL_ERROR.

Here is the call graph for this function:

◆ SetReceivedPacket()

void ns3::CtrlBAckResponseHeader::SetReceivedPacket ( uint16_t seq )

Set the bitmap that the packet with the given sequence number was received.

Parameters

seq	the sequence number

Definition at line 575 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, bitmap, ns3::COMPRESSED_BLOCK_ACK, ns3::EXTENDED_COMPRESSED_BLOCK_ACK, IndexInBitmap(), IsInBitmap(), m_baType, ns3::MULTI_TID_BLOCK_ACK, and NS_FATAL_ERROR.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::BlockAckCache::FillBlockAckBitmap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStartingSequence()

void ns3::CtrlBAckResponseHeader::SetStartingSequence ( uint16_t seq )

Set the starting sequence number from the given raw sequence control field.

Parameters

seq	the raw sequence control

Definition at line 400 of file ctrl-headers.cc.

References m_startingSeq.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::MacLow::SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

◆ SetStartingSequenceControl()

void ns3::CtrlBAckResponseHeader::SetStartingSequenceControl ( uint16_t seqControl )

Set the starting sequence control with the given sequence control value.

Parameters

seqControl the raw sequence control value

Definition at line 507 of file ctrl-headers.cc.

References m_startingSeq.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetTidInfo()

void ns3::CtrlBAckResponseHeader::SetTidInfo ( uint8_t tid )

Set Traffic ID (TID).

Parameters

tid the TID

Definition at line 394 of file ctrl-headers.cc.

References m_tidInfo.

Referenced by ns3::MacLow::SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

◆ SetType()

void ns3::CtrlBAckResponseHeader::SetType ( BlockAckType type )

Set the block ack type.

Parameters

type	the BA type

Definition at line 382 of file ctrl-headers.cc.

References m_baType.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), ns3::GetBlockAckSize(), and ns3::MacLow::SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

Member Data Documentation

◆ bitmap

union { ... } ns3::CtrlBAckResponseHeader::bitmap

bitmap union type

Referenced by CtrlBAckResponseHeader(), DeserializeBitmap(), GetBitmap(), GetCompressedBitmap(), GetExtendedCompressedBitmap(), IsFragmentReceived(), IsPacketReceived(), ResetBitmap(), SerializeBitmap(), SetReceivedFragment(), and SetReceivedPacket().

◆ m_baAckPolicy

bool ns3::CtrlBAckResponseHeader::m_baAckPolicy

private

The LSB bit of the BA control field is used only for the HT (High Throughput) delayed block ack configuration.

For now only non HT immediate block ack is implemented so this field is here only for a future implementation of HT delayed variant.BA Ack Policy

Definition at line 423 of file ctrl-headers.h.

Referenced by GetBaControl(), MustSendHtImmediateAck(), SetBaControl(), and SetHtImmediateAck().

◆ m_baType

BlockAckType ns3::CtrlBAckResponseHeader::m_baType

private

BA type.

Definition at line 424 of file ctrl-headers.h.

Referenced by Deserialize(), DeserializeBitmap(), GetBaControl(), GetSerializedSize(), GetType(), IndexInBitmap(), IsBasic(), IsCompressed(), IsExtendedCompressed(), IsFragmentReceived(), IsInBitmap(), IsMultiTid(), IsPacketReceived(), Serialize(), SerializeBitmap(), SetBaControl(), SetReceivedFragment(), SetReceivedPacket(), and SetType().

◆ m_bitmap

uint16_t ns3::CtrlBAckResponseHeader::m_bitmap[64]

the basic BlockAck bitmap

Definition at line 430 of file ctrl-headers.h.

◆ m_compressedBitmap

uint64_t ns3::CtrlBAckResponseHeader::m_compressedBitmap

the compressed BlockAck bitmap

Definition at line 431 of file ctrl-headers.h.

◆ m_extendedCompressedBitmap

uint64_t ns3::CtrlBAckResponseHeader::m_extendedCompressedBitmap[4]

the extended compressed BlockAck bitmap

Definition at line 432 of file ctrl-headers.h.

◆ m_startingSeq

uint16_t ns3::CtrlBAckResponseHeader::m_startingSeq

private

starting sequence number

Definition at line 426 of file ctrl-headers.h.

Referenced by GetStartingSequence(), GetStartingSequenceControl(), IndexInBitmap(), IsInBitmap(), Print(), SetStartingSequence(), and SetStartingSequenceControl().

◆ m_tidInfo

uint16_t ns3::CtrlBAckResponseHeader::m_tidInfo

private

TID info.

Definition at line 425 of file ctrl-headers.h.

Referenced by GetBaControl(), GetSerializedSize(), GetTidInfo(), Print(), SetBaControl(), and SetTidInfo().

The documentation for this class was generated from the following files:

src/wifi/model/ctrl-headers.h
src/wifi/model/ctrl-headers.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CtrlBAckResponseHeader()

◆ ~CtrlBAckResponseHeader()

Member Function Documentation

◆ Deserialize()

◆ DeserializeBitmap()

◆ GetBaControl()

◆ GetBitmap()

◆ GetCompressedBitmap()

◆ GetExtendedCompressedBitmap()

◆ GetInstanceTypeId()

◆ GetSerializedSize()

◆ GetStartingSequence()

◆ GetStartingSequenceControl()

◆ GetTidInfo()

◆ GetType()

◆ GetTypeId()

◆ IndexInBitmap()

◆ IsBasic()

◆ IsCompressed()

◆ IsExtendedCompressed()

◆ IsFragmentReceived()

◆ IsInBitmap()

◆ IsMultiTid()

◆ IsPacketReceived()

◆ MustSendHtImmediateAck()

◆ Print()

◆ ResetBitmap()

◆ Serialize()

◆ SerializeBitmap()

◆ SetBaControl()

◆ SetHtImmediateAck()

◆ SetReceivedFragment()

◆ SetReceivedPacket()

◆ SetStartingSequence()

◆ SetStartingSequenceControl()

◆ SetTidInfo()

◆ SetType()

Member Data Documentation

◆ bitmap

◆ m_baAckPolicy

◆ m_baType

◆ m_bitmap

◆ m_compressedBitmap

◆ m_extendedCompressedBitmap

◆ m_startingSeq

◆ m_tidInfo
