ns3::DataOutputCallback Class Referenceabstract

Callback class for the DataOutput classes. More...

#include "data-output-interface.h"

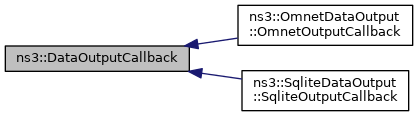

+ Inheritance diagram for ns3::DataOutputCallback:

Public Member Functions

virtual ~DataOutputCallback ()
 Destructor. More...

virtual void OutputSingleton (std::string key, std::string variable, int val)=0
 Associates the integer value with the variable name for a specific output format. More...

virtual void OutputSingleton (std::string key, std::string variable, uint32_t val)=0
 Associates the uint32_t value with the variable name for a specific output format. More...

virtual void OutputSingleton (std::string key, std::string variable, double val)=0
 Associates the double value with the variable name for a specific output format. More...

virtual void OutputSingleton (std::string key, std::string variable, std::string val)=0
 Associates the string value with the variable name for a specific output format. More...

virtual void OutputSingleton (std::string key, std::string variable, Time val)=0
 Associates the Time value with the variable name for a specific output format. More...

virtual void OutputStatistic (std::string key, std::string variable, const StatisticalSummary *statSum)=0
 Outputs the data from the specified StatisticalSummary. More...


Detailed Description

Callback class for the DataOutput classes.

Definition at line 81 of file data-output-interface.h.

Constructor & Destructor Documentation

◆ ~DataOutputCallback()

virtual ns3::DataOutputCallback::~DataOutputCallback ( )
inlinevirtual

Destructor.

Definition at line 86 of file data-output-interface.h.

Member Function Documentation

◆ OutputSingleton() [1/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
int  val
)
pure virtual

Associates the integer value with the variable name for a specific output format.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
valValue to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::TimeMinMaxAvgTotalCalculator::Output(), and ns3::CounterCalculator<>::Output().

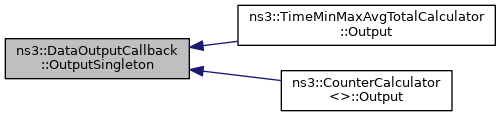

+ Here is the caller graph for this function:

◆ OutputSingleton() [2/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
uint32_t  val
)
pure virtual

Associates the uint32_t value with the variable name for a specific output format.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
valValue to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

◆ OutputSingleton() [3/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
double  val
)
pure virtual

Associates the double value with the variable name for a specific output format.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
valValue to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

◆ OutputSingleton() [4/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
std::string  val
)
pure virtual

Associates the string value with the variable name for a specific output format.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
valValue to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

◆ OutputSingleton() [5/5]

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
Time  val
)
pure virtual

Associates the Time value with the variable name for a specific output format.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
valValue to be stored

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

◆ OutputStatistic()

virtual void ns3::DataOutputCallback::OutputStatistic ( std::string  key,
std::string  variable,
const StatisticalSummary statSum
)
pure virtual

Outputs the data from the specified StatisticalSummary.

Parameters
keyKey value of a DataCalculator
variableName of the variable for which statistics are being provided
statSumPointer to a StatisticalSummary object

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::Output().

+ Here is the caller graph for this function:

The documentation for this class was generated from the following file:
