An object that monitors and reports back packet flows observed during a simulation. More...

#include "flow-monitor.h"

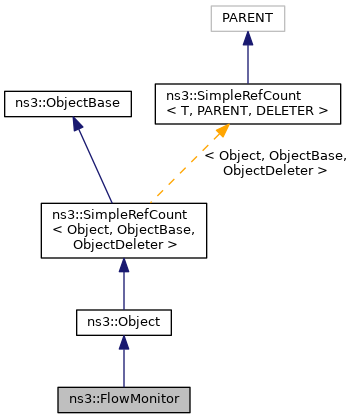

Inheritance diagram for ns3::FlowMonitor:

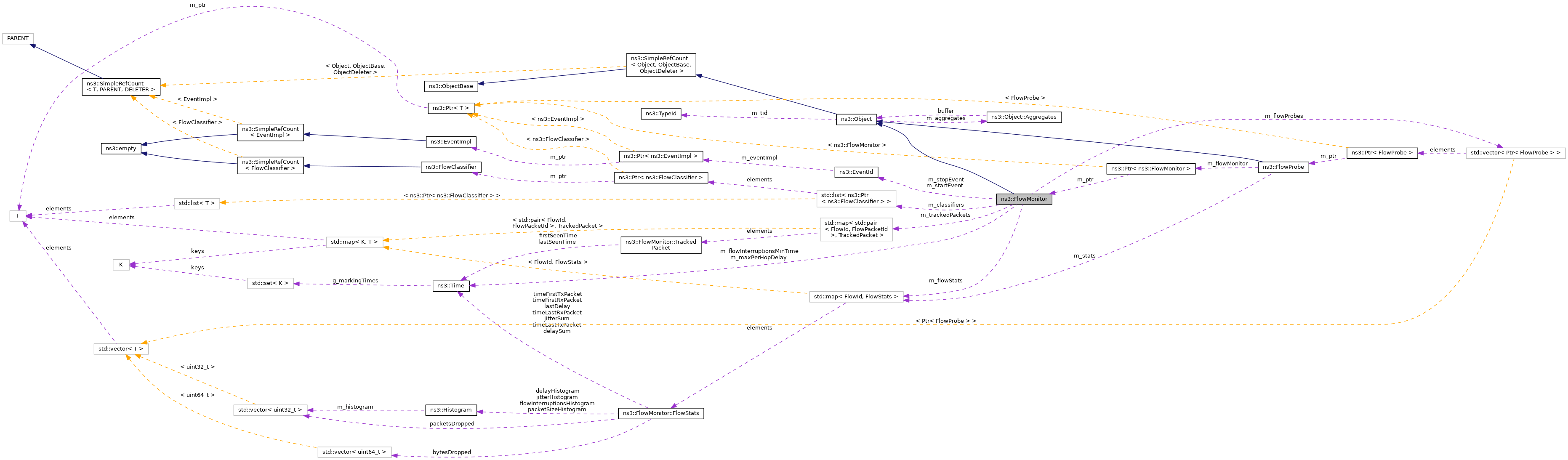

Collaboration diagram for ns3::FlowMonitor:

Classes
struct	FlowStats
	Structure that represents the measured metrics of an individual packet flow. More...

struct	TrackedPacket
	Structure to represent a single tracked packet data. More...

Public Types
typedef std::vector< Ptr< FlowProbe > >	FlowProbeContainer
	Container: FlowProbe. More...

typedef std::vector< Ptr< FlowProbe > >::const_iterator	FlowProbeContainerCI
	Container Const Iterator: FlowProbe. More...

typedef std::vector< Ptr< FlowProbe > >::iterator	FlowProbeContainerI
	Container Iterator: FlowProbe. More...

typedef std::map< FlowId, FlowStats >	FlowStatsContainer
	Container: FlowId, FlowStats. More...

typedef std::map< FlowId, FlowStats >::const_iterator	FlowStatsContainerCI
	Container Const Iterator: FlowId, FlowStats. More...

typedef std::map< FlowId, FlowStats >::iterator	FlowStatsContainerI
	Container Iterator: FlowId, FlowStats. More...

Public Member Functions
	FlowMonitor ()

void	AddFlowClassifier (Ptr< FlowClassifier > classifier)
	Add a FlowClassifier to be used by the flow monitor. More...

void	AddProbe (Ptr< FlowProbe > probe)
	Register a new FlowProbe that will begin monitoring and report events to this monitor. More...

void	CheckForLostPackets ()
	Check right now for packets that appear to be lost. More...

void	CheckForLostPackets (Time maxDelay)
	Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay. More...

const FlowProbeContainer &	GetAllProbes () const
	Get a list of all FlowProbe's associated with this FlowMonitor. More...

const FlowStatsContainer &	GetFlowStats () const
	Retrieve all collected the flow statistics. More...

virtual TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

void	ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)
	FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason. More...

void	ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded). More...

void	ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded. More...

void	ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a known packet is being received. More...

void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but writes to a file instead. More...

void	SerializeToXmlStream (std::ostream &os, uint16_t indent, bool enableHistograms, bool enableProbes)
	Serializes the results to an std::ostream in XML format. More...

std::string	SerializeToXmlString (uint16_t indent, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but returns the output as a std::string. More...

void	Start (const Time &time)
	Set the time, counting from the current time, from which to start monitoring flows. More...

void	StartRightNow ()
	Begin monitoring flows right now More...

void	Stop (const Time &time)
	Set the time, counting from the current time, from which to stop monitoring flows. More...

void	StopRightNow ()
	End monitoring flows right now More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

Private Types
typedef std::map< std::pair< FlowId, FlowPacketId >, TrackedPacket >	TrackedPacketMap
	(FlowId,PacketId) –> TrackedPacket More...

Private Member Functions
FlowStats &	GetStatsForFlow (FlowId flowId)
	Get the stats for a given flow. More...

void	PeriodicCheckForLostPackets ()
	Periodic function to check for lost packets and prune statistics. More...

Private Attributes
std::list< Ptr< FlowClassifier > >	m_classifiers
	the FlowClassifiers More...

double	m_delayBinWidth
	Delay bin width (for histograms) More...

bool	m_enabled
	FlowMon is enabled. More...

double	m_flowInterruptionsBinWidth
	Flow interruptions bin width (for histograms) More...

Time	m_flowInterruptionsMinTime
	Flow interruptions minimum time. More...

FlowProbeContainer	m_flowProbes
	all the FlowProbes More...

FlowStatsContainer	m_flowStats
	FlowId –> FlowStats. More...

double	m_jitterBinWidth
	Jitter bin width (for histograms) More...

Time	m_maxPerHopDelay
	Minimum per-hop delay. More...

double	m_packetSizeBinWidth
	packet size bin width (for histograms) More...

EventId	m_startEvent
	Start event. More...

EventId	m_stopEvent
	Stop event. More...

TrackedPacketMap	m_trackedPackets
	Tracked packets. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

Introspection did not find any typical Config paths.

The FlowMonitor class is responsible for coordinating efforts regarding probes, and collects end-to-end flow statistics.

Attributes

MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +1e+10ns
- Flags: construct write read
StartTime: The time when the monitoring starts.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write
DelayBinWidth: The width used in the delay histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
JitterBinWidth: The width used in the jitter histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
PacketSizeBinWidth: The width used in the packetSize histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
FlowInterruptionsBinWidth: The width used in the flowInterruptions histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.25
- Flags: construct write read
FlowInterruptionsMinTime: The minimum inter-arrival time that is considered a flow interruption.
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+08ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 50 of file flow-monitor.h.

Member Typedef Documentation

◆ FlowProbeContainer

typedef std::vector< Ptr<FlowProbe> > ns3::FlowMonitor::FlowProbeContainer

Container: FlowProbe.

Definition at line 224 of file flow-monitor.h.

◆ FlowProbeContainerCI

typedef std::vector< Ptr<FlowProbe> >::const_iterator ns3::FlowMonitor::FlowProbeContainerCI

Container Const Iterator: FlowProbe.

Definition at line 228 of file flow-monitor.h.

◆ FlowProbeContainerI

typedef std::vector< Ptr<FlowProbe> >::iterator ns3::FlowMonitor::FlowProbeContainerI

Container Iterator: FlowProbe.

Definition at line 226 of file flow-monitor.h.

◆ FlowStatsContainer

typedef std::map<FlowId, FlowStats> ns3::FlowMonitor::FlowStatsContainer

Container: FlowId, FlowStats.

Definition at line 218 of file flow-monitor.h.

◆ FlowStatsContainerCI

typedef std::map<FlowId, FlowStats>::const_iterator ns3::FlowMonitor::FlowStatsContainerCI

Container Const Iterator: FlowId, FlowStats.

Definition at line 222 of file flow-monitor.h.

◆ FlowStatsContainerI

typedef std::map<FlowId, FlowStats>::iterator ns3::FlowMonitor::FlowStatsContainerI

Container Iterator: FlowId, FlowStats.

Definition at line 220 of file flow-monitor.h.

◆ TrackedPacketMap

typedef std::map< std::pair<FlowId, FlowPacketId>, TrackedPacket> ns3::FlowMonitor::TrackedPacketMap

private

(FlowId,PacketId) –> TrackedPacket

Definition at line 281 of file flow-monitor.h.

Constructor & Destructor Documentation

◆ FlowMonitor()

ns3::FlowMonitor::FlowMonitor ( )

Definition at line 82 of file flow-monitor.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddFlowClassifier()

void ns3::FlowMonitor::AddFlowClassifier ( Ptr< FlowClassifier > classifier )

Add a FlowClassifier to be used by the flow monitor.

Parameters

classifier the FlowClassifier

Definition at line 413 of file flow-monitor.cc.

References m_classifiers.

◆ AddProbe()

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe > probe )

Register a new FlowProbe that will begin monitoring and report events to this monitor.

This method is normally only used by FlowProbe implementations.

Parameters

probe the probe to add

Definition at line 349 of file flow-monitor.cc.

References m_flowProbes.

◆ CheckForLostPackets() [1/2]

void ns3::FlowMonitor::CheckForLostPackets ( )

Check right now for packets that appear to be lost.

Definition at line 329 of file flow-monitor.cc.

References m_maxPerHopDelay.

Referenced by experiment(), PeriodicCheckForLostPackets(), SerializeToXmlStream(), and StopRightNow().

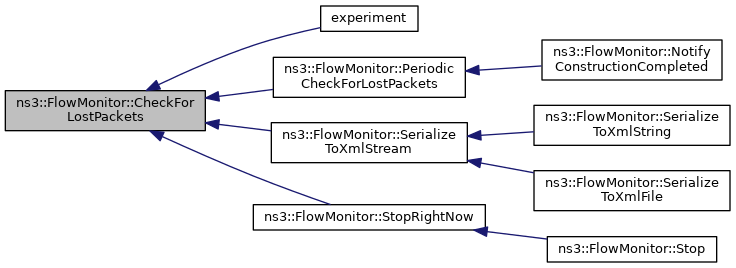

Here is the caller graph for this function:

◆ CheckForLostPackets() [2/2]

void ns3::FlowMonitor::CheckForLostPackets ( Time maxDelay )

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay.

Parameters

maxDelay the max delay for a packet

Definition at line 303 of file flow-monitor.cc.

References ns3::Time::As(), m_flowStats, m_trackedPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Time::S.

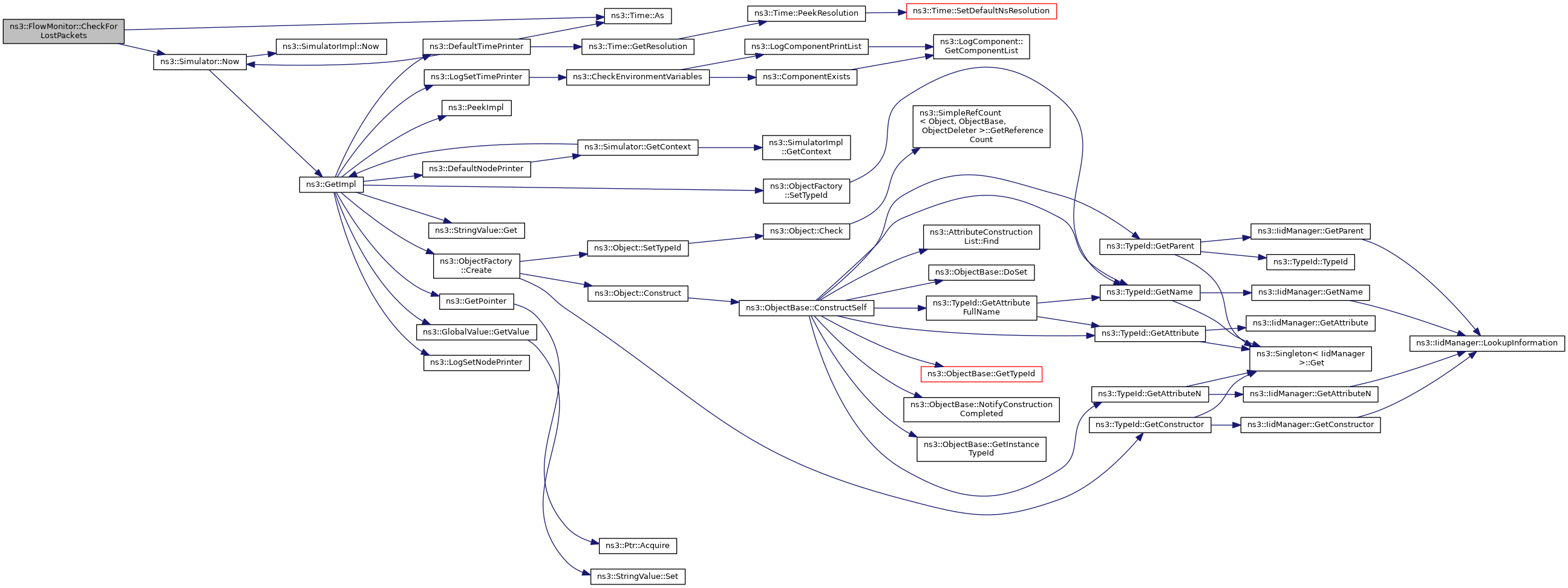

Here is the call graph for this function:

◆ DoDispose()

void ns3::FlowMonitor::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 89 of file flow-monitor.cc.

References ns3::Simulator::Cancel(), ns3::Object::DoDispose(), list, m_classifiers, m_flowProbes, m_startEvent, m_stopEvent, and NS_LOG_FUNCTION.

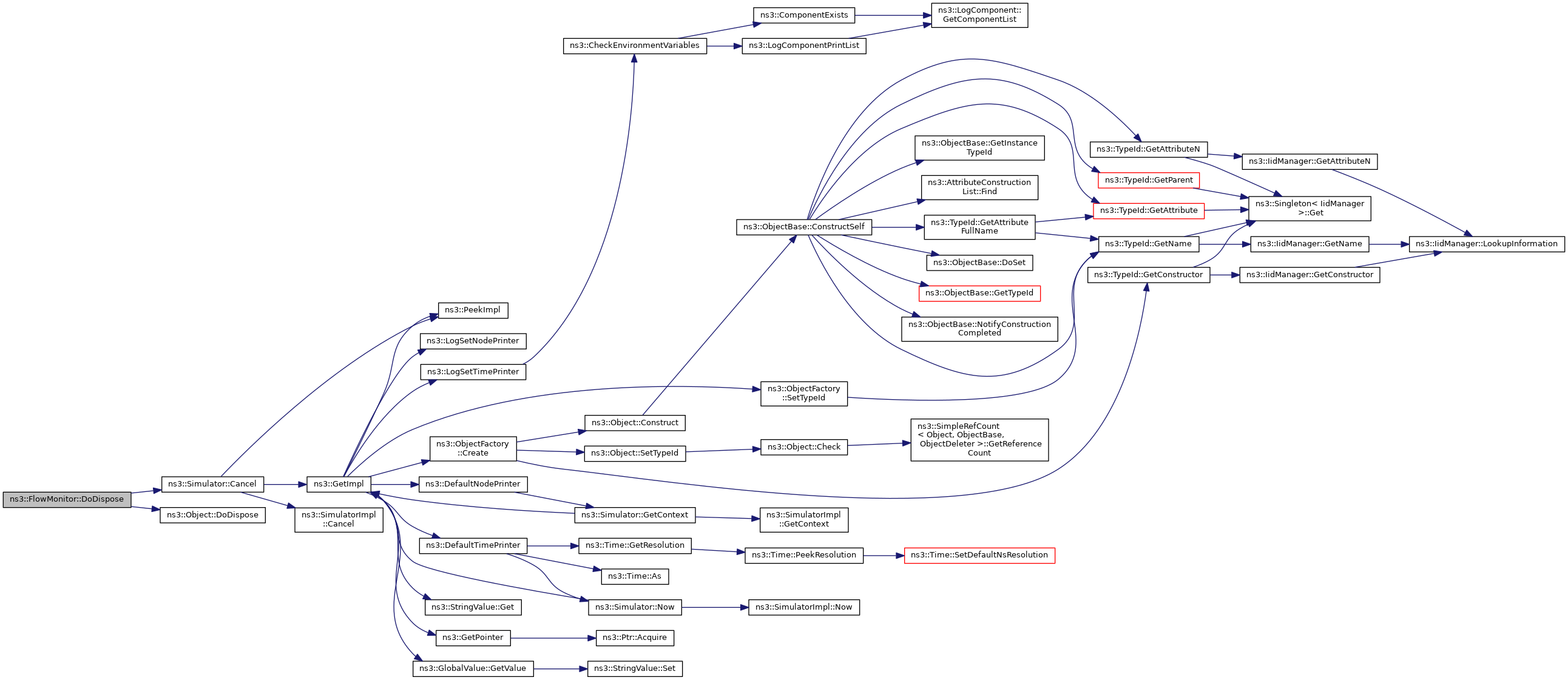

Here is the call graph for this function:

◆ GetAllProbes()

const FlowMonitor::FlowProbeContainer & ns3::FlowMonitor::GetAllProbes ( ) const

Get a list of all FlowProbe's associated with this FlowMonitor.

Returns: a list of all the probes

Definition at line 356 of file flow-monitor.cc.

References m_flowProbes.

◆ GetFlowStats()

const FlowMonitor::FlowStatsContainer & ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics.

Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

Returns: the flows statistics

Definition at line 296 of file flow-monitor.cc.

References m_flowStats.

Referenced by experiment().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::Object.

Definition at line 77 of file flow-monitor.cc.

References GetTypeId().

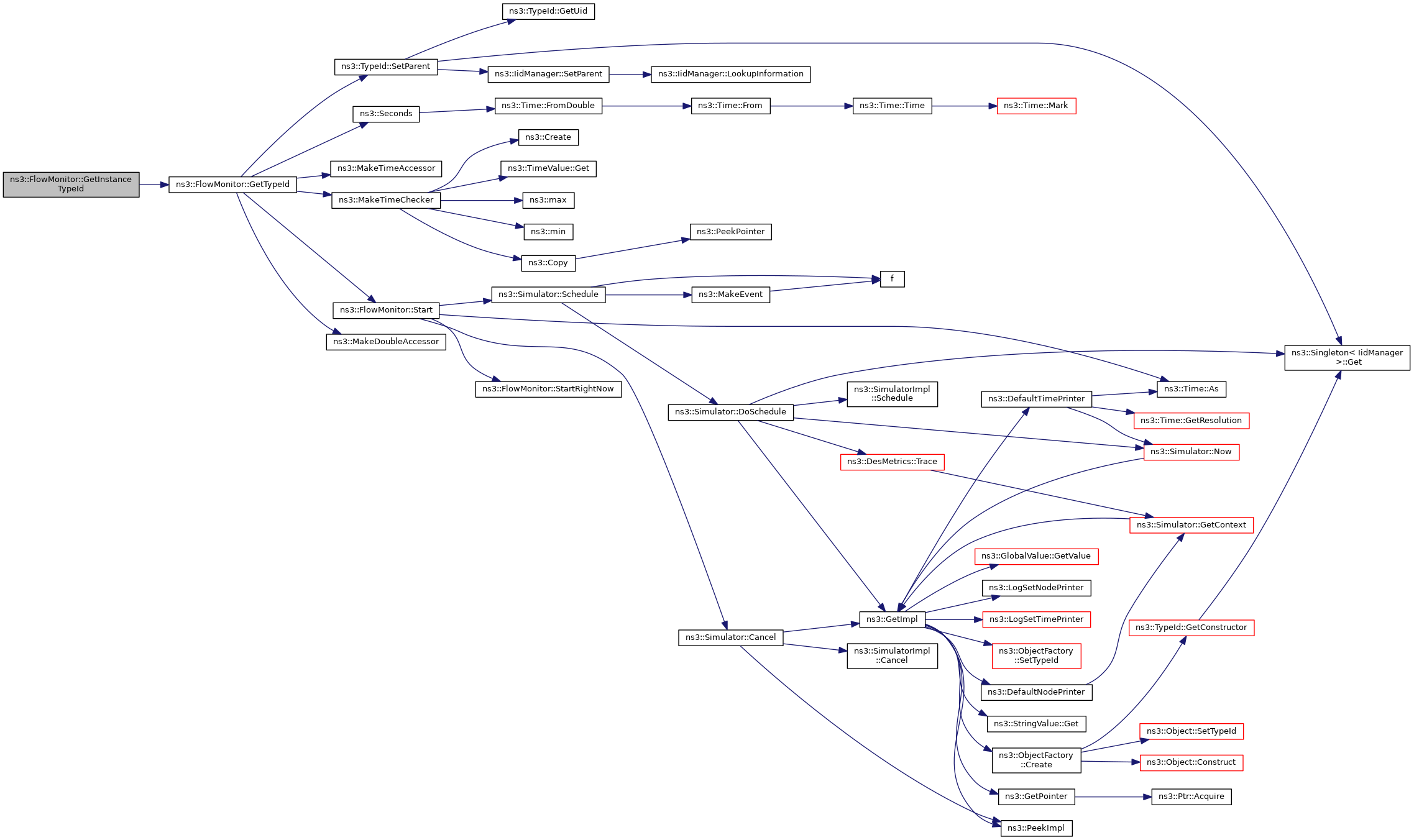

Here is the call graph for this function:

◆ GetStatsForFlow()

FlowMonitor::FlowStats & ns3::FlowMonitor::GetStatsForFlow ( FlowId flowId )

inlineprivate

Get the stats for a given flow.

Parameters

flowId the Flow identification

Returns: the stats of the flow

Definition at line 109 of file flow-monitor.cc.

Referenced by ReportDrop(), ReportFirstTx(), and ReportLastRx().

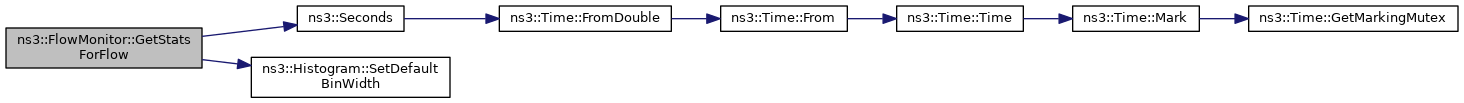

Here is the call graph for this function:

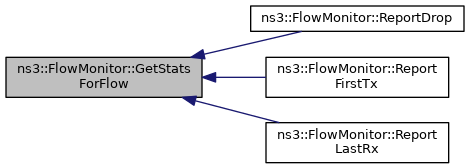

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::FlowMonitor::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 37 of file flow-monitor.cc.

References m_delayBinWidth, m_flowInterruptionsBinWidth, m_flowInterruptionsMinTime, m_jitterBinWidth, m_maxPerHopDelay, m_packetSizeBinWidth, ns3::MakeDoubleAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), ns3::TypeId::SetParent(), and Start().

Referenced by GetInstanceTypeId().

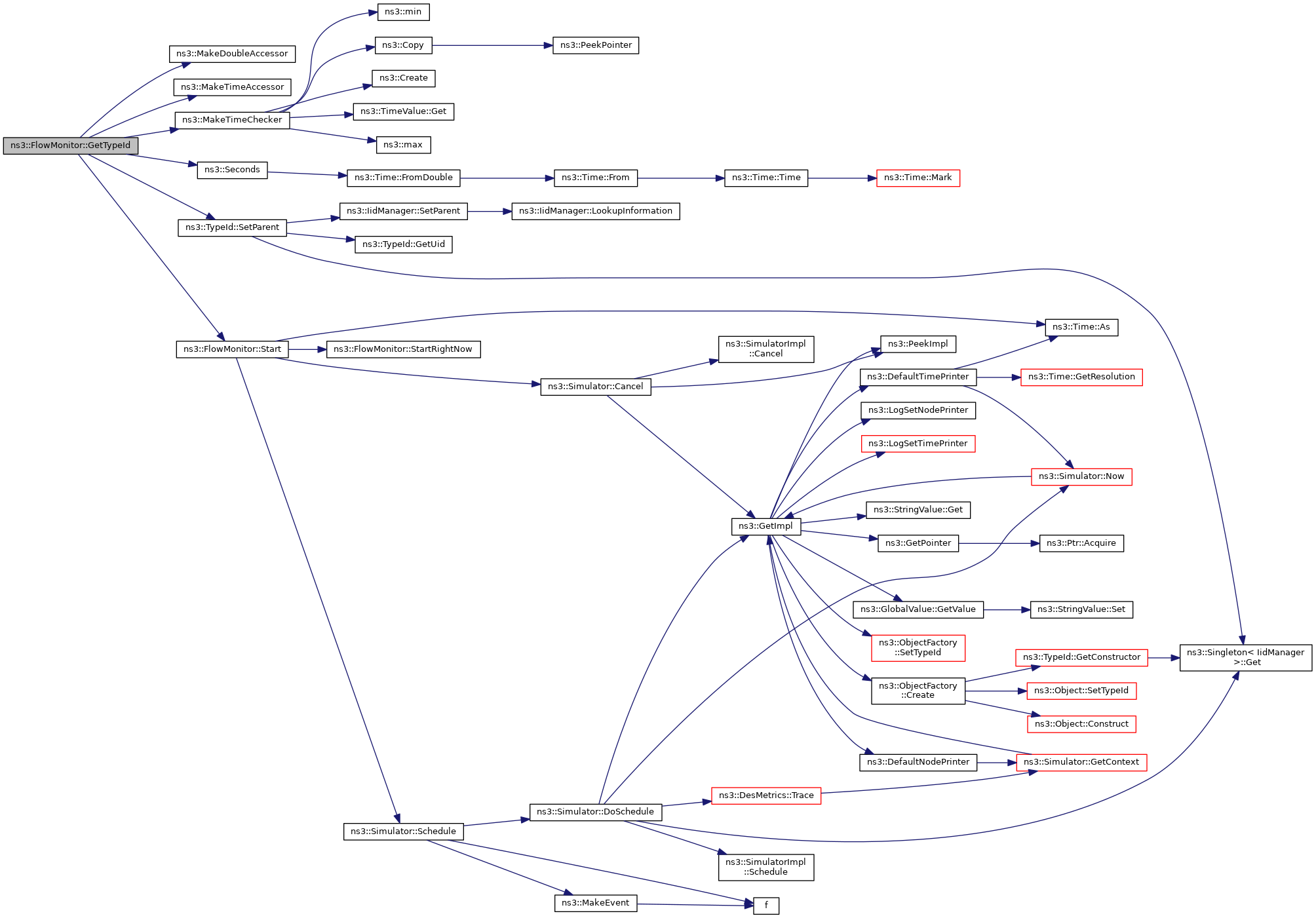

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyConstructionCompleted()

void ns3::FlowMonitor::NotifyConstructionCompleted ( void )

protectedvirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 342 of file flow-monitor.cc.

References ns3::ObjectBase::NotifyConstructionCompleted(), PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ PeriodicCheckForLostPackets()

void ns3::FlowMonitor::PeriodicCheckForLostPackets ( )

private

Periodic function to check for lost packets and prune statistics.

Definition at line 335 of file flow-monitor.cc.

References CheckForLostPackets(), PERIODIC_CHECK_INTERVAL, and ns3::Simulator::Schedule().

Referenced by NotifyConstructionCompleted().

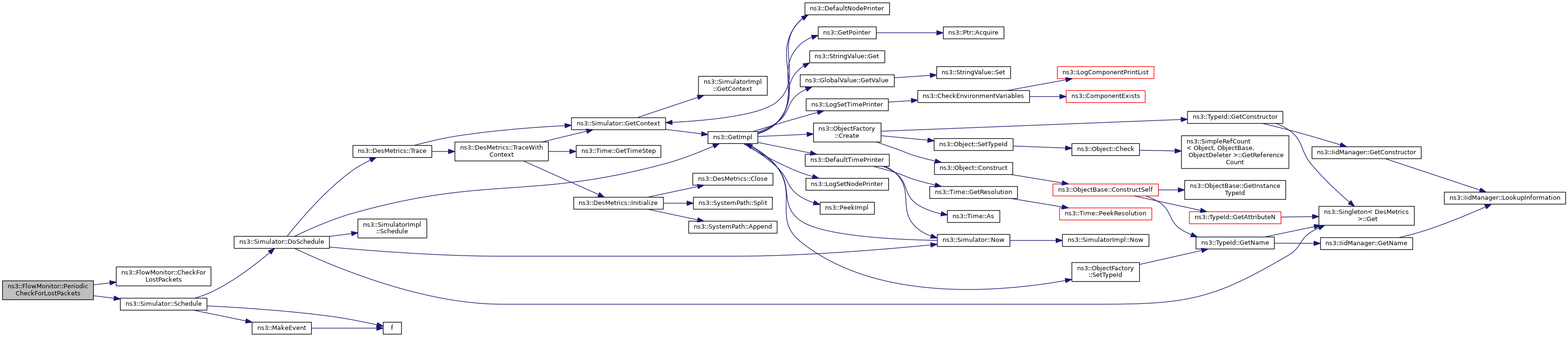

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportDrop()

void ns3::FlowMonitor::ReportDrop	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size
reasonCode	drop reason code

Definition at line 261 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketDropStats(), ns3::FlowMonitor::FlowStats::bytesDropped, GetStatsForFlow(), ns3::FlowMonitor::FlowStats::lostPackets, m_enabled, m_trackedPackets, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::FlowMonitor::FlowStats::packetsDropped, and packetSize.

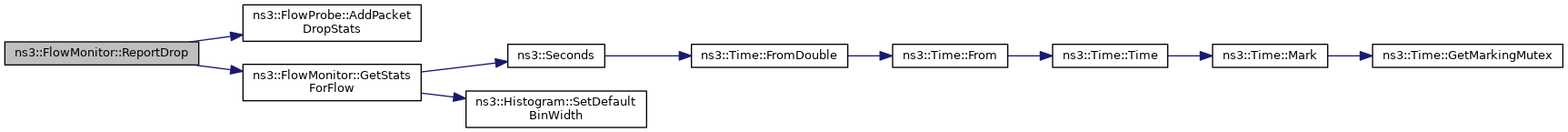

Here is the call graph for this function:

◆ ReportFirstTx()

void ns3::FlowMonitor::ReportFirstTx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 140 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketStats(), ns3::FlowMonitor::TrackedPacket::firstSeenTime, GetStatsForFlow(), ns3::FlowMonitor::TrackedPacket::lastSeenTime, m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, packetSize, ns3::Seconds(), ns3::FlowMonitor::FlowStats::timeFirstTxPacket, ns3::FlowMonitor::FlowStats::timeLastTxPacket, ns3::FlowMonitor::TrackedPacket::timesForwarded, ns3::FlowMonitor::FlowStats::txBytes, and ns3::FlowMonitor::FlowStats::txPackets.

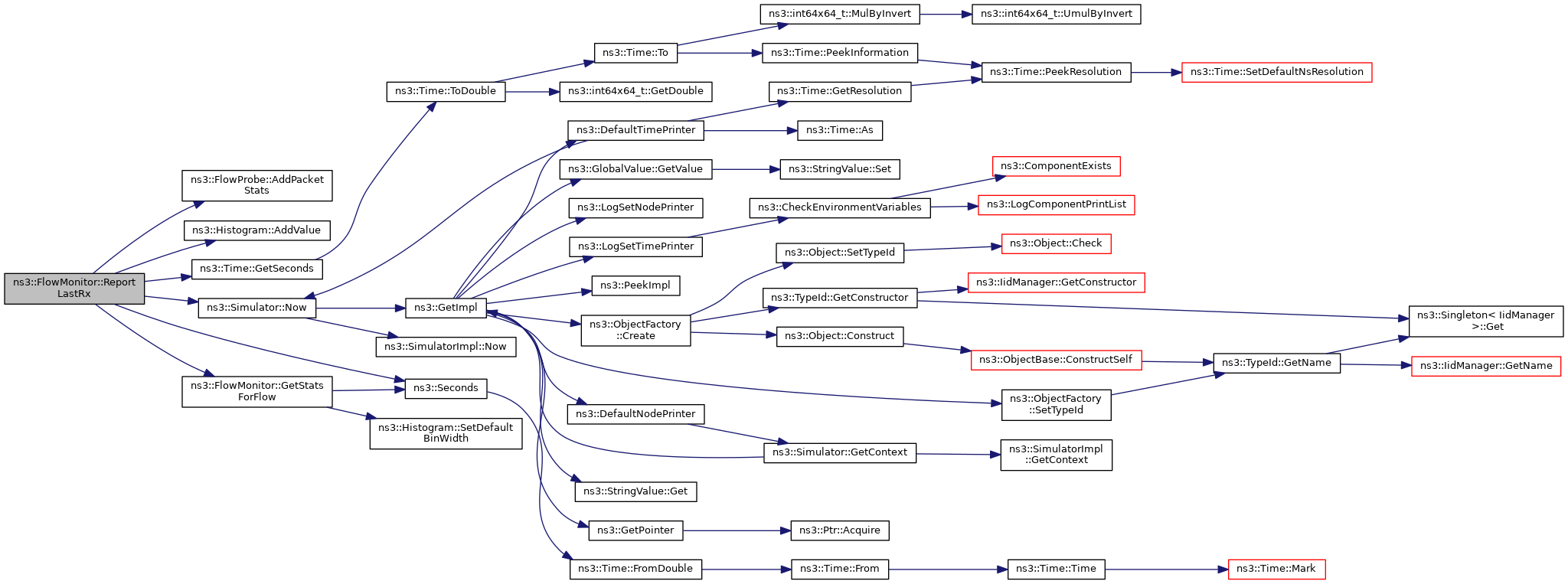

Here is the call graph for this function:

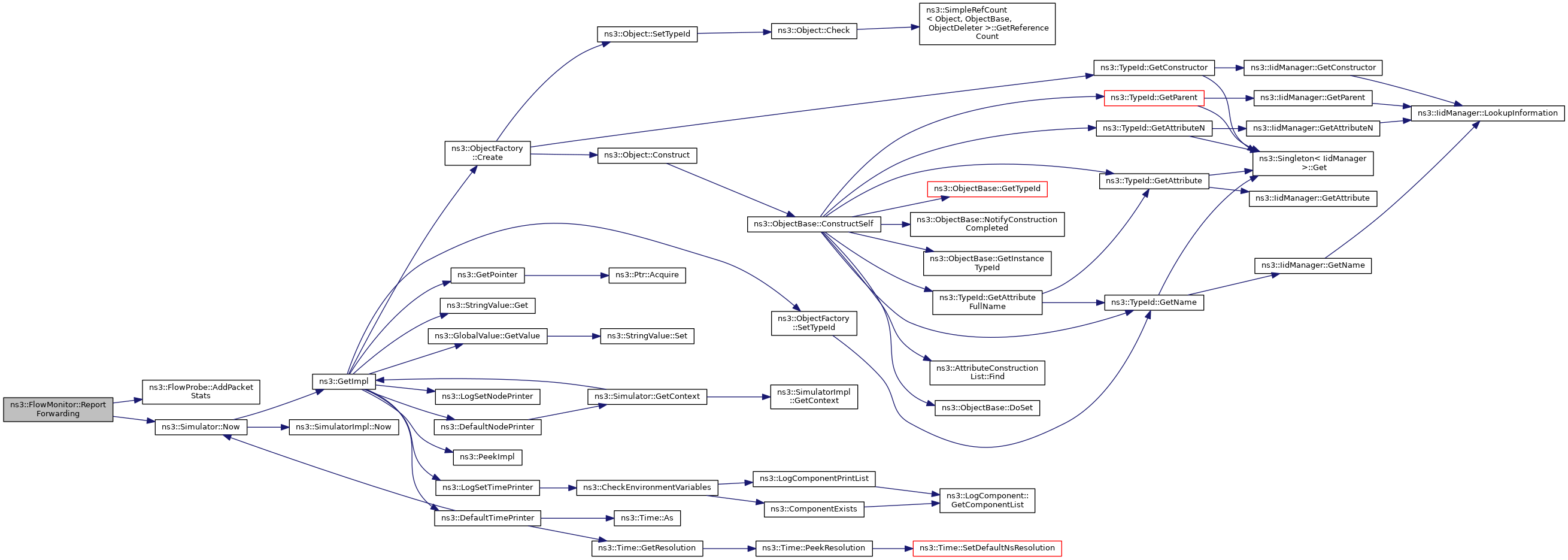

◆ ReportForwarding()

void ns3::FlowMonitor::ReportForwarding	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 170 of file flow-monitor.cc.

References ns3::FlowProbe::AddPacketStats(), m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and packetSize.

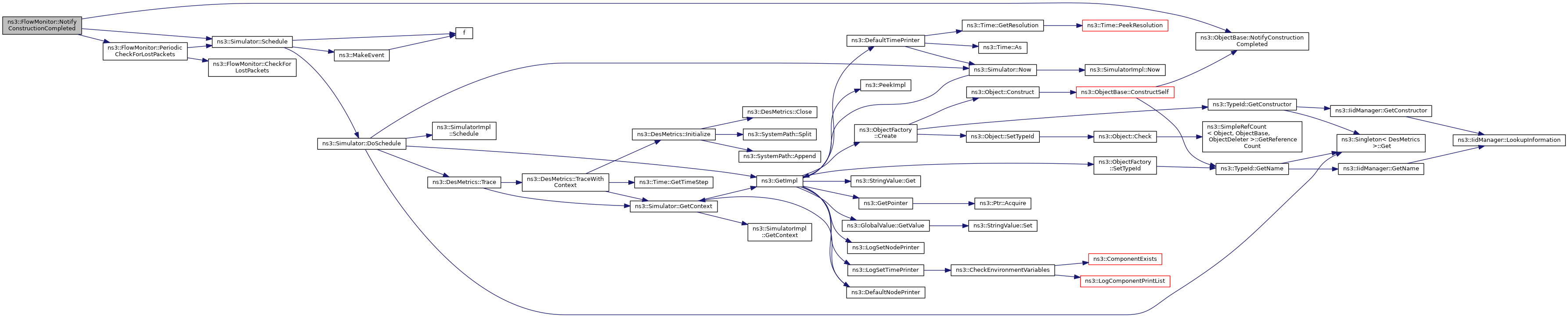

Here is the call graph for this function:

◆ ReportLastRx()

void ns3::FlowMonitor::ReportLastRx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being received.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 196 of file flow-monitor.cc.

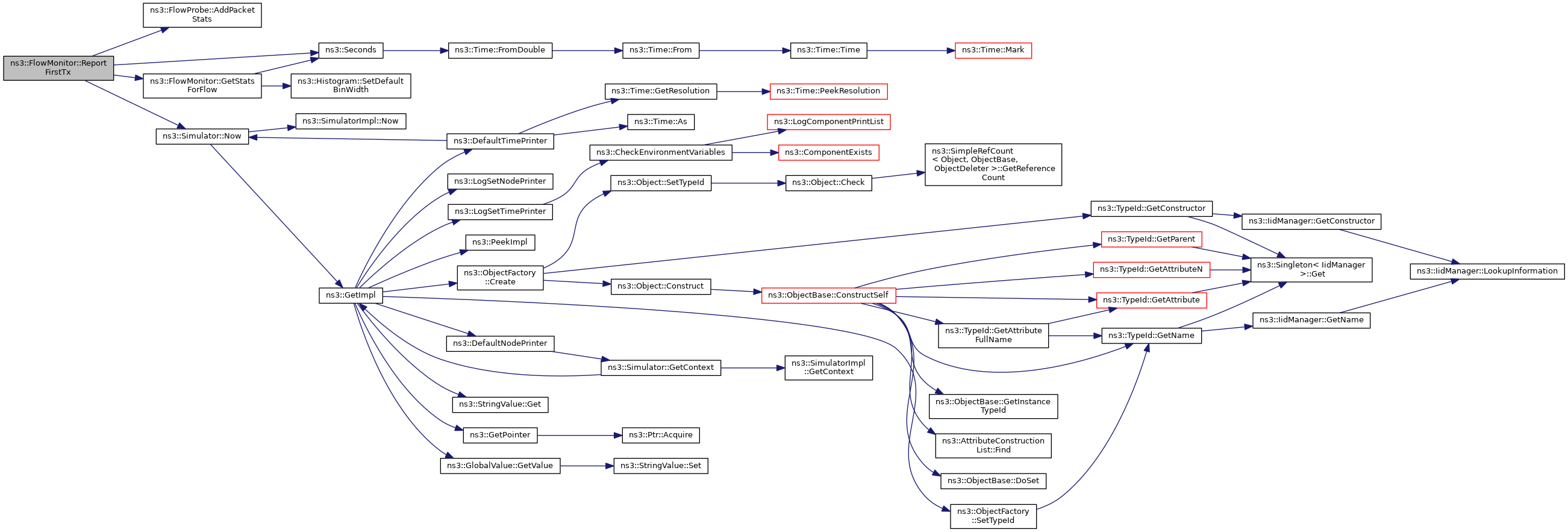

Here is the call graph for this function:

◆ SerializeToXmlFile()

void ns3::FlowMonitor::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead.

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 514 of file flow-monitor.cc.

References NS_LOG_FUNCTION, and SerializeToXmlStream().

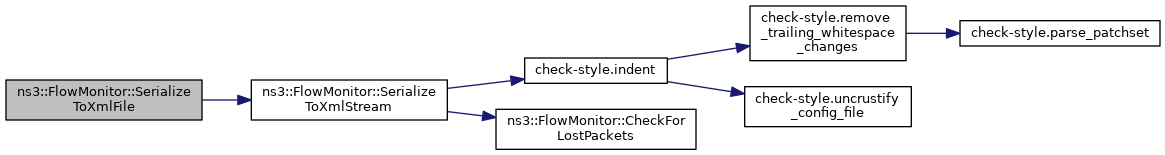

Here is the call graph for this function:

◆ SerializeToXmlStream()

void ns3::FlowMonitor::SerializeToXmlStream	(	std::ostream &	os,
		uint16_t	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 419 of file flow-monitor.cc.

References ATTRIB, CheckForLostPackets(), check-style::indent(), list, m_classifiers, m_flowProbes, m_flowStats, and NS_LOG_FUNCTION.

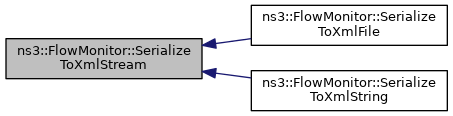

Referenced by SerializeToXmlFile(), and SerializeToXmlString().

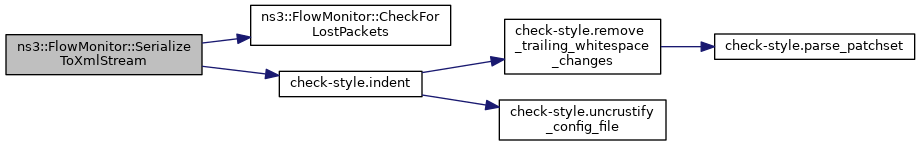

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeToXmlString()

std::string ns3::FlowMonitor::SerializeToXmlString	(	uint16_t	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string.

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Returns: the XML output as string

Definition at line 504 of file flow-monitor.cc.

References check-style::indent(), NS_LOG_FUNCTION, and SerializeToXmlStream().

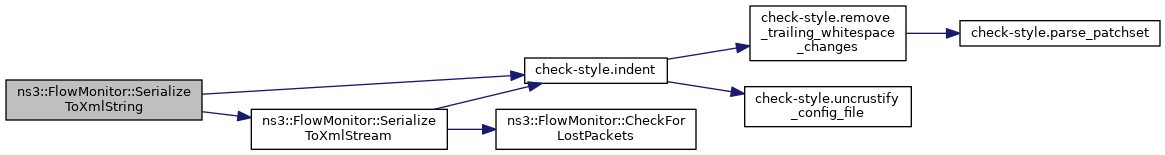

Here is the call graph for this function:

◆ Start()

void ns3::FlowMonitor::Start ( const Time & time )

Set the time, counting from the current time, from which to start monitoring flows.

This method overwrites any previous calls to Start()

Parameters

time	delta time to start

Definition at line 363 of file flow-monitor.cc.

References ns3::Time::As(), ns3::Simulator::Cancel(), m_enabled, m_startEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, ns3::Simulator::Schedule(), and StartRightNow().

Referenced by GetTypeId().

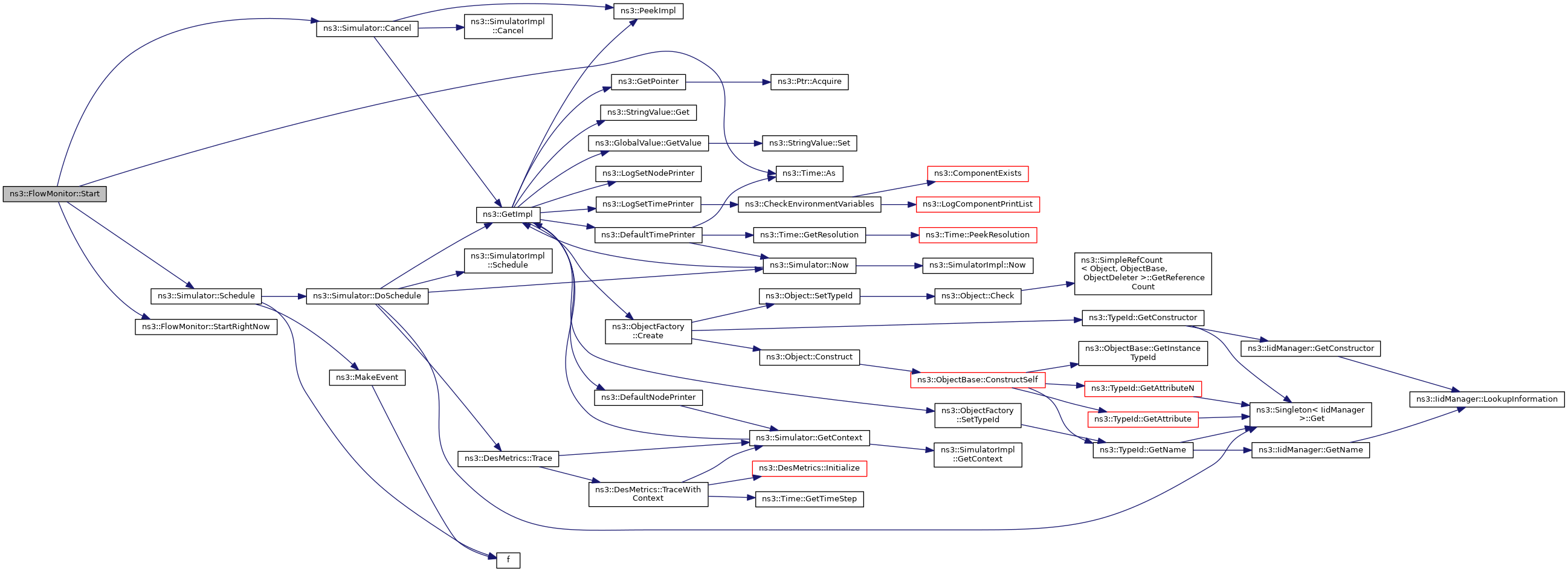

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartRightNow()

void ns3::FlowMonitor::StartRightNow ( )

Begin monitoring flows right now

Definition at line 387 of file flow-monitor.cc.

References m_enabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Start().

Here is the caller graph for this function:

◆ Stop()

void ns3::FlowMonitor::Stop ( const Time & time )

Set the time, counting from the current time, from which to stop monitoring flows.

This method overwrites any previous calls to Stop()

Parameters

time	delta time to stop

Definition at line 377 of file flow-monitor.cc.

References ns3::Time::As(), ns3::Simulator::Cancel(), m_stopEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, ns3::Simulator::Schedule(), and StopRightNow().

Here is the call graph for this function:

◆ StopRightNow()

void ns3::FlowMonitor::StopRightNow ( )

End monitoring flows right now

Definition at line 400 of file flow-monitor.cc.

References CheckForLostPackets(), m_enabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Stop().

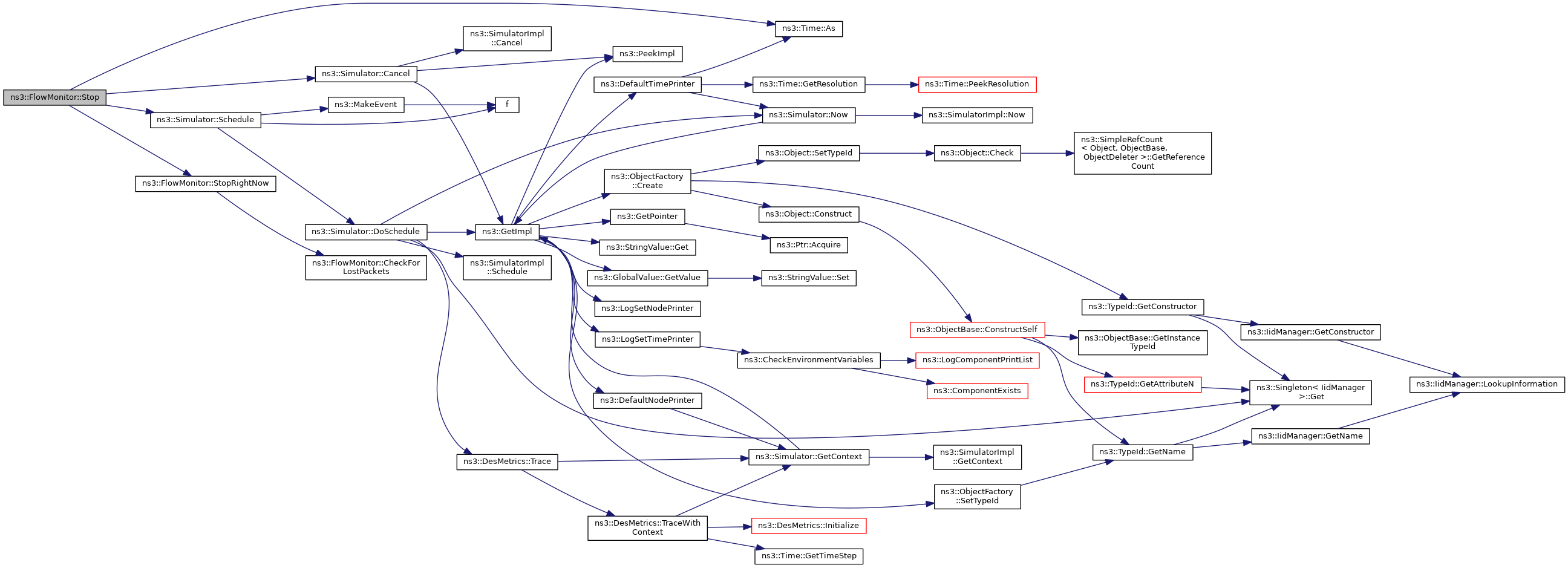

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_classifiers

std::list<Ptr<FlowClassifier> > ns3::FlowMonitor::m_classifiers

private

the FlowClassifiers

Definition at line 287 of file flow-monitor.h.

Referenced by AddFlowClassifier(), DoDispose(), and SerializeToXmlStream().

◆ m_delayBinWidth

double ns3::FlowMonitor::m_delayBinWidth

private

Delay bin width (for histograms)

Definition at line 292 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_enabled

bool ns3::FlowMonitor::m_enabled

private

FlowMon is enabled.

Definition at line 291 of file flow-monitor.h.

Referenced by ReportDrop(), ReportFirstTx(), ReportForwarding(), ReportLastRx(), Start(), StartRightNow(), and StopRightNow().

◆ m_flowInterruptionsBinWidth

double ns3::FlowMonitor::m_flowInterruptionsBinWidth

private

Flow interruptions bin width (for histograms)

Definition at line 295 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_flowInterruptionsMinTime

Time ns3::FlowMonitor::m_flowInterruptionsMinTime

private

Flow interruptions minimum time.

Definition at line 296 of file flow-monitor.h.

Referenced by GetTypeId(), and ReportLastRx().

◆ m_flowProbes

FlowProbeContainer ns3::FlowMonitor::m_flowProbes

private

all the FlowProbes

Definition at line 284 of file flow-monitor.h.

Referenced by AddProbe(), DoDispose(), GetAllProbes(), and SerializeToXmlStream().

◆ m_flowStats

FlowStatsContainer ns3::FlowMonitor::m_flowStats

private

FlowId –> FlowStats.

Definition at line 278 of file flow-monitor.h.

Referenced by CheckForLostPackets(), GetFlowStats(), GetStatsForFlow(), and SerializeToXmlStream().

◆ m_jitterBinWidth

double ns3::FlowMonitor::m_jitterBinWidth

private

Jitter bin width (for histograms)

Definition at line 293 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_maxPerHopDelay

Time ns3::FlowMonitor::m_maxPerHopDelay

private

Minimum per-hop delay.

Definition at line 283 of file flow-monitor.h.

Referenced by CheckForLostPackets(), and GetTypeId().

◆ m_packetSizeBinWidth

double ns3::FlowMonitor::m_packetSizeBinWidth

private

packet size bin width (for histograms)

Definition at line 294 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_startEvent

EventId ns3::FlowMonitor::m_startEvent

private

Start event.

Definition at line 289 of file flow-monitor.h.

Referenced by DoDispose(), and Start().

◆ m_stopEvent

EventId ns3::FlowMonitor::m_stopEvent

private

Stop event.

Definition at line 290 of file flow-monitor.h.

Referenced by DoDispose(), and Stop().

◆ m_trackedPackets

TrackedPacketMap ns3::FlowMonitor::m_trackedPackets

private

Tracked packets.

Definition at line 282 of file flow-monitor.h.

Referenced by CheckForLostPackets(), ReportDrop(), ReportFirstTx(), ReportForwarding(), and ReportLastRx().

The documentation for this class was generated from the following files:

src/flow-monitor/model/flow-monitor.h
src/flow-monitor/model/flow-monitor.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Typedef Documentation

◆ FlowProbeContainer

◆ FlowProbeContainerCI

◆ FlowProbeContainerI

◆ FlowStatsContainer

◆ FlowStatsContainerCI

◆ FlowStatsContainerI

◆ TrackedPacketMap

Constructor & Destructor Documentation

◆ FlowMonitor()

Member Function Documentation

◆ AddFlowClassifier()

◆ AddProbe()

◆ CheckForLostPackets() [1/2]

◆ CheckForLostPackets() [2/2]

◆ DoDispose()

◆ GetAllProbes()

◆ GetFlowStats()

◆ GetInstanceTypeId()

◆ GetStatsForFlow()

◆ GetTypeId()

◆ NotifyConstructionCompleted()

◆ PeriodicCheckForLostPackets()

◆ ReportDrop()

◆ ReportFirstTx()

◆ ReportForwarding()

◆ ReportLastRx()

◆ SerializeToXmlFile()

◆ SerializeToXmlStream()

◆ SerializeToXmlString()

◆ Start()

◆ StartRightNow()

◆ Stop()

◆ StopRightNow()

Member Data Documentation

◆ m_classifiers

◆ m_delayBinWidth

◆ m_enabled

◆ m_flowInterruptionsBinWidth

◆ m_flowInterruptionsMinTime

◆ m_flowProbes

◆ m_flowStats

◆ m_jitterBinWidth

◆ m_maxPerHopDelay

◆ m_packetSizeBinWidth

◆ m_startEvent

◆ m_stopEvent

◆ m_trackedPackets
