ns3::GtpcIes Class Reference

#include "epc-gtpc-header.h"

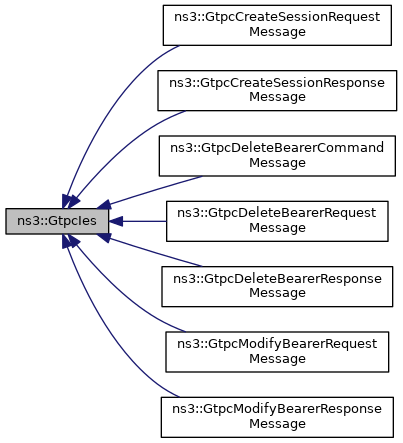

+ Inheritance diagram for ns3::GtpcIes:

Public Types

enum  Cause_t { RESERVED = 0, REQUEST_ACCEPTED = 16 }


Public Member Functions

uint32_t DeserializeBearerContextHeader (Buffer::Iterator &i, uint16_t &length)

uint32_t DeserializeBearerQos (Buffer::Iterator &i, EpsBearer &bearerQos)

uint32_t DeserializeBearerTft (Buffer::Iterator &i, Ptr< EpcTft > epcTft)

uint32_t DeserializeCause (Buffer::Iterator &i, Cause_t &cause)

uint32_t DeserializeEbi (Buffer::Iterator &i, uint8_t &epsBearerId)

uint32_t DeserializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t &fteid)

uint32_t DeserializeImsi (Buffer::Iterator &i, uint64_t &imsi)

uint32_t DeserializeUliEcgi (Buffer::Iterator &i, uint32_t &uliEcgi)

uint32_t GetSerializedSizeBearerTft (std::list< EpcTft::PacketFilter > packetFilters) const

uint64_t ReadNtohU40 (Buffer::Iterator &i)

void SerializeBearerContextHeader (Buffer::Iterator &i, uint16_t length) const

void SerializeBearerQos (Buffer::Iterator &i, EpsBearer bearerQos) const

void SerializeBearerTft (Buffer::Iterator &i, std::list< EpcTft::PacketFilter > packetFilters) const

void SerializeCause (Buffer::Iterator &i, Cause_t cause) const

void SerializeEbi (Buffer::Iterator &i, uint8_t epsBearerId) const

void SerializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t fteid) const

void SerializeImsi (Buffer::Iterator &i, uint64_t imsi) const

void SerializeUliEcgi (Buffer::Iterator &i, uint32_t uliEcgi) const

void WriteHtonU40 (Buffer::Iterator &i, uint64_t data) const


Public Attributes

const uint32_t serializedSizeBearerContextHeader = 4

const uint32_t serializedSizeBearerQos = 26

const uint32_t serializedSizeCause = 6

const uint32_t serializedSizeEbi = 5

const uint32_t serializedSizeFteid = 13

const uint32_t serializedSizeImsi = 12

const uint32_t serializedSizePacketFilter = 3 + 9 + 9 + 5 + 5 + 3

const uint32_t serializedSizeUliEcgi = 12


Detailed Description

Definition at line 182 of file epc-gtpc-header.h.

Member Enumeration Documentation

◆ Cause_t

enum ns3::GtpcIes::Cause_t
Enumerator
RESERVED
REQUEST_ACCEPTED

Definition at line 185 of file epc-gtpc-header.h.

Member Function Documentation

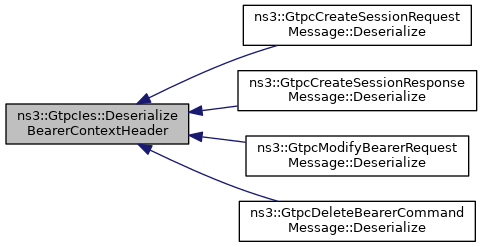

◆ DeserializeBearerContextHeader()

uint32_t ns3::GtpcIes::DeserializeBearerContextHeader ( Buffer::Iterator &  i,
uint16_t &  length
)

Definition at line 468 of file epc-gtpc-header.cc.

References NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeBearerContextHeader.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), ns3::GtpcCreateSessionResponseMessage::Deserialize(), ns3::GtpcModifyBearerRequestMessage::Deserialize(), and ns3::GtpcDeleteBearerCommandMessage::Deserialize().

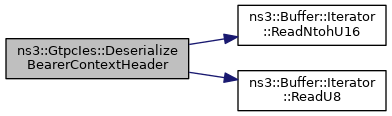

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

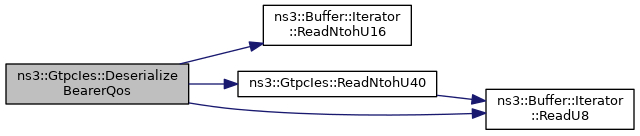

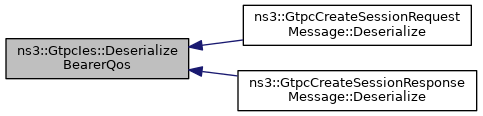

◆ DeserializeBearerQos()

uint32_t ns3::GtpcIes::DeserializeBearerQos ( Buffer::Iterator &  i,
EpsBearer &  bearerQos
)

Definition at line 312 of file epc-gtpc-header.cc.

References ns3::GbrQosInformation::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, NS_ASSERT_MSG, ns3::EpsBearer::qci, ns3::Buffer::Iterator::ReadNtohU16(), ReadNtohU40(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeBearerQos.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), and ns3::GtpcCreateSessionResponseMessage::Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

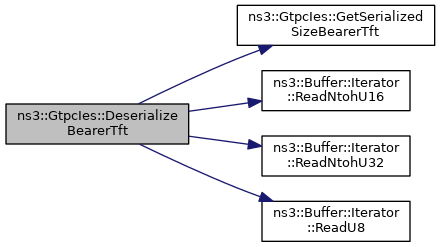

◆ DeserializeBearerTft()

uint32_t ns3::GtpcIes::DeserializeBearerTft ( Buffer::Iterator &  i,
Ptr< EpcTft >  epcTft
)

Definition at line 362 of file epc-gtpc-header.cc.

References ns3::EpcTft::PacketFilter::direction, GetSerializedSizeBearerTft(), ns3::EpcTft::PacketFilter::localAddress, ns3::EpcTft::PacketFilter::localMask, ns3::EpcTft::PacketFilter::localPortEnd, ns3::EpcTft::PacketFilter::localPortStart, NS_ASSERT_MSG, ns3::EpcTft::PacketFilter::precedence, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::EpcTft::PacketFilter::remoteAddress, ns3::EpcTft::PacketFilter::remoteMask, ns3::EpcTft::PacketFilter::remotePortEnd, ns3::EpcTft::PacketFilter::remotePortStart, ns3::EpcTft::PacketFilter::typeOfService, and ns3::EpcTft::PacketFilter::typeOfServiceMask.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), and ns3::GtpcCreateSessionResponseMessage::Deserialize().

+ Here is the call graph for this function:

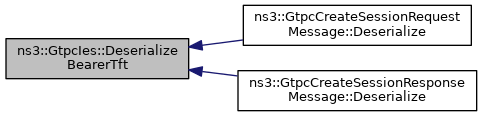

+ Here is the caller graph for this function:

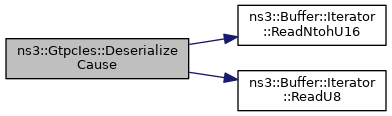

◆ DeserializeCause()

uint32_t ns3::GtpcIes::DeserializeCause ( Buffer::Iterator &  i,
Cause_t &  cause
)

Definition at line 234 of file epc-gtpc-header.cc.

References NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeCause.

Referenced by ns3::GtpcCreateSessionResponseMessage::Deserialize(), ns3::GtpcModifyBearerResponseMessage::Deserialize(), and ns3::GtpcDeleteBearerResponseMessage::Deserialize().

+ Here is the call graph for this function:

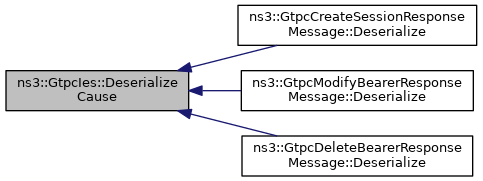

+ Here is the caller graph for this function:

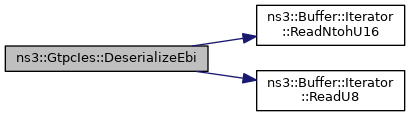

◆ DeserializeEbi()

uint32_t ns3::GtpcIes::DeserializeEbi ( Buffer::Iterator &  i,
uint8_t &  epsBearerId
)

Definition at line 258 of file epc-gtpc-header.cc.

References NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeEbi.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), ns3::GtpcCreateSessionResponseMessage::Deserialize(), ns3::GtpcModifyBearerRequestMessage::Deserialize(), ns3::GtpcDeleteBearerCommandMessage::Deserialize(), ns3::GtpcDeleteBearerRequestMessage::Deserialize(), and ns3::GtpcDeleteBearerResponseMessage::Deserialize().

+ Here is the call graph for this function:

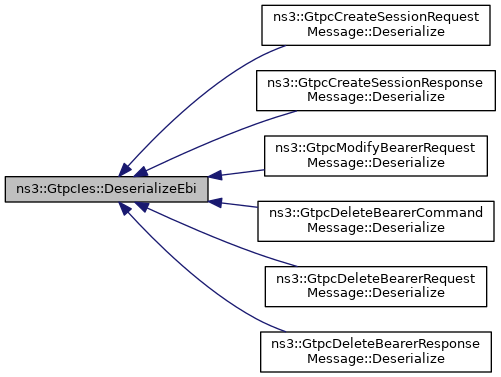

+ Here is the caller graph for this function:

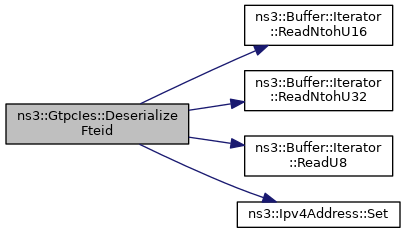

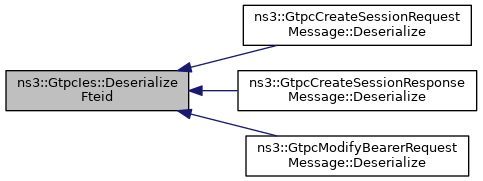

◆ DeserializeFteid()

uint32_t ns3::GtpcIes::DeserializeFteid ( Buffer::Iterator &  i,
GtpcHeader::Fteid_t &  fteid
)

Definition at line 443 of file epc-gtpc-header.cc.

References ns3::GtpcHeader::Fteid_t::addr, ns3::GtpcHeader::Fteid_t::interfaceType, NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), serializedSizeFteid, ns3::Ipv4Address::Set(), and ns3::GtpcHeader::Fteid_t::teid.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), ns3::GtpcCreateSessionResponseMessage::Deserialize(), and ns3::GtpcModifyBearerRequestMessage::Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

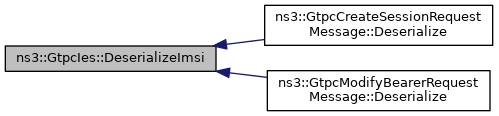

◆ DeserializeImsi()

uint32_t ns3::GtpcIes::DeserializeImsi ( Buffer::Iterator &  i,
uint64_t &  imsi
)

Definition at line 210 of file epc-gtpc-header.cc.

References NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU64(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeImsi.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), and ns3::GtpcModifyBearerRequestMessage::Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DeserializeUliEcgi()

uint32_t ns3::GtpcIes::DeserializeUliEcgi ( Buffer::Iterator &  i,
uint32_t &  uliEcgi
)

Definition at line 417 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::Next(), NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and serializedSizeUliEcgi.

Referenced by ns3::GtpcCreateSessionRequestMessage::Deserialize(), and ns3::GtpcModifyBearerRequestMessage::Deserialize().

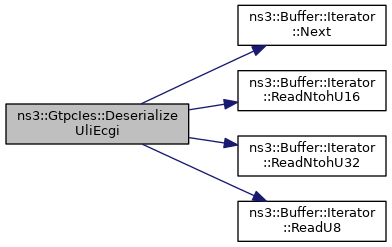

+ Here is the call graph for this function:

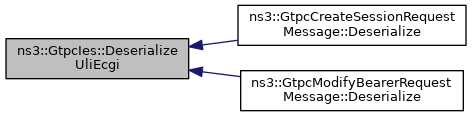

+ Here is the caller graph for this function:

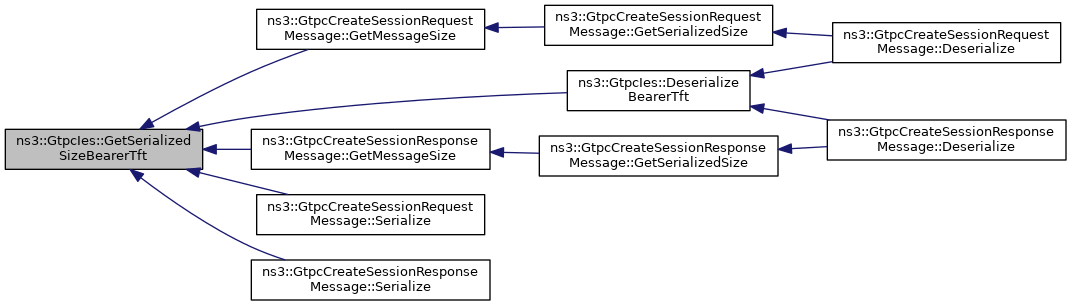

◆ GetSerializedSizeBearerTft()

uint32_t ns3::GtpcIes::GetSerializedSizeBearerTft ( std::list< EpcTft::PacketFilter >  packetFilters) const

Definition at line 398 of file epc-gtpc-header.cc.

References serializedSizePacketFilter.

Referenced by DeserializeBearerTft(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcCreateSessionResponseMessage::Serialize().

+ Here is the caller graph for this function:

◆ ReadNtohU40()

uint64_t ns3::GtpcIes::ReadNtohU40 ( Buffer::Iterator &  i)

Definition at line 282 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::ReadU8().

Referenced by DeserializeBearerQos().

+ Here is the call graph for this function:

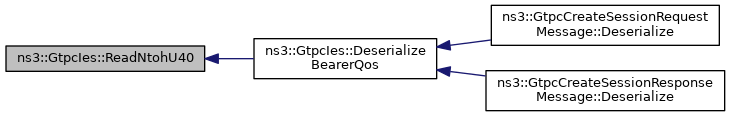

+ Here is the caller graph for this function:

◆ SerializeBearerContextHeader()

void ns3::GtpcIes::SerializeBearerContextHeader ( Buffer::Iterator &  i,
uint16_t  length
) const

Definition at line 460 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), ns3::GtpcModifyBearerRequestMessage::Serialize(), and ns3::GtpcDeleteBearerCommandMessage::Serialize().

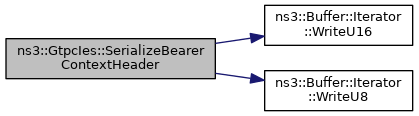

+ Here is the call graph for this function:

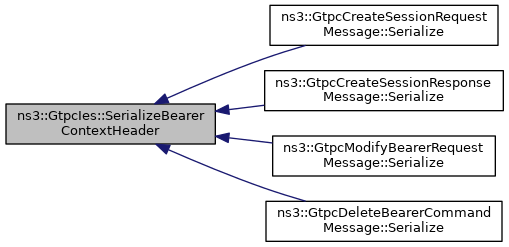

+ Here is the caller graph for this function:

◆ SerializeBearerQos()

void ns3::GtpcIes::SerializeBearerQos ( Buffer::Iterator &  i,
EpsBearer  bearerQos
) const

Definition at line 298 of file epc-gtpc-header.cc.

References ns3::GbrQosInformation::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::EpsBearer::qci, ns3::Buffer::Iterator::WriteHtonU16(), WriteHtonU40(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcCreateSessionResponseMessage::Serialize().

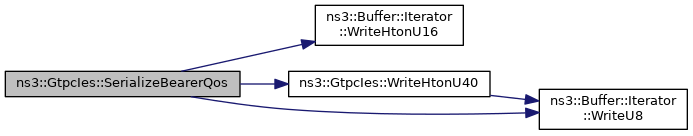

+ Here is the call graph for this function:

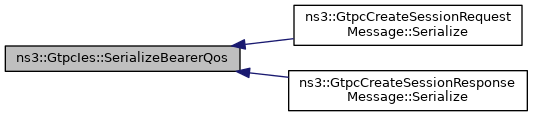

+ Here is the caller graph for this function:

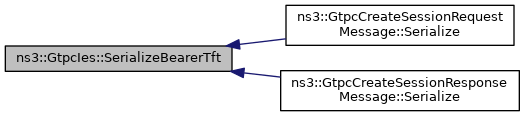

◆ SerializeBearerTft()

void ns3::GtpcIes::SerializeBearerTft ( Buffer::Iterator &  i,
std::list< EpcTft::PacketFilter >  packetFilters
) const

Definition at line 330 of file epc-gtpc-header.cc.

References serializedSizePacketFilter, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcCreateSessionResponseMessage::Serialize().

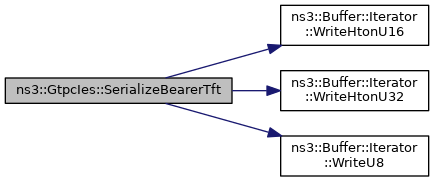

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

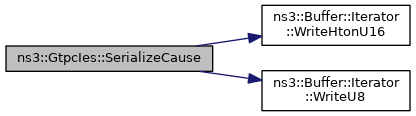

◆ SerializeCause()

void ns3::GtpcIes::SerializeCause ( Buffer::Iterator &  i,
Cause_t  cause
) const

Definition at line 224 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionResponseMessage::Serialize(), ns3::GtpcModifyBearerResponseMessage::Serialize(), and ns3::GtpcDeleteBearerResponseMessage::Serialize().

+ Here is the call graph for this function:

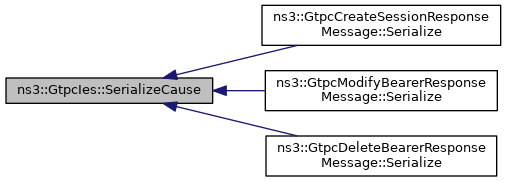

+ Here is the caller graph for this function:

◆ SerializeEbi()

void ns3::GtpcIes::SerializeEbi ( Buffer::Iterator &  i,
uint8_t  epsBearerId
) const

Definition at line 249 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), ns3::GtpcModifyBearerRequestMessage::Serialize(), ns3::GtpcDeleteBearerCommandMessage::Serialize(), ns3::GtpcDeleteBearerRequestMessage::Serialize(), and ns3::GtpcDeleteBearerResponseMessage::Serialize().

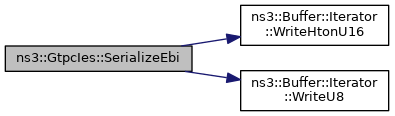

+ Here is the call graph for this function:

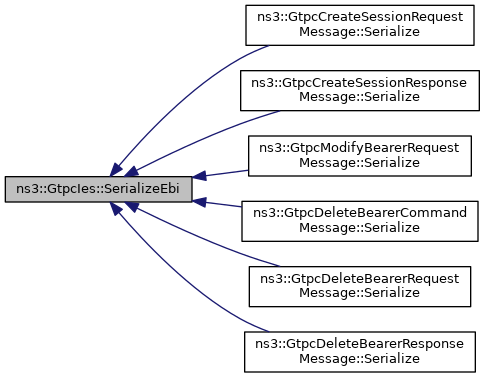

+ Here is the caller graph for this function:

◆ SerializeFteid()

void ns3::GtpcIes::SerializeFteid ( Buffer::Iterator &  i,
GtpcHeader::Fteid_t  fteid
) const

Definition at line 432 of file epc-gtpc-header.cc.

References ns3::GtpcHeader::Fteid_t::addr, ns3::Ipv4Address::Get(), ns3::GtpcHeader::Fteid_t::interfaceType, ns3::GtpcHeader::Fteid_t::teid, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), and ns3::GtpcModifyBearerRequestMessage::Serialize().

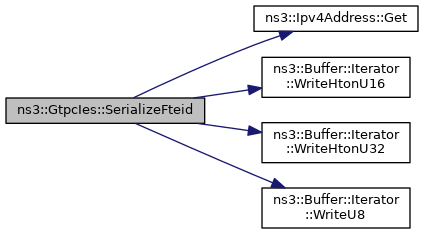

+ Here is the call graph for this function:

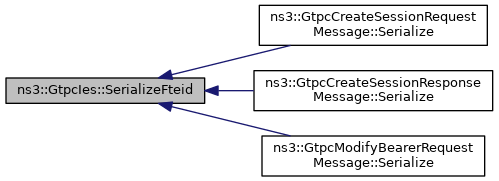

+ Here is the caller graph for this function:

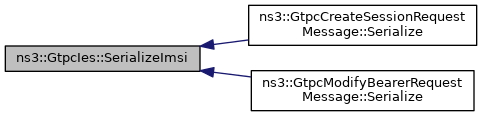

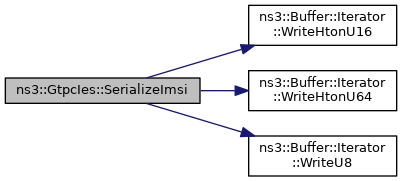

◆ SerializeImsi()

void ns3::GtpcIes::SerializeImsi ( Buffer::Iterator &  i,
uint64_t  imsi
) const

Definition at line 201 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU64(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcModifyBearerRequestMessage::Serialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SerializeUliEcgi()

void ns3::GtpcIes::SerializeUliEcgi ( Buffer::Iterator &  i,
uint32_t  uliEcgi
) const

Definition at line 404 of file epc-gtpc-header.cc.

References ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcModifyBearerRequestMessage::Serialize().

+ Here is the call graph for this function:

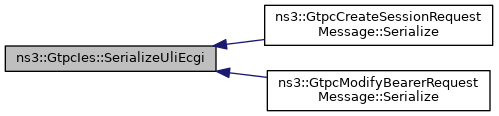

+ Here is the caller graph for this function:

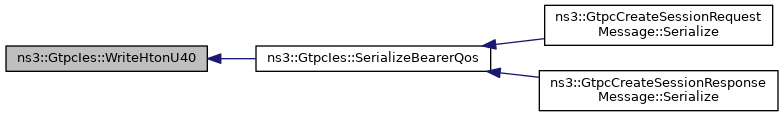

◆ WriteHtonU40()

void ns3::GtpcIes::WriteHtonU40 ( Buffer::Iterator &  i,
uint64_t  data
) const

Definition at line 272 of file epc-gtpc-header.cc.

References data, and ns3::Buffer::Iterator::WriteU8().

Referenced by SerializeBearerQos().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ serializedSizeBearerContextHeader

const uint32_t ns3::GtpcIes::serializedSizeBearerContextHeader = 4

Definition at line 199 of file epc-gtpc-header.h.

Referenced by DeserializeBearerContextHeader(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcModifyBearerRequestMessage::GetMessageSize(), and ns3::GtpcDeleteBearerCommandMessage::GetMessageSize().

◆ serializedSizeBearerQos

const uint32_t ns3::GtpcIes::serializedSizeBearerQos = 26

Definition at line 194 of file epc-gtpc-header.h.

Referenced by DeserializeBearerQos(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcCreateSessionRequestMessage::Serialize(), and ns3::GtpcCreateSessionResponseMessage::Serialize().

◆ serializedSizeCause

const uint32_t ns3::GtpcIes::serializedSizeCause = 6

Definition at line 192 of file epc-gtpc-header.h.

Referenced by DeserializeCause(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcModifyBearerResponseMessage::GetMessageSize(), and ns3::GtpcDeleteBearerResponseMessage::GetMessageSize().

◆ serializedSizeEbi

const uint32_t ns3::GtpcIes::serializedSizeEbi = 5

Definition at line 193 of file epc-gtpc-header.h.

Referenced by DeserializeEbi(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcModifyBearerRequestMessage::GetMessageSize(), ns3::GtpcDeleteBearerCommandMessage::GetMessageSize(), ns3::GtpcDeleteBearerRequestMessage::GetMessageSize(), ns3::GtpcDeleteBearerResponseMessage::GetMessageSize(), ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), ns3::GtpcModifyBearerRequestMessage::Serialize(), and ns3::GtpcDeleteBearerCommandMessage::Serialize().

◆ serializedSizeFteid

const uint32_t ns3::GtpcIes::serializedSizeFteid = 13

Definition at line 198 of file epc-gtpc-header.h.

Referenced by DeserializeFteid(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionResponseMessage::GetMessageSize(), ns3::GtpcModifyBearerRequestMessage::GetMessageSize(), ns3::GtpcCreateSessionRequestMessage::Serialize(), ns3::GtpcCreateSessionResponseMessage::Serialize(), and ns3::GtpcModifyBearerRequestMessage::Serialize().

◆ serializedSizeImsi

const uint32_t ns3::GtpcIes::serializedSizeImsi = 12

Definition at line 191 of file epc-gtpc-header.h.

Referenced by DeserializeImsi(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), and ns3::GtpcModifyBearerRequestMessage::GetMessageSize().

◆ serializedSizePacketFilter

const uint32_t ns3::GtpcIes::serializedSizePacketFilter = 3 + 9 + 9 + 5 + 5 + 3

Definition at line 195 of file epc-gtpc-header.h.

Referenced by GetSerializedSizeBearerTft(), and SerializeBearerTft().

◆ serializedSizeUliEcgi

const uint32_t ns3::GtpcIes::serializedSizeUliEcgi = 12

Definition at line 197 of file epc-gtpc-header.h.

Referenced by DeserializeUliEcgi(), ns3::GtpcCreateSessionRequestMessage::GetMessageSize(), and ns3::GtpcModifyBearerRequestMessage::GetMessageSize().

The documentation for this class was generated from the following files:
