Represent the GTS information fields. More...
#include "lr-wpan-fields.h"
Collaboration diagram for ns3::GtsFields:Classes | |
| struct | gtsDescriptor |
Public Member Functions | |
| GtsFields () | |
| Buffer::Iterator | Deserialize (Buffer::Iterator i) |
| Deserialize the entire GTS fields. More... | |
| uint8_t | GetGtsDirectionField (void) const |
| Get the GTS Direction Field from the GTS Fields. More... | |
| uint8_t | GetGtsSpecField (void) const |
| Get the GTS Specification Field from the GTS Fields. More... | |
| uint32_t | GetSerializedSize (void) const |
| Get the size of the serialized GTS fields. More... | |
| Buffer::Iterator | Serialize (Buffer::Iterator i) const |
| Serialize the entire GTS fields. More... | |
| void | SetGtsDirectionField (uint8_t gtsDir) |
| Set the GTS direction field to the GTS Fields gtsDir The GTS Direction Field to set. More... | |
| void | SetGtsSpecField (uint8_t gtsSpec) |
| Set the GTS Specification Field to the GTS Fields gtsSpec The GTS Specification Field to set. More... | |
Private Attributes | |
| uint8_t | m_gtsDirMask |
| GTS Direction field Directions Mask (Bit 0-6) GTS Direction field Reserved (Not Necessary) (Bit 7) More... | |
| gtsDescriptor | m_gtsList [6] |
| GTS List field (maximum descriptors stored == 7) More... | |
| uint8_t | m_gtsSpecDescCount |
| GTS specification field Descriptor Count (Bit 0-2) GTS specification field Reserved (Not necessary) (Bit 3-6) More... | |
| uint8_t | m_gtsSpecPermit |
| GTS specification field GTS Permit (Bit 7) More... | |
Represent the GTS information fields.
See IEEE 802.15.4-2011 Section 5.2.2 Figure 39
Definition at line 160 of file lr-wpan-fields.h.
| ns3::GtsFields::GtsFields | ( | ) |
Definition at line 206 of file lr-wpan-fields.cc.
References m_gtsDirMask, m_gtsSpecDescCount, and m_gtsSpecPermit.
| Buffer::Iterator ns3::GtsFields::Deserialize | ( | Buffer::Iterator | i | ) |
Deserialize the entire GTS fields.
| i | an iterator which points to where the superframe specification field should be read. |
Definition at line 291 of file lr-wpan-fields.cc.
References ns3::GtsFields::gtsDescriptor::m_gtsDescLength, ns3::GtsFields::gtsDescriptor::m_gtsDescStartSlot, m_gtsList, m_gtsSpecDescCount, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), SetGtsDirectionField(), and SetGtsSpecField().
Referenced by ns3::BeaconPayloadHeader::Deserialize().

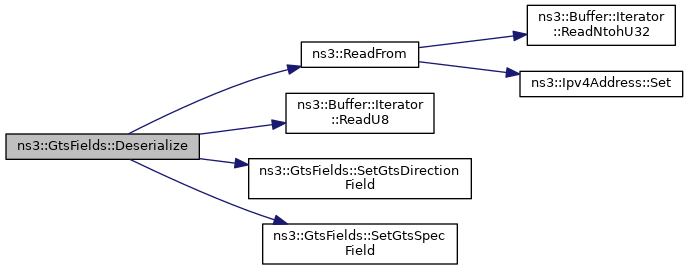

Here is the call graph for this function: Here is the caller graph for this function:| uint8_t ns3::GtsFields::GetGtsDirectionField | ( | void | ) | const |
Get the GTS Direction Field from the GTS Fields.
Definition at line 228 of file lr-wpan-fields.cc.
References m_gtsDirMask.
Referenced by Serialize().
Here is the caller graph for this function:| uint8_t ns3::GtsFields::GetGtsSpecField | ( | void | ) | const |
Get the GTS Specification Field from the GTS Fields.
Definition at line 216 of file lr-wpan-fields.cc.
References m_gtsSpecDescCount, and m_gtsSpecPermit.
Referenced by ns3::BeaconPayloadHeader::Print(), and Serialize().

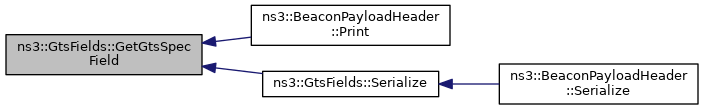

Here is the caller graph for this function:| uint32_t ns3::GtsFields::GetSerializedSize | ( | void | ) | const |
Get the size of the serialized GTS fields.
Definition at line 253 of file lr-wpan-fields.cc.
References m_gtsSpecDescCount.
Referenced by ns3::BeaconPayloadHeader::GetSerializedSize().
Here is the caller graph for this function:| Buffer::Iterator ns3::GtsFields::Serialize | ( | Buffer::Iterator | i | ) | const |
Serialize the entire GTS fields.
| i | an iterator which points to where the superframe specification field should be written. |
Definition at line 268 of file lr-wpan-fields.cc.
References GetGtsDirectionField(), GetGtsSpecField(), ns3::GtsFields::gtsDescriptor::m_gtsDescLength, ns3::GtsFields::gtsDescriptor::m_gtsDescStartSlot, m_gtsList, m_gtsSpecDescCount, ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::BeaconPayloadHeader::Serialize().

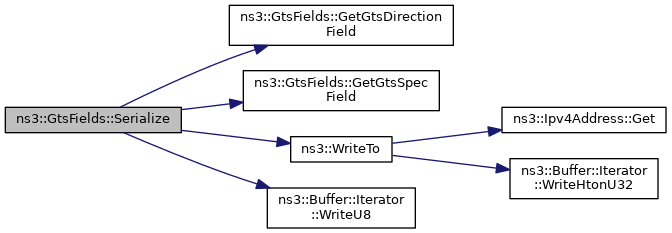

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::GtsFields::SetGtsDirectionField | ( | uint8_t | gtsDir | ) |
Set the GTS direction field to the GTS Fields gtsDir The GTS Direction Field to set.
Definition at line 246 of file lr-wpan-fields.cc.
References m_gtsDirMask.
Referenced by Deserialize().
Here is the caller graph for this function:| void ns3::GtsFields::SetGtsSpecField | ( | uint8_t | gtsSpec | ) |
Set the GTS Specification Field to the GTS Fields gtsSpec The GTS Specification Field to set.
Definition at line 238 of file lr-wpan-fields.cc.
References m_gtsSpecDescCount, and m_gtsSpecPermit.
Referenced by Deserialize().
Here is the caller graph for this function:
|
private |
GTS Direction field Directions Mask (Bit 0-6) GTS Direction field Reserved (Not Necessary) (Bit 7)
Definition at line 217 of file lr-wpan-fields.h.
Referenced by GetGtsDirectionField(), GtsFields(), and SetGtsDirectionField().
|
private |
GTS List field (maximum descriptors stored == 7)
Definition at line 220 of file lr-wpan-fields.h.
Referenced by Deserialize(), and Serialize().
|
private |
GTS specification field Descriptor Count (Bit 0-2) GTS specification field Reserved (Not necessary) (Bit 3-6)
Definition at line 213 of file lr-wpan-fields.h.
Referenced by Deserialize(), GetGtsSpecField(), GetSerializedSize(), GtsFields(), Serialize(), and SetGtsSpecField().
|
private |
GTS specification field GTS Permit (Bit 7)
Definition at line 215 of file lr-wpan-fields.h.
Referenced by GetGtsSpecField(), GtsFields(), and SetGtsSpecField().
