ns3::HeSigHeader Class Reference

Implements the IEEE 802.11ax HE-SIG PHY header (HE-SIG-A1/A2/B) More...

#include "wifi-phy-header.h"

+ Inheritance diagram for ns3::HeSigHeader:
+ Collaboration diagram for ns3::HeSigHeader:

Public Member Functions

 HeSigHeader ()

virtual ~HeSigHeader ()

uint32_t Deserialize (Buffer::Iterator start)

uint8_t GetBssColor (void) const
 Return the BSS Color field in the HE-SIG-A1. More...

uint16_t GetChannelWidth (void) const
 Return the channel width (in MHz). More...

uint16_t GetGuardInterval (void) const
 Return the guard interval (in nanoseconds). More...

TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint8_t GetMcs (void) const
 Return the MCS field of HE-SIG-A1. More...

uint8_t GetNStreams (void) const
 Return the number of streams. More...

uint32_t GetSerializedSize (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetBssColor (uint8_t bssColor)
 Fill the BSS Color field of HE-SIG-A1. More...

void SetChannelWidth (uint16_t channelWidth)
 Fill the channel width field of HE-SIG-A1 (in MHz). More...

void SetGuardIntervalAndLtfSize (uint16_t gi, uint8_t ltf)
 Fill the GI + LTF size field of HE-SIG-A1. More...

void SetMcs (uint8_t mcs)
 Fill the MCS field of HE-SIG-A1. More...

void SetMuFlag (bool mu)
 Set the Multi-User (MU) flag. More...

void SetNStreams (uint8_t nStreams)
 Fill the number of streams field of HE-SIG-A1. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_bandwidth
 Bandwidth field. More...

uint8_t m_bssColor
 BSS color field. More...

uint8_t m_format
 Format bit. More...

uint8_t m_gi_ltf_size
 GI+LTF Size field. More...

uint8_t m_mcs
 MCS field. More...

bool m_mu
 This is used to decide whether MU SIG-B should be added or not. More...

uint8_t m_nsts
 NSTS. More...

uint8_t m_spatialReuse
 Spatial Reuse field. More...

uint8_t m_ul_dl
 UL/DL bit. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Implements the IEEE 802.11ax HE-SIG PHY header (HE-SIG-A1/A2/B)


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 346 of file wifi-phy-header.h.

Constructor & Destructor Documentation

◆ HeSigHeader()

ns3::HeSigHeader::HeSigHeader ( )

Definition at line 683 of file wifi-phy-header.cc.

◆ ~HeSigHeader()

ns3::HeSigHeader::~HeSigHeader ( )
virtual

Definition at line 696 of file wifi-phy-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::HeSigHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 897 of file wifi-phy-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_bandwidth, m_bssColor, m_format, m_gi_ltf_size, m_mcs, m_mu, m_nsts, m_spatialReuse, m_ul_dl, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

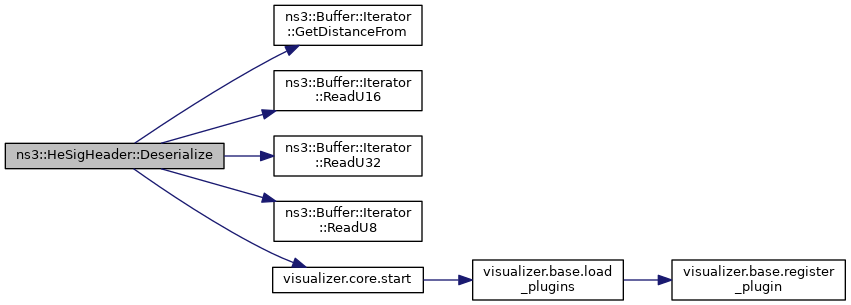

+ Here is the call graph for this function:

◆ GetBssColor()

uint8_t ns3::HeSigHeader::GetBssColor ( void  ) const

Return the BSS Color field in the HE-SIG-A1.

Returns
the BSS Color field in the HE-SIG-A1

Definition at line 768 of file wifi-phy-header.cc.

References m_bssColor.

Referenced by ns3::WifiPpdu::GetTxVector().

+ Here is the caller graph for this function:

◆ GetChannelWidth()

uint16_t ns3::HeSigHeader::GetChannelWidth ( void  ) const

Return the channel width (in MHz).

Returns
the channel width (in MHz)

Definition at line 795 of file wifi-phy-header.cc.

References m_bandwidth.

Referenced by ns3::WifiPpdu::GetTxVector(), and Print().

+ Here is the caller graph for this function:

◆ GetGuardInterval()

uint16_t ns3::HeSigHeader::GetGuardInterval ( void  ) const

Return the guard interval (in nanoseconds).

Returns
the guard interval (in nanoseconds)

Definition at line 837 of file wifi-phy-header.cc.

References m_gi_ltf_size.

Referenced by ns3::WifiPpdu::GetTxVector(), and Print().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::HeSigHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 712 of file wifi-phy-header.cc.

References GetTypeId().

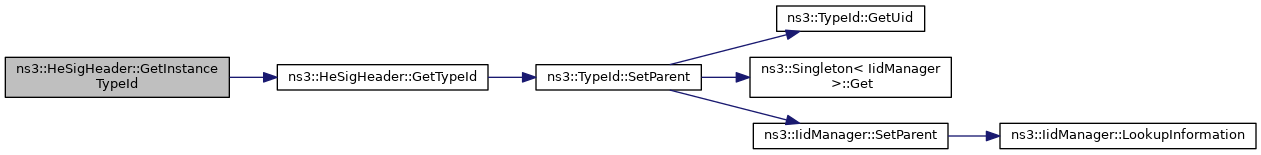

+ Here is the call graph for this function:

◆ GetMcs()

uint8_t ns3::HeSigHeader::GetMcs ( void  ) const

Return the MCS field of HE-SIG-A1.

Returns
the MCS field of HE-SIG-A1

Definition at line 755 of file wifi-phy-header.cc.

References m_mcs.

Referenced by ns3::WifiPpdu::GetTxVector().

+ Here is the caller graph for this function:

◆ GetNStreams()

uint8_t ns3::HeSigHeader::GetNStreams ( void  ) const

Return the number of streams.

Returns
the number of streams

Definition at line 862 of file wifi-phy-header.cc.

References m_nsts.

Referenced by ns3::WifiPpdu::GetTxVector().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::HeSigHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 729 of file wifi-phy-header.cc.

References m_mu.

◆ GetTypeId()

TypeId ns3::HeSigHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 701 of file wifi-phy-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

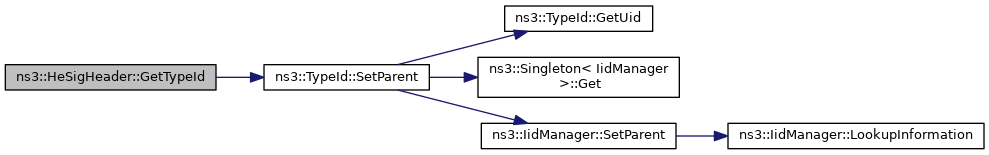

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::HeSigHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 718 of file wifi-phy-header.cc.

References GetChannelWidth(), GetGuardInterval(), m_bssColor, m_mcs, m_mu, and m_nsts.

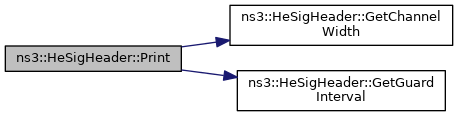

+ Here is the call graph for this function:

◆ Serialize()

void ns3::HeSigHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 868 of file wifi-phy-header.cc.

References m_bandwidth, m_bssColor, m_format, m_gi_ltf_size, m_mcs, m_mu, m_nsts, m_spatialReuse, m_ul_dl, and visualizer.core::start().

+ Here is the call graph for this function:

◆ SetBssColor()

void ns3::HeSigHeader::SetBssColor ( uint8_t  bssColor)

Fill the BSS Color field of HE-SIG-A1.

Parameters
bssColorthe BSS Color value

Definition at line 761 of file wifi-phy-header.cc.

References m_bssColor, and NS_ASSERT.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

◆ SetChannelWidth()

void ns3::HeSigHeader::SetChannelWidth ( uint16_t  channelWidth)

Fill the channel width field of HE-SIG-A1 (in MHz).

Parameters
channelWidththe channel width (in MHz)

Definition at line 774 of file wifi-phy-header.cc.

References m_bandwidth.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

◆ SetGuardIntervalAndLtfSize()

void ns3::HeSigHeader::SetGuardIntervalAndLtfSize ( uint16_t  gi,
uint8_t  ltf
)

Fill the GI + LTF size field of HE-SIG-A1.

Parameters
githe guard interval (in nanoseconds)
ltfthe sequence of HE-LTF

Definition at line 816 of file wifi-phy-header.cc.

References m_gi_ltf_size.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

◆ SetMcs()

void ns3::HeSigHeader::SetMcs ( uint8_t  mcs)

Fill the MCS field of HE-SIG-A1.

Parameters
mcsthe MCS field of HE-SIG-A1

Definition at line 748 of file wifi-phy-header.cc.

References m_mcs, and NS_ASSERT.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

◆ SetMuFlag()

void ns3::HeSigHeader::SetMuFlag ( bool  mu)

Set the Multi-User (MU) flag.

Parameters
muthe MU flag

Definition at line 742 of file wifi-phy-header.cc.

References m_mu.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

◆ SetNStreams()

void ns3::HeSigHeader::SetNStreams ( uint8_t  nStreams)

Fill the number of streams field of HE-SIG-A1.

Parameters
nStreamsthe number of streams

Definition at line 855 of file wifi-phy-header.cc.

References m_nsts, and NS_ASSERT.

Referenced by ns3::WifiPpdu::WifiPpdu().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_bandwidth

uint8_t ns3::HeSigHeader::m_bandwidth
private

Bandwidth field.

Definition at line 440 of file wifi-phy-header.h.

Referenced by Deserialize(), GetChannelWidth(), Serialize(), and SetChannelWidth().

◆ m_bssColor

uint8_t ns3::HeSigHeader::m_bssColor
private

BSS color field.

Definition at line 436 of file wifi-phy-header.h.

Referenced by Deserialize(), GetBssColor(), Print(), Serialize(), and SetBssColor().

◆ m_format

uint8_t ns3::HeSigHeader::m_format
private

Format bit.

Definition at line 435 of file wifi-phy-header.h.

Referenced by Deserialize(), and Serialize().

◆ m_gi_ltf_size

uint8_t ns3::HeSigHeader::m_gi_ltf_size
private

GI+LTF Size field.

Definition at line 441 of file wifi-phy-header.h.

Referenced by Deserialize(), GetGuardInterval(), Serialize(), and SetGuardIntervalAndLtfSize().

◆ m_mcs

uint8_t ns3::HeSigHeader::m_mcs
private

MCS field.

Definition at line 438 of file wifi-phy-header.h.

Referenced by Deserialize(), GetMcs(), Print(), Serialize(), and SetMcs().

◆ m_mu

bool ns3::HeSigHeader::m_mu
private

This is used to decide whether MU SIG-B should be added or not.

Definition at line 445 of file wifi-phy-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), Serialize(), and SetMuFlag().

◆ m_nsts

uint8_t ns3::HeSigHeader::m_nsts
private

NSTS.

Definition at line 442 of file wifi-phy-header.h.

Referenced by Deserialize(), GetNStreams(), Print(), Serialize(), and SetNStreams().

◆ m_spatialReuse

uint8_t ns3::HeSigHeader::m_spatialReuse
private

Spatial Reuse field.

Definition at line 439 of file wifi-phy-header.h.

Referenced by Deserialize(), and Serialize().

◆ m_ul_dl

uint8_t ns3::HeSigHeader::m_ul_dl
private

UL/DL bit.

Definition at line 437 of file wifi-phy-header.h.

Referenced by Deserialize(), and Serialize().


The documentation for this class was generated from the following files:
