ICMP Echo header. More...

#include "icmpv4.h"

Inheritance diagram for ns3::Icmpv4Echo:

Collaboration diagram for ns3::Icmpv4Echo:

Public Member Functions
	Icmpv4Echo ()

virtual	~Icmpv4Echo ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint32_t	GetData (uint8_t payload[]) const
	Get the Echo data. More...

uint32_t	GetDataSize (void) const
	Get the Echo data size. More...

uint16_t	GetIdentifier (void) const
	Get the Echo identifier. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint16_t	GetSequenceNumber (void) const
	Get the Echo sequence number. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetData (Ptr< const Packet > data)
	Set the Echo data. More...

void	SetIdentifier (uint16_t id)
	Set the Echo identifier. More...

void	SetSequenceNumber (uint16_t seq)
	Set the Echo sequence number. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get ICMP type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t *	m_data
	data More...

uint32_t	m_dataSize
	data size More...

uint16_t	m_identifier
	identifier More...

uint16_t	m_sequence
	sequence number More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

ICMP Echo header.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 107 of file icmpv4.h.

Constructor & Destructor Documentation

◆ Icmpv4Echo()

ns3::Icmpv4Echo::Icmpv4Echo ( )

Definition at line 207 of file icmpv4.cc.

References m_data, m_dataSize, and NS_LOG_FUNCTION.

◆ ~Icmpv4Echo()

ns3::Icmpv4Echo::~Icmpv4Echo ( )

virtual

Definition at line 219 of file icmpv4.cc.

References m_data, m_dataSize, and NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv4Echo::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 247 of file icmpv4.cc.

References m_data, m_dataSize, m_identifier, m_sequence, NS_ASSERT, NS_LOG_FUNCTION, and visualizer.core::start().

Here is the call graph for this function:

◆ GetData()

uint32_t ns3::Icmpv4Echo::GetData ( uint8_t payload[] ) const

Get the Echo data.

Parameters

payload the data (filled)

Returns: the data length

Definition at line 191 of file icmpv4.cc.

References m_data, m_dataSize, and NS_LOG_FUNCTION.

Referenced by ns3::V4TraceRoute::Receive(), and ns3::V4Ping::Receive().

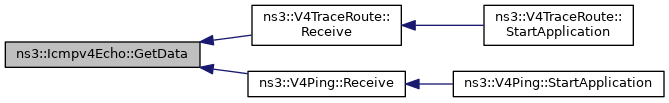

Here is the caller graph for this function:

◆ GetDataSize()

uint32_t ns3::Icmpv4Echo::GetDataSize ( void ) const

Get the Echo data size.

Returns: the data size

Definition at line 185 of file icmpv4.cc.

References m_dataSize, and NS_LOG_FUNCTION.

Referenced by ns3::V4TraceRoute::Receive(), and ns3::V4Ping::Receive().

Here is the caller graph for this function:

◆ GetIdentifier()

uint16_t ns3::Icmpv4Echo::GetIdentifier ( void ) const

Get the Echo identifier.

Returns: the identifier

Definition at line 173 of file icmpv4.cc.

References m_identifier, and NS_LOG_FUNCTION.

Referenced by ns3::V4TraceRoute::Receive(), and ns3::V4Ping::Receive().

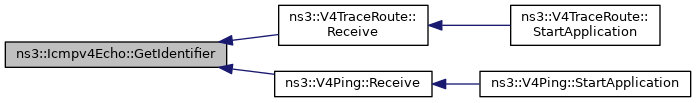

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Icmpv4Echo::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 227 of file icmpv4.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

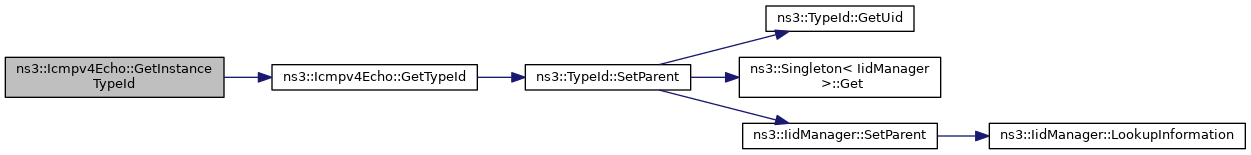

Here is the call graph for this function:

◆ GetSequenceNumber()

uint16_t ns3::Icmpv4Echo::GetSequenceNumber ( void ) const

Get the Echo sequence number.

Returns: the sequence number

Definition at line 179 of file icmpv4.cc.

References m_sequence, and NS_LOG_FUNCTION.

Referenced by ns3::V4TraceRoute::Receive(), and ns3::V4Ping::Receive().

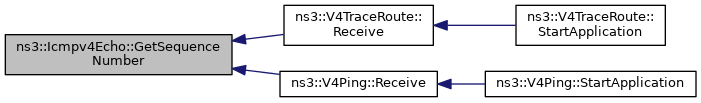

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Icmpv4Echo::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 233 of file icmpv4.cc.

References m_dataSize, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::Icmpv4Echo::GetTypeId ( void )

static

Get ICMP type.

Returns: the ICMP type

Definition at line 198 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

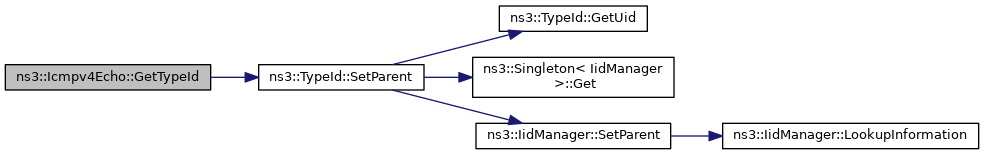

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::Icmpv4Echo::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 266 of file icmpv4.cc.

References m_dataSize, m_identifier, m_sequence, and NS_LOG_FUNCTION.

◆ Serialize()

void ns3::Icmpv4Echo::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 239 of file icmpv4.cc.

References m_data, m_dataSize, m_identifier, m_sequence, NS_LOG_FUNCTION, and visualizer.core::start().

Here is the call graph for this function:

◆ SetData()

void ns3::Icmpv4Echo::SetData ( Ptr< const Packet > data )

Set the Echo data.

Parameters

data the data

Definition at line 152 of file icmpv4.cc.

References data, m_data, m_dataSize, and NS_LOG_FUNCTION.

◆ SetIdentifier()

void ns3::Icmpv4Echo::SetIdentifier ( uint16_t id )

Set the Echo identifier.

Parameters

id	the identifier

Definition at line 140 of file icmpv4.cc.

References m_identifier, and NS_LOG_FUNCTION.

◆ SetSequenceNumber()

void ns3::Icmpv4Echo::SetSequenceNumber ( uint16_t seq )

Set the Echo sequence number.

Parameters

seq	the sequence number

Definition at line 146 of file icmpv4.cc.

References m_sequence, and NS_LOG_FUNCTION.

Referenced by IcmpEchoReplyTestCase::DoSendData(), IcmpTimeExceedTestCase::DoSendData(), ns3::V4TraceRoute::Send(), ns3::V4Ping::Send(), ns3::olsr::Bug780Test::SendPing(), and ChainRegressionTest::SendPing().

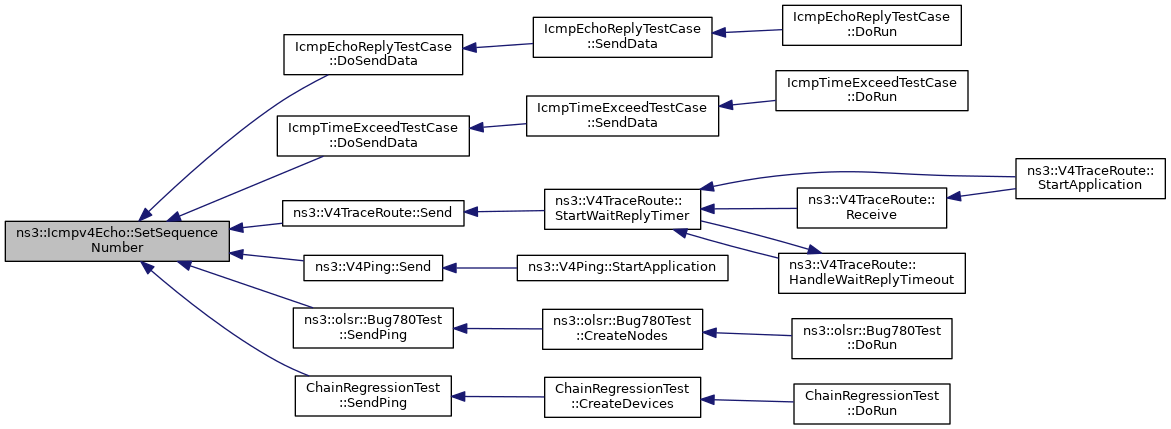

Here is the caller graph for this function:

Member Data Documentation

◆ m_data

uint8_t* ns3::Icmpv4Echo::m_data

private

data

Definition at line 163 of file icmpv4.h.

Referenced by Deserialize(), GetData(), Icmpv4Echo(), Serialize(), SetData(), and ~Icmpv4Echo().

◆ m_dataSize

uint32_t ns3::Icmpv4Echo::m_dataSize

private

data size

Definition at line 164 of file icmpv4.h.

Referenced by Deserialize(), GetData(), GetDataSize(), GetSerializedSize(), Icmpv4Echo(), Print(), Serialize(), SetData(), and ~Icmpv4Echo().

◆ m_identifier

uint16_t ns3::Icmpv4Echo::m_identifier

private

identifier

Definition at line 161 of file icmpv4.h.

Referenced by Deserialize(), GetIdentifier(), Print(), Serialize(), and SetIdentifier().

◆ m_sequence

uint16_t ns3::Icmpv4Echo::m_sequence

private

sequence number

Definition at line 162 of file icmpv4.h.

Referenced by Deserialize(), GetSequenceNumber(), Print(), Serialize(), and SetSequenceNumber().

The documentation for this class was generated from the following files:

src/internet/model/icmpv4.h
src/internet/model/icmpv4.cc
