Noise and Interference (thus Ni) event. More...

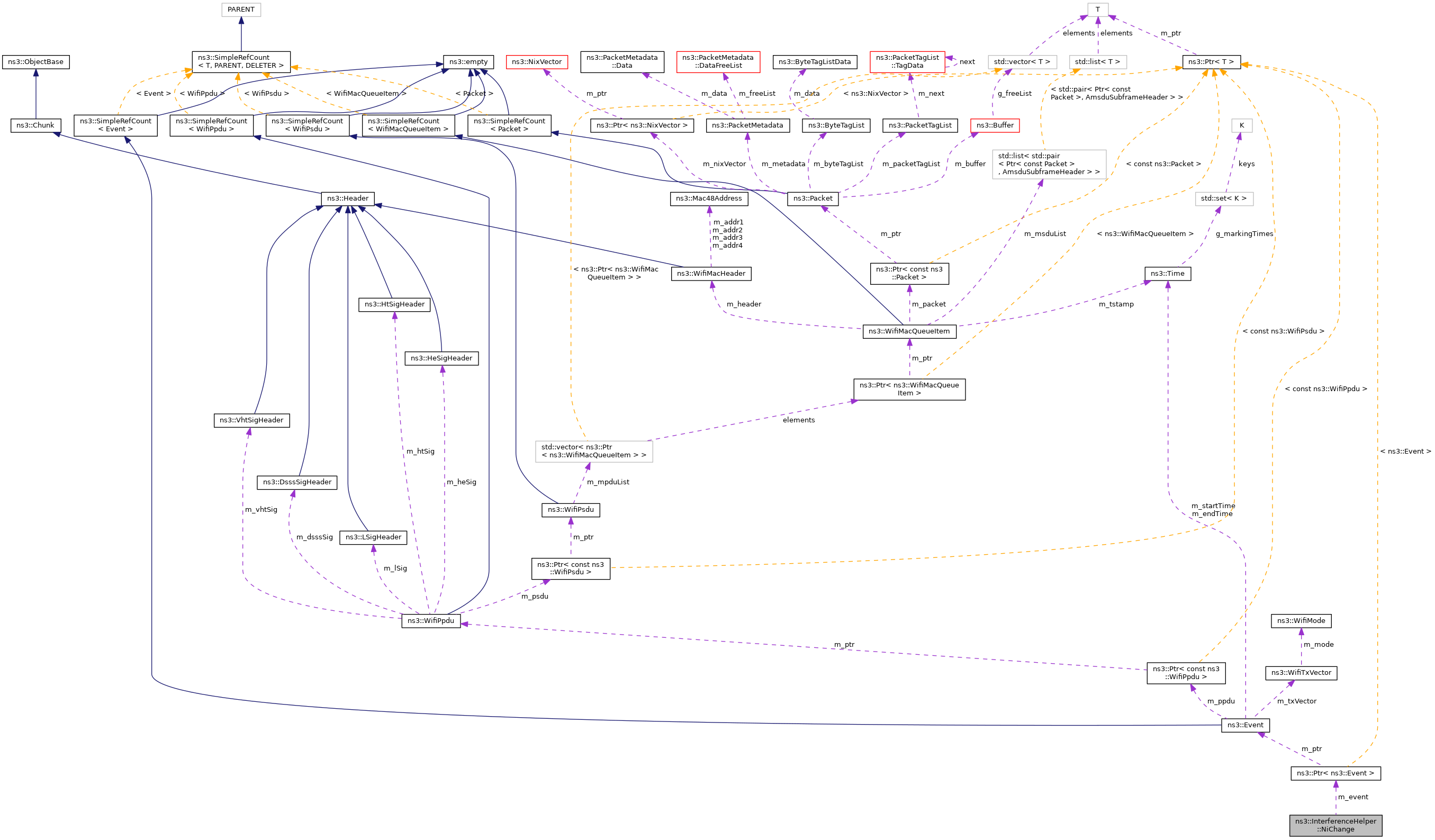

Collaboration diagram for ns3::InterferenceHelper::NiChange:

Public Member Functions
	NiChange (double power, Ptr< Event > event)
	Create a NiChange at the given time and the amount of NI change. More...

void	AddPower (double power)
	Add a given amount of power. More...

Ptr< Event >	GetEvent (void) const
	Return the event causes the corresponding NI change. More...

double	GetPower (void) const
	Return the power. More...

Private Attributes
Ptr< Event >	m_event
	event More...

double	m_power
	power in watts More...

Detailed Description

Noise and Interference (thus Ni) event.

Definition at line 274 of file interference-helper.h.

Constructor & Destructor Documentation

◆ NiChange()

ns3::InterferenceHelper::NiChange::NiChange	(	double	power,
		Ptr< Event >	event
	)

Create a NiChange at the given time and the amount of NI change.

Parameters

power	the power in watts
event	causes this NI change

Definition at line 109 of file interference-helper.cc.

Member Function Documentation

◆ AddPower()

void ns3::InterferenceHelper::NiChange::AddPower ( double power )

Add a given amount of power.

Parameters

power the power to be added to the existing value in watts

Definition at line 122 of file interference-helper.cc.

◆ GetEvent()

Ptr< Event > ns3::InterferenceHelper::NiChange::GetEvent ( void ) const

Return the event causes the corresponding NI change.

Returns: the event

Definition at line 128 of file interference-helper.cc.

◆ GetPower()

double ns3::InterferenceHelper::NiChange::GetPower ( void ) const

Return the power.

Returns: the power in watts

Definition at line 116 of file interference-helper.cc.

Member Data Documentation

◆ m_event

Ptr<Event> ns3::InterferenceHelper::NiChange::m_event

private

event

Definition at line 306 of file interference-helper.h.

◆ m_power

double ns3::InterferenceHelper::NiChange::m_power

private

power in watts

Definition at line 305 of file interference-helper.h.

The documentation for this class was generated from the following files:

src/wifi/model/interference-helper.h
src/wifi/model/interference-helper.cc
