ns3::Ipv6OptionJumbogramHeader Class Reference

Header of IPv6 Option Jumbogram. More...

#include "ipv6-option-header.h"

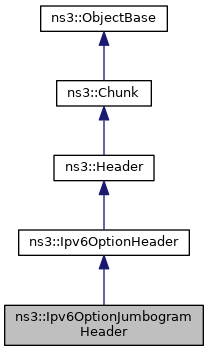

+ Inheritance diagram for ns3::Ipv6OptionJumbogramHeader:

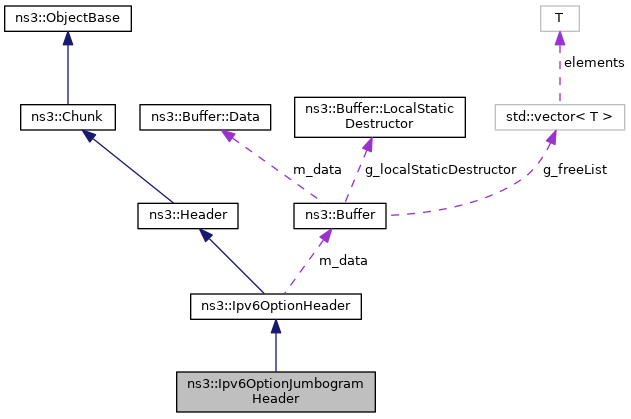

+ Collaboration diagram for ns3::Ipv6OptionJumbogramHeader:

Public Member Functions

 Ipv6OptionJumbogramHeader ()
 Constructor. More...

virtual ~Ipv6OptionJumbogramHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual Alignment GetAlignment () const
 Get the Alignment requirement of this option header. More...

uint32_t GetDataLength () const
 Get the data length. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

virtual void Print (std::ostream &os) const
 Print some information about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetDataLength (uint32_t dataLength)
 Set the data length. More...

- Public Member Functions inherited from ns3::Ipv6OptionHeader
 Ipv6OptionHeader ()
 Constructor. More...

virtual ~Ipv6OptionHeader ()
 Destructor. More...

uint8_t GetLength () const
 Get the option length. More...

uint8_t GetType () const
 Get the type of the option. More...

void SetLength (uint8_t length)
 Set the option length. More...

void SetType (uint8_t type)
 Set the type of the option. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6OptionHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_dataLength
 The data length. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Header of IPv6 Option Jumbogram.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 271 of file ipv6-option-header.h.

Constructor & Destructor Documentation

◆ Ipv6OptionJumbogramHeader()

ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader ( )

Constructor.

Definition at line 250 of file ipv6-option-header.cc.

References m_dataLength, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

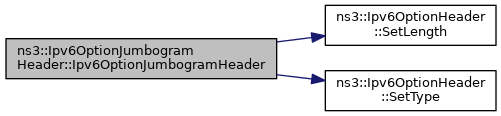

+ Here is the call graph for this function:

◆ ~Ipv6OptionJumbogramHeader()

ns3::Ipv6OptionJumbogramHeader::~Ipv6OptionJumbogramHeader ( )
virtual

Destructor.

Definition at line 257 of file ipv6-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv6OptionJumbogramHeader::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 290 of file ipv6-option-header.cc.

References GetSerializedSize(), m_dataLength, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

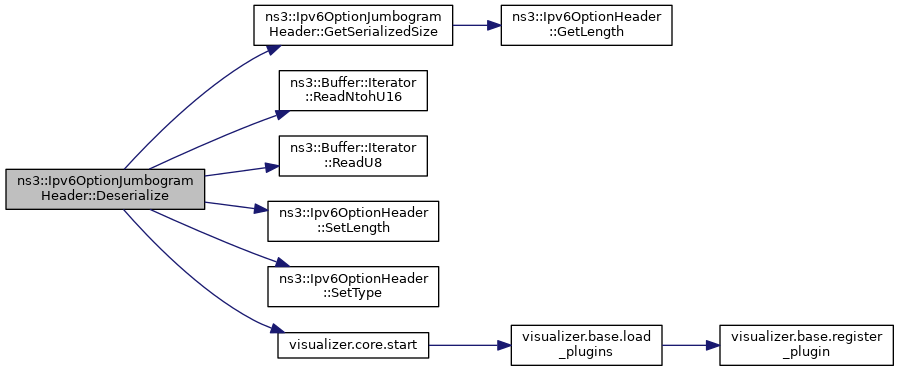

+ Here is the call graph for this function:

◆ GetAlignment()

Ipv6OptionHeader::Alignment ns3::Ipv6OptionJumbogramHeader::GetAlignment ( ) const
virtual

Get the Alignment requirement of this option header.

Returns
The required alignment

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 301 of file ipv6-option-header.cc.

◆ GetDataLength()

uint32_t ns3::Ipv6OptionJumbogramHeader::GetDataLength ( ) const

Get the data length.

Returns
the data length

Definition at line 266 of file ipv6-option-header.cc.

References m_dataLength.

◆ GetInstanceTypeId()

TypeId ns3::Ipv6OptionJumbogramHeader::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 245 of file ipv6-option-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv6OptionJumbogramHeader::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 276 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

Referenced by Deserialize(), and ns3::Ipv6OptionJumbogram::Process().

+ Here is the call graph for this function:

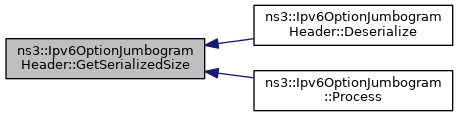

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6OptionJumbogramHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 235 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6OptionJumbogramHeader::Print ( std::ostream &  os) const
virtual

Print some information about the packet.

Parameters
osoutput stream
Returns
info about this packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 271 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), and m_dataLength.

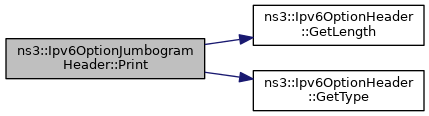

+ Here is the call graph for this function:

◆ Serialize()

void ns3::Ipv6OptionJumbogramHeader::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 281 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), m_dataLength, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

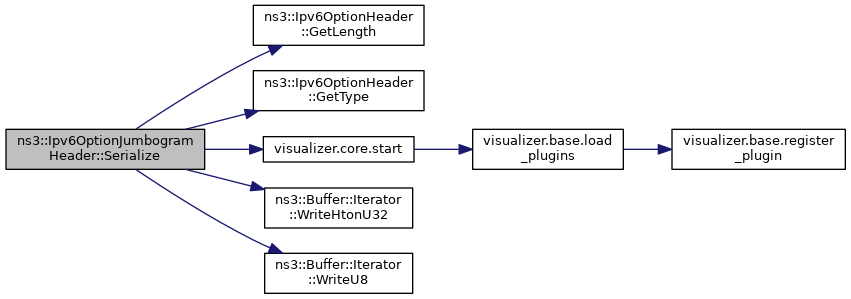

+ Here is the call graph for this function:

◆ SetDataLength()

void ns3::Ipv6OptionJumbogramHeader::SetDataLength ( uint32_t  dataLength)

Set the data length.

Parameters
dataLengththe data length

Definition at line 261 of file ipv6-option-header.cc.

References m_dataLength.

Member Data Documentation

◆ m_dataLength

uint32_t ns3::Ipv6OptionJumbogramHeader::m_dataLength
private

The data length.

Definition at line 344 of file ipv6-option-header.h.

Referenced by Deserialize(), GetDataLength(), Ipv6OptionJumbogramHeader(), Print(), Serialize(), and SetDataLength().


The documentation for this class was generated from the following files:
