Header for the LLC/SNAP encapsulation. More...

#include "llc-snap-header.h"

Inheritance diagram for ns3::LlcSnapHeader:

Collaboration diagram for ns3::LlcSnapHeader:

Public Member Functions
	LlcSnapHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetType (void)
	Return the Ethertype. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetType (uint16_t type)
	Set the Ethertype. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_etherType
	the Ethertype More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Header for the LLC/SNAP encapsulation.

Introspection did not find any typical Config paths.

For a list of EtherTypes, see http://www.iana.org/assignments/ieee-802-numbers/ieee-802-numbers.xhtml

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 42 of file llc-snap-header.h.

Constructor & Destructor Documentation

◆ LlcSnapHeader()

ns3::LlcSnapHeader::LlcSnapHeader ( )

Definition at line 32 of file llc-snap-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::LlcSnapHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 92 of file llc-snap-header.cc.

References GetSerializedSize(), m_etherType, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

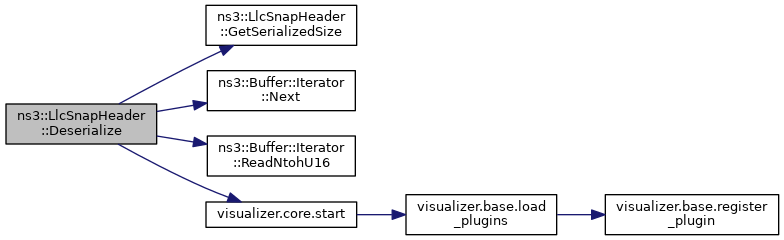

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::LlcSnapHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 68 of file llc-snap-header.cc.

References GetTypeId().

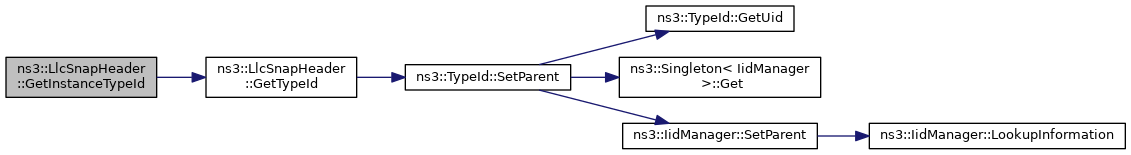

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::LlcSnapHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 51 of file llc-snap-header.cc.

References ns3::LLC_SNAP_HEADER_LENGTH, and NS_LOG_FUNCTION.

Referenced by Deserialize(), ns3::TapBridge::Filter(), and ns3::FdNetDevice::ForwardUp().

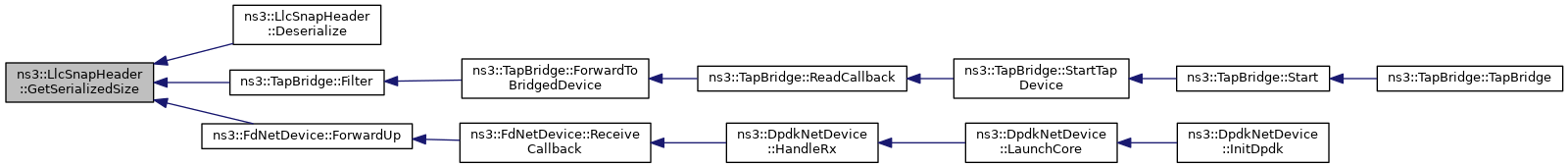

Here is the caller graph for this function:

◆ GetType()

uint16_t ns3::LlcSnapHeader::GetType ( void )

Return the Ethertype.

Returns: Ethertype

Definition at line 44 of file llc-snap-header.cc.

References m_etherType, and NS_LOG_FUNCTION.

Referenced by ns3::TapBridge::Filter(), ns3::WifiNetDevice::ForwardUp(), ns3::WimaxNetDevice::ForwardUp(), ns3::FdNetDevice::ForwardUp(), ns3::WaveNetDevice::ForwardUp(), WifiAcMappingTest::PacketEnqueuedInWifiMacQueue(), and ns3::CsmaNetDevice::Receive().

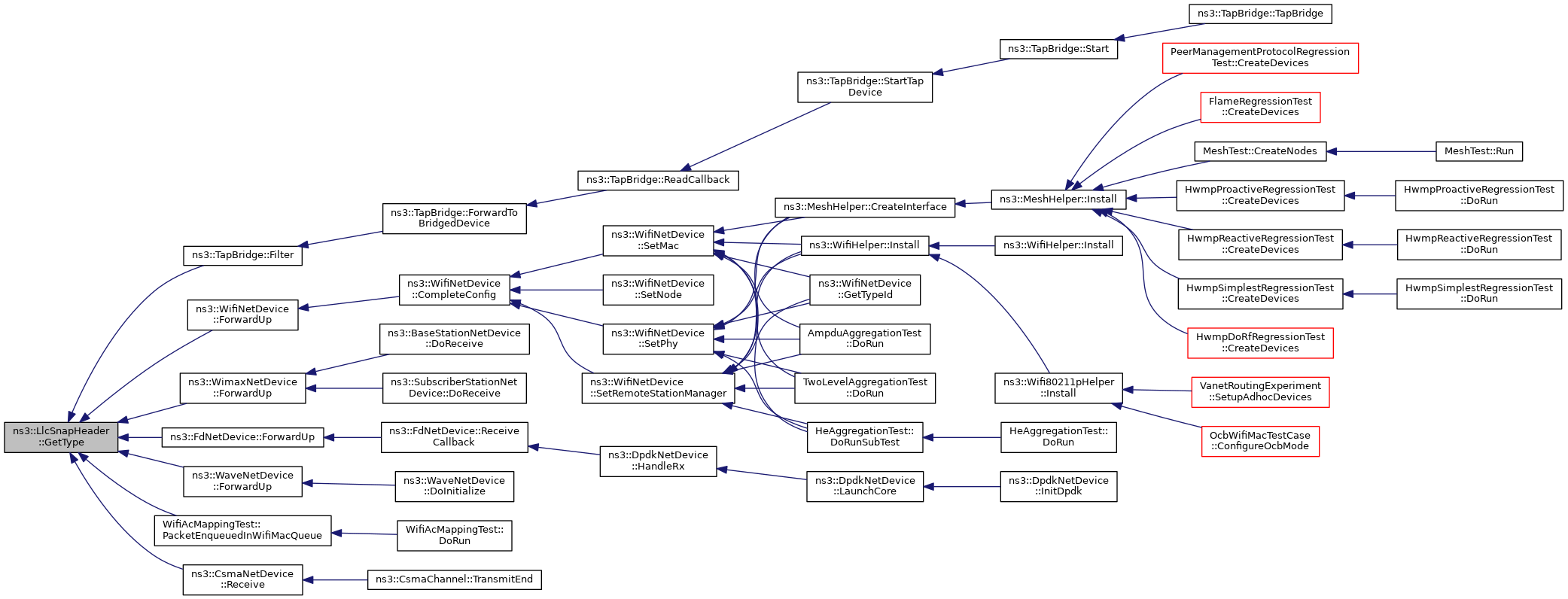

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LlcSnapHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 58 of file llc-snap-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::LlcSnapHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 73 of file llc-snap-header.cc.

References m_etherType, and NS_LOG_FUNCTION.

◆ Serialize()

void ns3::LlcSnapHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 83 of file llc-snap-header.cc.

References m_etherType, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteHtonU16().

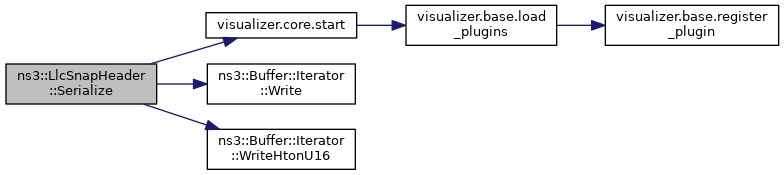

Here is the call graph for this function:

◆ SetType()

void ns3::LlcSnapHeader::SetType ( uint16_t type )

Set the Ethertype.

Parameters

type	the Ethertype

Definition at line 38 of file llc-snap-header.cc.

References m_etherType, and NS_LOG_FUNCTION.

Referenced by ns3::CsmaNetDevice::AddHeader(), ns3::WifiNetDevice::Send(), ns3::WaveNetDevice::Send(), ns3::WimaxNetDevice::Send(), ns3::WifiNetDevice::SendFrom(), ns3::FdNetDevice::SendFrom(), ns3::AlohaNoackNetDevice::SendFrom(), ns3::WimaxNetDevice::SendFrom(), and ns3::WaveNetDevice::SendX().

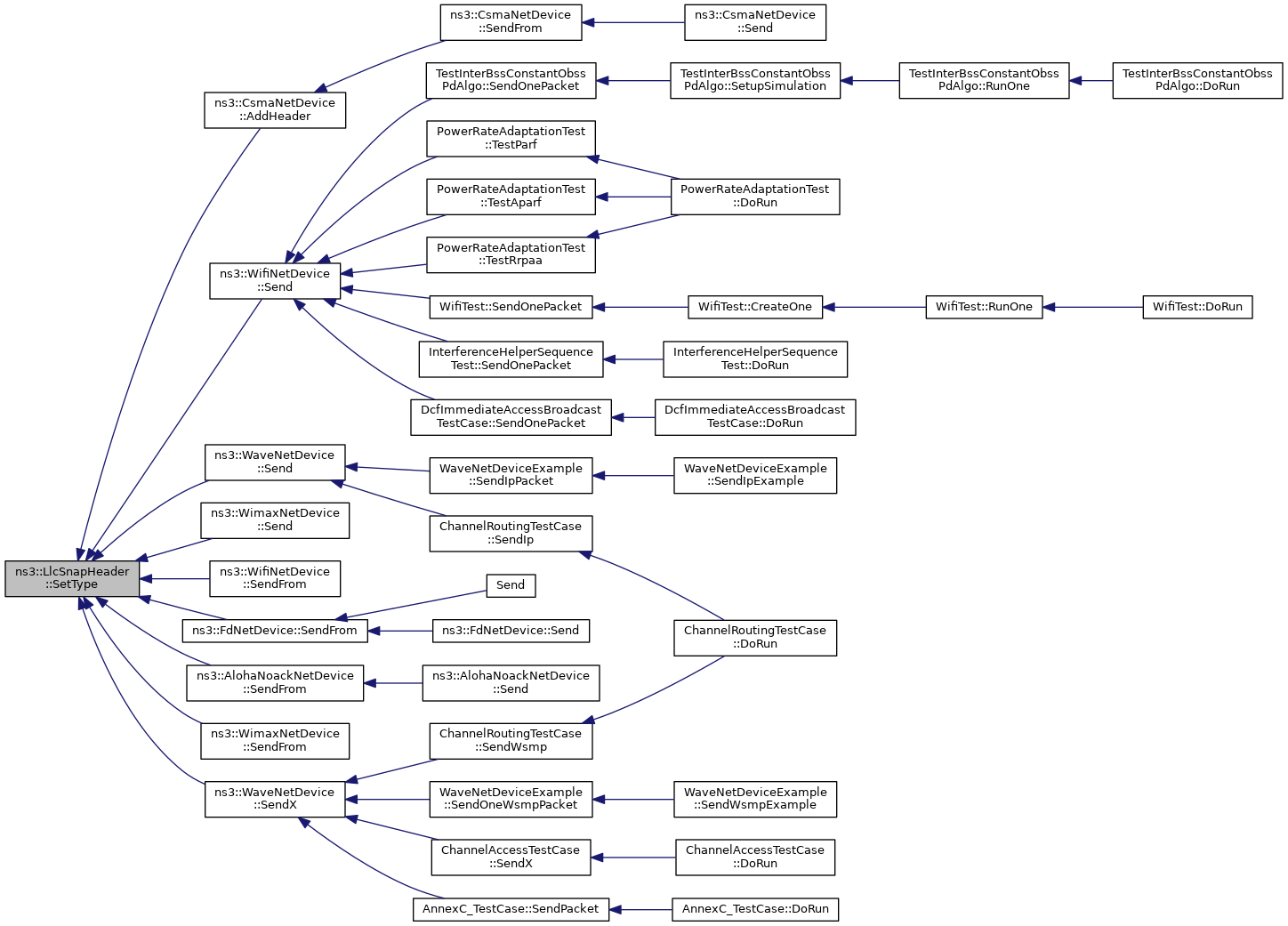

Here is the caller graph for this function:

Member Data Documentation

◆ m_etherType

uint16_t ns3::LlcSnapHeader::m_etherType

private

the Ethertype

Definition at line 69 of file llc-snap-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

The documentation for this class was generated from the following files:

src/network/utils/llc-snap-header.h
src/network/utils/llc-snap-header.cc
