ns3::LrWpanErrorModel Class Reference

Model the error rate for IEEE 802.15.4 2.4 GHz AWGN channel for OQPSK the model description can be found in IEEE Std 802.15.4-2006, section E.4.1.7. More...

#include "lr-wpan-error-model.h"

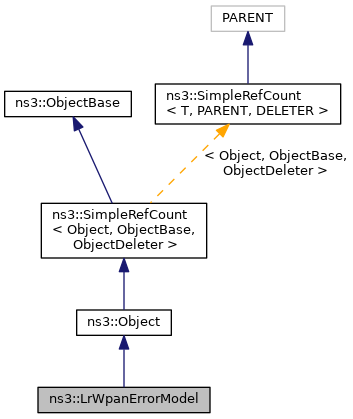

+ Inheritance diagram for ns3::LrWpanErrorModel:

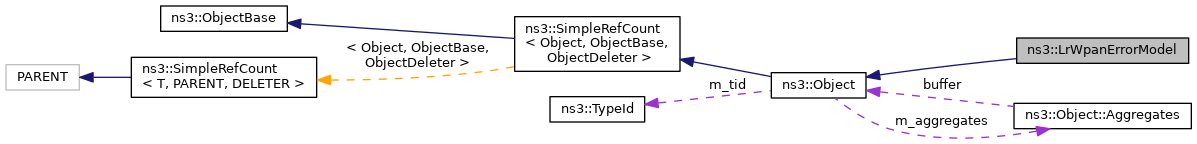

+ Collaboration diagram for ns3::LrWpanErrorModel:

Public Member Functions

 LrWpanErrorModel (void)

double GetChunkSuccessRate (double snr, uint32_t nbits) const
 Return chunk success rate for given SNR. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

double m_binomialCoefficients [17]
 Array of precalculated binomial coefficients. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Model the error rate for IEEE 802.15.4 2.4 GHz AWGN channel for OQPSK the model description can be found in IEEE Std 802.15.4-2006, section E.4.1.7.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 34 of file lr-wpan-error-model.h.

Constructor & Destructor Documentation

◆ LrWpanErrorModel()

ns3::LrWpanErrorModel::LrWpanErrorModel ( void  )

Definition at line 42 of file lr-wpan-error-model.cc.

References m_binomialCoefficients.

Member Function Documentation

◆ GetChunkSuccessRate()

double ns3::LrWpanErrorModel::GetChunkSuccessRate ( double  snr,
uint32_t  nbits
) const

Return chunk success rate for given SNR.

Returns
success rate (i.e. 1 - chunk error rate)
Parameters
snrSNR expressed as a power ratio (i.e. not in dB)
nbitsnumber of bits in the chunk

Definition at line 64 of file lr-wpan-error-model.cc.

References m_binomialCoefficients, and min.

Referenced by LrWpanErrorModelTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LrWpanErrorModel::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 32 of file lr-wpan-error-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_binomialCoefficients

double ns3::LrWpanErrorModel::m_binomialCoefficients[17]
private

Array of precalculated binomial coefficients.

Definition at line 59 of file lr-wpan-error-model.h.

Referenced by GetChunkSuccessRate(), and LrWpanErrorModel().


The documentation for this class was generated from the following files:
