ns3::LrWpanLqiTag Class Reference


Introspection did not find any typical Config paths. More...

#include "lr-wpan-lqi-tag.h"

+ Inheritance diagram for ns3::LrWpanLqiTag:
+ Collaboration diagram for ns3::LrWpanLqiTag:

Public Member Functions

 LrWpanLqiTag (void)
 Create a LrWpanLqiTag with the default LQI 0. More...

 LrWpanLqiTag (uint8_t lqi)
 Create a LrWpanLqiTag with the given LQI value. More...

virtual void Deserialize (TagBuffer i)

uint8_t Get (void) const
 Get the LQI value. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void Set (uint8_t lqi)
 Set the LQI to the given value. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_lqi
 The current LQI value of the tag. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description


Introspection did not find any typical Config paths.


Attributes

  • Lqi: The lqi of the last packet received

No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 28 of file lr-wpan-lqi-tag.h.

Constructor & Destructor Documentation

◆ LrWpanLqiTag() [1/2]

ns3::LrWpanLqiTag::LrWpanLqiTag ( void  )

Create a LrWpanLqiTag with the default LQI 0.

Definition at line 49 of file lr-wpan-lqi-tag.cc.

◆ LrWpanLqiTag() [2/2]

ns3::LrWpanLqiTag::LrWpanLqiTag ( uint8_t  lqi)

Create a LrWpanLqiTag with the given LQI value.

Parameters
lqiThe LQI.

Definition at line 54 of file lr-wpan-lqi-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::LrWpanLqiTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 72 of file lr-wpan-lqi-tag.cc.

References m_lqi, and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

◆ Get()

uint8_t ns3::LrWpanLqiTag::Get ( void  ) const

Get the LQI value.

Returns
the LQI value

Definition at line 90 of file lr-wpan-lqi-tag.cc.

References m_lqi.

Referenced by ns3::LrWpanPhy::CheckInterference(), ns3::LrWpanPhy::EndRx(), and GetTypeId().

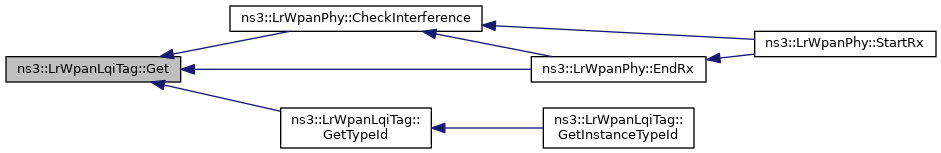

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::LrWpanLqiTag::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 44 of file lr-wpan-lqi-tag.cc.

References GetTypeId().

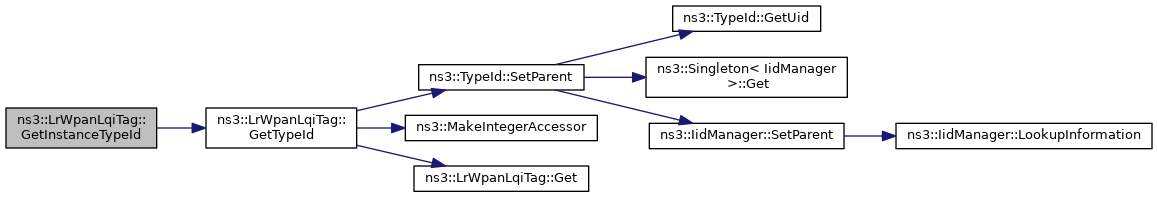

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::LrWpanLqiTag::GetSerializedSize ( void  ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 60 of file lr-wpan-lqi-tag.cc.

◆ GetTypeId()

TypeId ns3::LrWpanLqiTag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 29 of file lr-wpan-lqi-tag.cc.

References Get(), ns3::MakeIntegerAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

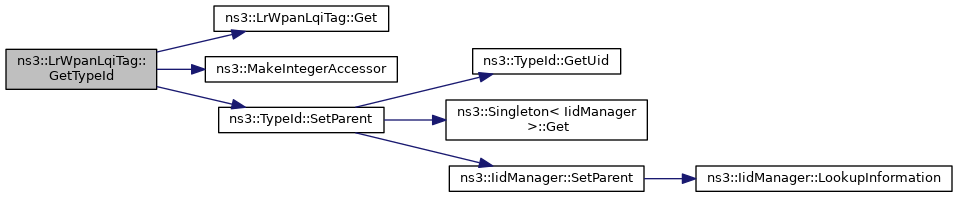

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::LrWpanLqiTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 78 of file lr-wpan-lqi-tag.cc.

References m_lqi.

◆ Serialize()

void ns3::LrWpanLqiTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 66 of file lr-wpan-lqi-tag.cc.

References m_lqi, and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

◆ Set()

void ns3::LrWpanLqiTag::Set ( uint8_t  lqi)

Set the LQI to the given value.

Parameters
lqithe value of the LQI to set

Definition at line 84 of file lr-wpan-lqi-tag.cc.

References m_lqi.

Referenced by ns3::LrWpanPhy::CheckInterference().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_lqi

uint8_t ns3::LrWpanLqiTag::m_lqi
private

The current LQI value of the tag.

Definition at line 73 of file lr-wpan-lqi-tag.h.

Referenced by Deserialize(), Get(), Print(), Serialize(), and Set().


The documentation for this class was generated from the following files:
