ns3::LteCcmRrcSapUser Class Referenceabstract

Service Access Point (SAP) offered by the eNodeB RRC instance to the component carrier manager (CCM) instance. More...

#include "lte-ccm-rrc-sap.h"

+ Inheritance diagram for ns3::LteCcmRrcSapUser:

Public Member Functions

virtual ~LteCcmRrcSapUser ()

virtual void AddLcs (std::vector< LteEnbRrcSapProvider::LogicalChannelConfig > lcConfig)=0
 add a new Logical Channel (LC) More...

virtual uint8_t AddUeMeasReportConfigForComponentCarrier (LteRrcSap::ReportConfigEutra reportConfig)=0
 Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity. More...

virtual Ptr< UeManagerGetUeManager (uint16_t rnti)=0
 Get UE manager by RNTI. More...

virtual void ReleaseLcs (uint16_t rnti, uint8_t lcid)=0
 remove an existing LC More...

virtual void SetNumberOfComponentCarriers (uint16_t noOfComponentCarriers)=0
 Set the number of component carriers. More...

virtual void TriggerComponentCarrier (uint16_t rnti, uint16_t targetCellId)=0
 Instruct the eNodeB RRC entity to prepare a component carrier. More...


Friends

class LteEnbRrc
 allow LteEnbRrc class friend access More...


Detailed Description

Service Access Point (SAP) offered by the eNodeB RRC instance to the component carrier manager (CCM) instance.

This is the Component Carrier Management SAP User, i.e., the part of the SAP that contains the eNodeB RRC methods called by the CCM.

Definition at line 151 of file lte-ccm-rrc-sap.h.

Constructor & Destructor Documentation

◆ ~LteCcmRrcSapUser()

ns3::LteCcmRrcSapUser::~LteCcmRrcSapUser ( )
virtual

Definition at line 32 of file lte-ccm-rrc-sap.cc.

Member Function Documentation

◆ AddLcs()

virtual void ns3::LteCcmRrcSapUser::AddLcs ( std::vector< LteEnbRrcSapProvider::LogicalChannelConfig lcConfig)
pure virtual

add a new Logical Channel (LC)

Parameters
lcConfigis a single structure contains logical Channel Id, Logical Channel config and Component Carrier Id

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

◆ AddUeMeasReportConfigForComponentCarrier()

virtual uint8_t ns3::LteCcmRrcSapUser::AddUeMeasReportConfigForComponentCarrier ( LteRrcSap::ReportConfigEutra  reportConfig)
pure virtual

Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity.

Parameters
reportConfigthe UE measurement reporting configuration
Returns
the measurement identity associated with this newly added reporting configuration

The eNodeB RRC entity is expected to configure the same reporting configuration in each of the attached UEs. When later in the simulation a UE measurement report is received from a UE as a result of this configuration, the eNodeB RRC entity shall forward this report to the ComponentCarrier algorithm through the LteCcmRrcSapProvider::ReportUeMeas SAP function.

Note
This function is only valid before the simulation begins.

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

◆ GetUeManager()

virtual Ptr<UeManager> ns3::LteCcmRrcSapUser::GetUeManager ( uint16_t  rnti)
pure virtual

Get UE manager by RNTI.

Parameters
rntiRNTI
Returns
UE manager

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

Referenced by ns3::NoOpComponentCarrierManager::DoReportBufferStatus(), ns3::RrComponentCarrierManager::DoReportBufferStatus(), and ns3::RrComponentCarrierManager::DoUlReceiveMacCe().

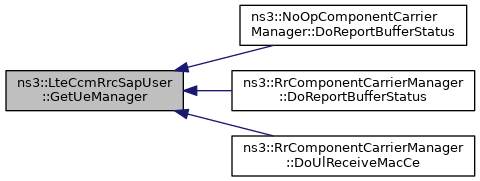

+ Here is the caller graph for this function:

◆ ReleaseLcs()

virtual void ns3::LteCcmRrcSapUser::ReleaseLcs ( uint16_t  rnti,
uint8_t  lcid
)
pure virtual

remove an existing LC

Parameters
rnti
lcid

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

◆ SetNumberOfComponentCarriers()

virtual void ns3::LteCcmRrcSapUser::SetNumberOfComponentCarriers ( uint16_t  noOfComponentCarriers)
pure virtual

Set the number of component carriers.

Parameters
noOfComponentCarriersThe number of component carriers

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

Referenced by ns3::LteEnbComponentCarrierManager::SetNumberOfComponentCarriers().

+ Here is the caller graph for this function:

◆ TriggerComponentCarrier()

virtual void ns3::LteCcmRrcSapUser::TriggerComponentCarrier ( uint16_t  rnti,
uint16_t  targetCellId
)
pure virtual

Instruct the eNodeB RRC entity to prepare a component carrier.

Parameters
rntiRadio Network Temporary Identity, an integer identifying the UE which shall perform the ComponentCarrier
targetCellIdthe cell ID of the target eNodeB

This function is used by the ComponentCarrier manager when a decision on component carriers configurations.

The process to produce the decision is up to the implementation of ComponentCarrier algorithm. It is typically based on the reported UE measurements, which are received through the LteCcmRrcSapProvider::ReportUeMeas function.

Implemented in ns3::MemberLteCcmRrcSapUser< C >.

Friends And Related Function Documentation

◆ LteEnbRrc

friend class LteEnbRrc
friend

allow LteEnbRrc class friend access

Definition at line 154 of file lte-ccm-rrc-sap.h.


The documentation for this class was generated from the following files:
