ns3::LteEnbPhySapUser Class Referenceabstract

Service Access Point (SAP) offered by the eNB-PHY to the eNB-MAC. More...

#include "lte-enb-phy-sap.h"

+ Inheritance diagram for ns3::LteEnbPhySapUser:

Public Member Functions

virtual ~LteEnbPhySapUser ()

virtual void DlInfoListElementHarqFeeback (DlInfoListElement_s params)=0
 Notify the HARQ on the DL tranmission status. More...

virtual void ReceiveLteControlMessage (Ptr< LteControlMessage > msg)=0
 Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. More...

virtual void ReceivePhyPdu (Ptr< Packet > p)=0
 Called by the Phy to notify the MAC of the reception of a new PHY-PDU. More...

virtual void ReceiveRachPreamble (uint32_t prachId)=0
 notify the reception of a RACH preamble on the PRACH More...

virtual void SubframeIndication (uint32_t frameNo, uint32_t subframeNo)=0
 Trigger the start from a new frame (input from Phy layer) More...

virtual void UlCqiReport (FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ulcqi)=0
 Returns to MAC level the UL-CQI evaluated. More...

virtual void UlInfoListElementHarqFeeback (UlInfoListElement_s params)=0
 Notify the HARQ on the UL tranmission status. More...


Detailed Description

Service Access Point (SAP) offered by the eNB-PHY to the eNB-MAC.

This is the MAC SAP User, i.e., the part of the SAP that contains the MAC methods called by the PHY

Definition at line 74 of file lte-enb-phy-sap.h.

Constructor & Destructor Documentation

◆ ~LteEnbPhySapUser()

ns3::LteEnbPhySapUser::~LteEnbPhySapUser ( )
virtual

Definition at line 33 of file lte-enb-phy-sap.cc.

Member Function Documentation

◆ DlInfoListElementHarqFeeback()

virtual void ns3::LteEnbPhySapUser::DlInfoListElementHarqFeeback ( DlInfoListElement_s  params)
pure virtual

Notify the HARQ on the DL tranmission status.

Parameters
params

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

◆ ReceiveLteControlMessage()

virtual void ns3::LteEnbPhySapUser::ReceiveLteControlMessage ( Ptr< LteControlMessage msg)
pure virtual

Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters
msgthe Ideal Control Message to receive

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReceiveLteControlMessage(), and ns3::LteEnbPhy::ReceiveLteControlMessageList().

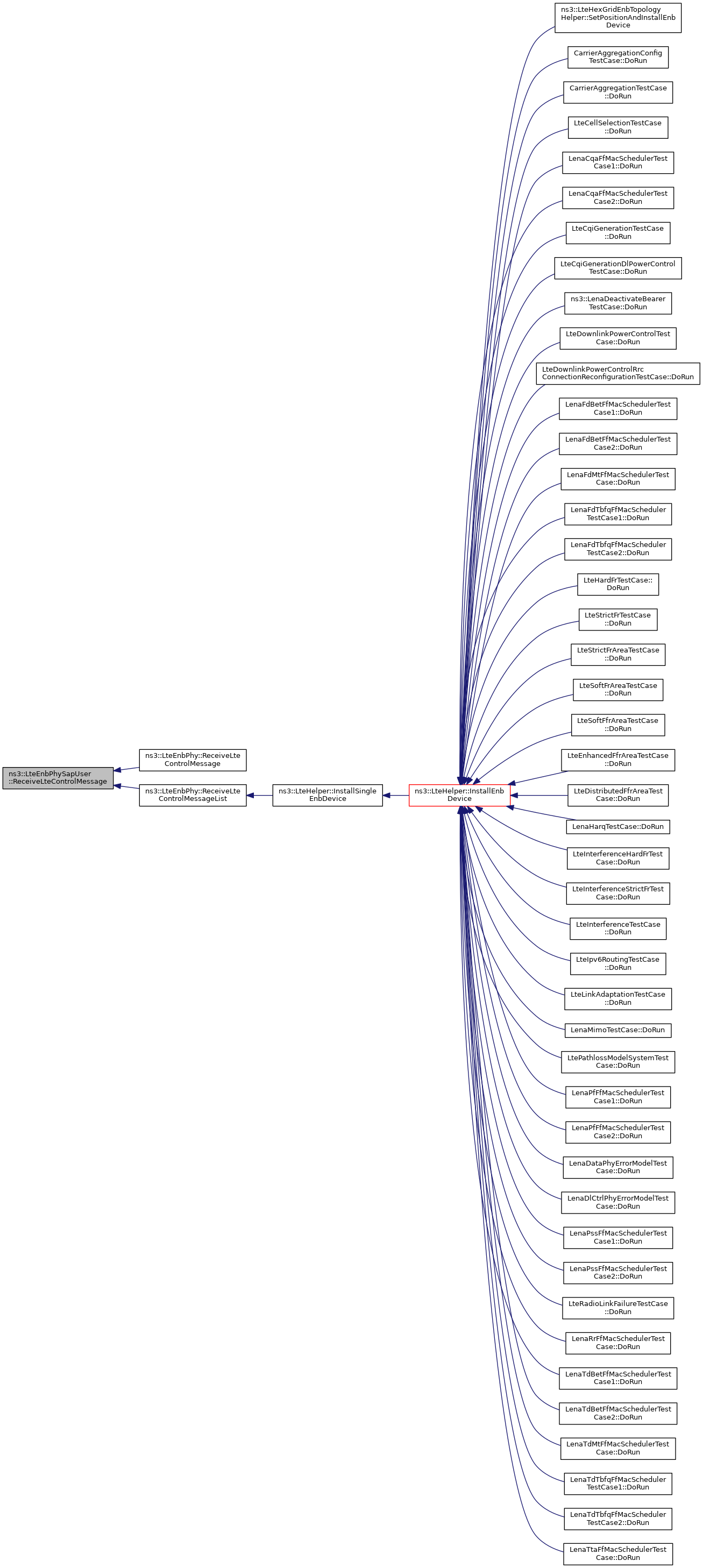

+ Here is the caller graph for this function:

◆ ReceivePhyPdu()

virtual void ns3::LteEnbPhySapUser::ReceivePhyPdu ( Ptr< Packet p)
pure virtual

Called by the Phy to notify the MAC of the reception of a new PHY-PDU.

Parameters
p

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::PhyPduReceived().

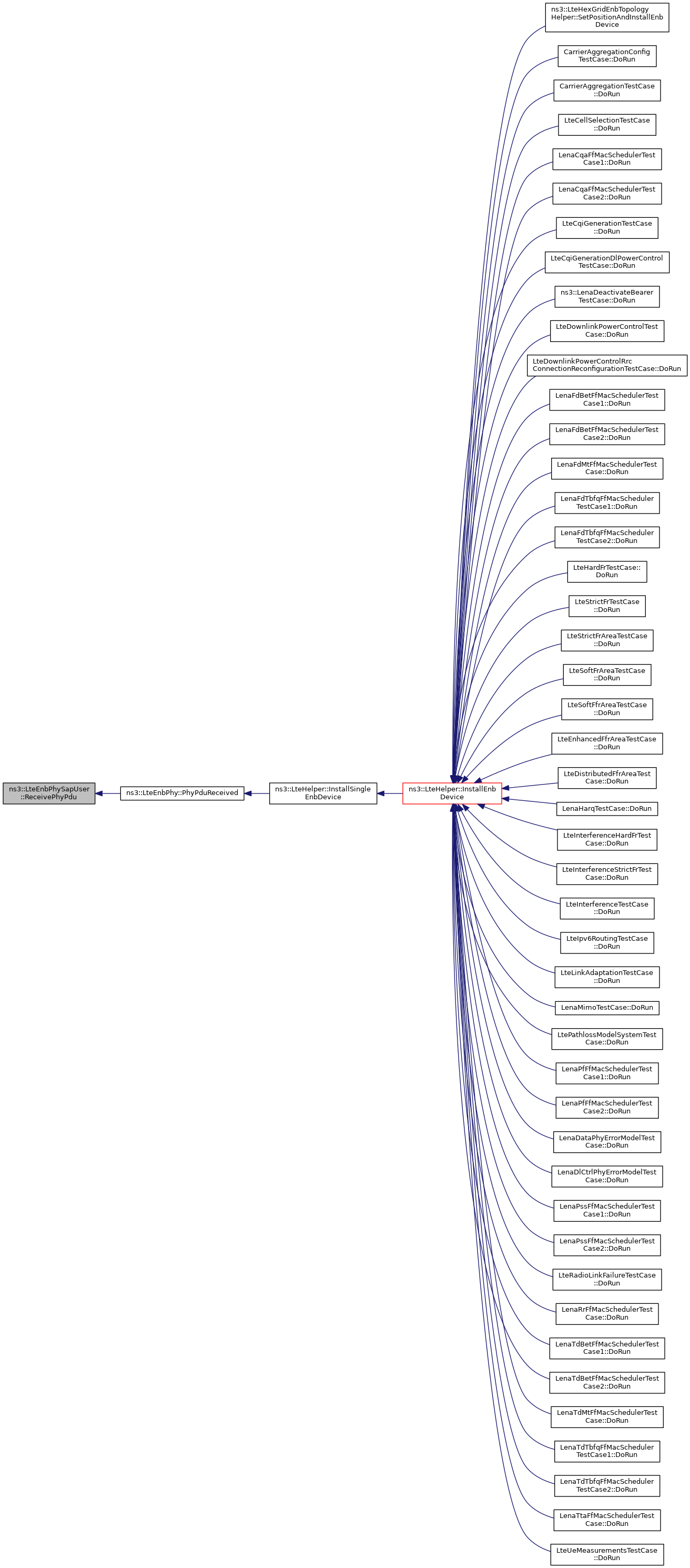

+ Here is the caller graph for this function:

◆ ReceiveRachPreamble()

virtual void ns3::LteEnbPhySapUser::ReceiveRachPreamble ( uint32_t  prachId)
pure virtual

notify the reception of a RACH preamble on the PRACH

Parameters
prachIdthe ID of the preamble

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReceiveLteControlMessageList().

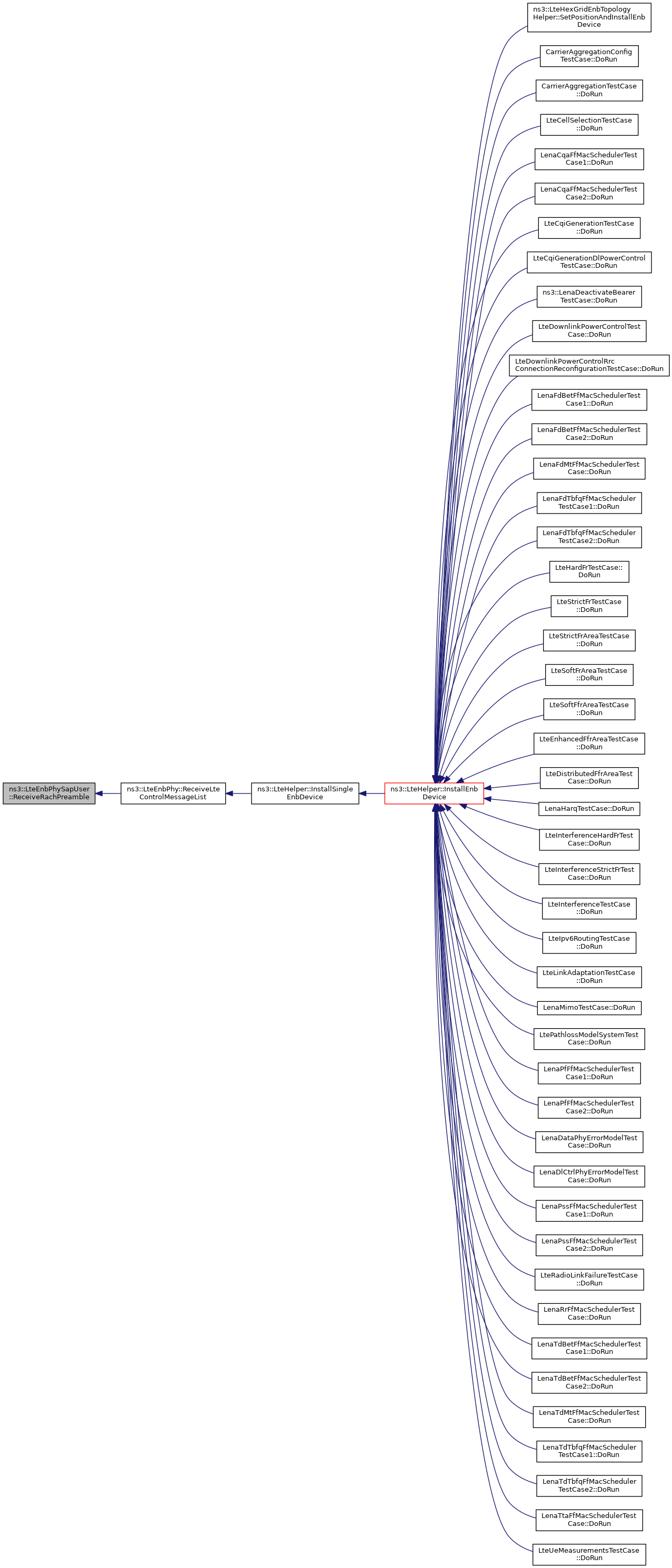

+ Here is the caller graph for this function:

◆ SubframeIndication()

virtual void ns3::LteEnbPhySapUser::SubframeIndication ( uint32_t  frameNo,
uint32_t  subframeNo
)
pure virtual

Trigger the start from a new frame (input from Phy layer)

Parameters
frameNoframe number
subframeNosubframe number

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::StartSubFrame().

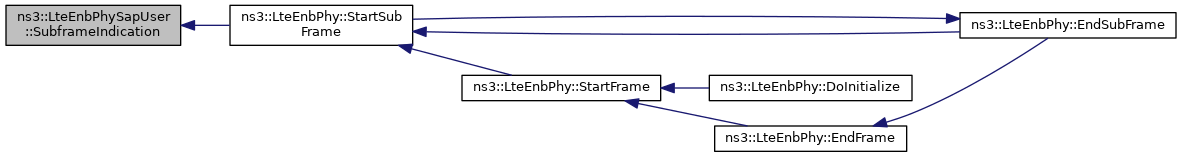

+ Here is the caller graph for this function:

◆ UlCqiReport()

virtual void ns3::LteEnbPhySapUser::UlCqiReport ( FfMacSchedSapProvider::SchedUlCqiInfoReqParameters  ulcqi)
pure virtual

Returns to MAC level the UL-CQI evaluated.

Parameters
ulcqithe UL-CQI (see FF MAC API 4.3.29)

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::GenerateCtrlCqiReport(), and ns3::LteEnbPhy::GenerateDataCqiReport().

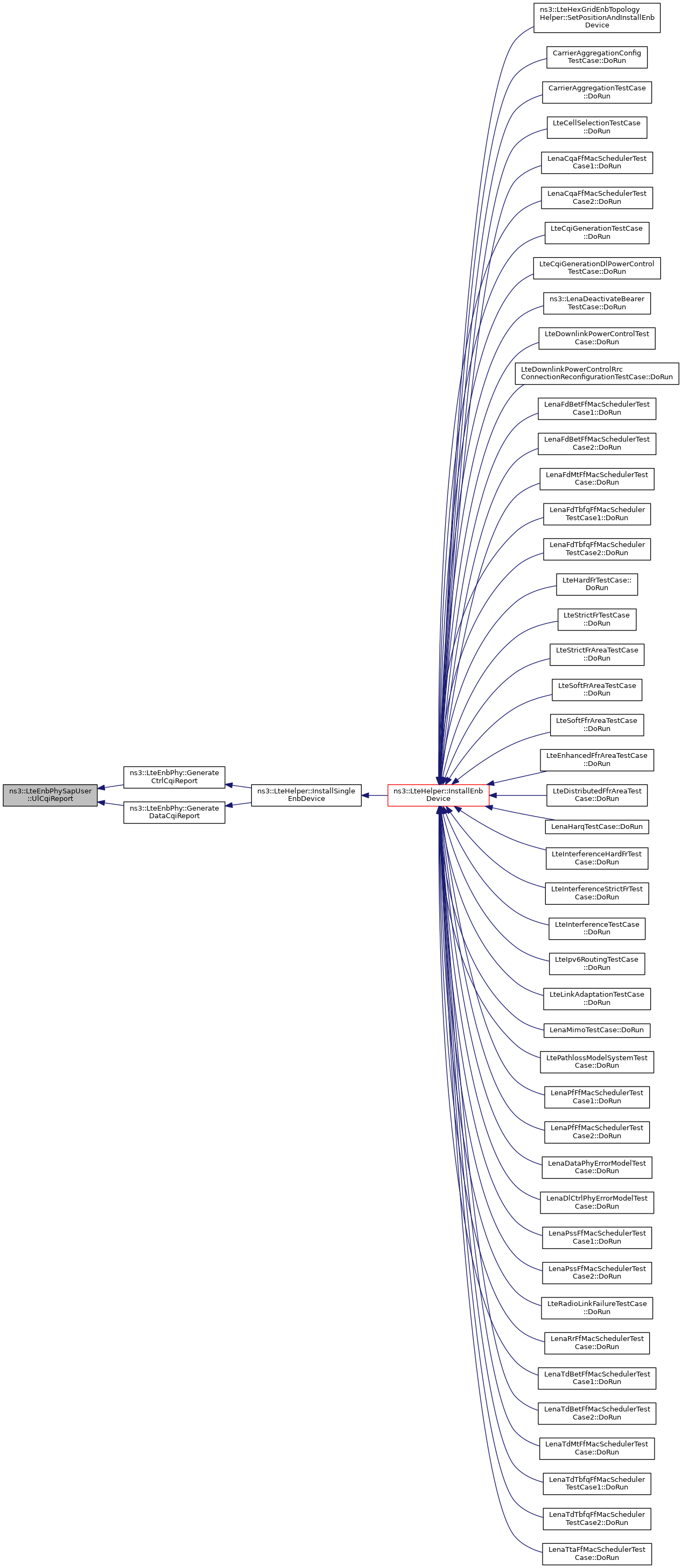

+ Here is the caller graph for this function:

◆ UlInfoListElementHarqFeeback()

virtual void ns3::LteEnbPhySapUser::UlInfoListElementHarqFeeback ( UlInfoListElement_s  params)
pure virtual

Notify the HARQ on the UL tranmission status.

Parameters
params

Implemented in ns3::EnbMacMemberLteEnbPhySapUser.

Referenced by ns3::LteEnbPhy::ReportUlHarqFeedback().

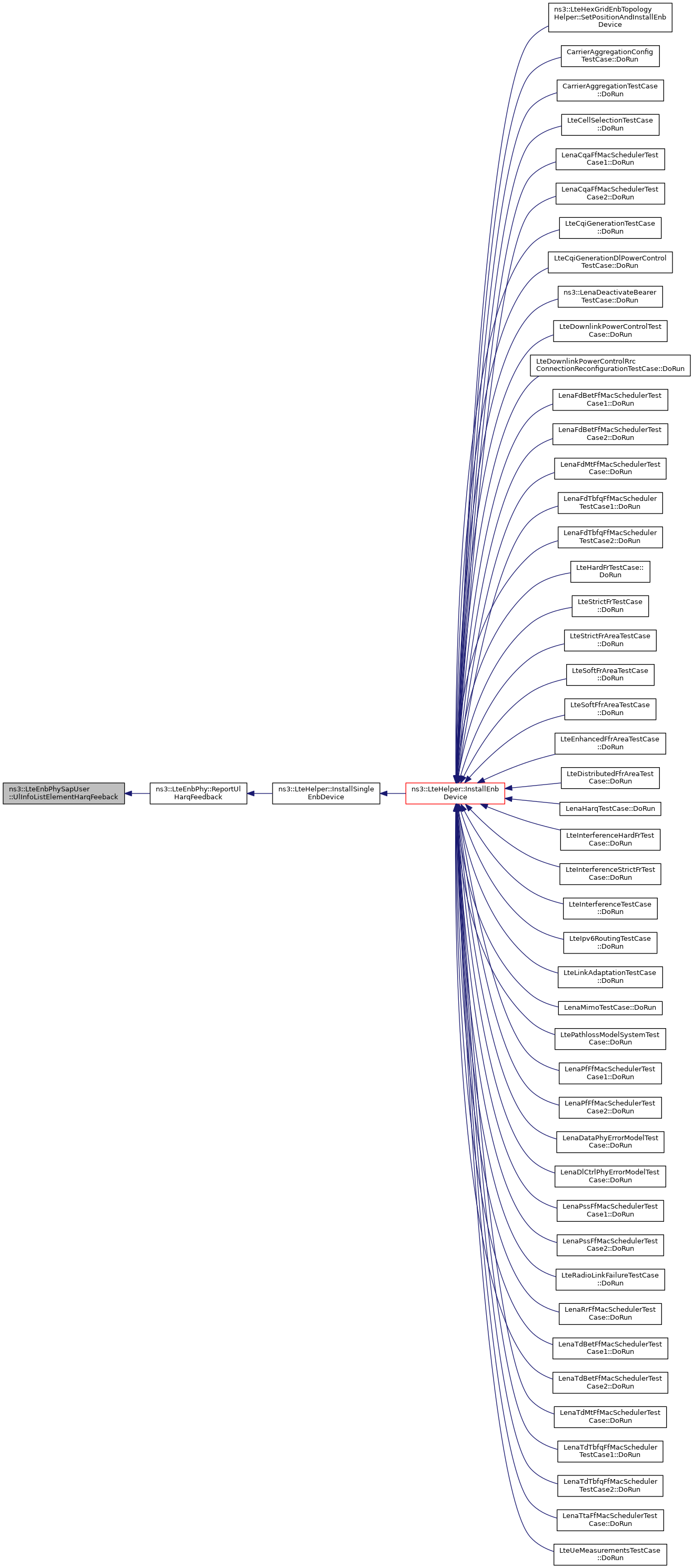

+ Here is the caller graph for this function:
