Implement the header for management frames of type probe request. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtProbeRequestHeader:

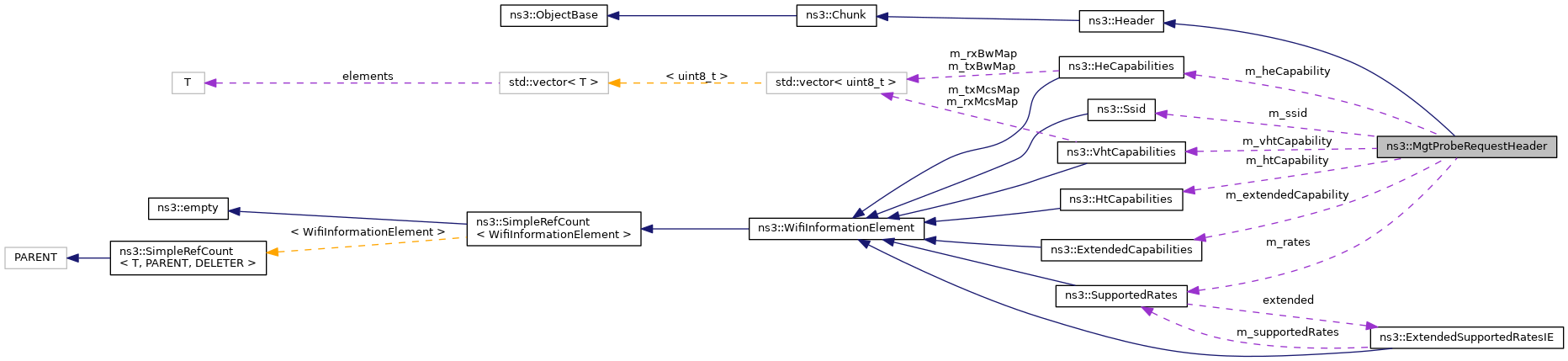

Collaboration diagram for ns3::MgtProbeRequestHeader:

Public Member Functions
	~MgtProbeRequestHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities. More...

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize (void) const

Ssid	GetSsid (void) const
	Return the Service Set Identifier (SSID). More...

SupportedRates	GetSupportedRates (void) const
	Return the supported rates. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetExtendedCapabilities (ExtendedCapabilities extendedCapabilities)
	Set the extended capabilities. More...

void	SetHeCapabilities (HeCapabilities heCapabilities)
	Set the HE capabilities. More...

void	SetHtCapabilities (HtCapabilities htCapabilities)
	Set the HT capabilities. More...

void	SetSsid (Ssid ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSupportedRates (SupportedRates rates)
	Set the supported rates. More...

void	SetVhtCapabilities (VhtCapabilities vhtCapabilities)
	Set the VHT capabilities. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
ExtendedCapabilities	m_extendedCapability
	extended capabilities More...

HeCapabilities	m_heCapability
	HE capabilities. More...

HtCapabilities	m_htCapability
	HT capabilities. More...

SupportedRates	m_rates
	List of supported rates. More...

Ssid	m_ssid
	Service Set ID (SSID) More...

VhtCapabilities	m_vhtCapability
	VHT capabilities. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type probe request.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 600 bytes (on a 64-bit architecture).

Definition at line 514 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ ~MgtProbeRequestHeader()

ns3::MgtProbeRequestHeader::~MgtProbeRequestHeader ( )

Definition at line 35 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtProbeRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 167 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, m_vhtCapability, and visualizer.core::start().

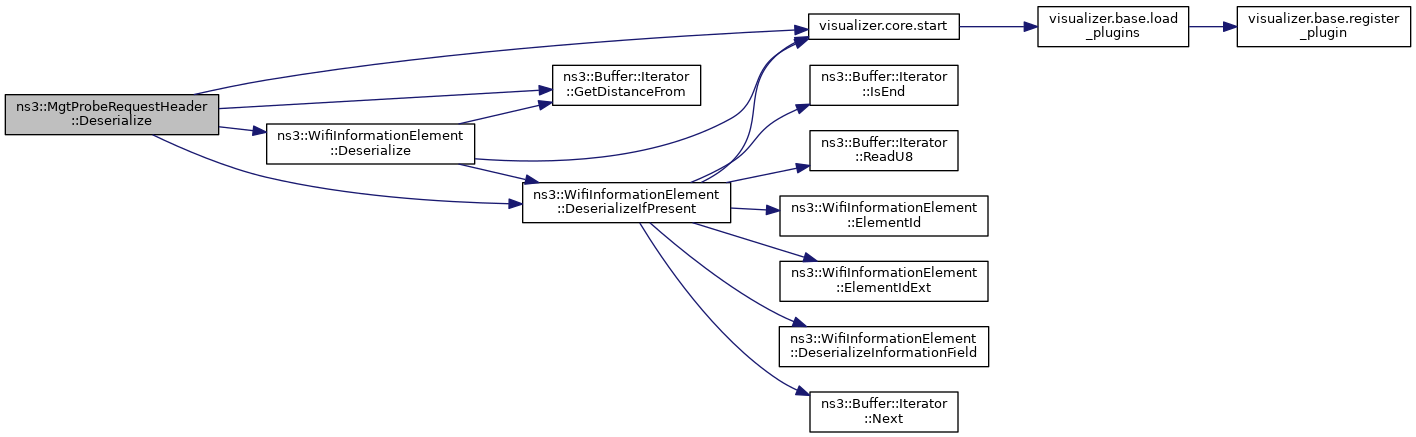

Here is the call graph for this function:

◆ GetExtendedCapabilities()

ExtendedCapabilities ns3::MgtProbeRequestHeader::GetExtendedCapabilities ( void ) const

Return the extended capabilities.

Returns: the extended capabilities

Definition at line 64 of file mgt-headers.cc.

References m_extendedCapability.

◆ GetHeCapabilities()

HeCapabilities ns3::MgtProbeRequestHeader::GetHeCapabilities ( void ) const

Return the HE capabilities.

Returns: HE capabilities

Definition at line 100 of file mgt-headers.cc.

References m_heCapability.

◆ GetHtCapabilities()

HtCapabilities ns3::MgtProbeRequestHeader::GetHtCapabilities ( void ) const

Return the HT capabilities.

Returns: HT capabilities

Definition at line 76 of file mgt-headers.cc.

References m_htCapability.

◆ GetInstanceTypeId()

TypeId ns3::MgtProbeRequestHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 137 of file mgt-headers.cc.

References GetTypeId().

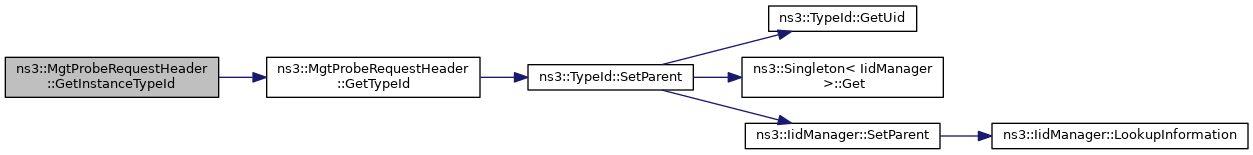

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtProbeRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 112 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::VhtCapabilities::GetSerializedSize(), ns3::HeCapabilities::GetSerializedSize(), ns3::ExtendedCapabilities::GetSerializedSize(), ns3::HtCapabilities::GetSerializedSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, and m_vhtCapability.

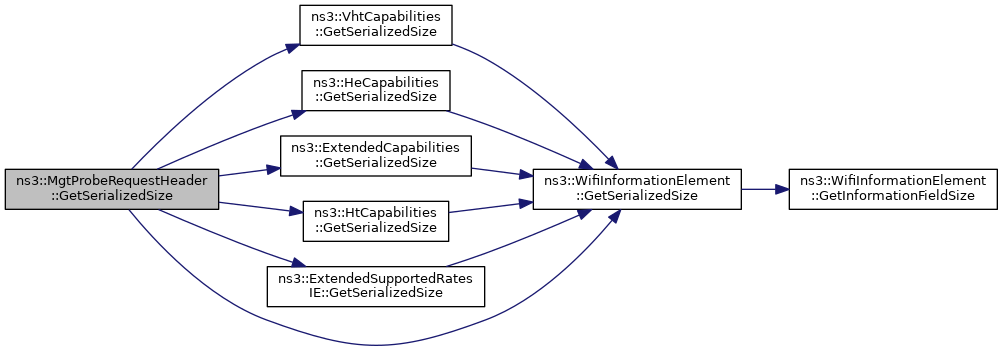

Here is the call graph for this function:

◆ GetSsid()

Ssid ns3::MgtProbeRequestHeader::GetSsid ( void ) const

Return the Service Set Identifier (SSID).

Returns: SSID

Definition at line 46 of file mgt-headers.cc.

References m_ssid.

◆ GetSupportedRates()

SupportedRates ns3::MgtProbeRequestHeader::GetSupportedRates ( void ) const

Return the supported rates.

Returns: the supported rates

Definition at line 106 of file mgt-headers.cc.

References m_rates.

◆ GetTypeId()

TypeId ns3::MgtProbeRequestHeader::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 126 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

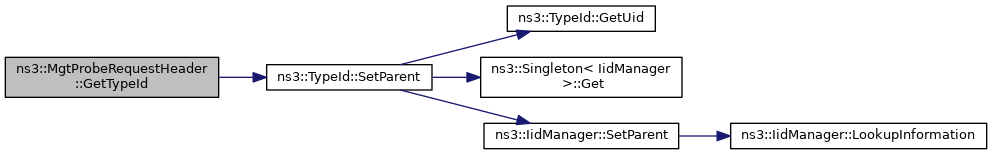

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtCapabilities()

VhtCapabilities ns3::MgtProbeRequestHeader::GetVhtCapabilities ( void ) const

Return the VHT capabilities.

Returns: VHT capabilities

Definition at line 88 of file mgt-headers.cc.

References m_vhtCapability.

◆ Print()

void ns3::MgtProbeRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 143 of file mgt-headers.cc.

References m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, and m_vhtCapability.

◆ Serialize()

void ns3::MgtProbeRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 154 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, m_vhtCapability, ns3::VhtCapabilities::Serialize(), ns3::HeCapabilities::Serialize(), ns3::ExtendedCapabilities::Serialize(), ns3::HtCapabilities::Serialize(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), and visualizer.core::start().

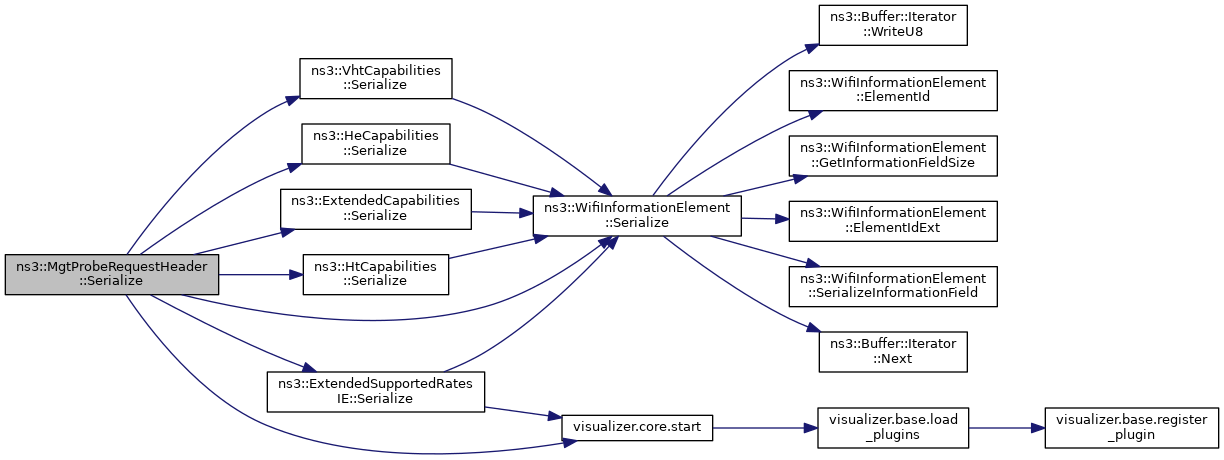

Here is the call graph for this function:

◆ SetExtendedCapabilities()

void ns3::MgtProbeRequestHeader::SetExtendedCapabilities ( ExtendedCapabilities extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 58 of file mgt-headers.cc.

References m_extendedCapability.

◆ SetHeCapabilities()

void ns3::MgtProbeRequestHeader::SetHeCapabilities ( HeCapabilities heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 94 of file mgt-headers.cc.

References m_heCapability.

◆ SetHtCapabilities()

void ns3::MgtProbeRequestHeader::SetHtCapabilities ( HtCapabilities htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 70 of file mgt-headers.cc.

References m_htCapability.

◆ SetSsid()

void ns3::MgtProbeRequestHeader::SetSsid ( Ssid ssid )

Set the Service Set Identifier (SSID).

Parameters

ssid SSID

Definition at line 40 of file mgt-headers.cc.

References m_ssid, and third::ssid.

Referenced by ns3::StaWifiMac::SendProbeRequest().

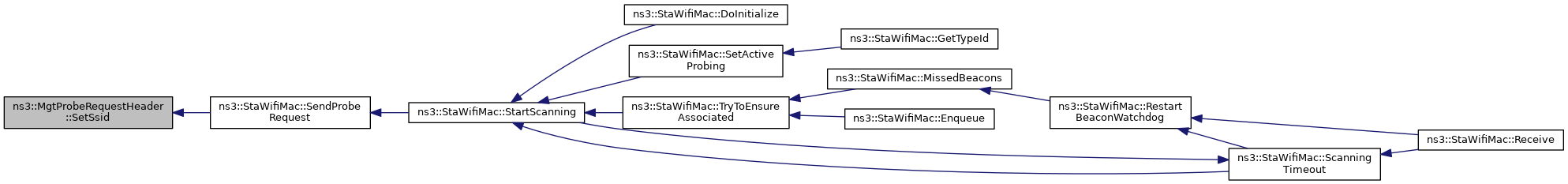

Here is the caller graph for this function:

◆ SetSupportedRates()

void ns3::MgtProbeRequestHeader::SetSupportedRates ( SupportedRates rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 52 of file mgt-headers.cc.

References m_rates.

◆ SetVhtCapabilities()

void ns3::MgtProbeRequestHeader::SetVhtCapabilities ( VhtCapabilities vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 82 of file mgt-headers.cc.

References m_vhtCapability.

Member Data Documentation

◆ m_extendedCapability

ExtendedCapabilities ns3::MgtProbeRequestHeader::m_extendedCapability

private

extended capabilities

Definition at line 607 of file mgt-headers.h.

Referenced by Deserialize(), GetExtendedCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetExtendedCapabilities().

◆ m_heCapability

HeCapabilities ns3::MgtProbeRequestHeader::m_heCapability

private

HE capabilities.

Definition at line 610 of file mgt-headers.h.

Referenced by Deserialize(), GetHeCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHeCapabilities().

◆ m_htCapability

HtCapabilities ns3::MgtProbeRequestHeader::m_htCapability

private

HT capabilities.

Definition at line 608 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

◆ m_rates

SupportedRates ns3::MgtProbeRequestHeader::m_rates

private

List of supported rates.

Definition at line 606 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

◆ m_ssid

Ssid ns3::MgtProbeRequestHeader::m_ssid

private

Service Set ID (SSID)

Definition at line 605 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSsid(), Print(), Serialize(), and SetSsid().

◆ m_vhtCapability

VhtCapabilities ns3::MgtProbeRequestHeader::m_vhtCapability

private

VHT capabilities.

Definition at line 609 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtCapabilities(), Print(), Serialize(), and SetVhtCapabilities().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~MgtProbeRequestHeader()

Member Function Documentation

◆ Deserialize()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHtCapabilities()

◆ GetInstanceTypeId()

◆ GetSerializedSize()

◆ GetSsid()

◆ GetSupportedRates()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ Print()

◆ Serialize()

◆ SetExtendedCapabilities()

◆ SetHeCapabilities()

◆ SetHtCapabilities()

◆ SetSsid()

◆ SetSupportedRates()

◆ SetVhtCapabilities()

Member Data Documentation

◆ m_extendedCapability

◆ m_heCapability

◆ m_htCapability

◆ m_rates

◆ m_ssid

◆ m_vhtCapability
