#include "model-node-creator.h"

Inheritance diagram for ns3::ModelCreator:

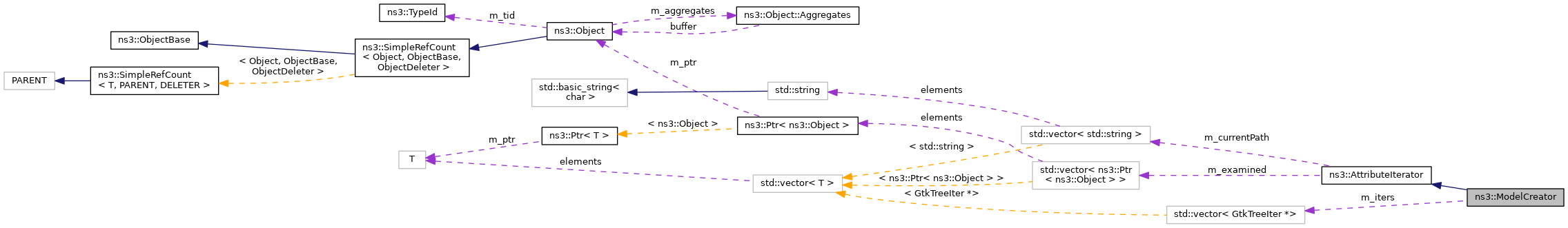

Collaboration diagram for ns3::ModelCreator:

Public Member Functions
	ModelCreator ()

void	Build (GtkTreeStore *treestore)
	Allocate attribute tree. More...

Public Member Functions inherited from ns3::AttributeIterator
	AttributeIterator ()

virtual	~AttributeIterator ()

void	Iterate (void)
	Start the process of iterating all objects from the root namespace object. More...

Private Member Functions
void	Add (ModelNode *node)
	Add item to attribute tree. More...

virtual void	DoEndVisitArrayAttribute (void)
	End the visit to the attribute of type ns3::ObjectVectorValue. More...

virtual void	DoEndVisitArrayItem (void)
	End the visit to the array item. More...

virtual void	DoEndVisitObject (void)
	This method is called to end the process of visiting the currently visited object. More...

virtual void	DoEndVisitPointerAttribute (void)
	End the visit to the attribute of type ns3::PointerValue. More...

virtual void	DoStartVisitArrayAttribute (Ptr< Object > object, std::string name, const ObjectPtrContainerValue &vector)
	Visit the attribute of type ns3::ObjectVectorValue, with the provided name, found on the object pointed to by the first argument. More...

virtual void	DoStartVisitArrayItem (const ObjectPtrContainerValue &vector, uint32_t index, Ptr< Object > item)
	Start to visit the object found in the input array at the provided index. More...

virtual void	DoStartVisitObject (Ptr< Object > object)
	This method is called to start the process of visiting the input object. More...

virtual void	DoStartVisitPointerAttribute (Ptr< Object > object, std::string name, Ptr< Object > value)
	Visit the attribute of type ns3::PointerValue, with the provided name, found on the object pointed to by the first argument. More...

virtual void	DoVisitAttribute (Ptr< Object > object, std::string name)
	This method visits and performs a config-store action (such as saving to a text file) on the attribute values corresponding to the input object pointer and attribute name. More...

void	Remove (void)
	Remove current tree item. More...

Private Attributes
std::vector< GtkTreeIter * >	m_iters
	attribute tree item More...

GtkTreeStore *	m_treestore
	attribute tree More...

Additional Inherited Members
Protected Member Functions inherited from ns3::AttributeIterator
std::string	GetCurrentPath (void) const
	Get the current attribute path. More...

Detailed Description

ModelCreator class.

Definition at line 64 of file model-node-creator.h.

Constructor & Destructor Documentation

◆ ModelCreator()

ns3::ModelCreator::ModelCreator ( )

Definition at line 23 of file model-node-creator.cc.

Member Function Documentation

◆ Add()

void ns3::ModelCreator::Add ( ModelNode * node )

private

Add item to attribute tree.

Parameters

node	The model node

Definition at line 40 of file model-node-creator.cc.

References ns3::COL_NODE, m_iters, and m_treestore.

Referenced by DoStartVisitArrayAttribute(), DoStartVisitObject(), DoStartVisitPointerAttribute(), and DoVisitAttribute().

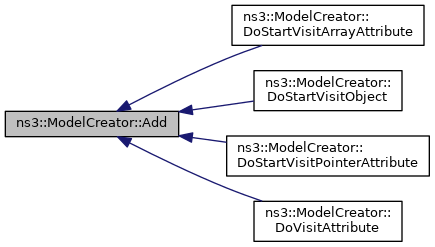

Here is the caller graph for this function:

◆ Build()

void ns3::ModelCreator::Build ( GtkTreeStore * treestore )

Allocate attribute tree.

Parameters

treestore GtkTreeStore *

Definition at line 28 of file model-node-creator.cc.

References ns3::AttributeIterator::Iterate(), m_iters, m_treestore, and NS_ASSERT.

Referenced by ns3::GtkConfigStore::ConfigureAttributes().

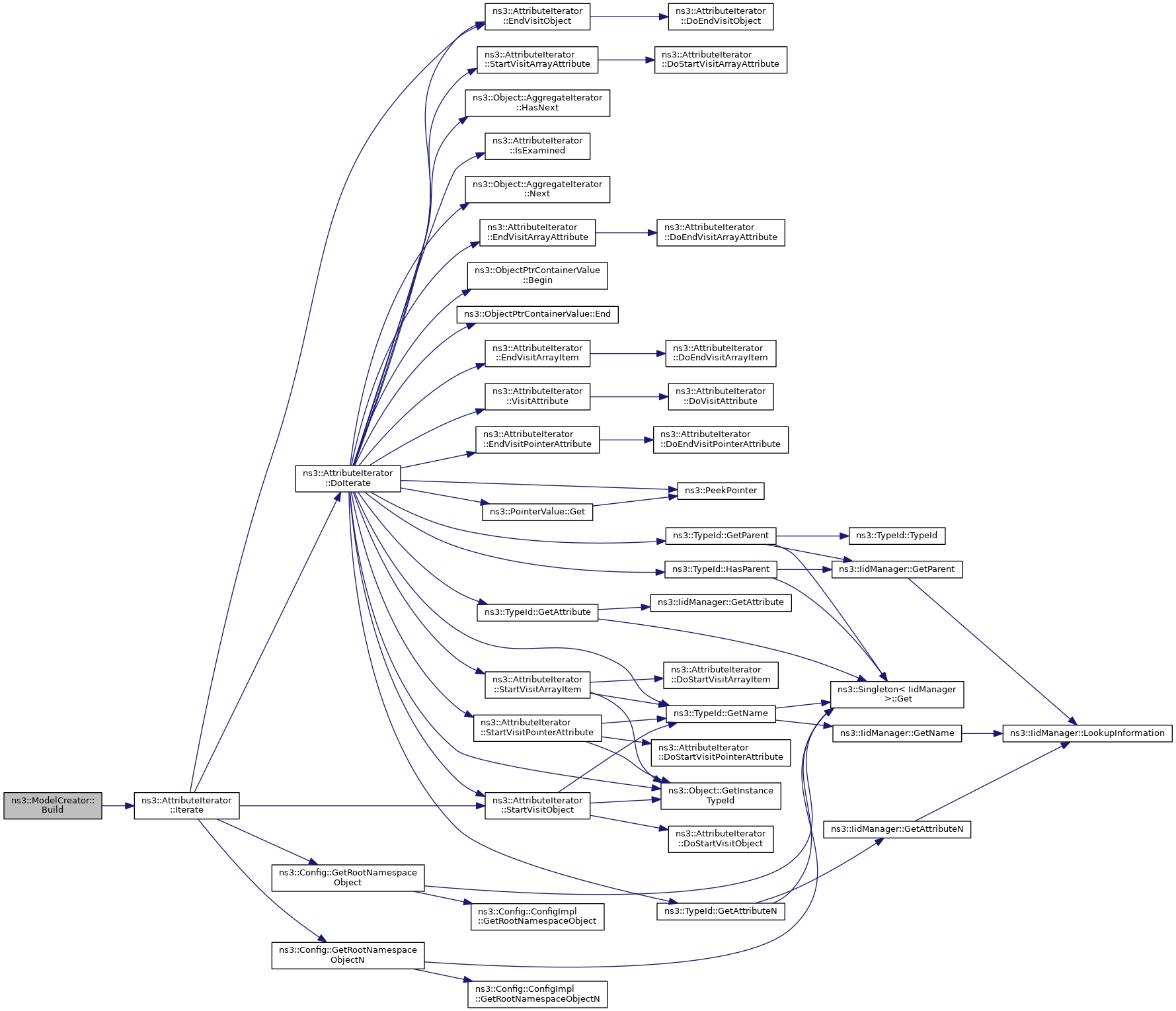

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoEndVisitArrayAttribute()

void ns3::ModelCreator::DoEndVisitArrayAttribute ( void )

privatevirtual

End the visit to the attribute of type ns3::ObjectVectorValue.

Reimplemented from ns3::AttributeIterator.

Definition at line 104 of file model-node-creator.cc.

References Remove().

Here is the call graph for this function:

◆ DoEndVisitArrayItem()

void ns3::ModelCreator::DoEndVisitArrayItem ( void )

privatevirtual

End the visit to the array item.

Reimplemented from ns3::AttributeIterator.

Definition at line 124 of file model-node-creator.cc.

References m_iters.

◆ DoEndVisitObject()

void ns3::ModelCreator::DoEndVisitObject ( void )

privatevirtual

This method is called to end the process of visiting the currently visited object.

Reimplemented from ns3::AttributeIterator.

Definition at line 76 of file model-node-creator.cc.

References Remove().

Here is the call graph for this function:

◆ DoEndVisitPointerAttribute()

void ns3::ModelCreator::DoEndVisitPointerAttribute ( void )

privatevirtual

End the visit to the attribute of type ns3::PointerValue.

Reimplemented from ns3::AttributeIterator.

Definition at line 90 of file model-node-creator.cc.

References Remove().

Here is the call graph for this function:

◆ DoStartVisitArrayAttribute()

void ns3::ModelCreator::DoStartVisitArrayAttribute	(	Ptr< Object >	object,
		std::string	name,
		const ObjectPtrContainerValue &	vector
	)

privatevirtual

Visit the attribute of type ns3::ObjectVectorValue, with the provided name, found on the object pointed to by the first argument.

Note: type name ObjectVectorValue is an alias for ObjectPtrContainerValue

Parameters

	object	the object on which the attribute of type ObjectVectorValue resides
	name	the attribute name provided
[in]	vector	the ObjectPtrContainerValue corresponding to the named attribute

Reimplemented from ns3::AttributeIterator.

Definition at line 95 of file model-node-creator.cc.

References Add(), ns3::ModelNode::name, ns3::ModelNode::NODE_VECTOR, ns3::ModelNode::object, and ns3::ModelNode::type.

Here is the call graph for this function:

◆ DoStartVisitArrayItem()

void ns3::ModelCreator::DoStartVisitArrayItem	(	const ObjectPtrContainerValue &	vector,
		uint32_t	index,
		Ptr< Object >	item
	)

privatevirtual

Start to visit the object found in the input array at the provided index.

Parameters

	vector	the array
	index	the index into the array
[in]	item	the array item to visit

Reimplemented from ns3::AttributeIterator.

Definition at line 109 of file model-node-creator.cc.

References ns3::COL_NODE, ns3::ModelNode::index, m_iters, m_treestore, ns3::ModelNode::NODE_VECTOR_ITEM, ns3::ModelNode::object, and ns3::ModelNode::type.

◆ DoStartVisitObject()

void ns3::ModelCreator::DoStartVisitObject ( Ptr< Object > object )

privatevirtual

This method is called to start the process of visiting the input object.

Parameters

object the object visited

Reimplemented from ns3::AttributeIterator.

Definition at line 68 of file model-node-creator.cc.

References Add(), ns3::ModelNode::NODE_OBJECT, ns3::ModelNode::object, and ns3::ModelNode::type.

Here is the call graph for this function:

◆ DoStartVisitPointerAttribute()

void ns3::ModelCreator::DoStartVisitPointerAttribute	(	Ptr< Object >	object,
		std::string	name,
		Ptr< Object >	value
	)

privatevirtual

Visit the attribute of type ns3::PointerValue, with the provided name, found on the object pointed to by the first argument.

Parameters

	object	the object on which the attribute of type PointerValue resides
	name	the attribute name provided
[in]	value	Ptr to the ns3::Object pointed to by the attribute

Reimplemented from ns3::AttributeIterator.

Definition at line 81 of file model-node-creator.cc.

References Add(), ns3::ModelNode::name, ns3::ModelNode::NODE_POINTER, ns3::ModelNode::object, and ns3::ModelNode::type.

Here is the call graph for this function:

◆ DoVisitAttribute()

void ns3::ModelCreator::DoVisitAttribute	(	Ptr< Object >	object,
		std::string	name
	)

privatevirtual

This method visits and performs a config-store action (such as saving to a text file) on the attribute values corresponding to the input object pointer and attribute name.

Parameters

object	the object visited
name	the attribute name

Implements ns3::AttributeIterator.

Definition at line 58 of file model-node-creator.cc.

References Add(), ns3::ModelNode::name, ns3::ModelNode::NODE_ATTRIBUTE, ns3::ModelNode::object, Remove(), and ns3::ModelNode::type.

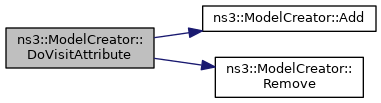

Here is the call graph for this function:

◆ Remove()

void ns3::ModelCreator::Remove ( void )

private

Remove current tree item.

Definition at line 50 of file model-node-creator.cc.

References m_iters.

Referenced by DoEndVisitArrayAttribute(), DoEndVisitObject(), DoEndVisitPointerAttribute(), and DoVisitAttribute().

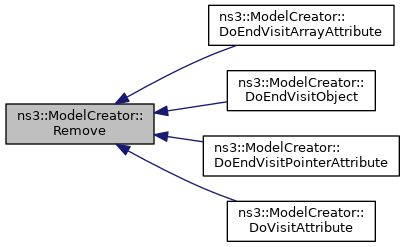

Here is the caller graph for this function:

Member Data Documentation

◆ m_iters

std::vector<GtkTreeIter *> ns3::ModelCreator::m_iters

private

attribute tree item

Definition at line 95 of file model-node-creator.h.

Referenced by Add(), Build(), DoEndVisitArrayItem(), DoStartVisitArrayItem(), and Remove().

◆ m_treestore

GtkTreeStore* ns3::ModelCreator::m_treestore

private

attribute tree

Definition at line 94 of file model-node-creator.h.

Referenced by Add(), Build(), and DoStartVisitArrayItem().

The documentation for this class was generated from the following files:

src/config-store/model/model-node-creator.h
src/config-store/model/model-node-creator.cc
