Simple Point To Point Channel. More...

#include "point-to-point-channel.h"

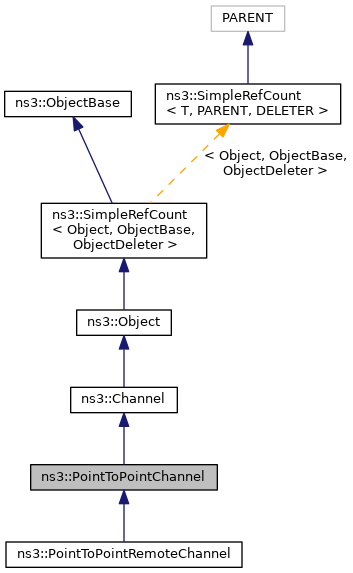

Inheritance diagram for ns3::PointToPointChannel:

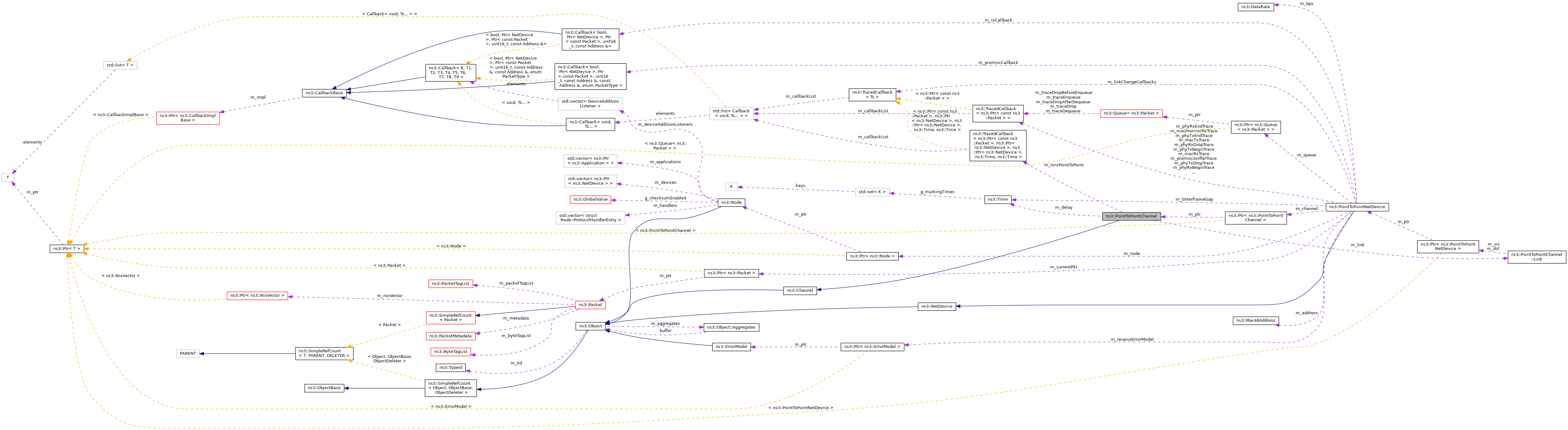

Collaboration diagram for ns3::PointToPointChannel:

Classes
class	Link
	Wire model for the PointToPointChannel. More...

Public Member Functions
	PointToPointChannel ()
	Create a PointToPointChannel. More...

void	Attach (Ptr< PointToPointNetDevice > device)
	Attach a given netdevice to this channel. More...

virtual Ptr< NetDevice >	GetDevice (std::size_t i) const
	Get NetDevice corresponding to index i on this channel. More...

virtual std::size_t	GetNDevices (void) const
	Get number of devices on this channel. More...

Ptr< PointToPointNetDevice >	GetPointToPointDevice (std::size_t i) const
	Get PointToPointNetDevice corresponding to index i on this channel. More...

virtual bool	TransmitStart (Ptr< const Packet > p, Ptr< PointToPointNetDevice > src, Time txTime)
	Transmit a packet over this channel. More...

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef void(*	TxRxAnimationCallback) (Ptr< const Packet > packet, Ptr< NetDevice > txDevice, Ptr< NetDevice > rxDevice, Time duration, Time lastBitTime)
	TracedCallback signature for packet transmission animation events. More...

Protected Member Functions
Time	GetDelay (void) const
	Get the delay associated with this channel. More...

Ptr< PointToPointNetDevice >	GetDestination (uint32_t i) const
	Get the net-device destination. More...

Ptr< PointToPointNetDevice >	GetSource (uint32_t i) const
	Get the net-device source. More...

bool	IsInitialized (void) const
	Check to make sure the link is initialized. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
enum	WireState { INITIALIZING, IDLE, TRANSMITTING, PROPAGATING }
	Wire states. More...

Private Attributes
Time	m_delay
	Propagation delay. More...

Link	m_link [N_DEVICES]
	Link model. More...

std::size_t	m_nDevices
	Devices of this channel. More...

TracedCallback< Ptr< const Packet >, Ptr< NetDevice >, Ptr< NetDevice >, Time, Time >	m_txrxPointToPoint
	The trace source for the packet transmission animation events that the device can fire. More...

Static Private Attributes
static const std::size_t	N_DEVICES = 2
	Each point to point link has exactly two net devices. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Simple Point To Point Channel.

This class represents a very simple point to point channel. Think full duplex RS-232 or RS-422 with null modem and no handshaking. There is no multi-drop capability on this channel – there can be a maximum of two point-to-point net devices connected.

There are two "wires" in the channel. The first device connected gets the [0] wire to transmit on. The second device gets the [1] wire. There is a state (IDLE, TRANSMITTING) associated with each wire.

See also: Attach; TransmitStart

Config Paths

ns3::PointToPointChannel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::PointToPointChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::PointToPointChannel"
"/ChannelList/[i]/$ns3::PointToPointChannel"

Attributes

Delay: Propagation delay through the channel
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

TraceSources

TxRxPointToPoint: Trace source indicating transmission of packet from the PointToPointChannel, used by the Animation interface.
Callback signature: ns3::PointToPointChannel::TxRxAnimationCallback

Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 50 of file point-to-point-channel.h.

Member Typedef Documentation

◆ TxRxAnimationCallback

typedef void(* ns3::PointToPointChannel::TxRxAnimationCallback) (Ptr< const Packet > packet, Ptr< NetDevice > txDevice, Ptr< NetDevice > rxDevice, Time duration, Time lastBitTime)

protected

TracedCallback signature for packet transmission animation events.

Parameters

[in]	packet	The packet being transmitted.
[in]	txDevice	the TransmitTing NetDevice.
[in]	rxDevice	the Receiving NetDevice.
[in]	duration	The amount of time to transmit the packet.
[in]	lastBitTime	Last bit receive time (relative to now)

Deprecated:: The non-const Ptr<NetDevice> argument is deprecated and will be changed to Ptr<const NetDevice> in a future release.

Definition at line 144 of file point-to-point-channel.h.

Member Enumeration Documentation

◆ WireState

enum ns3::PointToPointChannel::WireState

private

Wire states.

Enumerator
INITIALIZING	Initializing state.
IDLE	Idle state (no transmission from NetDevice)
TRANSMITTING	Transmitting state (data being transmitted from NetDevice.
PROPAGATING	Propagating state (data is being propagated in the channel.

Definition at line 176 of file point-to-point-channel.h.

Constructor & Destructor Documentation

◆ PointToPointChannel()

ns3::PointToPointChannel::PointToPointChannel ( )

Create a PointToPointChannel.

By default, you get a channel that has an "infinitely" fast transmission speed and zero delay.

Definition at line 56 of file point-to-point-channel.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ Attach()

void ns3::PointToPointChannel::Attach ( Ptr< PointToPointNetDevice > device )

Attach a given netdevice to this channel.

Parameters

device pointer to the netdevice to attach to the channel

Definition at line 66 of file point-to-point-channel.cc.

References IDLE, ns3::PointToPointChannel::Link::m_dst, m_link, m_nDevices, ns3::PointToPointChannel::Link::m_src, ns3::PointToPointChannel::Link::m_state, N_DEVICES, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ GetDelay()

Time ns3::PointToPointChannel::GetDelay ( void ) const

protected

Get the delay associated with this channel.

Returns: Time delay

Definition at line 132 of file point-to-point-channel.cc.

References m_delay.

Referenced by ns3::PointToPointRemoteChannel::TransmitStart().

Here is the caller graph for this function:

◆ GetDestination()

Ptr< PointToPointNetDevice > ns3::PointToPointChannel::GetDestination ( uint32_t i ) const

protected

Get the net-device destination.

Parameters

i	the link requested

Returns: Ptr to PointToPointNetDevice destination for the specified link

Definition at line 144 of file point-to-point-channel.cc.

References ns3::PointToPointChannel::Link::m_dst, and m_link.

Referenced by ns3::PointToPointRemoteChannel::TransmitStart().

Here is the caller graph for this function:

◆ GetDevice()

Ptr< NetDevice > ns3::PointToPointChannel::GetDevice ( std::size_t i ) const

virtual

Get NetDevice corresponding to index i on this channel.

Parameters

i	Index number of the device requested

Returns: Ptr to NetDevice requested

Implements ns3::Channel.

Definition at line 125 of file point-to-point-channel.cc.

References GetPointToPointDevice(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

◆ GetNDevices()

std::size_t ns3::PointToPointChannel::GetNDevices ( void ) const

virtual

Get number of devices on this channel.

Returns: number of devices on this channel

Implements ns3::Channel.

Definition at line 110 of file point-to-point-channel.cc.

References m_nDevices, and NS_LOG_FUNCTION_NOARGS.

◆ GetPointToPointDevice()

Ptr< PointToPointNetDevice > ns3::PointToPointChannel::GetPointToPointDevice ( std::size_t i ) const

Get PointToPointNetDevice corresponding to index i on this channel.

Parameters

i	Index number of the device requested

Returns: Ptr to PointToPointNetDevice requested

Definition at line 117 of file point-to-point-channel.cc.

References m_link, ns3::PointToPointChannel::Link::m_src, NS_ASSERT, and NS_LOG_FUNCTION_NOARGS.

Referenced by GetDevice().

Here is the caller graph for this function:

◆ GetSource()

Ptr< PointToPointNetDevice > ns3::PointToPointChannel::GetSource ( uint32_t i ) const

protected

Get the net-device source.

Parameters

i	the link requested

Returns: Ptr to PointToPointNetDevice source for the specified link

Definition at line 138 of file point-to-point-channel.cc.

References m_link, and ns3::PointToPointChannel::Link::m_src.

Referenced by ns3::PointToPointRemoteChannel::TransmitStart().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PointToPointChannel::GetTypeId ( void )

static

Get the TypeId.

Returns: The TypeId for this class

Definition at line 33 of file point-to-point-channel.cc.

References m_delay, m_txrxPointToPoint, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsInitialized()

bool ns3::PointToPointChannel::IsInitialized ( void ) const

protected

Check to make sure the link is initialized.

Returns: true if initialized, asserts otherwise

Definition at line 150 of file point-to-point-channel.cc.

References INITIALIZING, m_link, and NS_ASSERT.

Referenced by ns3::PointToPointRemoteChannel::TransmitStart().

Here is the caller graph for this function:

◆ TransmitStart()

bool ns3::PointToPointChannel::TransmitStart	(	Ptr< const Packet >	p,
		Ptr< PointToPointNetDevice >	src,
		Time	txTime
	)

virtual

Transmit a packet over this channel.

Parameters

p	Packet to transmit
src	Source PointToPointNetDevice
txTime	Transmit time to apply

Returns: true if successful (currently always true)

Reimplemented in ns3::PointToPointRemoteChannel.

Definition at line 87 of file point-to-point-channel.cc.

References ns3::Packet::Copy(), ns3::Packet::GetUid(), INITIALIZING, m_delay, ns3::PointToPointChannel::Link::m_dst, m_link, ns3::PointToPointChannel::Link::m_src, m_txrxPointToPoint, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PointToPointNetDevice::Receive(), and ns3::Simulator::ScheduleWithContext().

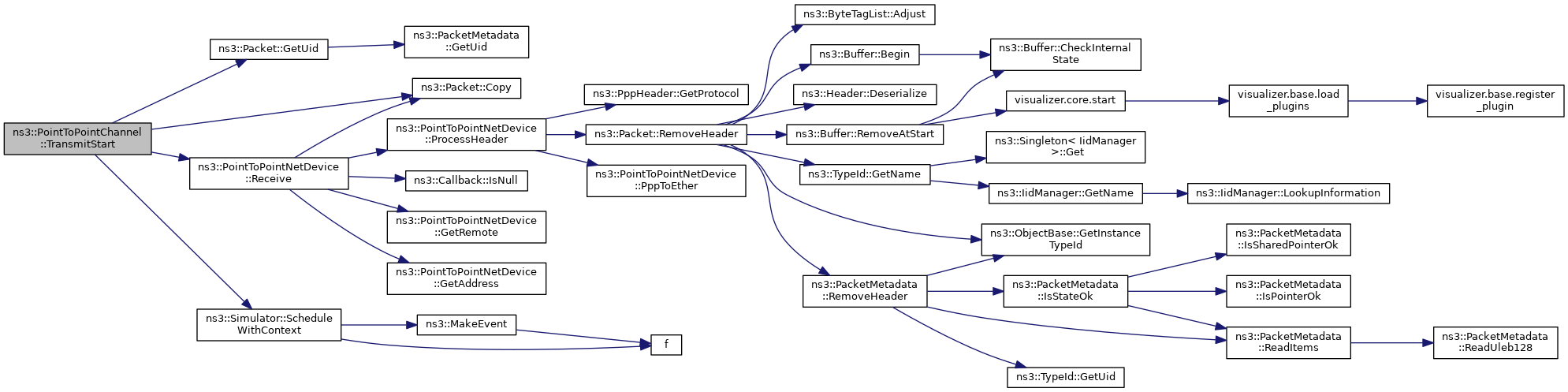

Here is the call graph for this function:

Member Data Documentation

◆ m_delay

Time ns3::PointToPointChannel::m_delay

private

Propagation delay.

Definition at line 152 of file point-to-point-channel.h.

Referenced by GetDelay(), GetTypeId(), and TransmitStart().

◆ m_link

Link ns3::PointToPointChannel::m_link[N_DEVICES]

private

Link model.

Definition at line 204 of file point-to-point-channel.h.

Referenced by Attach(), GetDestination(), GetPointToPointDevice(), GetSource(), IsInitialized(), and TransmitStart().

◆ m_nDevices

std::size_t ns3::PointToPointChannel::m_nDevices

private

Devices of this channel.

Definition at line 153 of file point-to-point-channel.h.

Referenced by Attach(), and GetNDevices().

◆ m_txrxPointToPoint

TracedCallback<Ptr<const Packet>, Ptr<NetDevice>, Ptr<NetDevice>, Time, Time > ns3::PointToPointChannel::m_txrxPointToPoint

private

The trace source for the packet transmission animation events that the device can fire.

Arguments to the callback are the packet, transmitting net device, receiving net device, transmission time and packet receipt time.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<NetDevice> argument is deprecated and will be changed to Ptr<const NetDevice> in a future release.

Definition at line 171 of file point-to-point-channel.h.

Referenced by GetTypeId(), and TransmitStart().

◆ N_DEVICES

const std::size_t ns3::PointToPointChannel::N_DEVICES = 2

staticprivate

Each point to point link has exactly two net devices.

Definition at line 150 of file point-to-point-channel.h.

Referenced by Attach().

The documentation for this class was generated from the following files:

src/point-to-point/model/point-to-point-channel.h
src/point-to-point/model/point-to-point-channel.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Private Types

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Channel

TraceSources

Member Typedef Documentation

◆ TxRxAnimationCallback

Member Enumeration Documentation

◆ WireState

Constructor & Destructor Documentation

◆ PointToPointChannel()

Member Function Documentation

◆ Attach()

◆ GetDelay()

◆ GetDestination()

◆ GetDevice()

◆ GetNDevices()

◆ GetPointToPointDevice()

◆ GetSource()

◆ GetTypeId()

◆ IsInitialized()

◆ TransmitStart()

Member Data Documentation

◆ m_delay

◆ m_link

◆ m_nDevices

◆ m_txrxPointToPoint

◆ N_DEVICES
