ns3::RemoteChannelBundleManager Class Reference

#include "remote-channel-bundle-manager.h"

Collaboration diagram for ns3::RemoteChannelBundleManager:

Static Public Member Functions
static Ptr< RemoteChannelBundle >	Add (uint32_t systemId)
	Add RemoteChannelBundle from this task to MPI task on other side of the link. More...
static void	Destroy (void)
	Destroy the singleton. More...
static Ptr< RemoteChannelBundle >	Find (uint32_t systemId)
static Time	GetSafeTime (void)
static void	InitializeNullMessageEvents (void)
	Setup initial Null Message events for every RemoteChannelBundle. More...
static std::size_t	Size (void)

Private Types
typedef std::map< uint32_t, Ptr< RemoteChannelBundle > >	RemoteChannelMap

Private Member Functions
	RemoteChannelBundleManager ()
	Private ctor to prevent creation outside of singleton pattern. More...
	~RemoteChannelBundleManager ()

Static Private Attributes
static bool	g_initialized = false
static RemoteChannelMap	g_remoteChannelBundles

Detailed Description

Definition at line 40 of file remote-channel-bundle-manager.h.

Member Typedef Documentation

RemoteChannelMap

typedef std::map<uint32_t, Ptr<RemoteChannelBundle> > ns3::RemoteChannelBundleManager::RemoteChannelMap

private

Definition at line 95 of file remote-channel-bundle-manager.h.

Constructor & Destructor Documentation

RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::RemoteChannelBundleManager ( )

inlineprivate

Private ctor to prevent creation outside of singleton pattern.

Definition at line 82 of file remote-channel-bundle-manager.h.

~RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::~RemoteChannelBundleManager ( )

inlineprivate

Definition at line 86 of file remote-channel-bundle-manager.h.

Member Function Documentation

Add()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Add ( uint32_t  systemId )

static

Add RemoteChannelBundle from this task to MPI task on other side of the link.

Can not be invoked after InitializeNullMessageEvents has been invoked.

Definition at line 50 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateLookAhead().

Here is the caller graph for this function:

Destroy()

void ns3::RemoteChannelBundleManager::Destroy ( void  )

static

Destroy the singleton.

Definition at line 104 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::Destroy().

Here is the caller graph for this function:

Find()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Find ( uint32_t  systemId )

static

Returns

remote channel bundle for specified SystemId.

Definition at line 35 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageSimulatorImpl::CalculateGuaranteeTime(), ns3::NullMessageSimulatorImpl::CalculateLookAhead(), ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers(), ns3::NullMessageMpiInterface::ReceiveMessages(), and ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent().

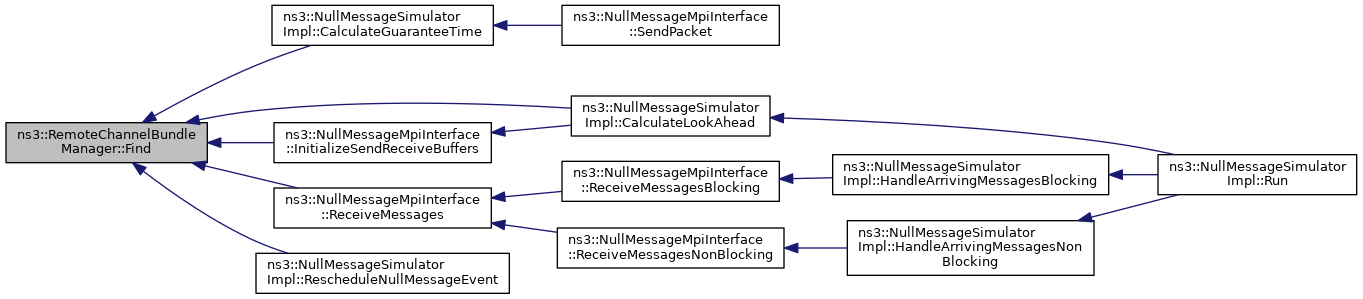

Here is the caller graph for this function:

GetSafeTime()

Time ns3::RemoteChannelBundleManager::GetSafeTime ( void  )

static

Returns

safe time across all remote channels.

Definition at line 87 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::Simulator::GetMaximumSimulationTime(), ns3::Min(), and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateSafeTime().

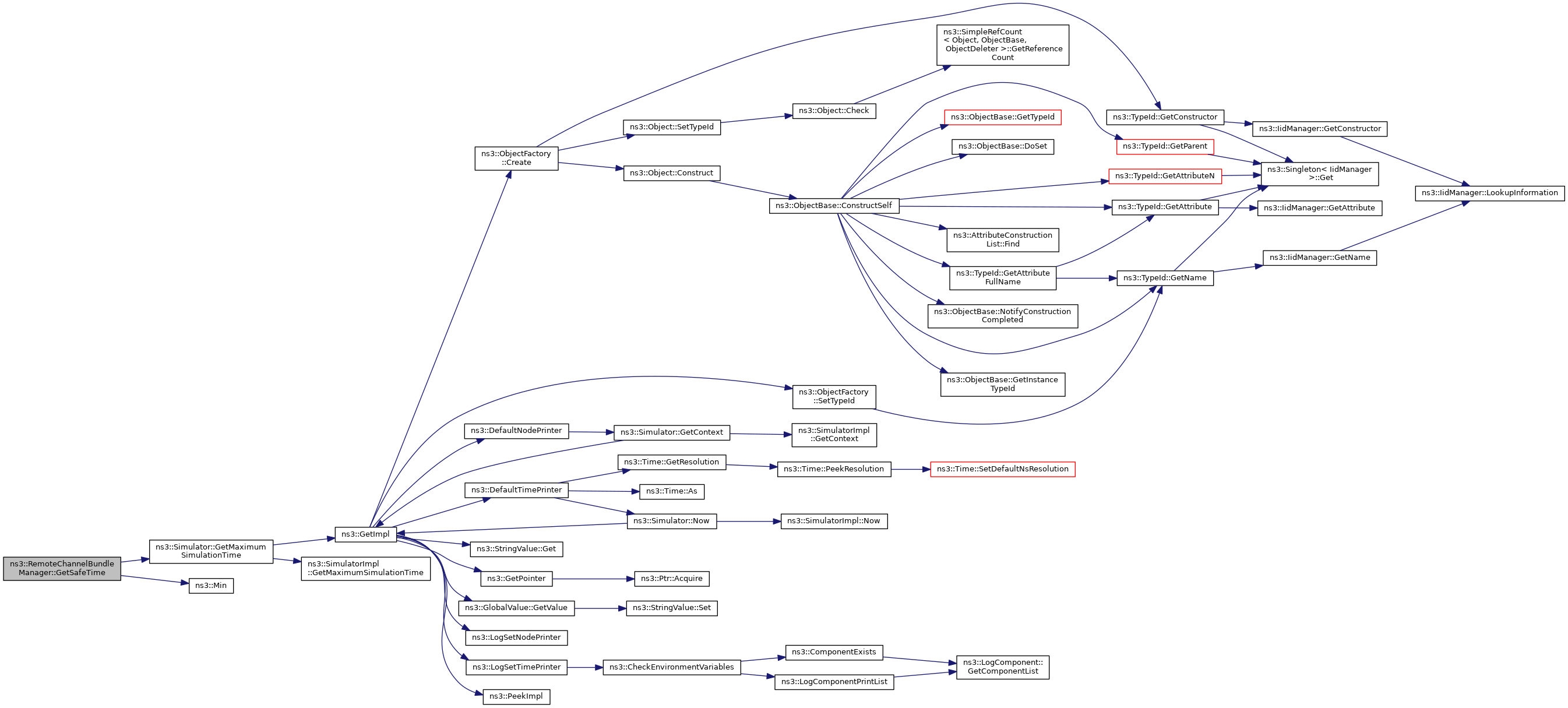

Here is the call graph for this function:

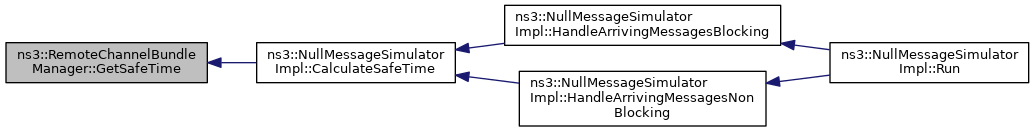

Here is the caller graph for this function:

InitializeNullMessageEvents()

void ns3::RemoteChannelBundleManager::InitializeNullMessageEvents ( void  )

static

Setup initial Null Message events for every RemoteChannelBundle.

All RemoteChannelBundles should be added before this method is invoked.

Definition at line 69 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::NullMessageSimulatorImpl::GetInstance(), NS_ASSERT, and ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent().

Referenced by ns3::NullMessageSimulatorImpl::Run().

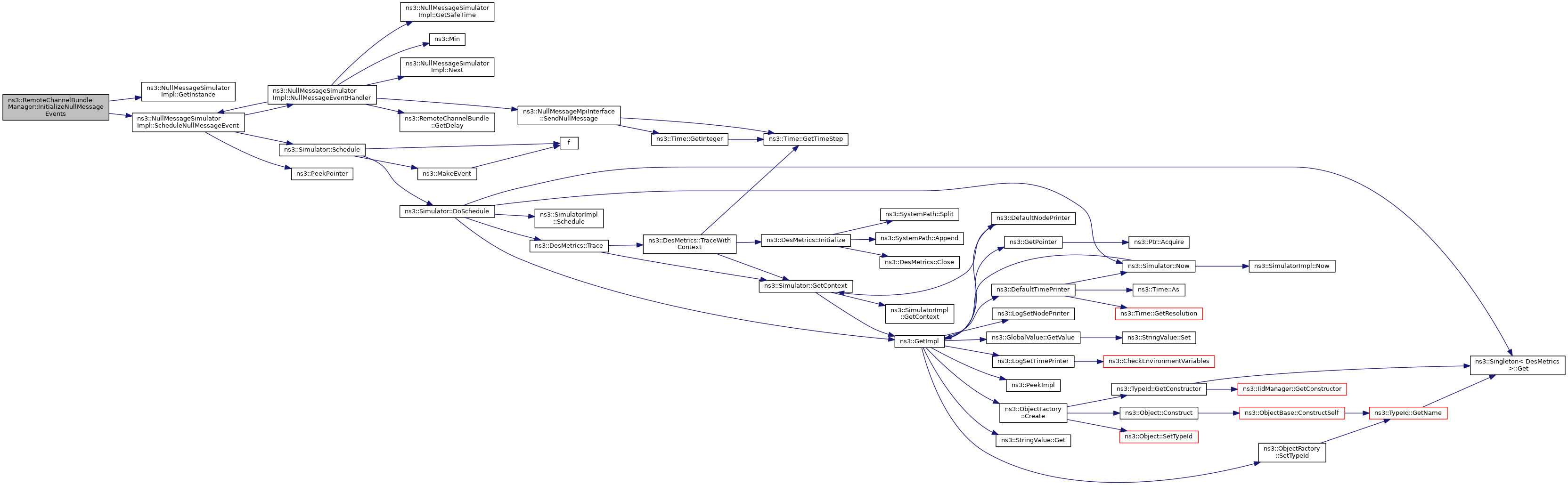

Here is the call graph for this function:

Here is the caller graph for this function:

Size()

std::size_t ns3::RemoteChannelBundleManager::Size ( void  )

static

Returns

number of remote channel bundles

Definition at line 63 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers().

Here is the caller graph for this function:

Member Data Documentation

g_initialized

bool ns3::RemoteChannelBundleManager::g_initialized = false

staticprivate

Definition at line 102 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), GetSafeTime(), and InitializeNullMessageEvents().

g_remoteChannelBundles

ns3::RemoteChannelBundleManager::RemoteChannelMap ns3::RemoteChannelBundleManager::g_remoteChannelBundles

staticprivate

Definition at line 96 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), Find(), GetSafeTime(), InitializeNullMessageEvents(), and Size().

---

The documentation for this class was generated from the following files:

• src/mpi/model/remote-channel-bundle-manager.h
• src/mpi/model/remote-channel-bundle-manager.cc
