ns3::SimpleChannel Class Reference

A simple channel, for simple things and testing. More...

#include "simple-channel.h"

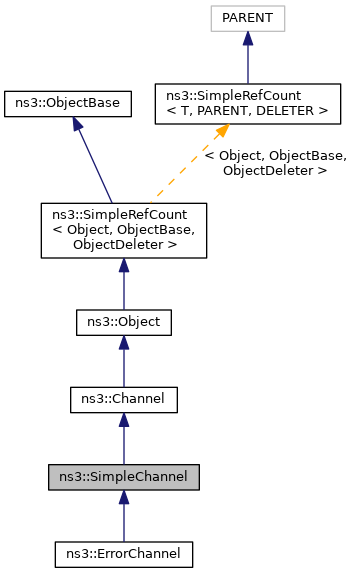

+ Inheritance diagram for ns3::SimpleChannel:

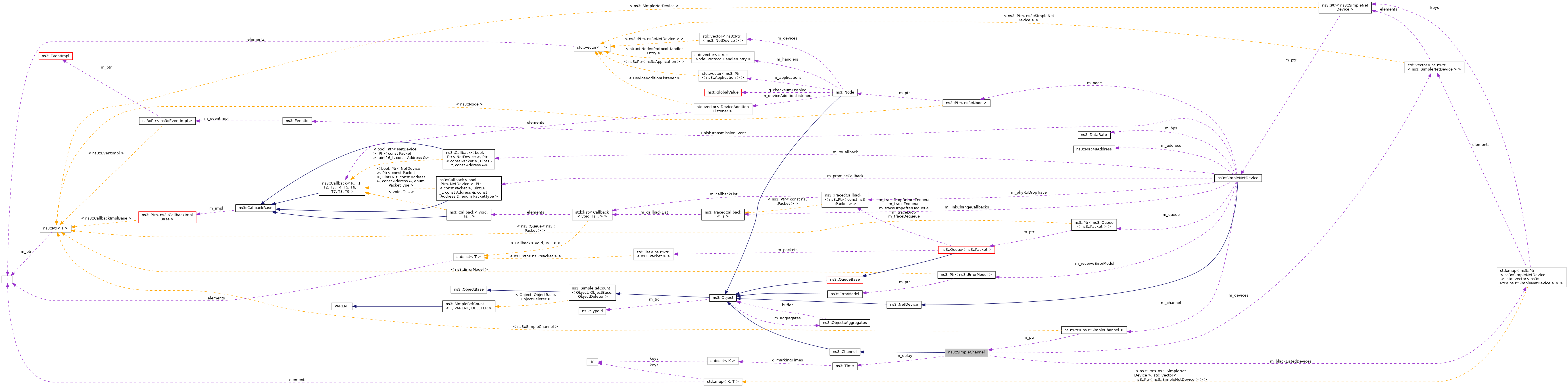

+ Collaboration diagram for ns3::SimpleChannel:

Public Member Functions

 SimpleChannel ()

virtual void Add (Ptr< SimpleNetDevice > device)
 Attached a net device to the channel. More...

virtual void BlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
 Blocks the communications from a NetDevice to another NetDevice. More...

virtual Ptr< NetDeviceGetDevice (std::size_t i) const

virtual std::size_t GetNDevices (void) const

virtual void Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender)
 A packet is sent by a net device. More...

virtual void UnBlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
 Un-Blocks the communications from a NetDevice to another NetDevice. More...

- Public Member Functions inherited from ns3::Channel
 Channel ()

virtual ~Channel ()

uint32_t GetId (void) const

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Channel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::map< Ptr< SimpleNetDevice >, std::vector< Ptr< SimpleNetDevice > > > m_blackListedDevices
 devices blocked on a device More...

Time m_delay
 The assigned speed-of-light delay of the channel. More...

std::vector< Ptr< SimpleNetDevice > > m_devices
 devices connected by the channel More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

A simple channel, for simple things and testing.


This channel doesn't check for packet collisions and it does not introduce any error. By default, it does not add any delay to the packets. Furthermore, it assumes that the associated NetDevices are using 48-bit MAC addresses.

This channel is meant to be used by ns3::SimpleNetDevices.

Config Paths

ns3::SimpleChannel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SimpleChannel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SimpleChannel"
  • "/ChannelList/[i]/$ns3::SimpleChannel"

Attributes

  • Delay: Transmission delay through the channel
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: construct write read

Attributes defined in parent class ns3::Channel

  • Id: The id (unique integer) of this Channel.

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 46 of file simple-channel.h.

Constructor & Destructor Documentation

◆ SimpleChannel()

ns3::SimpleChannel::SimpleChannel ( )

Definition at line 49 of file simple-channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Add()

void ns3::SimpleChannel::Add ( Ptr< SimpleNetDevice device)
virtual

Attached a net device to the channel.

Parameters
devicethe device to attach to the channel

Reimplemented in ns3::ErrorChannel.

Definition at line 81 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

◆ BlackList()

void ns3::SimpleChannel::BlackList ( Ptr< SimpleNetDevice from,
Ptr< SimpleNetDevice to
)
virtual

Blocks the communications from a NetDevice to another NetDevice.

The block is unidirectional

Parameters
fromthe device to BlackList
tothe device wanting to block the other one

Definition at line 102 of file simple-channel.cc.

References m_blackListedDevices.

Referenced by ns3::olsr::Bug780Test::CreateNodes().

+ Here is the caller graph for this function:

◆ GetDevice()

Ptr< NetDevice > ns3::SimpleChannel::GetDevice ( std::size_t  i) const
virtual
Parameters
iindex of NetDevice to retrieve
Returns
one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Reimplemented in ns3::ErrorChannel.

Definition at line 95 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

◆ GetNDevices()

std::size_t ns3::SimpleChannel::GetNDevices ( void  ) const
virtual
Returns
the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Reimplemented in ns3::ErrorChannel.

Definition at line 88 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::SimpleChannel::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 35 of file simple-channel.cc.

References m_delay, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ Send()

void ns3::SimpleChannel::Send ( Ptr< Packet p,
uint16_t  protocol,
Mac48Address  to,
Mac48Address  from,
Ptr< SimpleNetDevice sender
)
virtual

A packet is sent by a net device.

A receive event will be scheduled for all net device connected to the channel other than the net device who sent the packet

Parameters
ppacket to be sent
protocolprotocol number
toaddress to send packet to
fromaddress the packet is coming from
sendernetdevice who sent the packet

Reimplemented in ns3::ErrorChannel.

Definition at line 55 of file simple-channel.cc.

References ns3::Packet::Copy(), m_blackListedDevices, m_delay, m_devices, NS_LOG_FUNCTION, ns3::SimpleNetDevice::Receive(), and ns3::Simulator::ScheduleWithContext().

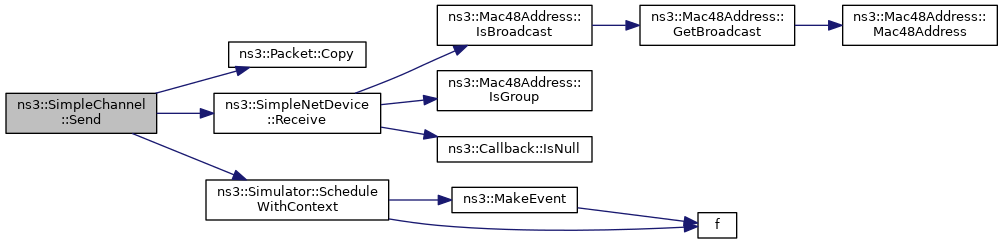

+ Here is the call graph for this function:

◆ UnBlackList()

void ns3::SimpleChannel::UnBlackList ( Ptr< SimpleNetDevice from,
Ptr< SimpleNetDevice to
)
virtual

Un-Blocks the communications from a NetDevice to another NetDevice.

The block is unidirectional

Parameters
fromthe device to BlackList
tothe device wanting to block the other one

Definition at line 119 of file simple-channel.cc.

References m_blackListedDevices.

Member Data Documentation

◆ m_blackListedDevices

std::map<Ptr<SimpleNetDevice>, std::vector<Ptr<SimpleNetDevice> > > ns3::SimpleChannel::m_blackListedDevices
private

devices blocked on a device

Definition at line 103 of file simple-channel.h.

Referenced by BlackList(), Send(), and UnBlackList().

◆ m_delay

Time ns3::SimpleChannel::m_delay
private

The assigned speed-of-light delay of the channel.

Definition at line 101 of file simple-channel.h.

Referenced by GetTypeId(), and Send().

◆ m_devices

std::vector<Ptr<SimpleNetDevice> > ns3::SimpleChannel::m_devices
private

devices connected by the channel

Definition at line 102 of file simple-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().


The documentation for this class was generated from the following files:
