ns3::SixLowPanFrag1 Class Reference

6LoWPAN FRAG1 header - see RFC 4944. More...

#include "sixlowpan-header.h"

+ Inheritance diagram for ns3::SixLowPanFrag1:
+ Collaboration diagram for ns3::SixLowPanFrag1:

Public Member Functions

 SixLowPanFrag1 (void)

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

uint16_t GetDatagramSize (void) const
 Get the datagram size. More...

uint16_t GetDatagramTag (void) const
 Get the datagram tag. More...

virtual TypeId GetInstanceTypeId (void) const
 Return the instance type identifier. More...

virtual uint32_t GetSerializedSize (void) const
 Get the serialized size of the packet. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetDatagramSize (uint16_t datagramSize)
 Set the datagram size. More...

void SetDatagramTag (uint16_t datagramTag)
 Set the datagram tag. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint16_t m_datagramSize
 Datagram size. More...

uint16_t m_datagramTag
 Datagram tag. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

6LoWPAN FRAG1 header - see RFC 4944.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 372 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanFrag1()

ns3::SixLowPanFrag1::SixLowPanFrag1 ( void  )

Definition at line 549 of file sixlowpan-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanFrag1::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
[in]startBuffer iterator.
Returns
Size of the packet.

Implements ns3::Header.

Definition at line 591 of file sixlowpan-header.cc.

References GetSerializedSize(), m_datagramSize, m_datagramTag, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

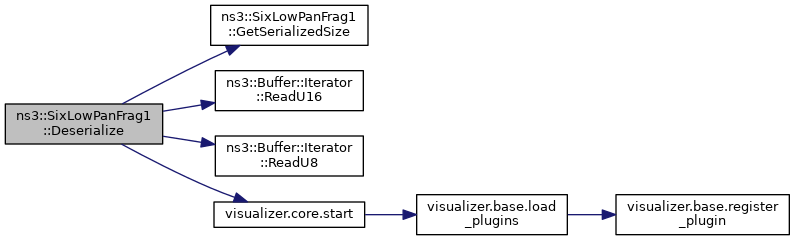

+ Here is the call graph for this function:

◆ GetDatagramSize()

uint16_t ns3::SixLowPanFrag1::GetDatagramSize ( void  ) const

Get the datagram size.

Returns
The datagram size.

Definition at line 608 of file sixlowpan-header.cc.

References m_datagramSize.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

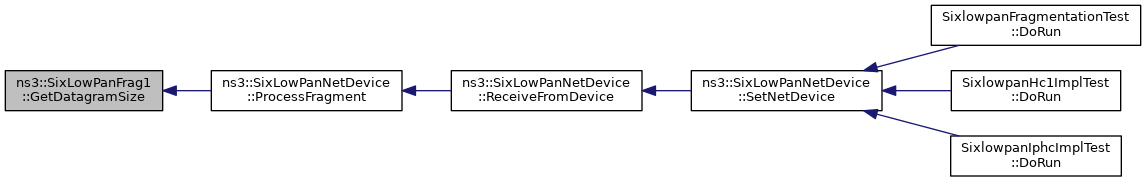

+ Here is the caller graph for this function:

◆ GetDatagramTag()

uint16_t ns3::SixLowPanFrag1::GetDatagramTag ( void  ) const

Get the datagram tag.

Returns
The datagram tag.

Definition at line 618 of file sixlowpan-header.cc.

References m_datagramTag.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

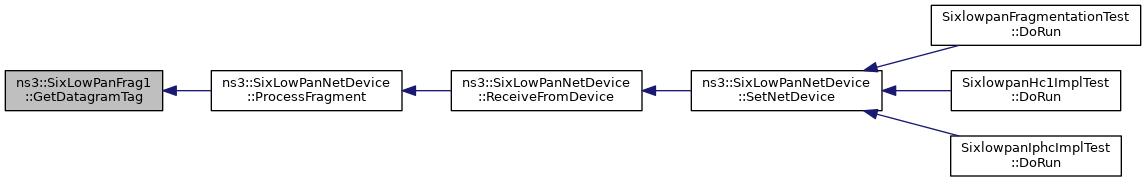

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanFrag1::GetInstanceTypeId ( void  ) const
virtual

Return the instance type identifier.

Returns
Instance type ID.

Implements ns3::ObjectBase.

Definition at line 564 of file sixlowpan-header.cc.

References GetTypeId().

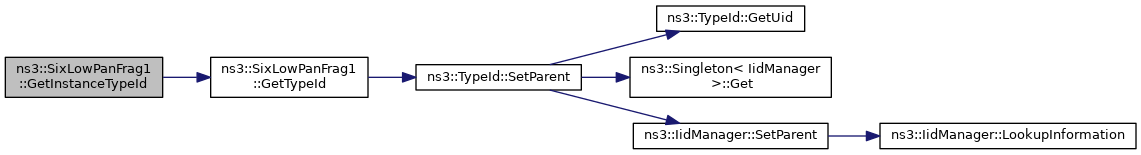

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanFrag1::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
Size.

Implements ns3::Header.

Definition at line 574 of file sixlowpan-header.cc.

Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoFragmentation().

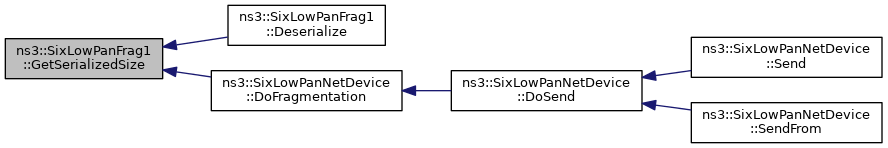

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanFrag1::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 555 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

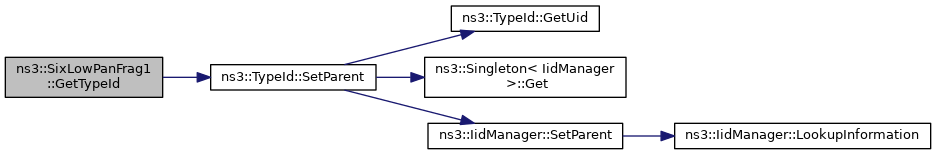

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanFrag1::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 569 of file sixlowpan-header.cc.

References m_datagramSize, and m_datagramTag.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::SixLowPanFrag1::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
[in]startBuffer iterator.

Implements ns3::Header.

Definition at line 579 of file sixlowpan-header.cc.

References ns3::SixLowPanDispatch::LOWPAN_FRAG1, m_datagramSize, m_datagramTag, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

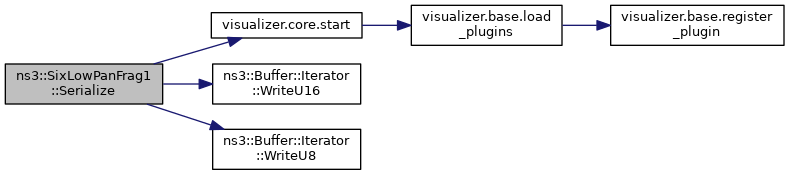

+ Here is the call graph for this function:

◆ SetDatagramSize()

void ns3::SixLowPanFrag1::SetDatagramSize ( uint16_t  datagramSize)

Set the datagram size.

Parameters
[in]datagramSizeThe datagram size.

Definition at line 603 of file sixlowpan-header.cc.

References m_datagramSize.

Referenced by ns3::SixLowPanNetDevice::DoFragmentation().

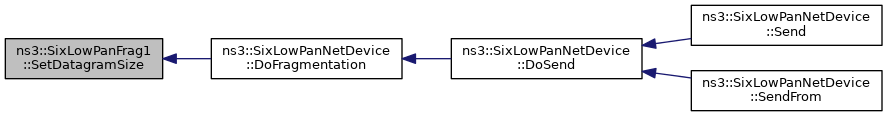

+ Here is the caller graph for this function:

◆ SetDatagramTag()

void ns3::SixLowPanFrag1::SetDatagramTag ( uint16_t  datagramTag)

Set the datagram tag.

Parameters
[in]datagramTagThe datagram tag.

Definition at line 613 of file sixlowpan-header.cc.

References m_datagramTag.

Referenced by ns3::SixLowPanNetDevice::DoFragmentation().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_datagramSize

uint16_t ns3::SixLowPanFrag1::m_datagramSize
private

Datagram size.

Definition at line 435 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDatagramSize(), Print(), Serialize(), and SetDatagramSize().

◆ m_datagramTag

uint16_t ns3::SixLowPanFrag1::m_datagramTag
private

Datagram tag.

Definition at line 436 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDatagramTag(), Print(), Serialize(), and SetDatagramTag().


The documentation for this class was generated from the following files:
