Setup a sixlowpan stack to be used as a shim between IPv6 and a generic NetDevice. More...

#include "sixlowpan-helper.h"

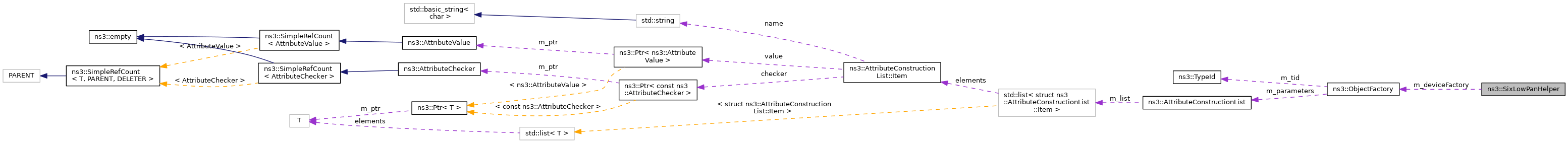

Collaboration diagram for ns3::SixLowPanHelper:

Public Member Functions
	SixLowPanHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

NetDeviceContainer	Install (NetDeviceContainer c)
	Install the SixLoWPAN stack on top of an existing NetDevice. More...

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute on each ns3::SixlowpanNetDevice created by SixlowpanHelper::Install. More...

Private Attributes
ObjectFactory	m_deviceFactory
	Object factory. More...

Detailed Description

Setup a sixlowpan stack to be used as a shim between IPv6 and a generic NetDevice.

Definition at line 38 of file sixlowpan-helper.h.

Constructor & Destructor Documentation

◆ SixLowPanHelper()

ns3::SixLowPanHelper::SixLowPanHelper ( )

Definition at line 34 of file sixlowpan-helper.cc.

References m_deviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

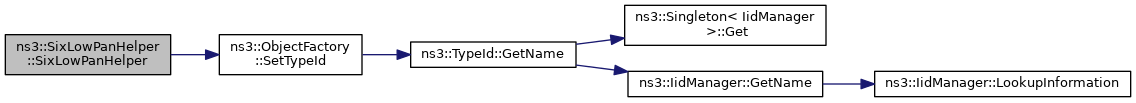

Here is the call graph for this function:

Member Function Documentation

◆ AssignStreams()

int64_t ns3::SixLowPanHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

[in]	c	NetDeviceContainer of the set of net devices for which the SixLowPanNetDevice should be modified to use a fixed stream.
[in]	stream	First stream index to use.

Returns: The number of stream indices assigned by this helper.

Definition at line 69 of file sixlowpan-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

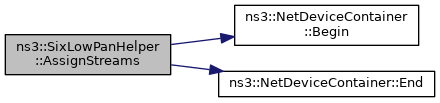

Here is the call graph for this function:

◆ Install()

NetDeviceContainer ns3::SixLowPanHelper::Install ( NetDeviceContainer c )

Install the SixLoWPAN stack on top of an existing NetDevice.

This function requires a set of properly configured NetDevices passed in as the parameter "c". The new NetDevices will have to be used instead of the original ones. In this way these SixLoWPAN devices will behave as shims between the NetDevices passed in and IPv6.

Note that only IPv6 (and related protocols, such as ICMPv6) can be transmitted over a 6LoWPAN interface. Any other protocol (e.g., IPv4) will be discarded by 6LoWPAN.

Other protocols (e.g., IPv4) could be used on the original NetDevices with some limitations. See the manual for a complete discussion.
