ns3::TcpSocketState Class Reference

Data structure that records the congestion state of a connection. More...

#include "tcp-socket-state.h"

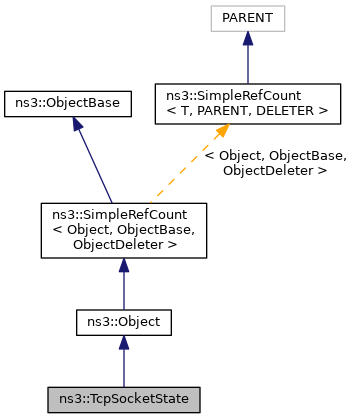

+ Inheritance diagram for ns3::TcpSocketState:

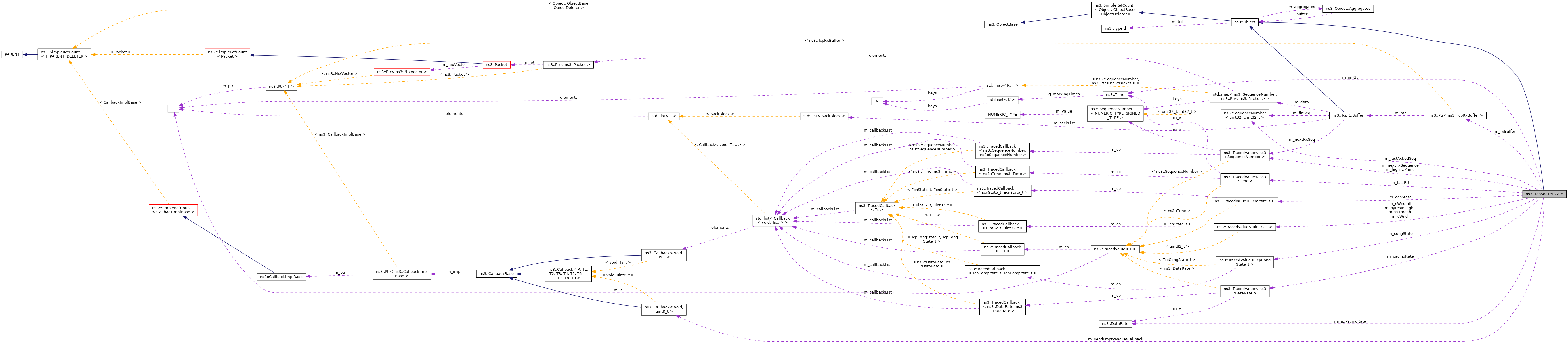

+ Collaboration diagram for ns3::TcpSocketState:

Public Types

enum  EcnCodePoint_t { NotECT = 0, Ect1 = 1, Ect0 = 2, CongExp = 3 }
 ECN code points. More...

enum  EcnMode_t { ClassicEcn, DctcpEcn }
 ECN Modes. More...

enum  EcnState_t {
  ECN_DISABLED = 0, ECN_IDLE, ECN_CE_RCVD, ECN_SENDING_ECE,
  ECN_ECE_RCVD, ECN_CWR_SENT
}
 Definition of the Ecn state machine. More...

enum  TcpCAEvent_t {
  CA_EVENT_TX_START, CA_EVENT_CWND_RESTART, CA_EVENT_COMPLETE_CWR, CA_EVENT_LOSS,
  CA_EVENT_ECN_NO_CE, CA_EVENT_ECN_IS_CE, CA_EVENT_DELAYED_ACK, CA_EVENT_NON_DELAYED_ACK
}

enum  TcpCongState_t {
  CA_OPEN, CA_DISORDER, CA_CWR, CA_RECOVERY,
  CA_LOSS, CA_LAST_STATE
}
 Definition of the Congestion state machine. More...

enum  UseEcn_t { Off = 0, On = 1, AcceptOnly = 2 }
 Parameter value related to ECN enable/disable functionality similar to sysctl for tcp_ecn. More...


Public Member Functions

 TcpSocketState ()
 TcpSocketState Constructor. More...

 TcpSocketState (const TcpSocketState &other)
 Copy constructor. More...

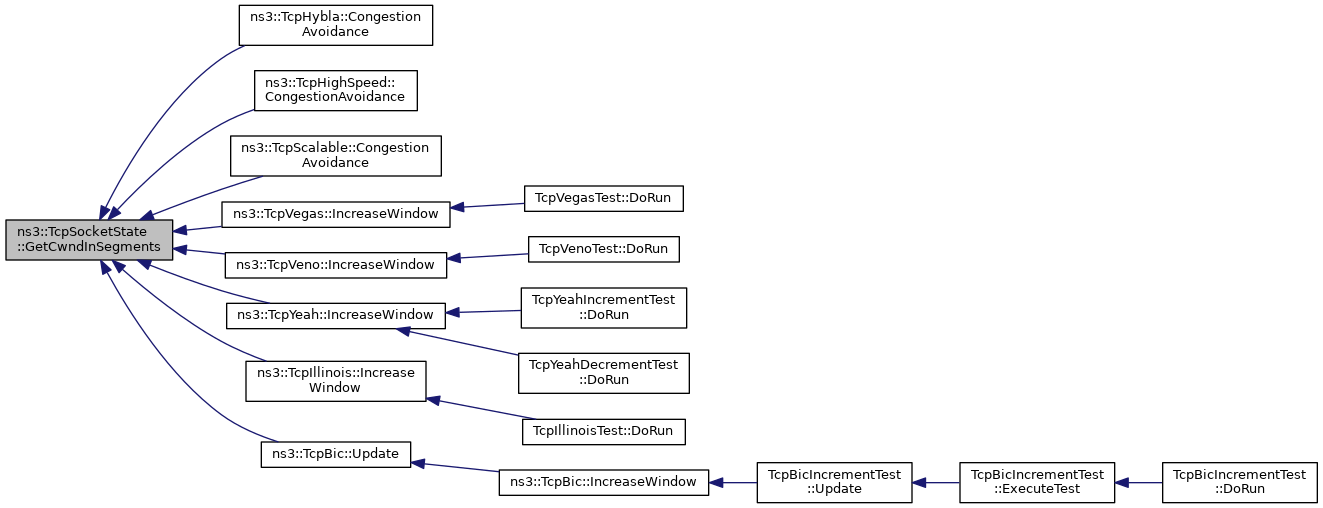

uint32_t GetCwndInSegments () const
 Get cwnd in segments rather than bytes. More...

uint32_t GetSsThreshInSegments () const
 Get slow start thresh in segments rather than bytes. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

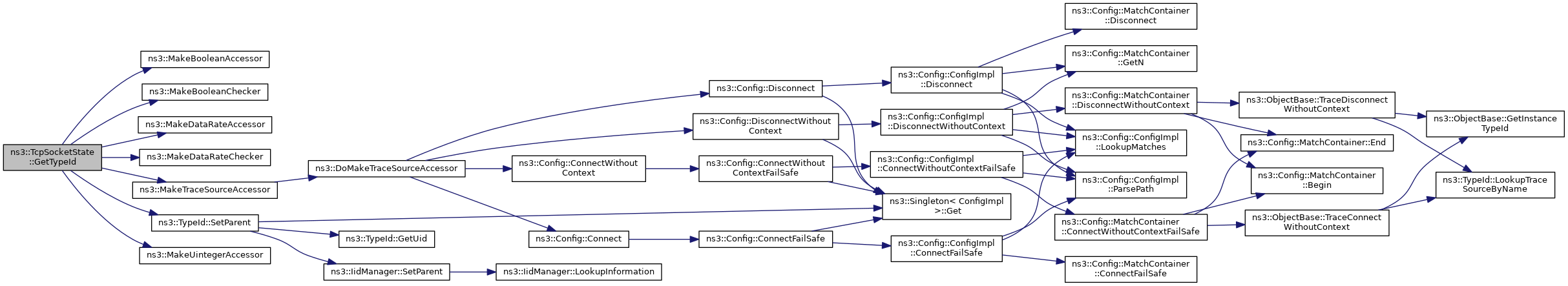

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Public Attributes

TracedValue< uint32_t > m_bytesInFlight {0}
 Bytes in flight. More...

TracedValue< TcpCongState_tm_congState {CA_OPEN}
 State in the Congestion state machine. More...

TracedValue< uint32_t > m_cWnd {0}
 Congestion window. More...

TracedValue< uint32_t > m_cWndInfl {0}
 Inflated congestion window trace (used only for backward compatibility purpose) More...

EcnMode_t m_ecnMode {ClassicEcn}
 ECN mode. More...

TracedValue< EcnState_tm_ecnState {ECN_DISABLED}
 Current ECN State, represented as combination of EcnState values. More...

EcnCodePoint_t m_ectCodePoint {Ect0}
 ECT code point to use. More...

TracedValue< SequenceNumber32m_highTxMark {0}
 Highest seqno ever sent, regardless of ReTx. More...

uint32_t m_initialCWnd {0}
 Initial cWnd value. More...

uint32_t m_initialSsThresh {0}
 Initial Slow Start Threshold value. More...

bool m_isRetransDataAcked {false}
 Retransmitted data is ACKed if true. More...

SequenceNumber32 m_lastAckedSeq {0}
 Last sequence ACKed. More...

TracedValue< Timem_lastRtt {Seconds (0.0)}
 Last RTT sample collected. More...

DataRate m_maxPacingRate {0}
 Max Pacing rate. More...

Time m_minRtt {Time::Max ()}
 Minimum RTT observed throughout the connection. More...

TracedValue< SequenceNumber32m_nextTxSequence {0}
 Next seqnum to be sent (SND.NXT), ReTx pushes it back. More...

bool m_paceInitialWindow {false}
 Enable/Disable pacing for the initial window. More...

bool m_pacing {false}
 Pacing status. More...

uint16_t m_pacingCaRatio {0}
 CA pacing ratio. More...

TracedValue< DataRatem_pacingRate {0}
 Current Pacing rate. More...

uint16_t m_pacingSsRatio {0}
 SS pacing ratio. More...

uint32_t m_rcvTimestampEchoReply {0}
 Sender Timestamp echoed by the receiver. More...

uint32_t m_rcvTimestampValue {0}
 Receiver Timestamp value. More...

Ptr< TcpRxBufferm_rxBuffer
 Rx buffer (reordering buffer) More...

uint32_t m_segmentSize {0}
 Segment size. More...

Callback< void, uint8_t > m_sendEmptyPacketCallback

TracedValue< uint32_t > m_ssThresh {0}
 Slow start threshold. More...

UseEcn_t m_useEcn {Off}
 Socket ECN capability. More...


Static Public Attributes

static const char *const EcnStateName [TcpSocketState::ECN_CWR_SENT+1]
 Literal names of ECN states for use in log messages. More...

static const char *const TcpCongStateName [TcpSocketState::CA_LAST_STATE]
 Literal names of TCP states for use in log messages. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Data structure that records the congestion state of a connection.


Introspection did not find any typical Config paths.

In this data structure, basic information that should be passed between socket and the congestion control algorithm are saved. Through the code, it will be referred as Transmission Control Block (TCB), but there are some differencies. In the RFCs, the TCB contains all the variables that defines a connection, while we preferred to maintain in this class only the values that should be exchanged between socket and other parts, like congestion control algorithms.


Attributes

  • EnablePacing: Enable Pacing
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • MaxPacingRate: Set Max Pacing Rate
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 4000000000bps
    • Flags: construct write read
  • PacingSsRatio: Percent pacing rate increase for slow start conditions
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 200
    • Flags: construct write read
  • PacingCaRatio: Percent pacing rate increase for congestion avoidance conditions
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 120
    • Flags: construct write read
  • PaceInitialWindow: Perform pacing for initial window of data
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

TraceSources

Size of this type is 368 bytes (on a 64-bit architecture).

Definition at line 41 of file tcp-socket-state.h.

Member Enumeration Documentation

◆ EcnCodePoint_t

ECN code points.

Enumerator
NotECT

Unmarkable.

Ect1

Markable.

Ect0

Markable.

CongExp

Marked.

Definition at line 119 of file tcp-socket-state.h.

◆ EcnMode_t

ECN Modes.

Enumerator
ClassicEcn

ECN functionality as described in RFC 3168.

DctcpEcn

ECN functionality as described in RFC 8257.

Note: this mode is specific to DCTCP.

Definition at line 130 of file tcp-socket-state.h.

◆ EcnState_t

Definition of the Ecn state machine.

Enumerator
ECN_DISABLED

ECN disabled traffic.

ECN_IDLE

ECN is enabled but currently there is no action pertaining to ECE or CWR to be taken.

ECN_CE_RCVD

Last packet received had CE bit set in IP header.

ECN_SENDING_ECE

Receiver sends an ACK with ECE bit set in TCP header.

ECN_ECE_RCVD

Last ACK received had ECE bit set in TCP header.

ECN_CWR_SENT

Sender has reduced the congestion window, and sent a packet with CWR bit set in TCP header.

This state is used for tracing.

Definition at line 140 of file tcp-socket-state.h.

◆ TcpCAEvent_t

Enumerator
CA_EVENT_TX_START

first transmit when no packets in flight

CA_EVENT_CWND_RESTART

congestion window restart.

Not triggered

CA_EVENT_COMPLETE_CWR

end of congestion recovery

CA_EVENT_LOSS

loss timeout

CA_EVENT_ECN_NO_CE

ECT set, but not CE marked.

Not triggered

CA_EVENT_ECN_IS_CE

received CE marked IP packet.

Not triggered

CA_EVENT_DELAYED_ACK

Delayed ack is sent.

CA_EVENT_NON_DELAYED_ACK

Non-delayed ack is sent.

Definition at line 91 of file tcp-socket-state.h.

◆ TcpCongState_t

Definition of the Congestion state machine.

The design of this state machine is taken from Linux v4.0, but it has been maintained in the Linux mainline from ages. It basically avoids to maintain a lot of boolean variables, and it allows to check the transitions from different algorithm in a cleaner way.

These states represent the situation from a congestion control point of view: in fact, apart the CA_OPEN state, the other states represent a situation in which there is a congestion, and different actions should be taken, depending on the case.

Enumerator
CA_OPEN

Normal state, no dubious events.

CA_DISORDER

In all the respects it is "Open", but requires a bit more attention.

It is entered when we see some SACKs or dupacks. It is split of "Open"

CA_CWR

cWnd was reduced due to some Congestion Notification event.

It can be ECN, ICMP source quench, local device congestion. Not used in NS-3 right now.

CA_RECOVERY

CWND was reduced, we are fast-retransmitting.

CA_LOSS

CWND was reduced due to RTO timeout or SACK reneging.

CA_LAST_STATE

Used only in debug messages.

Definition at line 76 of file tcp-socket-state.h.

◆ UseEcn_t

Parameter value related to ECN enable/disable functionality similar to sysctl for tcp_ecn.

Currently value 2 from https://www.kernel.org/doc/Documentation/networking/ip-sysctl.txt is not implemented.

Enumerator
Off

Disable.

On

Enable.

AcceptOnly

Enable only when the peer endpoint is ECN capable.

Definition at line 109 of file tcp-socket-state.h.

Constructor & Destructor Documentation

◆ TcpSocketState() [1/2]

ns3::TcpSocketState::TcpSocketState ( )
inline

TcpSocketState Constructor.

Definition at line 54 of file tcp-socket-state.h.

◆ TcpSocketState() [2/2]

ns3::TcpSocketState::TcpSocketState ( const TcpSocketState other)

Copy constructor.

Parameters
otherobject to copy.

Definition at line 95 of file tcp-socket-state.cc.

Member Function Documentation

◆ GetCwndInSegments()

uint32_t ns3::TcpSocketState::GetCwndInSegments ( ) const
inline

Get cwnd in segments rather than bytes.

Returns
Congestion window in segments

Definition at line 212 of file tcp-socket-state.h.

References m_cWnd, and m_segmentSize.

Referenced by ns3::TcpHybla::CongestionAvoidance(), ns3::TcpHighSpeed::CongestionAvoidance(), ns3::TcpScalable::CongestionAvoidance(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpVeno::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::TcpIllinois::IncreaseWindow(), and ns3::TcpBic::Update().

+ Here is the caller graph for this function:

◆ GetSsThreshInSegments()

uint32_t ns3::TcpSocketState::GetSsThreshInSegments ( ) const
inline

Get slow start thresh in segments rather than bytes.

Returns
Slow start threshold in segments

Definition at line 222 of file tcp-socket-state.h.

References m_segmentSize, and m_ssThresh.

◆ GetTypeId()

Member Data Documentation

◆ EcnStateName

◆ m_bytesInFlight

◆ m_congState

◆ m_cWnd

TracedValue<uint32_t> ns3::TcpSocketState::m_cWnd {0}

Congestion window.

Definition at line 162 of file tcp-socket-state.h.

Referenced by ns3::TcpLinuxReno::CongestionAvoidance(), ns3::TcpHtcp::CongestionAvoidance(), ns3::TcpHybla::CongestionAvoidance(), ns3::TcpHighSpeed::CongestionAvoidance(), ns3::TcpScalable::CongestionAvoidance(), ns3::TcpLedbat::CongestionAvoidance(), ns3::TcpNewReno::CongestionAvoidance(), ns3::TcpSocketBase::DoForwardUp(), ns3::TcpPrrRecovery::DoRecovery(), TcpHighSpeedIncrementTest::DoRun(), TcpHyblaIncrementTest::DoRun(), TcpBicIncrementTest::DoRun(), ClassicRecoveryTest::DoRun(), TcpScalableIncrementTest::DoRun(), TcpHtcpIncrementTest::DoRun(), TcpVegasTest::DoRun(), TcpVenoTest::DoRun(), PrrRecoveryTest::DoRun(), TcpYeahIncrementTest::DoRun(), TcpIllinoisTest::DoRun(), TcpHighSpeedDecrementTest::DoRun(), TcpScalableDecrementTest::DoRun(), TcpBicDecrementTest::DoRun(), TcpYeahDecrementTest::DoRun(), ns3::TcpSocketBase::DupAck(), ns3::TcpClassicRecovery::EnterRecovery(), ns3::TcpSocketBase::EnterRecovery(), ns3::TcpLpToNewReno::ExecuteTest(), TcpLedbatToNewReno::ExecuteTest(), TcpBicIncrementTest::ExecuteTest(), ns3::TcpLpInferenceTest1::ExecuteTest(), TcpLedbatIncrementTest::ExecuteTest(), ns3::TcpLpInferenceTest2::ExecuteTest(), TcpBicDecrementTest::ExecuteTest(), TcpLedbatDecrementTest::ExecuteTest(), TcpDctcpToNewReno::ExecuteTest(), TcpDctcpDecrementTest::ExecuteTest(), ns3::TcpPrrRecovery::ExitRecovery(), GetCwndInSegments(), GetTypeId(), ns3::TcpLinuxReno::IncreaseWindow(), ns3::TcpBic::IncreaseWindow(), ns3::TcpLedbat::IncreaseWindow(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpVeno::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::TcpIllinois::IncreaseWindow(), ns3::TcpNewReno::IncreaseWindow(), TcpVenoTest::NewReno_CongestionAvoidance(), TcpVenoTest::NewReno_IncreaseWindow(), TcpVenoTest::NewReno_SlowStart(), ns3::TcpLp::PktsAcked(), ns3::TcpSocketBase::ProcessAck(), ns3::TcpLinuxReno::ReduceCwnd(), ns3::TcpDctcp::ReduceCwnd(), ns3::TcpBic::ReduceCwnd(), ns3::TcpNewReno::ReduceCwnd(), ns3::TcpSocketBase::ReTxTimeout(), ns3::TcpSocketBase::Send(), ns3::TcpSocketCongestedRouter::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendPendingData(), ns3::TcpLinuxReno::SlowStart(), ns3::TcpHybla::SlowStart(), ns3::TcpNewReno::SlowStart(), TcpBicIncrementTest::Update(), ns3::TcpSocketBase::UpdatePacingRate(), and ns3::TcpSocketBase::Window().

◆ m_cWndInfl

◆ m_ecnMode

EcnMode_t ns3::TcpSocketState::m_ecnMode {ClassicEcn}

ECN mode.

Definition at line 202 of file tcp-socket-state.h.

Referenced by ns3::TcpSocketBase::AddSocketTags(), and ns3::TcpDctcp::Init().

◆ m_ecnState

◆ m_ectCodePoint

EcnCodePoint_t ns3::TcpSocketState::m_ectCodePoint {Ect0}

ECT code point to use.

Definition at line 205 of file tcp-socket-state.h.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::TcpDctcp::Init(), and ns3::TcpSocketBase::PersistTimeout().

◆ m_highTxMark

◆ m_initialCWnd

uint32_t ns3::TcpSocketState::m_initialCWnd {0}

Initial cWnd value.

Definition at line 165 of file tcp-socket-state.h.

Referenced by ns3::TcpSocketBase::GetInitialCwnd(), and ns3::TcpSocketBase::SetInitialCwnd().

◆ m_initialSsThresh

uint32_t ns3::TcpSocketState::m_initialSsThresh {0}

Initial Slow Start Threshold value.

Definition at line 166 of file tcp-socket-state.h.

Referenced by ns3::TcpSocketBase::GetInitialSSThresh(), and ns3::TcpSocketBase::SetInitialSSThresh().

◆ m_isRetransDataAcked

bool ns3::TcpSocketState::m_isRetransDataAcked {false}

Retransmitted data is ACKed if true.

Definition at line 171 of file tcp-socket-state.h.

Referenced by ns3::TcpPrrRecovery::DoRecovery(), and ns3::TcpSocketBase::ReceivedAck().

◆ m_lastAckedSeq

◆ m_lastRtt

TracedValue<Time> ns3::TcpSocketState::m_lastRtt {Seconds (0.0)}

◆ m_maxPacingRate

DataRate ns3::TcpSocketState::m_maxPacingRate {0}

Max Pacing rate.

Definition at line 189 of file tcp-socket-state.h.

Referenced by GetTypeId(), ns3::TcpSocketBase::TcpSocketBase(), and ns3::TcpSocketBase::UpdatePacingRate().

◆ m_minRtt

◆ m_nextTxSequence

◆ m_paceInitialWindow

bool ns3::TcpSocketState::m_paceInitialWindow {false}

Enable/Disable pacing for the initial window.

Definition at line 193 of file tcp-socket-state.h.

Referenced by GetTypeId(), ns3::TcpSocketBase::IsPacingEnabled(), and ns3::TcpSocketBase::SetPaceInitialWindow().

◆ m_pacing

bool ns3::TcpSocketState::m_pacing {false}

◆ m_pacingCaRatio

uint16_t ns3::TcpSocketState::m_pacingCaRatio {0}

CA pacing ratio.

Definition at line 192 of file tcp-socket-state.h.

Referenced by GetTypeId(), and ns3::TcpSocketBase::UpdatePacingRate().

◆ m_pacingRate

◆ m_pacingSsRatio

uint16_t ns3::TcpSocketState::m_pacingSsRatio {0}

SS pacing ratio.

Definition at line 191 of file tcp-socket-state.h.

Referenced by GetTypeId(), and ns3::TcpSocketBase::UpdatePacingRate().

◆ m_rcvTimestampEchoReply

◆ m_rcvTimestampValue

◆ m_rxBuffer

◆ m_segmentSize

uint32_t ns3::TcpSocketState::m_segmentSize {0}

Segment size.

Definition at line 174 of file tcp-socket-state.h.

Referenced by TcpSsThreshRtoTest::AfterRTOExpired(), ns3::TcpLinuxReno::CongestionAvoidance(), ns3::TcpHtcp::CongestionAvoidance(), ns3::TcpHybla::CongestionAvoidance(), ns3::TcpHighSpeed::CongestionAvoidance(), ns3::TcpScalable::CongestionAvoidance(), ns3::TcpLedbat::CongestionAvoidance(), ns3::TcpNewReno::CongestionAvoidance(), ns3::TcpPrrRecovery::DoRecovery(), ns3::TcpClassicRecovery::DoRecovery(), ns3::TcpSocketBase::DoRetransmit(), TcpHighSpeedIncrementTest::DoRun(), TcpHyblaIncrementTest::DoRun(), TcpBicIncrementTest::DoRun(), ClassicRecoveryTest::DoRun(), TcpScalableIncrementTest::DoRun(), TcpHtcpIncrementTest::DoRun(), TcpVegasTest::DoRun(), TcpVenoTest::DoRun(), PrrRecoveryTest::DoRun(), TcpYeahIncrementTest::DoRun(), TcpIllinoisTest::DoRun(), TcpHighSpeedDecrementTest::DoRun(), TcpScalableDecrementTest::DoRun(), TcpBicDecrementTest::DoRun(), TcpYeahDecrementTest::DoRun(), ns3::TcpSocketBase::DupAck(), ns3::TcpClassicRecovery::EnterRecovery(), ns3::TcpSocketBase::EnterRecovery(), ns3::TcpWestwood::EstimateBW(), ns3::TcpLpToNewReno::ExecuteTest(), TcpLedbatToNewReno::ExecuteTest(), ns3::TcpLpInferenceTest1::ExecuteTest(), TcpLedbatIncrementTest::ExecuteTest(), ns3::TcpLpInferenceTest2::ExecuteTest(), TcpLedbatDecrementTest::ExecuteTest(), TcpDctcpToNewReno::ExecuteTest(), TcpDctcpDecrementTest::ExecuteTest(), GetCwndInSegments(), ns3::TcpSocketBase::GetSegSize(), GetSsThreshInSegments(), ns3::TcpBic::IncreaseWindow(), ns3::TcpLedbat::IncreaseWindow(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::TcpIllinois::IncreaseWindow(), ns3::TcpSocketBase::IsPacingEnabled(), TcpVenoTest::NewReno_CongestionAvoidance(), TcpVenoTest::NewReno_SlowStart(), ns3::TcpLp::PktsAcked(), ns3::TcpHtcp::PktsAcked(), ns3::TcpDctcp::PktsAcked(), ns3::TcpSocketBase::ProcessAck(), ns3::TcpSocketBase::ReceivedAck(), ns3::TcpLinuxReno::ReduceCwnd(), ns3::TcpDctcp::ReduceCwnd(), ns3::TcpBic::ReduceCwnd(), ns3::TcpNewReno::ReduceCwnd(), ns3::TcpSocketBase::ReTxTimeout(), ns3::TcpSocketBase::Send(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendPendingData(), ns3::TcpSocketBase::SetSegSize(), ns3::TcpLinuxReno::SlowStart(), ns3::TcpHybla::SlowStart(), ns3::TcpNewReno::SlowStart(), and TcpBicIncrementTest::Update().

◆ m_sendEmptyPacketCallback

Callback<void, uint8_t> ns3::TcpSocketState::m_sendEmptyPacketCallback

◆ m_ssThresh

TracedValue<uint32_t> ns3::TcpSocketState::m_ssThresh {0}

Slow start threshold.

Definition at line 164 of file tcp-socket-state.h.

Referenced by ns3::TcpHtcp::CongestionAvoidance(), ns3::TcpHybla::CongestionAvoidance(), ns3::TcpHighSpeed::CongestionAvoidance(), ns3::TcpScalable::CongestionAvoidance(), ns3::TcpLedbat::CongestionAvoidance(), ns3::TcpNewReno::CongestionAvoidance(), ns3::TcpSocketBase::DoForwardUp(), ns3::TcpPrrRecovery::DoRecovery(), TcpHyblaIncrementTest::DoRun(), TcpBicIncrementTest::DoRun(), ClassicRecoveryTest::DoRun(), TcpVegasTest::DoRun(), PrrRecoveryTest::DoRun(), TcpVenoTest::DoRun(), TcpYeahIncrementTest::DoRun(), TcpIllinoisTest::DoRun(), TcpYeahDecrementTest::DoRun(), ns3::TcpClassicRecovery::EnterRecovery(), ns3::TcpSocketBase::EnterRecovery(), ns3::TcpLpToNewReno::ExecuteTest(), TcpLedbatToNewReno::ExecuteTest(), TcpLedbatIncrementTest::ExecuteTest(), TcpLedbatDecrementTest::ExecuteTest(), TcpDctcpToNewReno::ExecuteTest(), ns3::TcpPrrRecovery::ExitRecovery(), ns3::TcpClassicRecovery::ExitRecovery(), GetSsThreshInSegments(), GetTypeId(), ns3::TcpLinuxReno::IncreaseWindow(), ns3::TcpBic::IncreaseWindow(), ns3::TcpLedbat::IncreaseWindow(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpVeno::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::TcpIllinois::IncreaseWindow(), ns3::TcpNewReno::IncreaseWindow(), TcpVenoTest::NewReno_IncreaseWindow(), ns3::TcpSocketBase::ProcessAck(), ns3::TcpSocketBase::ReTxTimeout(), ns3::TcpSocketCongestedRouter::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpLinuxReno::SlowStart(), ns3::TcpHybla::SlowStart(), ns3::TcpNewReno::SlowStart(), and ns3::TcpSocketBase::UpdatePacingRate().

◆ m_useEcn

◆ TcpCongStateName

const char *const ns3::TcpSocketState::TcpCongStateName
static
Initial value:
=
{
"CA_OPEN", "CA_DISORDER", "CA_CWR", "CA_RECOVERY", "CA_LOSS"
}

Literal names of TCP states for use in log messages.

Definition at line 154 of file tcp-socket-state.h.

Referenced by ns3::TcpSocketBase::EnterRecovery(), ns3::TcpSocketBase::ProcessAck(), and ns3::TcpSocketCongestedRouter::SendDataPacket().


The documentation for this class was generated from the following files:
