ns3::ThreeGppAntennaArrayModel Class Reference

Class implementing the antenna model defined in 3GPP TR 38.901 V15.0.0. More...

#include "three-gpp-antenna-array-model.h"

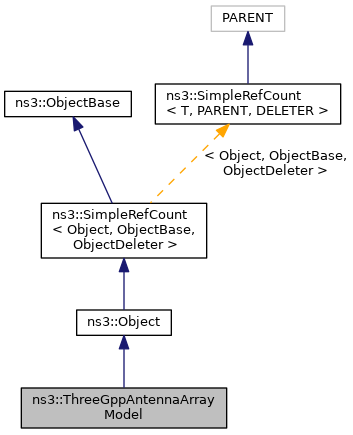

+ Inheritance diagram for ns3::ThreeGppAntennaArrayModel:

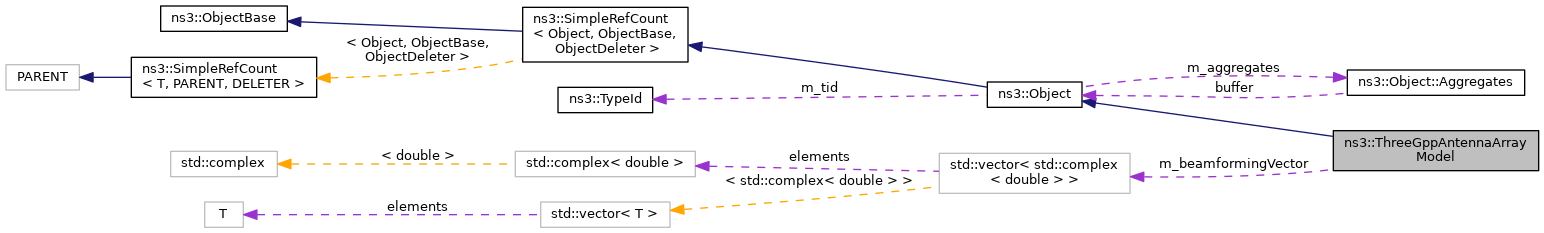

+ Collaboration diagram for ns3::ThreeGppAntennaArrayModel:

Public Types

typedef std::vector< std::complex< double > > ComplexVector
 type definition for complex vectors More...


Public Member Functions

 ThreeGppAntennaArrayModel (void)
 Constructor. More...

virtual ~ThreeGppAntennaArrayModel (void)
 Destructor. More...

void ChangeToOmniTx (void)
 Change the antenna model to omnidirectional (ignoring the beams) More...

const ComplexVectorGetBeamformingVector (void) const
 Returns the beamforming vector that is currently being used. More...

std::pair< double, double > GetElementFieldPattern (Angles a) const
 Returns the horizontal and vertical components of the antenna element field pattern at the specified direction. More...

virtual Vector GetElementLocation (uint64_t index) const
 Returns the location of the antenna element with the specified index assuming the left bottom corner is (0,0,0), normalized with respect to the wavelength. More...

virtual uint64_t GetNumberOfElements (void) const
 Returns the number of antenna elements. More...

bool IsOmniTx (void) const
 Returns true if the antenna is configured for omnidirectional transmissions. More...

void SetBeamformingVector (const ComplexVector &beamformingVector)
 Sets the beamforming vector to be used. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

double GetRadiationPattern (double vAngleRadian, double hAngleRadian) const
 Returns the radiation power pattern of a single antenna element in dB, generated according to Table 7.3-1 in 3GPP TR 38.901. More...


Private Attributes

double m_alpha
 the bearing angle in radians More...

ComplexVector m_beamformingVector
 the beamforming vector in use More...

double m_beta
 the downtilt angle in radians More...

double m_disH
 antenna spacing in the horizontal direction in multiples of wave length More...

double m_disV
 antenna spacing in the vertical direction in multiples of wave length More...

double m_gE
 directional gain of a single antenna element (dBi) More...

bool m_isIsotropic
 if true, antenna elements are isotropic More...

bool m_isOmniTx
 true if the antenna is configured for omni transmissions More...

uint32_t m_numColumns
 number of columns More...

uint32_t m_numRows
 number of rows More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Class implementing the antenna model defined in 3GPP TR 38.901 V15.0.0.


Introspection did not find any typical Config paths.

Note
the current implementation supports the modeling of antenna arrays composed of a single panel and with single (vertical) polarization.


Attributes

  • AntennaHorizontalSpacing: Horizontal spacing between antenna elements, in multiples of wave length
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read
  • AntennaVerticalSpacing: Vertical spacing between antenna elements, in multiples of wave length
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read
  • NumColumns: Horizontal size of the array
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 4
    • Flags: construct write read
  • NumRows: Vertical size of the array
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 4
    • Flags: construct write read
  • BearingAngle: The bearing angle in radians
    • Set with class: ns3::DoubleValue
    • Underlying type: double -3.14159:3.14159
    • Initial value: 0
    • Flags: construct write read
  • DowntiltAngle: The downtilt angle in radians
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:3.14159
    • Initial value: 0
    • Flags: construct write read
  • ElementGain: Directional gain of an antenna element in dBi
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:8
    • Initial value: 4.97
    • Flags: construct write read
  • IsotropicElements: If true, use an isotropic radiation pattern (for testing purposes)
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 37 of file three-gpp-antenna-array-model.h.

Member Typedef Documentation

◆ ComplexVector

typedef std::vector<std::complex<double> > ns3::ThreeGppAntennaArrayModel::ComplexVector

type definition for complex vectors

Definition at line 54 of file three-gpp-antenna-array-model.h.

Constructor & Destructor Documentation

◆ ThreeGppAntennaArrayModel()

ns3::ThreeGppAntennaArrayModel::ThreeGppAntennaArrayModel ( void  )

Constructor.

Definition at line 33 of file three-gpp-antenna-array-model.cc.

References m_isOmniTx, and NS_LOG_FUNCTION.

◆ ~ThreeGppAntennaArrayModel()

ns3::ThreeGppAntennaArrayModel::~ThreeGppAntennaArrayModel ( void  )
virtual

Destructor.

Definition at line 39 of file three-gpp-antenna-array-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ChangeToOmniTx()

void ns3::ThreeGppAntennaArrayModel::ChangeToOmniTx ( void  )

Change the antenna model to omnidirectional (ignoring the beams)

Definition at line 102 of file three-gpp-antenna-array-model.cc.

References m_isOmniTx, and NS_LOG_FUNCTION.

◆ GetBeamformingVector()

const ThreeGppAntennaArrayModel::ComplexVector & ns3::ThreeGppAntennaArrayModel::GetBeamformingVector ( void  ) const

Returns the beamforming vector that is currently being used.

Returns
the current beamforming vector

Definition at line 117 of file three-gpp-antenna-array-model.cc.

References m_beamformingVector, and NS_LOG_FUNCTION.

Referenced by ThreeGppSpectrumPropagationLossModelTest::DoRun().

+ Here is the caller graph for this function:

◆ GetElementFieldPattern()

std::pair< double, double > ns3::ThreeGppAntennaArrayModel::GetElementFieldPattern ( Angles  a) const

Returns the horizontal and vertical components of the antenna element field pattern at the specified direction.

Only vertical polarization is considered.

Parameters
athe angle indicating the interested direction
Returns
a pair in which the first element is the horizontal component of the field pattern and the second element is the vertical component of the field pattern

Definition at line 124 of file three-gpp-antenna-array-model.cc.

References GetRadiationPattern(), m_alpha, m_beta, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Angles::phi, and ns3::Angles::theta.

+ Here is the call graph for this function:

◆ GetElementLocation()

Vector ns3::ThreeGppAntennaArrayModel::GetElementLocation ( uint64_t  index) const
virtual

Returns the location of the antenna element with the specified index assuming the left bottom corner is (0,0,0), normalized with respect to the wavelength.

Antenna elements are scanned row by row, left to right and bottom to top. For example, an antenna with 2 rows and 3 columns will be ordered as follows: ^ z | 3 4 5 | 0 1 2 -------—> y

Parameters
indexindex of the antenna element
Returns
the 3D vector that represents the position of the element

Definition at line 195 of file three-gpp-antenna-array-model.cc.

References m_alpha, m_beta, m_disH, m_disV, m_numColumns, and NS_LOG_FUNCTION.

Referenced by DoBeamforming(), and ThreeGppSpectrumPropagationLossModelTest::DoBeamforming().

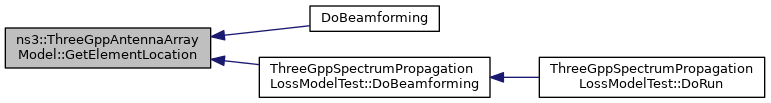

+ Here is the caller graph for this function:

◆ GetNumberOfElements()

uint64_t ns3::ThreeGppAntennaArrayModel::GetNumberOfElements ( void  ) const
virtual

Returns the number of antenna elements.

Returns
the number of antenna elements

Definition at line 215 of file three-gpp-antenna-array-model.cc.

References m_numColumns, m_numRows, and NS_LOG_FUNCTION.

Referenced by DoBeamforming(), ThreeGppSpectrumPropagationLossModelTest::DoBeamforming(), and ThreeGppChannelMatrixComputationTest::DoComputeNorm().

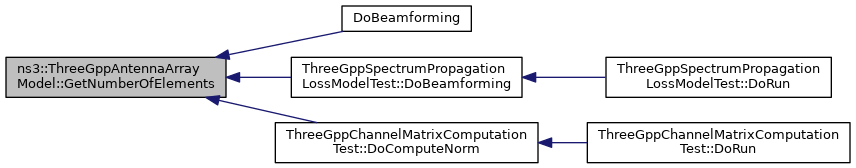

+ Here is the caller graph for this function:

◆ GetRadiationPattern()

double ns3::ThreeGppAntennaArrayModel::GetRadiationPattern ( double  vAngleRadian,
double  hAngleRadian
) const
private

Returns the radiation power pattern of a single antenna element in dB, generated according to Table 7.3-1 in 3GPP TR 38.901.

Parameters
vAngleRadianthe vertical angle in radians
hAngleRadianthe horizontal angle in radians
Returns
the radiation power pattern in dB

Definition at line 168 of file three-gpp-antenna-array-model.cc.

References m_gE, m_isIsotropic, min, and NS_ASSERT_MSG.

Referenced by GetElementFieldPattern().

+ Here is the caller graph for this function:

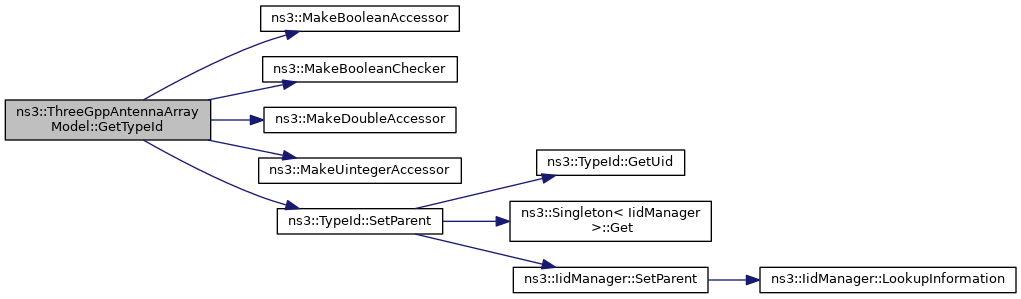

◆ GetTypeId()

TypeId ns3::ThreeGppAntennaArrayModel::GetTypeId ( void  )
static

◆ IsOmniTx()

bool ns3::ThreeGppAntennaArrayModel::IsOmniTx ( void  ) const

Returns true if the antenna is configured for omnidirectional transmissions.

Returns
whether the transmission is set to omni

Definition at line 95 of file three-gpp-antenna-array-model.cc.

References m_isOmniTx, and NS_LOG_FUNCTION.

◆ SetBeamformingVector()

void ns3::ThreeGppAntennaArrayModel::SetBeamformingVector ( const ComplexVector beamformingVector)

Sets the beamforming vector to be used.

Parameters
beamformingVectorthe beamforming vector

Definition at line 109 of file three-gpp-antenna-array-model.cc.

References m_beamformingVector, m_isOmniTx, and NS_LOG_FUNCTION.

Referenced by DoBeamforming(), ThreeGppSpectrumPropagationLossModelTest::DoBeamforming(), and ThreeGppSpectrumPropagationLossModelTest::DoRun().

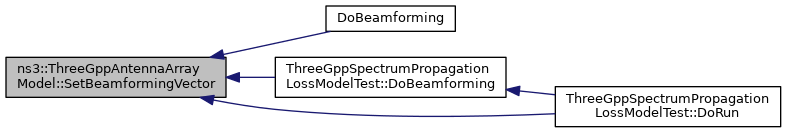

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_alpha

double ns3::ThreeGppAntennaArrayModel::m_alpha
private

the bearing angle in radians

Definition at line 127 of file three-gpp-antenna-array-model.h.

Referenced by GetElementFieldPattern(), GetElementLocation(), and GetTypeId().

◆ m_beamformingVector

ComplexVector ns3::ThreeGppAntennaArrayModel::m_beamformingVector
private

the beamforming vector in use

Definition at line 122 of file three-gpp-antenna-array-model.h.

Referenced by GetBeamformingVector(), and SetBeamformingVector().

◆ m_beta

double ns3::ThreeGppAntennaArrayModel::m_beta
private

the downtilt angle in radians

Definition at line 128 of file three-gpp-antenna-array-model.h.

Referenced by GetElementFieldPattern(), GetElementLocation(), and GetTypeId().

◆ m_disH

double ns3::ThreeGppAntennaArrayModel::m_disH
private

antenna spacing in the horizontal direction in multiples of wave length

Definition at line 126 of file three-gpp-antenna-array-model.h.

Referenced by GetElementLocation(), and GetTypeId().

◆ m_disV

double ns3::ThreeGppAntennaArrayModel::m_disV
private

antenna spacing in the vertical direction in multiples of wave length

Definition at line 125 of file three-gpp-antenna-array-model.h.

Referenced by GetElementLocation(), and GetTypeId().

◆ m_gE

double ns3::ThreeGppAntennaArrayModel::m_gE
private

directional gain of a single antenna element (dBi)

Definition at line 129 of file three-gpp-antenna-array-model.h.

Referenced by GetRadiationPattern(), and GetTypeId().

◆ m_isIsotropic

bool ns3::ThreeGppAntennaArrayModel::m_isIsotropic
private

if true, antenna elements are isotropic

Definition at line 130 of file three-gpp-antenna-array-model.h.

Referenced by GetRadiationPattern(), and GetTypeId().

◆ m_isOmniTx

bool ns3::ThreeGppAntennaArrayModel::m_isOmniTx
private

true if the antenna is configured for omni transmissions

Definition at line 121 of file three-gpp-antenna-array-model.h.

Referenced by ChangeToOmniTx(), IsOmniTx(), SetBeamformingVector(), and ThreeGppAntennaArrayModel().

◆ m_numColumns

uint32_t ns3::ThreeGppAntennaArrayModel::m_numColumns
private

number of columns

Definition at line 123 of file three-gpp-antenna-array-model.h.

Referenced by GetElementLocation(), GetNumberOfElements(), and GetTypeId().

◆ m_numRows

uint32_t ns3::ThreeGppAntennaArrayModel::m_numRows
private

number of rows

Definition at line 124 of file three-gpp-antenna-array-model.h.

Referenced by GetNumberOfElements(), and GetTypeId().


The documentation for this class was generated from the following files:
