ns3::TopologyReader Class Referenceabstract

Interface for input file readers management. More...

#include "topology-reader.h"

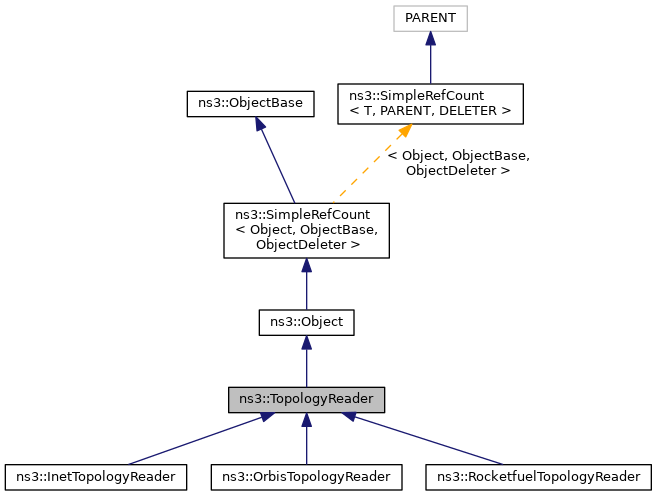

+ Inheritance diagram for ns3::TopologyReader:

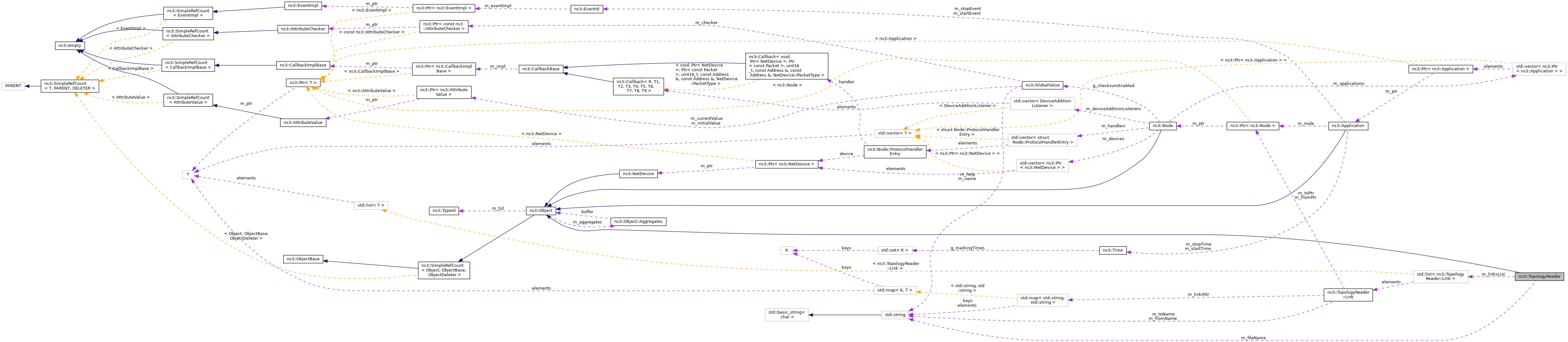

+ Collaboration diagram for ns3::TopologyReader:

Classes

class  Link
 Inner class holding the details about a link between two nodes. More...


Public Types

typedef std::list< Link >::const_iterator ConstLinksIterator
 Constant iterator to the list of the links. More...


Public Member Functions

 TopologyReader ()

virtual ~TopologyReader ()

void AddLink (Link link)
 Adds a link to the topology. More...

std::string GetFileName (void) const
 Returns the input file name. More...

ConstLinksIterator LinksBegin (void) const
 Returns an iterator to the the first link in this block. More...

bool LinksEmpty (void) const
 Checks if the block contains any links. More...

ConstLinksIterator LinksEnd (void) const
 Returns an iterator to the the last link in this block. More...

int LinksSize (void) const
 Returns the number of links in this block. More...

virtual NodeContainer Read (void)=0
 Main topology reading function. More...

void SetFileName (const std::string &fileName)
 Sets the input file name. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

 TopologyReader (const TopologyReader &)
 Copy constructor. More...

TopologyReaderoperator= (const TopologyReader &)
 Copy constructor. More...


Private Attributes

std::string m_fileName
 The name of the input file. More...

std::list< Linkm_linksList
 The container of the links between the nodes. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Interface for input file readers management.


Introspection did not find any typical Config paths.

This interface perform the shared tasks among all possible input file readers. Each different file format is handled by its own topology reader.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 50 of file topology-reader.h.

Member Typedef Documentation

◆ ConstLinksIterator

Constant iterator to the list of the links.

Definition at line 141 of file topology-reader.h.

Constructor & Destructor Documentation

◆ TopologyReader() [1/2]

ns3::TopologyReader::TopologyReader ( )

Definition at line 47 of file topology-reader.cc.

References NS_LOG_FUNCTION.

◆ ~TopologyReader()

ns3::TopologyReader::~TopologyReader ( )
virtual

Definition at line 52 of file topology-reader.cc.

References NS_LOG_FUNCTION.

◆ TopologyReader() [2/2]

ns3::TopologyReader::TopologyReader ( const TopologyReader )
private

Copy constructor.

Defined and unimplemented to avoid misuse.

Member Function Documentation

◆ AddLink()

void ns3::TopologyReader::AddLink ( Link  link)

Adds a link to the topology.

Parameters
link[in] The link to be added.

Definition at line 96 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromMapsFile(), ns3::RocketfuelTopologyReader::GenerateFromWeightsFile(), ns3::OrbisTopologyReader::Read(), and ns3::InetTopologyReader::Read().

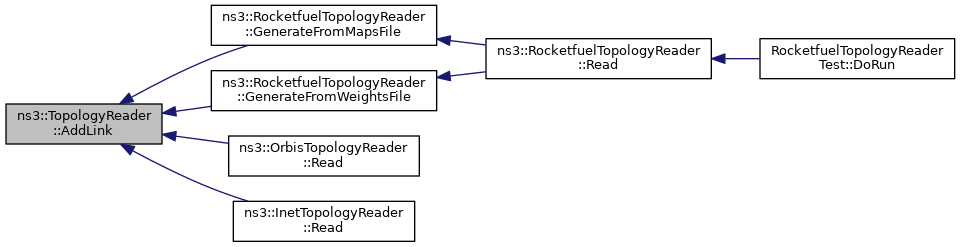

+ Here is the caller graph for this function:

◆ GetFileName()

std::string ns3::TopologyReader::GetFileName ( void  ) const

Returns the input file name.

Returns
The input file name.

Definition at line 64 of file topology-reader.cc.

References m_fileName.

Referenced by ns3::RocketfuelTopologyReader::Read(), ns3::OrbisTopologyReader::Read(), and ns3::InetTopologyReader::Read().

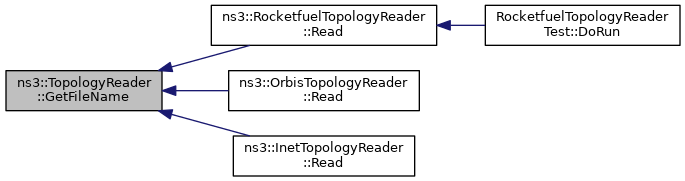

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::TopologyReader::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 38 of file topology-reader.cc.

References ns3::TypeId::SetParent().

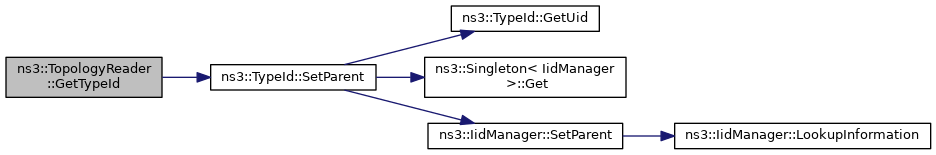

+ Here is the call graph for this function:

◆ LinksBegin()

TopologyReader::ConstLinksIterator ns3::TopologyReader::LinksBegin ( void  ) const

Returns an iterator to the the first link in this block.

Returns
A const iterator to the first link in this block.

Definition at line 72 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromWeightsFile().

+ Here is the caller graph for this function:

◆ LinksEmpty()

bool ns3::TopologyReader::LinksEmpty ( void  ) const

Checks if the block contains any links.

Returns
True if there are no links in this block, false otherwise.

Definition at line 90 of file topology-reader.cc.

References m_linksList.

◆ LinksEnd()

TopologyReader::ConstLinksIterator ns3::TopologyReader::LinksEnd ( void  ) const

Returns an iterator to the the last link in this block.

Returns
A const iterator to the last link in this block.

Definition at line 78 of file topology-reader.cc.

References m_linksList.

Referenced by ns3::RocketfuelTopologyReader::GenerateFromWeightsFile().

+ Here is the caller graph for this function:

◆ LinksSize()

int ns3::TopologyReader::LinksSize ( void  ) const

Returns the number of links in this block.

Returns
The number of links in this block.

Definition at line 84 of file topology-reader.cc.

References m_linksList.

Referenced by RocketfuelTopologyReaderTest::DoRun().

+ Here is the caller graph for this function:

◆ operator=()

TopologyReader& ns3::TopologyReader::operator= ( const TopologyReader )
private

Copy constructor.

Defined and unimplemented to avoid misuse.

Returns

◆ Read()

virtual NodeContainer ns3::TopologyReader::Read ( void  )
pure virtual

Main topology reading function.

The data is parsed and the results are returned in the passed lists. The rationale behind this choice is to allow non-progressive node IDs in the topology files, as well as to separate the topology reader from the choices about actual IP number assignment and kind of links between nodes.

Returns
The container of the nodes created (or null if there was an error).

Implemented in ns3::InetTopologyReader, ns3::OrbisTopologyReader, and ns3::RocketfuelTopologyReader.

◆ SetFileName()

void ns3::TopologyReader::SetFileName ( const std::string &  fileName)

Sets the input file name.

Parameters
[in]fileNameThe input file name.

Definition at line 58 of file topology-reader.cc.

References m_fileName.

Referenced by RocketfuelTopologyReaderTest::DoRun().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_fileName

std::string ns3::TopologyReader::m_fileName
private

The name of the input file.

Definition at line 226 of file topology-reader.h.

Referenced by GetFileName(), and SetFileName().

◆ m_linksList

std::list<Link> ns3::TopologyReader::m_linksList
private

The container of the links between the nodes.

Definition at line 231 of file topology-reader.h.

Referenced by AddLink(), LinksBegin(), LinksEmpty(), LinksEnd(), and LinksSize().


The documentation for this class was generated from the following files:
