Common packet header fields. More...

#include "uan-header-common.h"

Inheritance diagram for ns3::UanHeaderCommon:

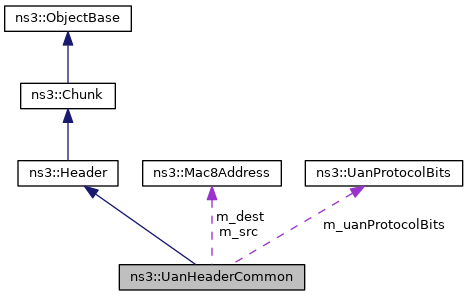

Collaboration diagram for ns3::UanHeaderCommon:

Public Member Functions
	UanHeaderCommon ()
	Default constructor. More...

	UanHeaderCommon (const Mac8Address src, const Mac8Address dest, uint8_t type, uint8_t protocolNumber)
	Create UanHeaderCommon object with given source and destination address and header type. More...

virtual	~UanHeaderCommon ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)

Mac8Address	GetDest (void) const
	Get the destination address. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint16_t	GetProtocolNumber (void) const
	Get the packet type value. More...

virtual uint32_t	GetSerializedSize (void) const

Mac8Address	GetSrc (void) const
	Get the source address. More...

uint8_t	GetType (void) const
	Get the header type value. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetDest (Mac8Address dest)
	Set the destination address. More...

void	SetProtocolNumber (uint16_t protocolNumber)
	Set the packet type. More...

void	SetSrc (Mac8Address src)
	Set the source address. More...

void	SetType (uint8_t type)
	Set the header type. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac8Address	m_dest
	The destination address. More...

Mac8Address	m_src
	The source address. More...

UanProtocolBits	m_uanProtocolBits {0}
	The type and protocol bits. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Common packet header fields.

Introspection did not find any typical Config paths.

src addr: The MAC8 source address

dst addr: The MAC8 destination address

prtcl: The layer 3 protocol prtcl=1 (IPv4) prtcl=2 (ARP) prtcl=3 (IPv6)

type: The type field is MAC protocol specific

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 59 of file uan-header-common.h.

Constructor & Destructor Documentation

◆ UanHeaderCommon() [1/2]

ns3::UanHeaderCommon::UanHeaderCommon ( )

Default constructor.

Definition at line 32 of file uan-header-common.cc.

◆ UanHeaderCommon() [2/2]

ns3::UanHeaderCommon::UanHeaderCommon	(	const Mac8Address	src,
		const Mac8Address	dest,
		uint8_t	type,
		uint8_t	protocolNumber
	)

Create UanHeaderCommon object with given source and destination address and header type.

Parameters

src	Source address defined in header.
dest	Destination address defined in header.
type	Header type.
protocolNumber	the layer 3 protocol number

Definition at line 36 of file uan-header-common.cc.

References ns3::UanProtocolBits::m_type, m_uanProtocolBits, and SetProtocolNumber().

Here is the call graph for this function:

◆ ~UanHeaderCommon()

ns3::UanHeaderCommon::~UanHeaderCommon ( )

virtual

Destructor.

Definition at line 61 of file uan-header-common.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::UanHeaderCommon::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 149 of file uan-header-common.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_dest, ns3::UanProtocolBits::m_protocolNumber, m_src, ns3::UanProtocolBits::m_type, m_uanProtocolBits, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

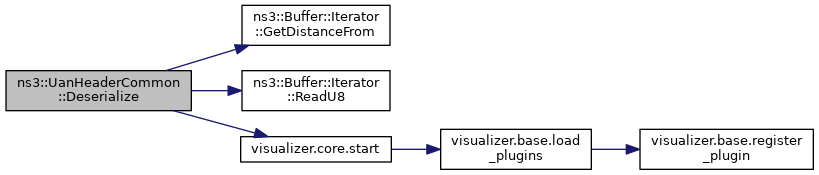

Here is the call graph for this function:

◆ GetDest()

Mac8Address ns3::UanHeaderCommon::GetDest ( void ) const

Get the destination address.

Returns: Mac8Address in destination field.

Definition at line 99 of file uan-header-common.cc.

References m_dest.

Referenced by ns3::UanMacRc::IsPhy1Ok(), ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacAloha::RxPacketGood(), ns3::UanMacRcGw::SendPacket(), and ns3::UanMacRc::SendPacket().

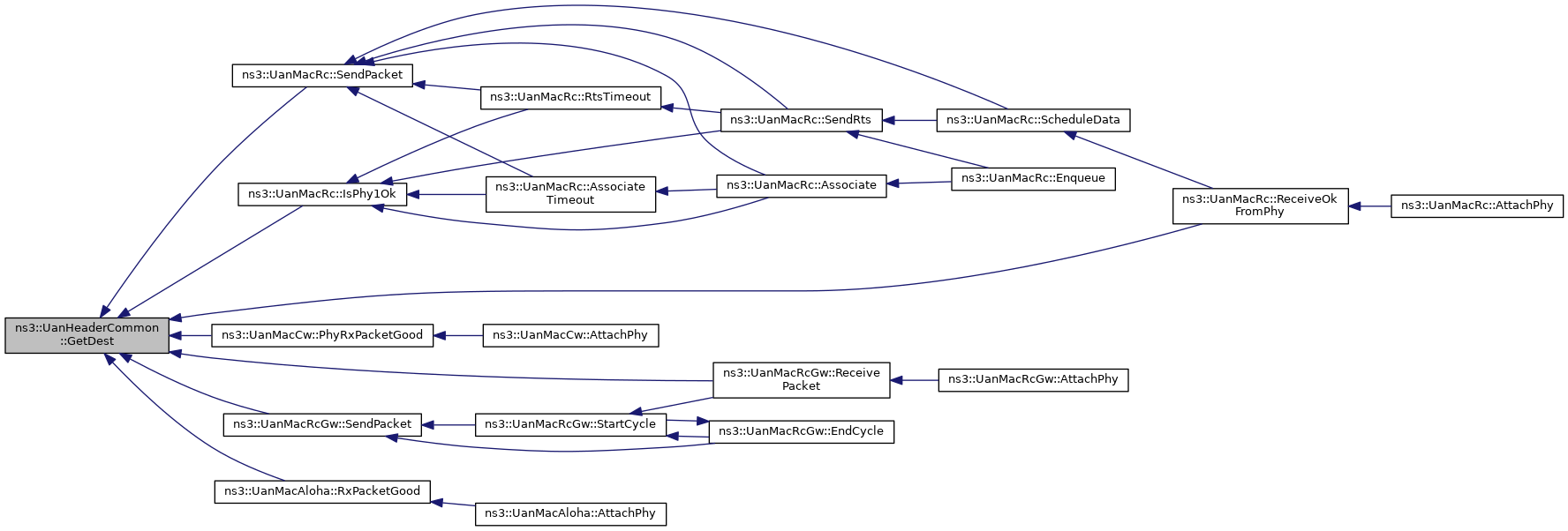

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::UanHeaderCommon::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 57 of file uan-header-common.cc.

References GetTypeId().

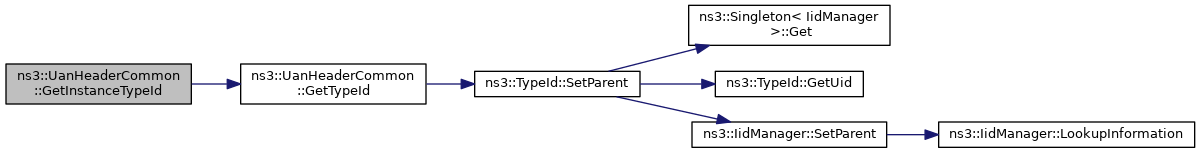

Here is the call graph for this function:

◆ GetProtocolNumber()

uint16_t ns3::UanHeaderCommon::GetProtocolNumber ( void ) const

Get the packet type value.

Returns: value of protocolNumber field.

Definition at line 115 of file uan-header-common.cc.

References ARP_PROT_NUMBER, IPV4_PROT_NUMBER, IPV6_PROT_NUMBER, ns3::UanProtocolBits::m_protocolNumber, and m_uanProtocolBits.

Referenced by ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), and ns3::UanMacAloha::RxPacketGood().

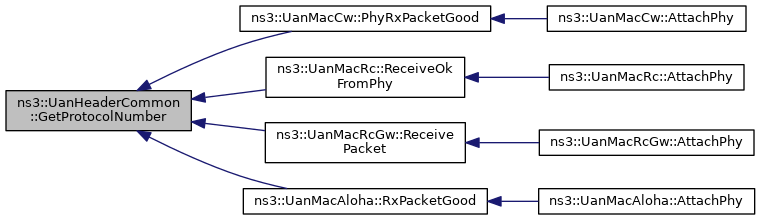

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::UanHeaderCommon::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 129 of file uan-header-common.cc.

Referenced by ns3::UanMacRcGw::ComputeExpS(), AcousticModemEnergyTestCase::DoRun(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::Reservation::Reservation(), and ns3::UanMacRcGw::UanMacRcGw().

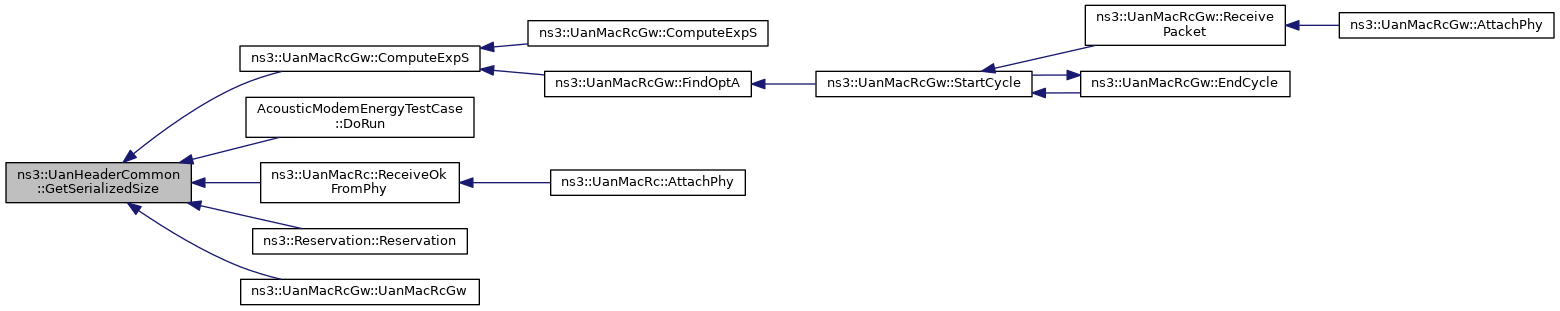

Here is the caller graph for this function:

◆ GetSrc()

Mac8Address ns3::UanHeaderCommon::GetSrc ( void ) const

Get the source address.

Returns: Mac8Address in source field.

Definition at line 104 of file uan-header-common.cc.

References m_src.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), and ns3::UanMacAloha::RxPacketGood().

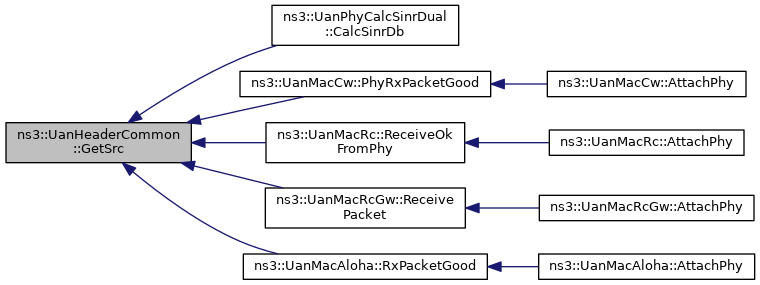

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::UanHeaderCommon::GetType ( void ) const

Get the header type value.

Returns: value of type field.

Definition at line 109 of file uan-header-common.cc.

References ns3::UanProtocolBits::m_type, and m_uanProtocolBits.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::UanMacRc::IsPhy1Ok(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacRcGw::SendPacket(), and ns3::UanMacRc::SendPacket().

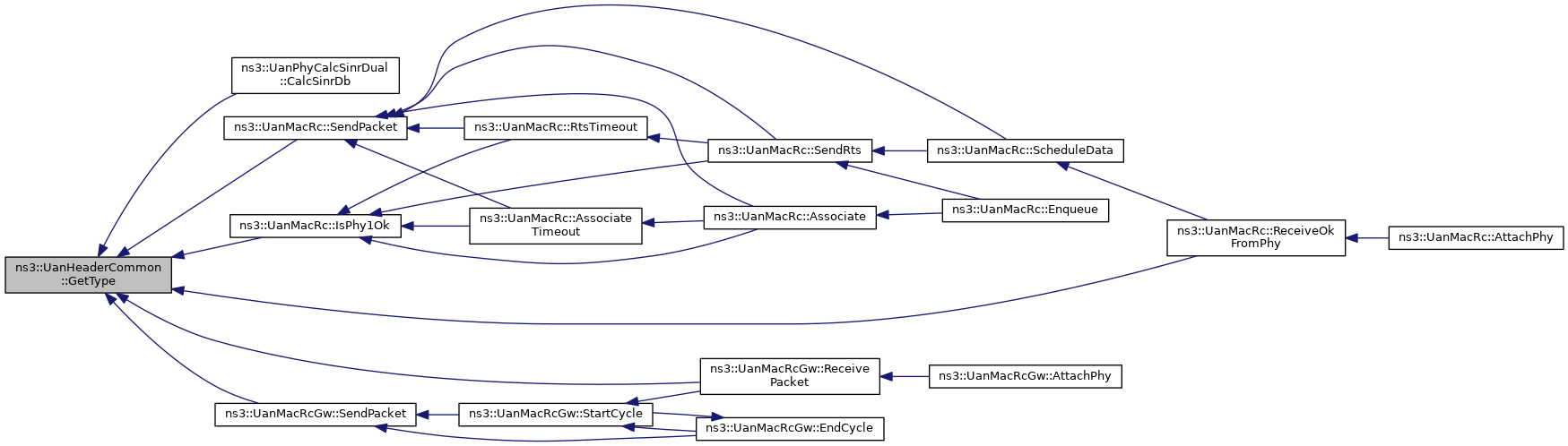

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::UanHeaderCommon::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 46 of file uan-header-common.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

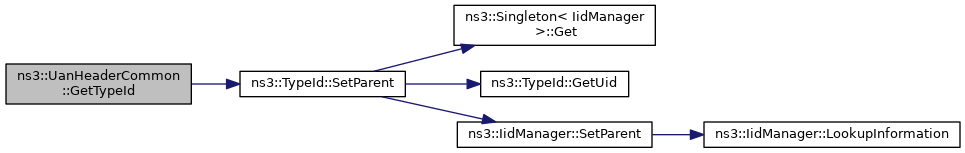

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::UanHeaderCommon::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 163 of file uan-header-common.cc.

References m_dest, ns3::UanProtocolBits::m_protocolNumber, m_src, ns3::UanProtocolBits::m_type, and m_uanProtocolBits.

◆ Serialize()

void ns3::UanHeaderCommon::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 135 of file uan-header-common.cc.

References first::address, ns3::Mac8Address::CopyTo(), m_dest, ns3::UanProtocolBits::m_protocolNumber, m_src, ns3::UanProtocolBits::m_type, m_uanProtocolBits, and visualizer.core::start().

Here is the call graph for this function:
