Two channel Phy. More...

#include "uan-phy-dual.h"

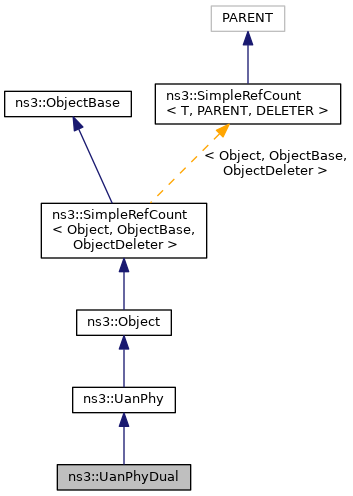

Inheritance diagram for ns3::UanPhyDual:

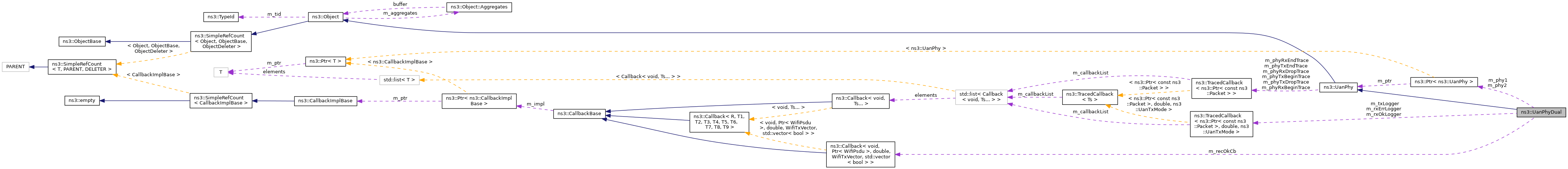

Collaboration diagram for ns3::UanPhyDual:

Public Member Functions
	UanPhyDual ()
	Constructor. More...

virtual	~UanPhyDual ()
	Dummy destructor. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	Clear (void)
	Clear all pointer references. More...

virtual void	EnergyDepletionHandler (void)
	Handle the energy depletion event. More...

virtual void	EnergyRechargeHandler (void)
	Handle the energy recharge event. More...

virtual double	GetCcaThresholdDb (void)
	Get the CCA threshold signal strength required to detect channel busy. More...

double	GetCcaThresholdPhy1 (void) const
	Get the CCA threshold signal strength required to detect channel busy. More...

double	GetCcaThresholdPhy2 (void) const
	Get the CCA threshold signal strength required to detect channel busy. More...

virtual Ptr< UanChannel >	GetChannel (void) const
	Get the attached channel. More...

virtual Ptr< UanNetDevice >	GetDevice (void) const
	Get the device hosting this Phy. More...

virtual UanTxMode	GetMode (uint32_t n)
	Get a specific transmission mode. More...

UanModesList	GetModesPhy1 (void) const
	Get the list of available modes. More...

UanModesList	GetModesPhy2 (void) const
	Get the list of available modes. More...

virtual uint32_t	GetNModes (void)
	Get the number of transmission modes supported by this Phy. More...

Ptr< Packet >	GetPacketRx (void) const
	Get the packet currently being received. More...

Ptr< UanPhyPer >	GetPerModelPhy1 (void) const
	Get the error probability model. More...

Ptr< UanPhyPer >	GetPerModelPhy2 (void) const
	Get the error probability model. More...

Ptr< Packet >	GetPhy1PacketRx (void) const
	Get the packet currently being received. More...

Ptr< Packet >	GetPhy2PacketRx (void) const
	Get the packet currently being received. More...

virtual double	GetRxThresholdDb (void)
	Get the minimum received signal strength required to receive a packet without errors. More...

Ptr< UanPhyCalcSinr >	GetSinrModelPhy1 (void) const
	Get the SINR calculator. More...

Ptr< UanPhyCalcSinr >	GetSinrModelPhy2 (void) const
	Get the SINR calculator. More...

virtual Ptr< UanTransducer >	GetTransducer (void)
	Get the attached transducer. More...

virtual double	GetTxPowerDb (void)
	Get the current transmit power, in dB. More...

double	GetTxPowerDbPhy1 (void) const
	Get the current transmit power, in dB. More...

double	GetTxPowerDbPhy2 (void) const
	Get the current transmit power, in dB. More...

bool	IsPhy1Idle (void)
	More...

bool	IsPhy1Rx (void)
	More...

bool	IsPhy1Tx (void)
	More...

bool	IsPhy2Idle (void)
	More...

bool	IsPhy2Rx (void)
	More...

bool	IsPhy2Tx (void)
	More...

virtual bool	IsStateBusy (void)

virtual bool	IsStateCcaBusy (void)

virtual bool	IsStateIdle (void)

virtual bool	IsStateRx (void)

virtual bool	IsStateSleep (void)

virtual bool	IsStateTx (void)

virtual void	NotifyIntChange (void)
	Called when there has been a change in the amount of interference this node is experiencing from other transmissions. More...

virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
	Called when a transmission is beginning on the attached transducer. More...

virtual void	RegisterListener (UanPhyListener *listener)
	Register a UanPhyListener to be notified of common UanPhy events. More...

virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)
	Send a packet using a specific transmission mode. More...

virtual void	SetCcaThresholdDb (double thresh)
	Set the threshold for detecting channel busy. More...

void	SetCcaThresholdPhy1 (double thresh)
	Set the threshold for detecting channel busy. More...

void	SetCcaThresholdPhy2 (double thresh)
	Set the threshold for detecting channel busy. More...

virtual void	SetChannel (Ptr< UanChannel > channel)
	Attach to a channel. More...

virtual void	SetDevice (Ptr< UanNetDevice > device)
	Set the device hosting this Phy. More...

virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback callback)
	Set the DeviceEnergyModel callback for UanPhy device. More...

virtual void	SetMac (Ptr< UanMac > mac)
	Set the MAC forwarding messages to this Phy. More...

void	SetModesPhy1 (UanModesList modes)
	Set the available modes. More...

void	SetModesPhy2 (UanModesList modes)
	Set the available modes. More...

void	SetPerModelPhy1 (Ptr< UanPhyPer > per)
	Set the error probability model. More...

void	SetPerModelPhy2 (Ptr< UanPhyPer > per)
	Set the error probability model. More...

virtual void	SetReceiveErrorCallback (RxErrCallback cb)
	Set the callback to be used when a packet is received with errors. More...

virtual void	SetReceiveOkCallback (RxOkCallback cb)
	Set the callback to be used when a packet is received without error. More...

virtual void	SetRxThresholdDb (double thresh)
	Set the minimum SINR threshold to receive a packet without errors. More...

void	SetSinrModelPhy1 (Ptr< UanPhyCalcSinr > calcSinr)
	Set the SINR calculator. More...

void	SetSinrModelPhy2 (Ptr< UanPhyCalcSinr > calcSinr)
	Set the SINR calculator. More...

virtual void	SetSleepMode (bool sleep)
	Set the Phy SLEEP mode. More...

virtual void	SetTransducer (Ptr< UanTransducer > trans)
	Attach a transducer to this Phy. More...

virtual void	SetTxPowerDb (double txpwr)
	Set the transmit power. More...

void	SetTxPowerDbPhy1 (double txpwr)
	Set the transmit power. More...

void	SetTxPowerDbPhy2 (double txpwr)
	Set the transmit power. More...

virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Packet arriving from channel: i.e. More...

Public Member Functions inherited from ns3::UanPhy
void	NotifyRxBegin (Ptr< const Packet > packet)
	Called when the Phy begins to receive a packet. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Called when the Phy drops a packet. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Called when a packet is received without error. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Called when the transducer begins transmitting a packet. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Called when the transducer attempts to transmit a new packet while already transmitting a prior packet. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Called when the transducer finishes transmitting a packet. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhy
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	RxErrFromSubPhy (Ptr< Packet > pkt, double sinr)
	Handle callback and logger for packets received with error. More...

void	RxOkFromSubPhy (Ptr< Packet > pkt, double sinr, UanTxMode mode)
	Handle callback and logger for packets received without error. More...

Private Attributes
Ptr< UanPhy >	m_phy1
	First Phy layer. More...

Ptr< UanPhy >	m_phy2
	Second Phy layer. More...

RxErrCallback	m_recErrCb
	Callback when packet received with errors. More...

RxOkCallback	m_recOkCb
	Callback when packet received without errors. More...

ns3::TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxErrLogger
	A packet was received unsuccessfully. More...

ns3::TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxOkLogger
	A packet was received successfully. More...

ns3::TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_txLogger
	A packet was sent from this Phy. More...

Additional Inherited Members
Public Types inherited from ns3::UanPhy
typedef Callback< void, Ptr< Packet >, double >	RxErrCallback
	Packet receive error callback function type. More...

typedef Callback< void, Ptr< Packet >, double, UanTxMode >	RxOkCallback
	Packet received successfully callback function type. More...

enum	State { IDLE, CCABUSY, RX, TX, SLEEP, DISABLED }
	Enum defining possible Phy states. More...

typedef void(*	TracedCallback) (Ptr< const Packet > pkt, double sinr, UanTxMode mode)
	TracedCallback signature for UanPhy packet send/receive events. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Two channel Phy.

A class that wraps two generic UAN Phy layers (UanPhyGen) into a single PHY. This is used to simulate two receivers (and transmitters) that use the same front end hardware. When attached to a UanTransducerHd, this results in a net device able to transmit on one or two channels simultaneously or receive on one or two channels simultaneously but that cannot transmit and receive simultaneously.

Many of the standard PHY functions here become ambiguous. In most cases information for "Phy1" are returned.

Config Paths

ns3::UanPhyDual is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual"

Attributes

CcaThresholdPhy1: Aggregate energy of incoming signals to move to CCA Busy state dB of Phy1.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
CcaThresholdPhy2: Aggregate energy of incoming signals to move to CCA Busy state dB of Phy2.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
TxPowerPhy1: Transmission output power in dB of Phy1.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
TxPowerPhy2: Transmission output power in dB of Phy2.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
SupportedModesPhy1: List of modes supported by Phy1.
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 3|0|1|1|
- Flags: construct write read
SupportedModesPhy2: List of modes supported by Phy2.
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 3|0|1|1|
- Flags: construct write read
PerModelPhy1: Functor to calculate PER based on SINR and TxMode for Phy1.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer>
- Initial value: ns3::UanPhyPerGenDefault
- Flags: construct write read
PerModelPhy2: Functor to calculate PER based on SINR and TxMode for Phy2.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer>
- Initial value: ns3::UanPhyPerGenDefault
- Flags: construct write read
SinrModelPhy1: Functor to calculate SINR based on pkt arrivals and modes for Phy1.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr>
- Initial value: ns3::UanPhyCalcSinrDual
- Flags: construct write read
SinrModelPhy2: Functor to calculate SINR based on pkt arrivals and modes for Phy2.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr>
- Initial value: ns3::UanPhyCalcSinrDual
- Flags: construct write read

TraceSources

RxOk: A packet was received successfully.
Callback signature: ns3::UanPhy::TracedCallback
RxError: A packet was received unsuccessfully.
Callback signature: ns3::UanPhy::TracedCallback
Tx: Packet transmission beginning.
Callback signature: ns3::UanPhy::TracedCallback

TraceSources defined in parent class ns3::UanPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium.
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission.
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device.
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device.
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 208 bytes (on a 64-bit architecture).

Definition at line 81 of file uan-phy-dual.h.

Constructor & Destructor Documentation

◆ UanPhyDual()

ns3::UanPhyDual::UanPhyDual ( )

Constructor.

Definition at line 118 of file uan-phy-dual.cc.

References m_phy1, m_phy2, m_recErrCb, and m_recOkCb.

◆ ~UanPhyDual()

ns3::UanPhyDual::~UanPhyDual ( )

virtual

Dummy destructor.

See also: DoDispose

Definition at line 133 of file uan-phy-dual.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::UanPhyDual::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implements ns3::UanPhy.

Definition at line 636 of file uan-phy-dual.cc.

References NS_LOG_FUNCTION.

◆ Clear()

void ns3::UanPhyDual::Clear ( void )

virtual

Clear all pointer references.

Implements ns3::UanPhy.

Definition at line 138 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

Referenced by DoDispose().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::UanPhyDual::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 152 of file uan-phy-dual.cc.

References Clear(), and ns3::Object::DoDispose().

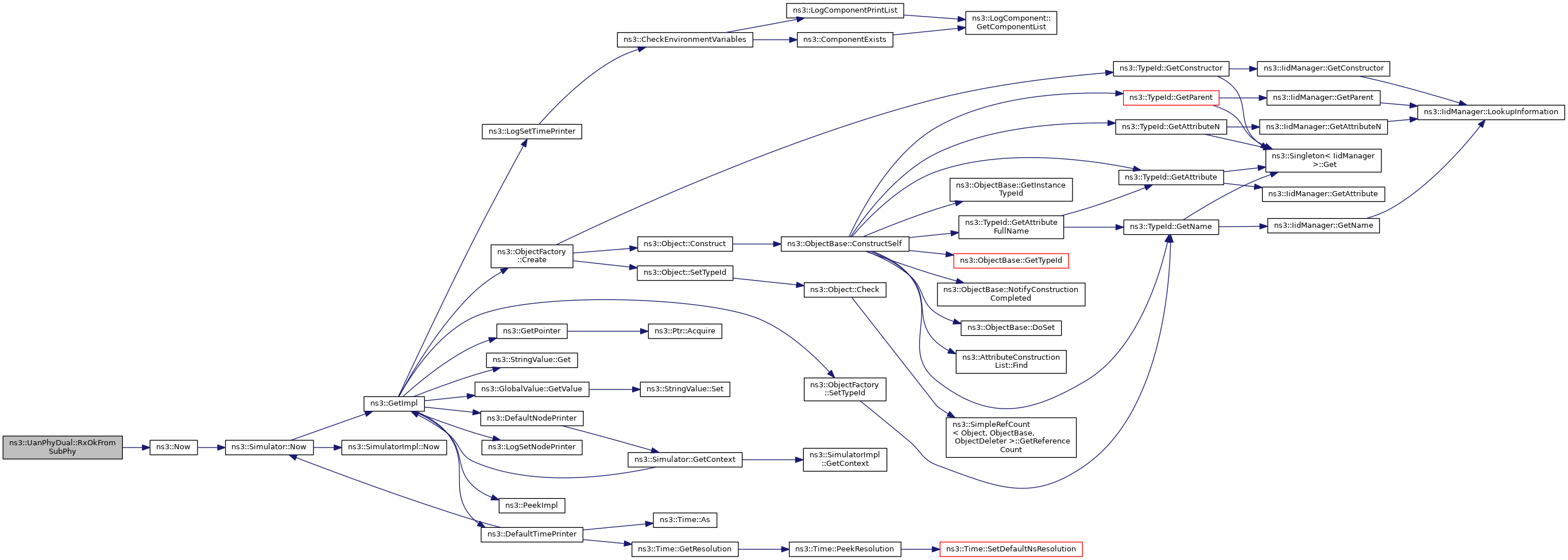

Here is the call graph for this function:

◆ EnergyDepletionHandler()

void ns3::UanPhyDual::EnergyDepletionHandler ( void )

virtual

Handle the energy depletion event.

Implements ns3::UanPhy.

Definition at line 240 of file uan-phy-dual.cc.

References NS_LOG_DEBUG.

◆ EnergyRechargeHandler()

void ns3::UanPhyDual::EnergyRechargeHandler ( void )

virtual

Handle the energy recharge event.

Implements ns3::UanPhy.

Definition at line 246 of file uan-phy-dual.cc.

References NS_LOG_DEBUG.

◆ GetCcaThresholdDb()

double ns3::UanPhyDual::GetCcaThresholdDb ( void )

virtual

Get the CCA threshold signal strength required to detect channel busy.

Returns: The CCA threshold signal strength in dB.

Implements ns3::UanPhy.

Definition at line 366 of file uan-phy-dual.cc.

References m_phy1, and NS_LOG_WARN.

◆ GetCcaThresholdPhy1()

double ns3::UanPhyDual::GetCcaThresholdPhy1 ( void ) const

Get the CCA threshold signal strength required to detect channel busy.

Returns: The CCA threshold signal strength in dB.

Definition at line 372 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetCcaThresholdPhy2()

double ns3::UanPhyDual::GetCcaThresholdPhy2 ( void ) const

Get the CCA threshold signal strength required to detect channel busy.

Returns: The CCA threshold signal strength in dB.

Definition at line 377 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetChannel()

Ptr< UanChannel > ns3::UanPhyDual::GetChannel ( void ) const

virtual

Get the attached channel.

Returns: The channel.

Implements ns3::UanPhy.

Definition at line 459 of file uan-phy-dual.cc.

References m_phy1.

◆ GetDevice()

Ptr< UanNetDevice > ns3::UanPhyDual::GetDevice ( void ) const

virtual

Get the device hosting this Phy.

Returns: The net device.

Implements ns3::UanPhy.

Definition at line 464 of file uan-phy-dual.cc.

References m_phy1.

◆ GetMode()

UanTxMode ns3::UanPhyDual::GetMode ( uint32_t n )

virtual

Get a specific transmission mode.

Parameters

n	The mode number.

Returns: The mode.

Implements ns3::UanPhy.

Definition at line 516 of file uan-phy-dual.cc.

References GetNModes(), m_phy1, m_phy2, and sample-rng-plot::n.

Here is the call graph for this function:

◆ GetModesPhy1()

UanModesList ns3::UanPhyDual::GetModesPhy1 ( void ) const

Get the list of available modes.

Returns: The mode list.

Definition at line 529 of file uan-phy-dual.cc.

References ns3::UanModesListValue::Get(), and m_phy1.

Referenced by GetTypeId().

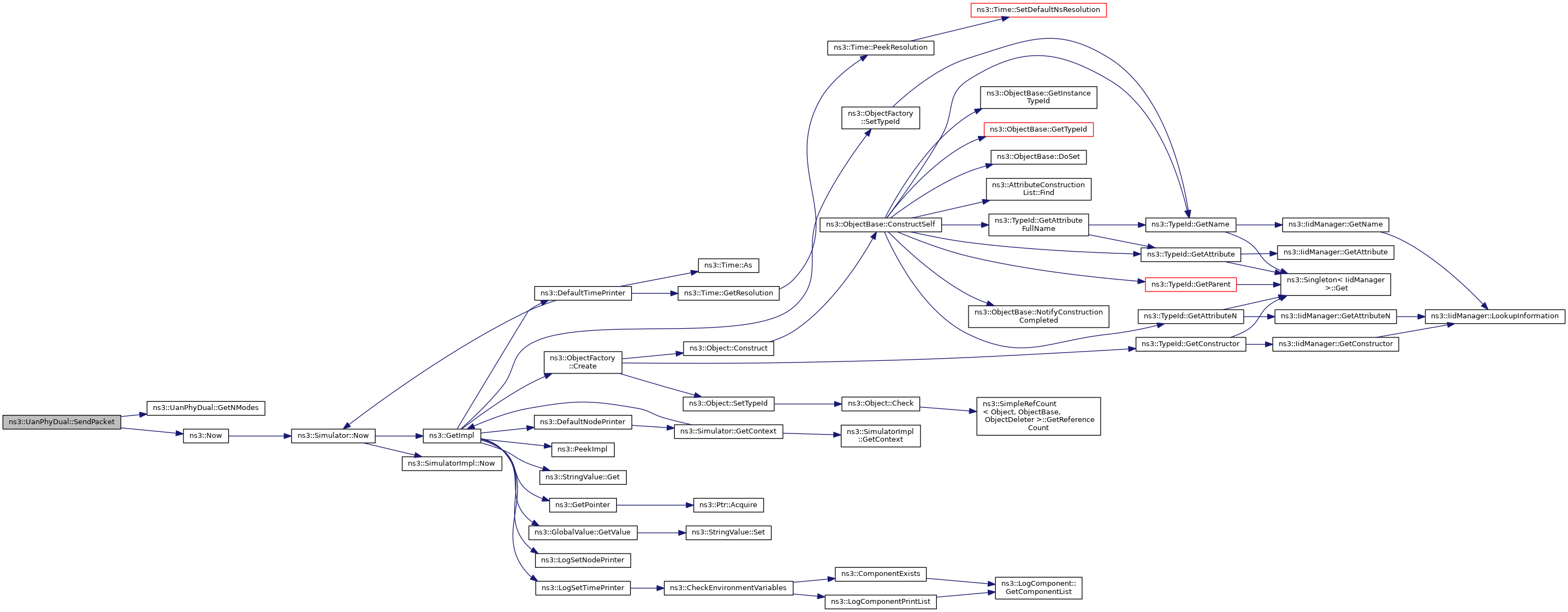

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetModesPhy2()

UanModesList ns3::UanPhyDual::GetModesPhy2 ( void ) const

Get the list of available modes.

Returns: The mode list.

Definition at line 538 of file uan-phy-dual.cc.

References ns3::UanModesListValue::Get(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNModes()

uint32_t ns3::UanPhyDual::GetNModes ( void )

virtual

Get the number of transmission modes supported by this Phy.

Returns: The number modes.

Implements ns3::UanPhy.

Definition at line 511 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

Referenced by GetMode(), and SendPacket().

Here is the caller graph for this function:

◆ GetPacketRx()

Ptr< Packet > ns3::UanPhyDual::GetPacketRx ( void ) const

virtual

Get the packet currently being received.

Warning: Returns non-valid pointer if IsStateRx == false.

Returns: The packet.

Implements ns3::UanPhy.

Definition at line 629 of file uan-phy-dual.cc.

References NS_FATAL_ERROR.

◆ GetPerModelPhy1()

Ptr< UanPhyPer > ns3::UanPhyDual::GetPerModelPhy1 ( void ) const

Get the error probability model.

Returns: The error model.

Definition at line 558 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetPerModelPhy2()

Ptr< UanPhyPer > ns3::UanPhyDual::GetPerModelPhy2 ( void ) const

Get the error probability model.

Returns: The error model.

Definition at line 566 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetPhy1PacketRx()

Ptr< Packet > ns3::UanPhyDual::GetPhy1PacketRx ( void ) const

Get the packet currently being received.

Warning: Returns non-valid pointer if IsStateRx == false.

Returns: The packet.

Definition at line 412 of file uan-phy-dual.cc.

References m_phy1.

◆ GetPhy2PacketRx()

Ptr< Packet > ns3::UanPhyDual::GetPhy2PacketRx ( void ) const

Get the packet currently being received.

Warning: Returns non-valid pointer if IsStateRx == false.

Returns: The packet.

Definition at line 418 of file uan-phy-dual.cc.

References m_phy2.

◆ GetRxThresholdDb()

double ns3::UanPhyDual::GetRxThresholdDb ( void )

virtual

Get the minimum received signal strength required to receive a packet without errors.

Returns: The minimum required signal strength, in dB.

Implements ns3::UanPhy.

Definition at line 360 of file uan-phy-dual.cc.

References m_phy1.

◆ GetSinrModelPhy1()

Ptr< UanPhyCalcSinr > ns3::UanPhyDual::GetSinrModelPhy1 ( void ) const

Get the SINR calculator.

Returns: The SINR calculator.

Definition at line 586 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetSinrModelPhy2()

Ptr< UanPhyCalcSinr > ns3::UanPhyDual::GetSinrModelPhy2 ( void ) const

Get the SINR calculator.

Returns: The SINR calculator.

Definition at line 594 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTransducer()

Ptr< UanTransducer > ns3::UanPhyDual::GetTransducer ( void )

virtual

Get the attached transducer.

Returns: The transducer.

Implements ns3::UanPhy.

Definition at line 505 of file uan-phy-dual.cc.

References m_phy1, and NS_LOG_WARN.

◆ GetTxPowerDb()

double ns3::UanPhyDual::GetTxPowerDb ( void )

virtual

Get the current transmit power, in dB.

Returns: The transmit power.

Implements ns3::UanPhy.

Definition at line 341 of file uan-phy-dual.cc.

References m_phy1, and NS_LOG_WARN.

◆ GetTxPowerDbPhy1()

double ns3::UanPhyDual::GetTxPowerDbPhy1 ( void ) const

Get the current transmit power, in dB.

Returns: The transmit power.

Definition at line 348 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTxPowerDbPhy2()

double ns3::UanPhyDual::GetTxPowerDbPhy2 ( void ) const

Get the current transmit power, in dB.

Returns: The transmit power.

Definition at line 354 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::UanPhyDual::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 159 of file uan-phy-dual.cc.

References GetCcaThresholdPhy1(), GetCcaThresholdPhy2(), ns3::UanPhyGen::GetDefaultModes(), GetModesPhy1(), GetModesPhy2(), GetPerModelPhy1(), GetPerModelPhy2(), GetSinrModelPhy1(), GetSinrModelPhy2(), GetTxPowerDbPhy1(), GetTxPowerDbPhy2(), m_rxErrLogger, m_rxOkLogger, m_txLogger, ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUanModesListAccessor(), ns3::MakeUanModesListChecker(), SetCcaThresholdPhy1(), SetCcaThresholdPhy2(), SetModesPhy1(), SetModesPhy2(), ns3::TypeId::SetParent(), SetPerModelPhy1(), SetPerModelPhy2(), SetSinrModelPhy1(), SetSinrModelPhy2(), SetTxPowerDbPhy1(), and SetTxPowerDbPhy2().

Here is the call graph for this function:

◆ IsPhy1Idle()

bool ns3::UanPhyDual::IsPhy1Idle ( void )

Returns: True if Phy is in IDLE state.

Definition at line 383 of file uan-phy-dual.cc.

References m_phy1.

◆ IsPhy1Rx()

bool ns3::UanPhyDual::IsPhy1Rx ( void )

Returns: True if Phy is currently in receive mode.

Definition at line 394 of file uan-phy-dual.cc.

References m_phy1.

◆ IsPhy1Tx()

bool ns3::UanPhyDual::IsPhy1Tx ( void )

Returns: True if Phy is busy transmitting.

Definition at line 406 of file uan-phy-dual.cc.

References m_phy1.

◆ IsPhy2Idle()

bool ns3::UanPhyDual::IsPhy2Idle ( void )

Returns: True if Phy is in IDLE state.

Definition at line 388 of file uan-phy-dual.cc.

References m_phy2.

◆ IsPhy2Rx()

bool ns3::UanPhyDual::IsPhy2Rx ( void )

Returns: True if Phy is currently in receive mode.

Definition at line 400 of file uan-phy-dual.cc.

References m_phy2.

◆ IsPhy2Tx()

bool ns3::UanPhyDual::IsPhy2Tx ( void )

Returns: True if Phy is busy transmitting.

Definition at line 424 of file uan-phy-dual.cc.

References m_phy2.

◆ IsStateBusy()

bool ns3::UanPhyDual::IsStateBusy ( void )

virtual

Returns: True if Phy is neither IDLE nor SLEEP.

Implements ns3::UanPhy.

Definition at line 439 of file uan-phy-dual.cc.

References IsStateIdle(), and IsStateSleep().

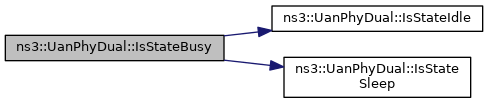

Here is the call graph for this function:

◆ IsStateCcaBusy()

bool ns3::UanPhyDual::IsStateCcaBusy ( void )

virtual

Returns: True if Phy is in CCABUSY state.

Implements ns3::UanPhy.

Definition at line 454 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ IsStateIdle()

bool ns3::UanPhyDual::IsStateIdle ( void )

virtual

Returns: True if Phy is in IDLE state.

Implements ns3::UanPhy.

Definition at line 434 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

Referenced by IsStateBusy().

Here is the caller graph for this function:

◆ IsStateRx()

bool ns3::UanPhyDual::IsStateRx ( void )

virtual

Returns: True if Phy is currently in receive mode.

Implements ns3::UanPhy.

Definition at line 444 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ IsStateSleep()

bool ns3::UanPhyDual::IsStateSleep ( void )

virtual

Returns: True if Phy is in SLEEP state.

Implements ns3::UanPhy.

Definition at line 429 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

Referenced by IsStateBusy().

Here is the caller graph for this function:

◆ IsStateTx()

bool ns3::UanPhyDual::IsStateTx ( void )

virtual

Returns: True if Phy is busy transmitting.

Implements ns3::UanPhy.

Definition at line 449 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ NotifyIntChange()

void ns3::UanPhyDual::NotifyIntChange ( void )

virtual

Called when there has been a change in the amount of interference this node is experiencing from other transmissions.

Implements ns3::UanPhy.

Definition at line 492 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ NotifyTransStartTx()

void ns3::UanPhyDual::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

virtual

Called when a transmission is beginning on the attached transducer.

Parameters

packet	Packet that is beginning transmission.
txPowerDb	Transmit power of packet.
txMode	Transmission mode of packet.

Implements ns3::UanPhy.

Definition at line 487 of file uan-phy-dual.cc.

References NS_UNUSED.

◆ RegisterListener()

void ns3::UanPhyDual::RegisterListener ( UanPhyListener * listener )

virtual

Register a UanPhyListener to be notified of common UanPhy events.

Parameters

listener New listener to register.

Note: You may receive duplicate messages as underneath there are two generic phys here. Each will notify of state changes independently.

Implements ns3::UanPhy.

Definition at line 269 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ RxErrFromSubPhy()

void ns3::UanPhyDual::RxErrFromSubPhy	(	Ptr< Packet >	pkt,
		double	sinr
	)

private

Handle callback and logger for packets received with error.

Parameters

pkt	The packet.
sinr	The SINR.

Definition at line 622 of file uan-phy-dual.cc.

References m_phy1, m_recErrCb, and m_rxErrLogger.

◆ RxOkFromSubPhy()

void ns3::UanPhyDual::RxOkFromSubPhy	(	Ptr< Packet >	pkt,
		double	sinr,
		UanTxMode	mode
	)

private

Handle callback and logger for packets received without error.

Parameters

pkt	The packet.
sinr	The SINR.
mode	The channel mode.

Definition at line 614 of file uan-phy-dual.cc.

References m_recOkCb, m_rxOkLogger, ns3::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Here is the call graph for this function:

◆ SendPacket()

void ns3::UanPhyDual::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

virtual

Send a packet using a specific transmission mode.

Parameters

pkt	Packet to transmit.
modeNum	Index of mode in SupportedModes list to use for transmission.

Implements ns3::UanPhy.

Definition at line 252 of file uan-phy-dual.cc.

References GetNModes(), m_phy1, m_phy2, m_txLogger, ns3::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Here is the call graph for this function:

◆ SetCcaThresholdDb()

void ns3::UanPhyDual::SetCcaThresholdDb ( double thresh )

virtual

Set the threshold for detecting channel busy.

Parameters

thresh Signal power threshold at receiver.

Implements ns3::UanPhy.

Definition at line 322 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetCcaThresholdPhy1()

void ns3::UanPhyDual::SetCcaThresholdPhy1 ( double thresh )

Set the threshold for detecting channel busy.

Parameters

thresh Signal power threshold at receiver.

Definition at line 329 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetCcaThresholdPhy2()

void ns3::UanPhyDual::SetCcaThresholdPhy2 ( double thresh )

Set the threshold for detecting channel busy.

Parameters

thresh Signal power threshold at receiver.

Definition at line 334 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetChannel()

void ns3::UanPhyDual::SetChannel ( Ptr< UanChannel > channel )

virtual

Attach to a channel.

Parameters

channel The channel to attach to.

Implements ns3::UanPhy.

Definition at line 469 of file uan-phy-dual.cc.

References third::channel, m_phy1, and m_phy2.

◆ SetDevice()

void ns3::UanPhyDual::SetDevice ( Ptr< UanNetDevice > device )

virtual

Set the device hosting this Phy.

Parameters

device The device.

Implements ns3::UanPhy.

Definition at line 475 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetEnergyModelCallback()

void ns3::UanPhyDual::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

virtual

Set the DeviceEnergyModel callback for UanPhy device.

Parameters

callback The DeviceEnergyModel change state callback.

Implements ns3::UanPhy.

Definition at line 234 of file uan-phy-dual.cc.

References NS_LOG_DEBUG.

◆ SetMac()

void ns3::UanPhyDual::SetMac ( Ptr< UanMac > mac )

virtual

Set the MAC forwarding messages to this Phy.

Parameters

mac The MAC.

Implements ns3::UanPhy.

Definition at line 481 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and third::mac.

◆ SetModesPhy1()

void ns3::UanPhyDual::SetModesPhy1 ( UanModesList modes )

Set the available modes.

Parameters

modes List of modes.

Definition at line 546 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetModesPhy2()

void ns3::UanPhyDual::SetModesPhy2 ( UanModesList modes )

Set the available modes.

Parameters

modes List of modes.

Definition at line 552 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetPerModelPhy1()

void ns3::UanPhyDual::SetPerModelPhy1 ( Ptr< UanPhyPer > per )

Set the error probability model.

Parameters

per	The error model.

Definition at line 574 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetPerModelPhy2()

void ns3::UanPhyDual::SetPerModelPhy2 ( Ptr< UanPhyPer > per )

Set the error probability model.

Parameters

per	The error model.

Definition at line 580 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetReceiveErrorCallback()

void ns3::UanPhyDual::SetReceiveErrorCallback ( RxErrCallback cb )

virtual

Set the callback to be used when a packet is received with errors.

Parameters

cb	The callback.

Implements ns3::UanPhy.

Definition at line 290 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetReceiveOkCallback()

void ns3::UanPhyDual::SetReceiveOkCallback ( RxOkCallback cb )

virtual

Set the callback to be used when a packet is received without error.

Parameters

cb	The callback.

Implements ns3::UanPhy.

Definition at line 283 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetRxThresholdDb()

void ns3::UanPhyDual::SetRxThresholdDb ( double thresh )

virtual

Set the minimum SINR threshold to receive a packet without errors.

Deprecated:: See UanPhyPer.

Parameters

thresh Threshold SINR for proper reception in dB re 1 uPa.

Implements ns3::UanPhy.

Definition at line 316 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetSinrModelPhy1()

void ns3::UanPhyDual::SetSinrModelPhy1 ( Ptr< UanPhyCalcSinr > calcSinr )

Set the SINR calculator.

Parameters

calcSinr The SINR calculator.

Definition at line 602 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSinrModelPhy2()

void ns3::UanPhyDual::SetSinrModelPhy2 ( Ptr< UanPhyCalcSinr > calcSinr )

Set the SINR calculator.

Parameters

calcSinr The SINR calculator.

Definition at line 608 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSleepMode()

virtual void ns3::UanPhyDual::SetSleepMode ( bool sleep )

inlinevirtual

Set the Phy SLEEP mode.

Parameters

sleep SLEEP on or off.

Todo:: This method has to be implemented

Implements ns3::UanPhy.

Definition at line 138 of file uan-phy-dual.h.

References NS_UNUSED.

◆ SetTransducer()

void ns3::UanPhyDual::SetTransducer ( Ptr< UanTransducer > trans )

virtual

Attach a transducer to this Phy.

Parameters

trans The transducer.

Implements ns3::UanPhy.

Definition at line 499 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetTxPowerDb()

void ns3::UanPhyDual::SetTxPowerDb ( double txpwr )

virtual

Set the transmit power.

Parameters

txpwr Final output transmission power, in dB.

Implements ns3::UanPhy.

Definition at line 298 of file uan-phy-dual.cc.

References m_phy1, and m_phy2.

◆ SetTxPowerDbPhy1()

void ns3::UanPhyDual::SetTxPowerDbPhy1 ( double txpwr )

Set the transmit power.

Parameters

txpwr Final output transmission power, in dB.

Definition at line 305 of file uan-phy-dual.cc.

References m_phy1.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetTxPowerDbPhy2()

void ns3::UanPhyDual::SetTxPowerDbPhy2 ( double txpwr )

Set the transmit power.

Parameters

txpwr Final output transmission power, in dB.

Definition at line 310 of file uan-phy-dual.cc.

References m_phy2.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ StartRxPacket()

void ns3::UanPhyDual::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

virtual

Packet arriving from channel: i.e.

leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving.
rxPowerDb	Signal power of incoming packet in dB re 1 uPa.
txMode	Transmission mode defining modulation of incoming packet.
pdp	Power delay profile of incoming packet.

Implements ns3::UanPhy.

Definition at line 276 of file uan-phy-dual.cc.

References NS_UNUSED.

Member Data Documentation

◆ m_phy1

Ptr<UanPhy> ns3::UanPhyDual::m_phy1

private

◆ m_phy2

Ptr<UanPhy> ns3::UanPhyDual::m_phy2

private

Second Phy layer.

Definition at line 245 of file uan-phy-dual.h.

Referenced by Clear(), GetCcaThresholdPhy2(), GetMode(), GetModesPhy2(), GetNModes(), GetPerModelPhy2(), GetPhy2PacketRx(), GetSinrModelPhy2(), GetTxPowerDbPhy2(), IsPhy2Idle(), IsPhy2Rx(), IsPhy2Tx(), IsStateCcaBusy(), IsStateIdle(), IsStateRx(), IsStateSleep(), IsStateTx(), NotifyIntChange(), RegisterListener(), SendPacket(), SetCcaThresholdDb(), SetCcaThresholdPhy2(), SetChannel(), SetDevice(), SetMac(), SetModesPhy2(), SetPerModelPhy2(), SetReceiveErrorCallback(), SetReceiveOkCallback(), SetRxThresholdDb(), SetSinrModelPhy2(), SetTransducer(), SetTxPowerDb(), SetTxPowerDbPhy2(), and UanPhyDual().

◆ m_recErrCb

RxErrCallback ns3::UanPhyDual::m_recErrCb

private

Callback when packet received with errors.

Definition at line 256 of file uan-phy-dual.h.

Referenced by RxErrFromSubPhy(), and UanPhyDual().

◆ m_recOkCb

RxOkCallback ns3::UanPhyDual::m_recOkCb

private

Callback when packet received without errors.

Definition at line 254 of file uan-phy-dual.h.

Referenced by RxOkFromSubPhy(), and UanPhyDual().

◆ m_rxErrLogger

ns3::TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_rxErrLogger

private

A packet was received unsuccessfully.

Definition at line 250 of file uan-phy-dual.h.

Referenced by GetTypeId(), and RxErrFromSubPhy().

◆ m_rxOkLogger

ns3::TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_rxOkLogger

private

A packet was received successfully.

Definition at line 248 of file uan-phy-dual.h.

Referenced by GetTypeId(), and RxOkFromSubPhy().

◆ m_txLogger

ns3::TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_txLogger

private

A packet was sent from this Phy.

Definition at line 252 of file uan-phy-dual.h.

Referenced by GetTypeId(), and SendPacket().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy-dual.h
src/uan/model/uan-phy-dual.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

TraceSources defined in parent class ns3::UanPhy

Constructor & Destructor Documentation

◆ UanPhyDual()

◆ ~UanPhyDual()

Member Function Documentation

◆ AssignStreams()

◆ Clear()

◆ DoDispose()

◆ EnergyDepletionHandler()

◆ EnergyRechargeHandler()

◆ GetCcaThresholdDb()

◆ GetCcaThresholdPhy1()

◆ GetCcaThresholdPhy2()

◆ GetChannel()

◆ GetDevice()

◆ GetMode()

◆ GetModesPhy1()

◆ GetModesPhy2()

◆ GetNModes()

◆ GetPacketRx()

◆ GetPerModelPhy1()

◆ GetPerModelPhy2()

◆ GetPhy1PacketRx()

◆ GetPhy2PacketRx()

◆ GetRxThresholdDb()

◆ GetSinrModelPhy1()

◆ GetSinrModelPhy2()

◆ GetTransducer()

◆ GetTxPowerDb()

◆ GetTxPowerDbPhy1()

◆ GetTxPowerDbPhy2()

◆ GetTypeId()

◆ IsPhy1Idle()

◆ IsPhy1Rx()

◆ IsPhy1Tx()

◆ IsPhy2Idle()

◆ IsPhy2Rx()

◆ IsPhy2Tx()

◆ IsStateBusy()

◆ IsStateCcaBusy()

◆ IsStateIdle()

◆ IsStateRx()

◆ IsStateSleep()

◆ IsStateTx()

◆ NotifyIntChange()

◆ NotifyTransStartTx()

◆ RegisterListener()

◆ RxErrFromSubPhy()

◆ RxOkFromSubPhy()

◆ SendPacket()

◆ SetCcaThresholdDb()

◆ SetCcaThresholdPhy1()

◆ SetCcaThresholdPhy2()

◆ SetChannel()

◆ SetDevice()

◆ SetEnergyModelCallback()

◆ SetMac()

◆ SetModesPhy1()

◆ SetModesPhy2()

◆ SetPerModelPhy1()

◆ SetPerModelPhy2()

◆ SetReceiveErrorCallback()

◆ SetReceiveOkCallback()

◆ SetRxThresholdDb()

◆ SetSinrModelPhy1()

◆ SetSinrModelPhy2()

◆ SetSleepMode()

◆ SetTransducer()

◆ SetTxPowerDb()

◆ SetTxPowerDbPhy1()
