ns3::WifiModeFactory Class Reference

create WifiMode class instances and keep track of them. More...

#include "wifi-mode.h"

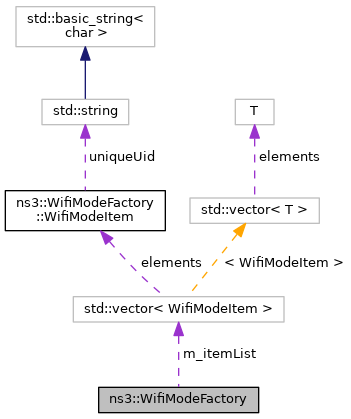

+ Collaboration diagram for ns3::WifiModeFactory:

Classes

struct  WifiModeItem
 This is the data associated to a unique WifiMode. More...


Static Public Member Functions

static WifiMode CreateWifiMcs (std::string uniqueName, uint8_t mcsValue, WifiModulationClass modClass)

static WifiMode CreateWifiMode (std::string uniqueName, WifiModulationClass modClass, bool isMandatory, WifiCodeRate codingRate, uint16_t constellationSize)


Private Types

typedef std::vector< WifiModeItemWifiModeItemList
 typedef for a vector of WifiModeItem. More...


Private Member Functions

 WifiModeFactory ()

uint32_t AllocateUid (std::string uniqueUid)
 Allocate a WifiModeItem from a given uniqueUid. More...

WifiModeItemGet (uint32_t uid)
 Return a WifiModeItem at the given UID index. More...

WifiMode Search (std::string name) const
 Search and return WifiMode from a given name. More...


Static Private Member Functions

static WifiModeFactoryGetFactory ()
 Return a WifiModeFactory. More...


Private Attributes

WifiModeItemList m_itemList
 item list More...


Friends

std::istream & operator>> (std::istream &is, WifiMode &mode)
 Serialize WifiMode from istream (human-readable). More...

class WifiMode
 allow WifiMode class access More...


Detailed Description

create WifiMode class instances and keep track of them.

This factory ensures that each WifiMode created has a unique name and assigns to each of them a unique integer.

Definition at line 295 of file wifi-mode.h.

Member Typedef Documentation

◆ WifiModeItemList

typedef for a vector of WifiModeItem.

Definition at line 391 of file wifi-mode.h.

Constructor & Destructor Documentation

◆ WifiModeFactory()

ns3::WifiModeFactory::WifiModeFactory ( )
private

Definition at line 652 of file wifi-mode.cc.

Member Function Documentation

◆ AllocateUid()

uint32_t ns3::WifiModeFactory::AllocateUid ( std::string  uniqueUid)
private

Allocate a WifiModeItem from a given uniqueUid.

Parameters
uniqueUidthe unique UID
Returns
the allocated UID index

Definition at line 752 of file wifi-mode.cc.

References m_itemList.

Referenced by CreateWifiMcs(), CreateWifiMode(), and GetFactory().

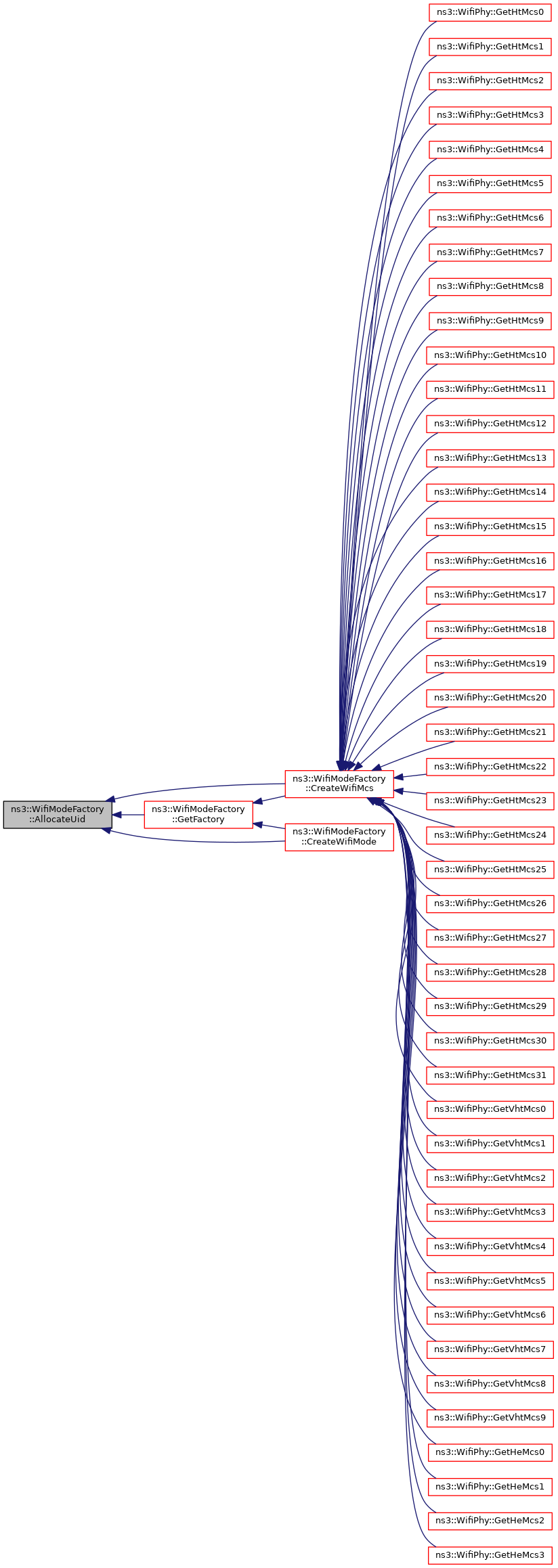

+ Here is the caller graph for this function:

◆ CreateWifiMcs()

WifiMode ns3::WifiModeFactory::CreateWifiMcs ( std::string  uniqueName,
uint8_t  mcsValue,
WifiModulationClass  modClass
)
static
Parameters
uniqueNamethe name of the associated WifiMode. This name must be unique across all instances.
mcsValuethe MCS value
modClassthe class of modulation
Returns
WifiMode

Create a HT WifiMode.

Definition at line 695 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, Get(), GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_HT, and WifiMode.

Referenced by ns3::WifiPhy::GetHeMcs0(), ns3::WifiPhy::GetHeMcs1(), ns3::WifiPhy::GetHeMcs10(), ns3::WifiPhy::GetHeMcs11(), ns3::WifiPhy::GetHeMcs2(), ns3::WifiPhy::GetHeMcs3(), ns3::WifiPhy::GetHeMcs4(), ns3::WifiPhy::GetHeMcs5(), ns3::WifiPhy::GetHeMcs6(), ns3::WifiPhy::GetHeMcs7(), ns3::WifiPhy::GetHeMcs8(), ns3::WifiPhy::GetHeMcs9(), ns3::WifiPhy::GetHtMcs0(), ns3::WifiPhy::GetHtMcs1(), ns3::WifiPhy::GetHtMcs10(), ns3::WifiPhy::GetHtMcs11(), ns3::WifiPhy::GetHtMcs12(), ns3::WifiPhy::GetHtMcs13(), ns3::WifiPhy::GetHtMcs14(), ns3::WifiPhy::GetHtMcs15(), ns3::WifiPhy::GetHtMcs16(), ns3::WifiPhy::GetHtMcs17(), ns3::WifiPhy::GetHtMcs18(), ns3::WifiPhy::GetHtMcs19(), ns3::WifiPhy::GetHtMcs2(), ns3::WifiPhy::GetHtMcs20(), ns3::WifiPhy::GetHtMcs21(), ns3::WifiPhy::GetHtMcs22(), ns3::WifiPhy::GetHtMcs23(), ns3::WifiPhy::GetHtMcs24(), ns3::WifiPhy::GetHtMcs25(), ns3::WifiPhy::GetHtMcs26(), ns3::WifiPhy::GetHtMcs27(), ns3::WifiPhy::GetHtMcs28(), ns3::WifiPhy::GetHtMcs29(), ns3::WifiPhy::GetHtMcs3(), ns3::WifiPhy::GetHtMcs30(), ns3::WifiPhy::GetHtMcs31(), ns3::WifiPhy::GetHtMcs4(), ns3::WifiPhy::GetHtMcs5(), ns3::WifiPhy::GetHtMcs6(), ns3::WifiPhy::GetHtMcs7(), ns3::WifiPhy::GetHtMcs8(), ns3::WifiPhy::GetHtMcs9(), ns3::WifiPhy::GetVhtMcs0(), ns3::WifiPhy::GetVhtMcs1(), ns3::WifiPhy::GetVhtMcs2(), ns3::WifiPhy::GetVhtMcs3(), ns3::WifiPhy::GetVhtMcs4(), ns3::WifiPhy::GetVhtMcs5(), ns3::WifiPhy::GetVhtMcs6(), ns3::WifiPhy::GetVhtMcs7(), ns3::WifiPhy::GetVhtMcs8(), and ns3::WifiPhy::GetVhtMcs9().

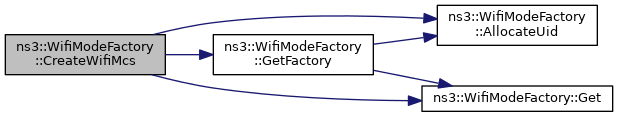

+ Here is the call graph for this function:

◆ CreateWifiMode()

WifiMode ns3::WifiModeFactory::CreateWifiMode ( std::string  uniqueName,
WifiModulationClass  modClass,
bool  isMandatory,
WifiCodeRate  codingRate,
uint16_t  constellationSize
)
static
Parameters
uniqueNamethe name of the associated WifiMode. This name must be unique across all instances.
modClassthe class of modulation
isMandatorytrue if this WifiMode is mandatory, false otherwise.
codingRateif convolutional coding is used for this rate then this parameter specifies the convolutional coding rate used. If there is no explicit convolutional coding step (e.g., for DSSS rates) then the caller should set this parameter to WIFI_CODE_RATE_UNCODED.
constellationSizethe order of the constellation used.
Returns
WifiMode

Create a non-HT WifiMode.

Definition at line 657 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, Get(), GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, NS_FATAL_ERROR, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_UNKNOWN, and WifiMode.

Referenced by ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate18Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate36Mbps(), ns3::WifiPhy::GetErpOfdmRate48Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetErpOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), and ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz().

+ Here is the call graph for this function:

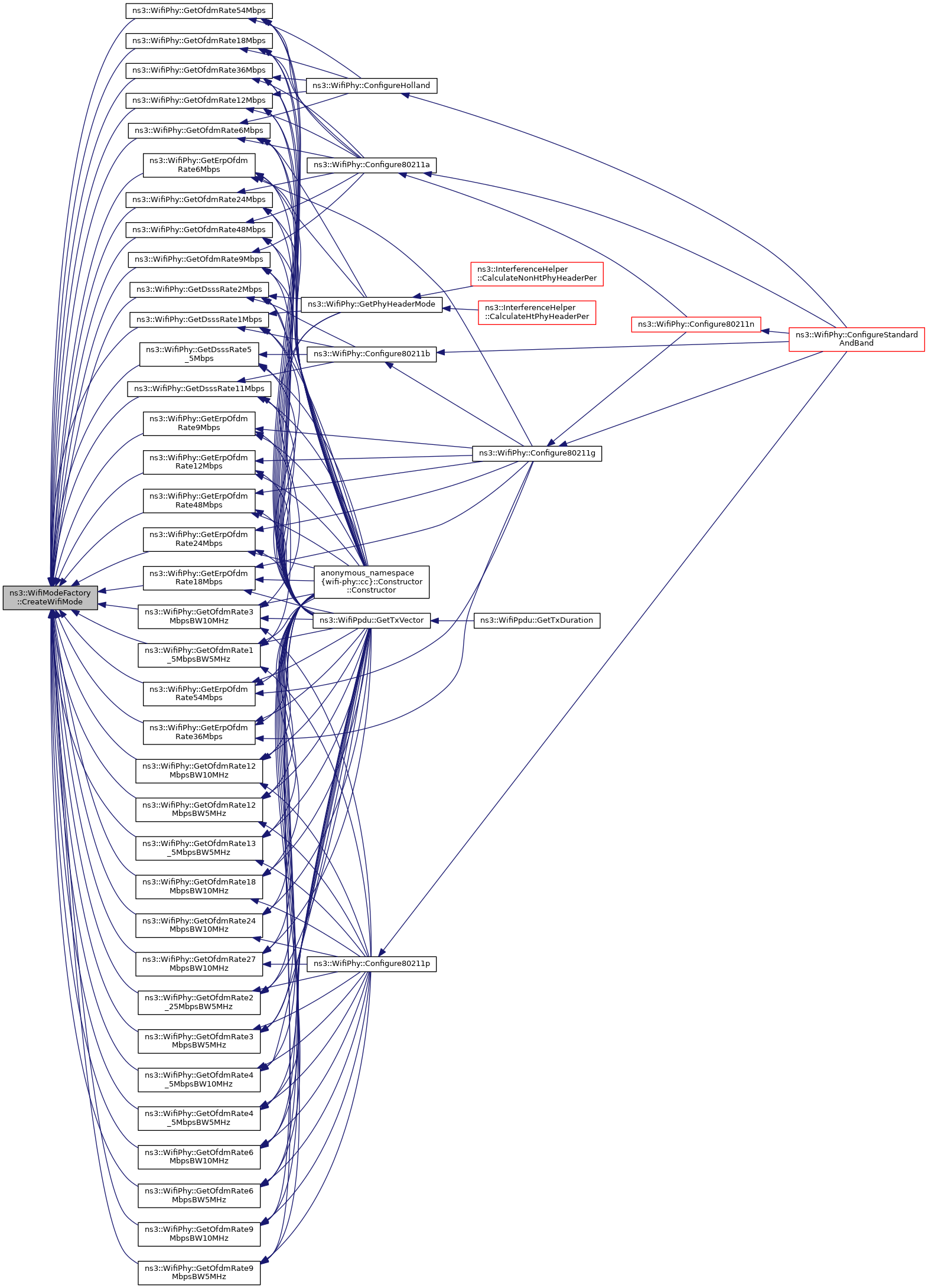

+ Here is the caller graph for this function:

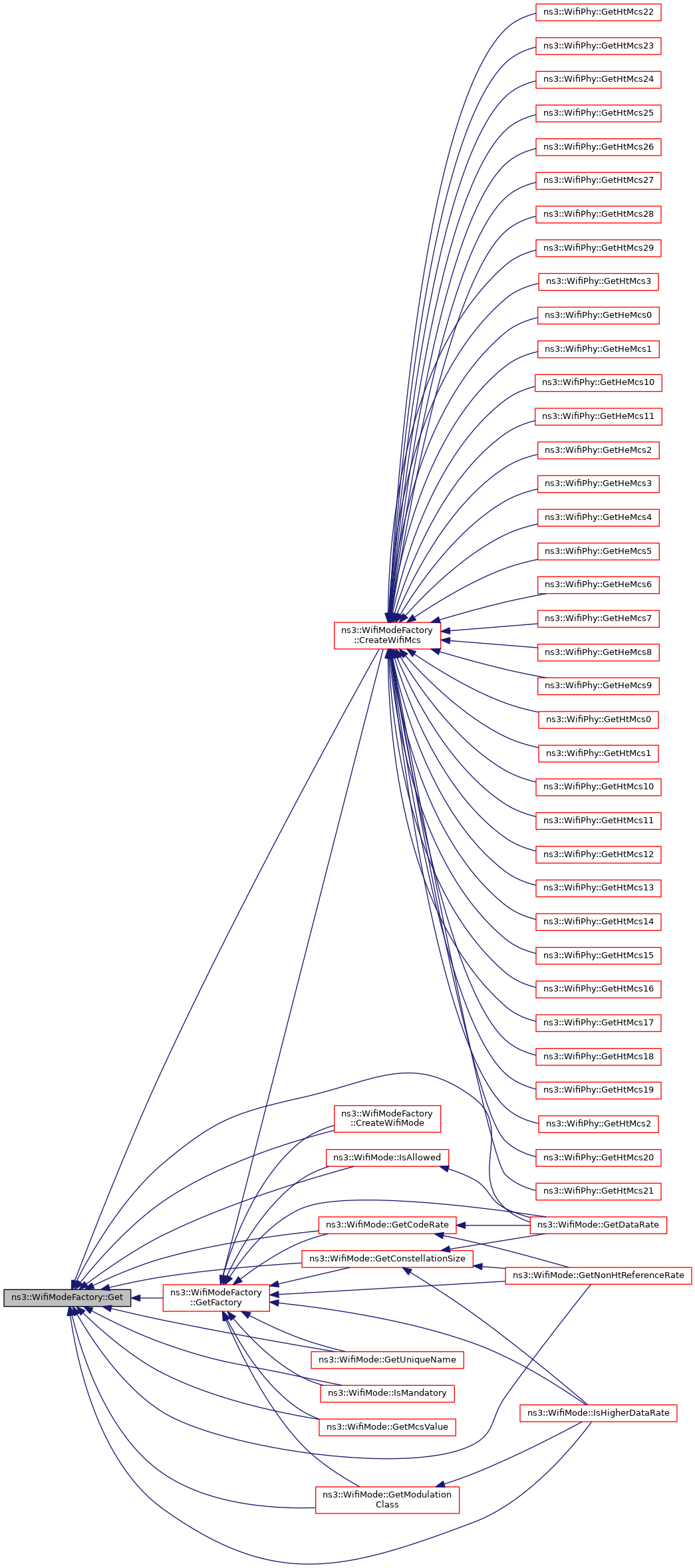

◆ Get()

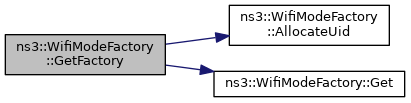

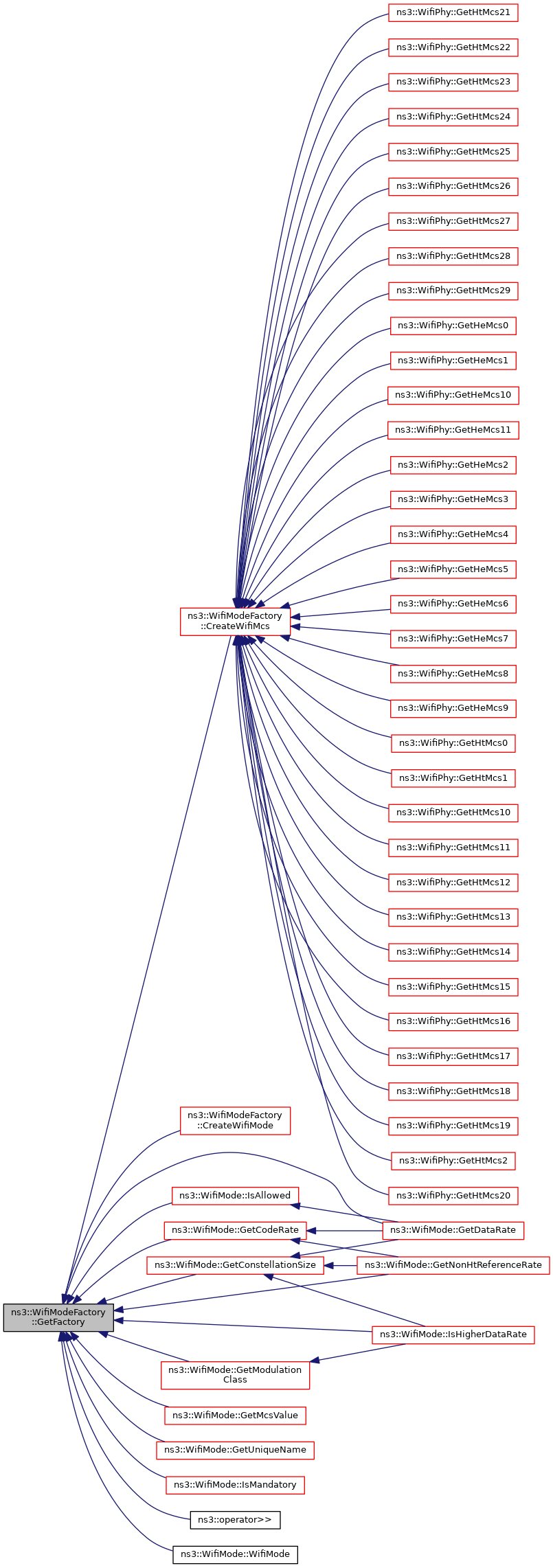

◆ GetFactory()

◆ Search()

WifiMode ns3::WifiModeFactory::Search ( std::string  name) const
private

Search and return WifiMode from a given name.

Parameters
namehuman-readable WifiMode
Returns
the WifiMode

Definition at line 717 of file wifi-mode.cc.

References m_itemList, NS_FATAL_ERROR, NS_LOG_UNCOND, and WifiMode.

Referenced by ns3::operator>>(), and ns3::WifiMode::WifiMode().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator>>

std::istream& operator>> ( std::istream &  is,
WifiMode mode
)
friend

Serialize WifiMode from istream (human-readable).

Parameters
isthe input stream
modethe WifiMode
Returns
std::istream

Definition at line 45 of file wifi-mode.cc.

◆ WifiMode

friend class WifiMode
friend

allow WifiMode class access

Definition at line 337 of file wifi-mode.h.

Referenced by CreateWifiMcs(), CreateWifiMode(), and Search().

Member Data Documentation

◆ m_itemList

WifiModeItemList ns3::WifiModeFactory::m_itemList
private

item list

Definition at line 392 of file wifi-mode.h.

Referenced by AllocateUid(), Get(), and Search().


The documentation for this class was generated from the following files:
