ns3::WifiSpectrumPhyInterface Class Reference

This class is an adaptor between class SpectrumWifiPhy (which inherits from WifiPhy) and class SpectrumChannel (which expects objects derived from class SpectrumPhy to be connected to it). More...

#include "wifi-spectrum-phy-interface.h"

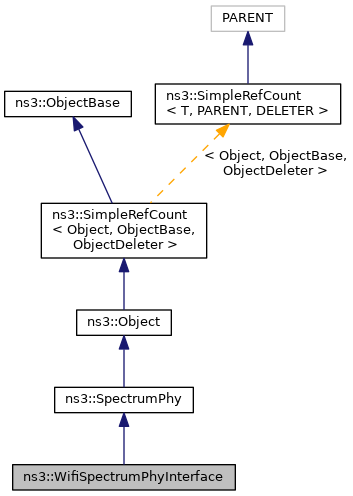

+ Inheritance diagram for ns3::WifiSpectrumPhyInterface:

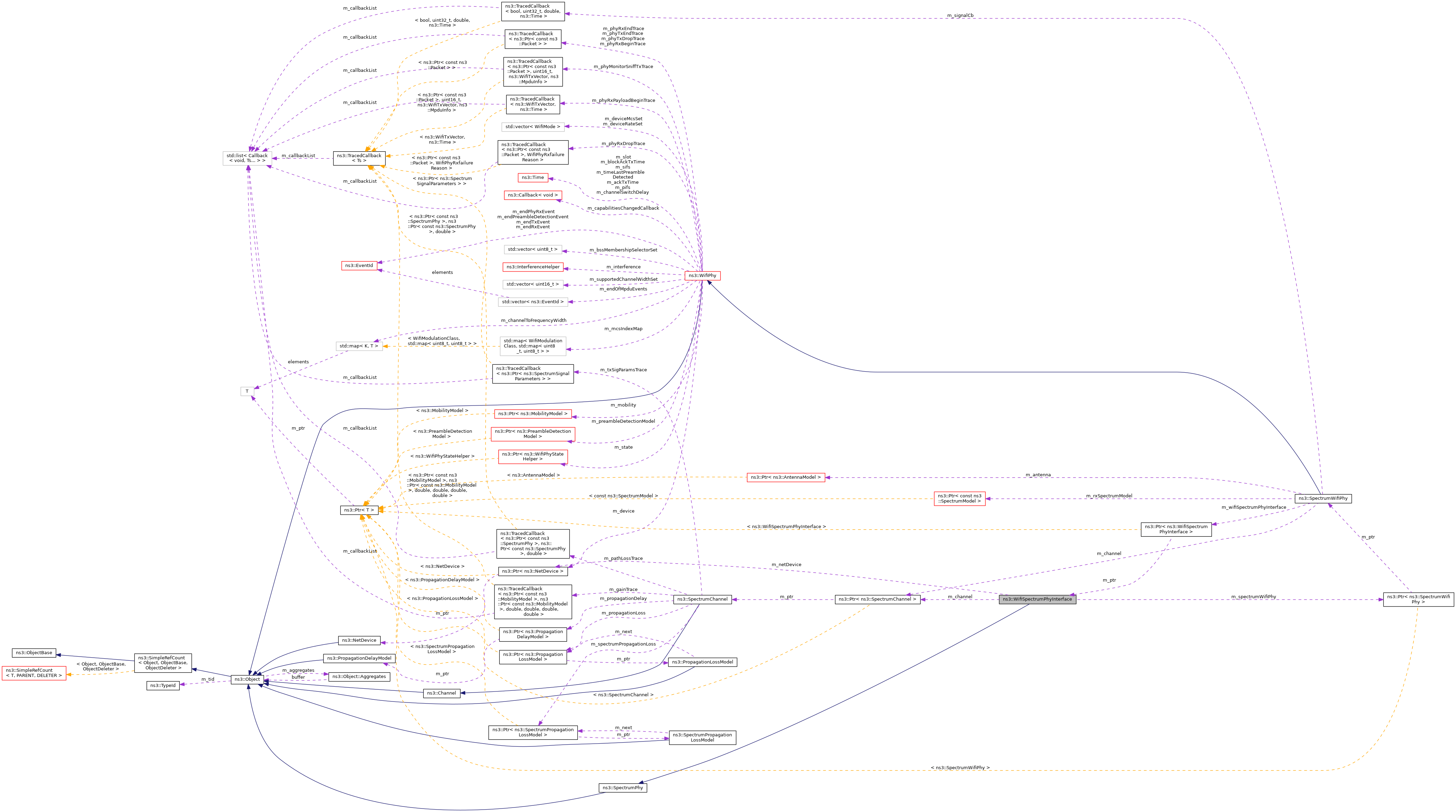

+ Collaboration diagram for ns3::WifiSpectrumPhyInterface:

Public Member Functions

 WifiSpectrumPhyInterface ()

Ptr< NetDeviceGetDevice () const
 Get the associated NetDevice instance. More...

Ptr< MobilityModelGetMobility ()
 Get the associated MobilityModel instance. More...

Ptr< AntennaModelGetRxAntenna ()
 Get the AntennaModel used by the NetDevice for reception. More...

Ptr< const SpectrumModelGetRxSpectrumModel () const

void SetChannel (const Ptr< SpectrumChannel > c)
 Set the channel attached to this device. More...

void SetDevice (const Ptr< NetDevice > d)
 Set the associated NetDevice instance. More...

void SetMobility (const Ptr< MobilityModel > m)
 Set the mobility model associated with this device. More...

void SetSpectrumWifiPhy (const Ptr< SpectrumWifiPhy > phy)
 Connect SpectrumWifiPhy object. More...

void StartRx (Ptr< SpectrumSignalParameters > params)
 Notify the SpectrumPhy instance of an incoming signal. More...

- Public Member Functions inherited from ns3::SpectrumPhy
 SpectrumPhy ()

virtual ~SpectrumPhy ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...


Private Attributes

Ptr< SpectrumChannelm_channel
 spectrum channel More...

Ptr< NetDevicem_netDevice
 the device More...

Ptr< SpectrumWifiPhym_spectrumWifiPhy
 spectrum PHY More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class is an adaptor between class SpectrumWifiPhy (which inherits from WifiPhy) and class SpectrumChannel (which expects objects derived from class SpectrumPhy to be connected to it).


Introspection did not find any typical Config paths.

The adaptor is used only in the receive direction; in the transmit direction, the class SpectrumWifiPhy constructs signal parameters and directly accesses the SpectrumChannel


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 41 of file wifi-spectrum-phy-interface.h.

Constructor & Destructor Documentation

◆ WifiSpectrumPhyInterface()

ns3::WifiSpectrumPhyInterface::WifiSpectrumPhyInterface ( )

Definition at line 43 of file wifi-spectrum-phy-interface.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::WifiSpectrumPhyInterface::DoDispose ( void  )
privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 49 of file wifi-spectrum-phy-interface.cc.

References m_channel, m_netDevice, m_spectrumWifiPhy, and NS_LOG_FUNCTION.

◆ GetDevice()

Ptr< NetDevice > ns3::WifiSpectrumPhyInterface::GetDevice ( ) const
virtual

Get the associated NetDevice instance.

Returns
a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 63 of file wifi-spectrum-phy-interface.cc.

References m_netDevice.

◆ GetMobility()

Ptr< MobilityModel > ns3::WifiSpectrumPhyInterface::GetMobility ( )
virtual

Get the associated MobilityModel instance.

Returns
a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 69 of file wifi-spectrum-phy-interface.cc.

References ns3::WifiPhy::GetMobility(), and m_spectrumWifiPhy.

+ Here is the call graph for this function:

◆ GetRxAntenna()

Ptr< AntennaModel > ns3::WifiSpectrumPhyInterface::GetRxAntenna ( )
virtual

Get the AntennaModel used by the NetDevice for reception.

Returns
a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 100 of file wifi-spectrum-phy-interface.cc.

References ns3::SpectrumWifiPhy::GetRxAntenna(), m_spectrumWifiPhy, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetRxSpectrumModel()

Ptr< const SpectrumModel > ns3::WifiSpectrumPhyInterface::GetRxSpectrumModel ( ) const
virtual
Returns
returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 94 of file wifi-spectrum-phy-interface.cc.

References ns3::SpectrumWifiPhy::GetRxSpectrumModel(), and m_spectrumWifiPhy.

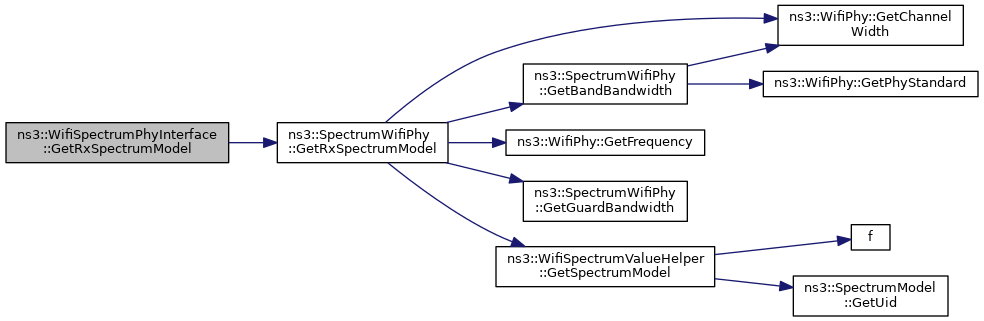

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::WifiSpectrumPhyInterface::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 35 of file wifi-spectrum-phy-interface.cc.

References ns3::TypeId::SetParent().

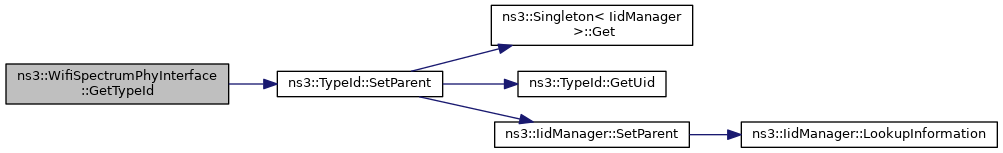

+ Here is the call graph for this function:

◆ SetChannel()

void ns3::WifiSpectrumPhyInterface::SetChannel ( const Ptr< SpectrumChannel c)
virtual

Set the channel attached to this device.

Parameters
cthe channel

Implements ns3::SpectrumPhy.

Definition at line 87 of file wifi-spectrum-phy-interface.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ SetDevice()

void ns3::WifiSpectrumPhyInterface::SetDevice ( const Ptr< NetDevice d)
virtual

Set the associated NetDevice instance.

Parameters
dthe NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 75 of file wifi-spectrum-phy-interface.cc.

References m_netDevice.

◆ SetMobility()

void ns3::WifiSpectrumPhyInterface::SetMobility ( const Ptr< MobilityModel m)
virtual

Set the mobility model associated with this device.

Parameters
mthe mobility model

Implements ns3::SpectrumPhy.

Definition at line 81 of file wifi-spectrum-phy-interface.cc.

References m_spectrumWifiPhy, and ns3::WifiPhy::SetMobility().

+ Here is the call graph for this function:

◆ SetSpectrumWifiPhy()

void ns3::WifiSpectrumPhyInterface::SetSpectrumWifiPhy ( const Ptr< SpectrumWifiPhy phy)

Connect SpectrumWifiPhy object.

Parameters
phySpectrumWifiPhy object to be connected to this object

Definition at line 57 of file wifi-spectrum-phy-interface.cc.

References m_spectrumWifiPhy.

◆ StartRx()

void ns3::WifiSpectrumPhyInterface::StartRx ( Ptr< SpectrumSignalParameters params)
virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters
paramsthe parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 107 of file wifi-spectrum-phy-interface.cc.

References m_spectrumWifiPhy, and ns3::SpectrumWifiPhy::StartRx().

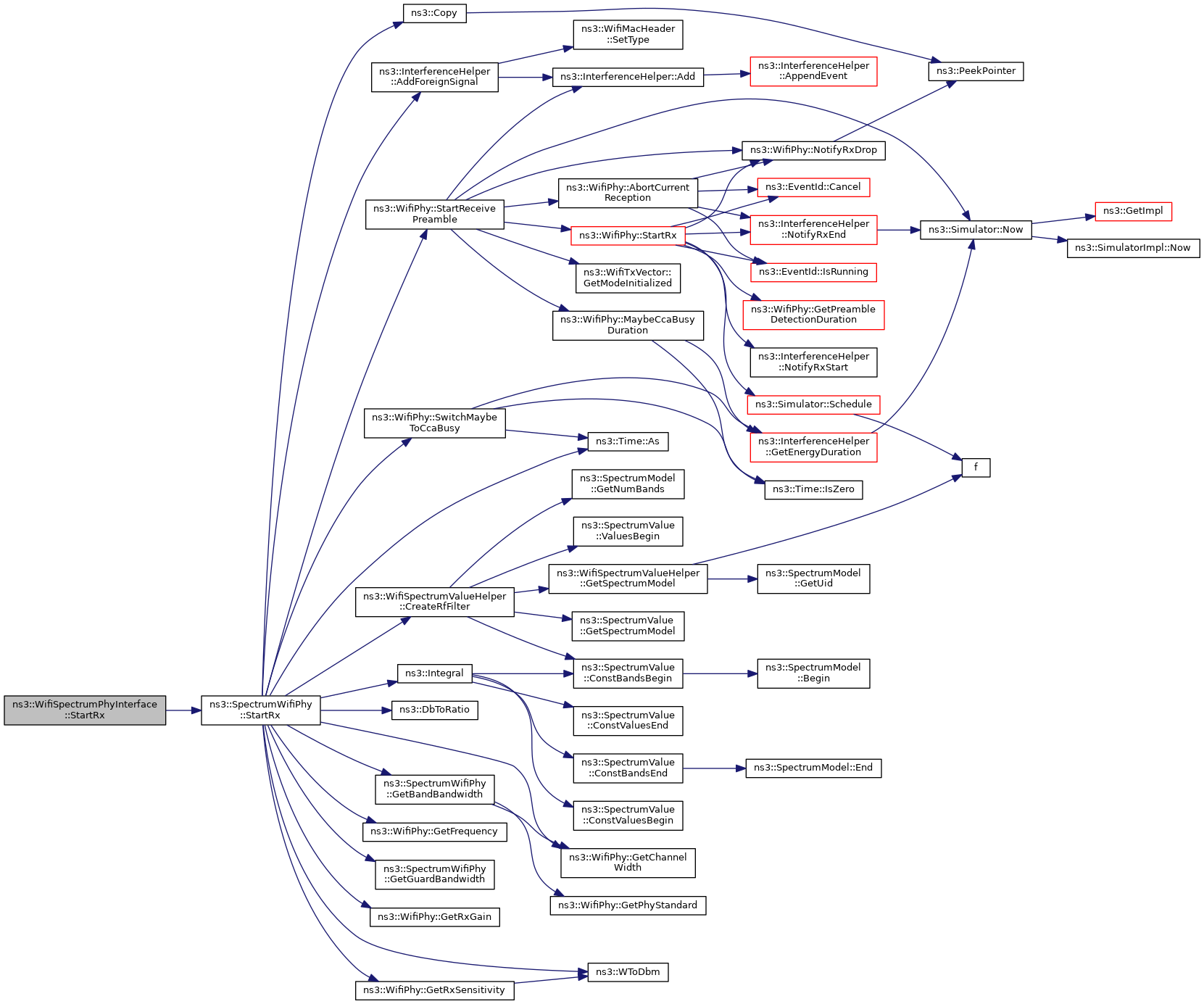

+ Here is the call graph for this function:

Member Data Documentation

◆ m_channel

Ptr<SpectrumChannel> ns3::WifiSpectrumPhyInterface::m_channel
private

spectrum channel

Definition at line 71 of file wifi-spectrum-phy-interface.h.

Referenced by DoDispose(), and SetChannel().

◆ m_netDevice

Ptr<NetDevice> ns3::WifiSpectrumPhyInterface::m_netDevice
private

the device

Definition at line 70 of file wifi-spectrum-phy-interface.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

◆ m_spectrumWifiPhy

Ptr<SpectrumWifiPhy> ns3::WifiSpectrumPhyInterface::m_spectrumWifiPhy
private
