ns3::XmlConfigLoad Class Reference

A class to enable loading of configuration store from an XML file. More...

#include "xml-config.h"

+ Inheritance diagram for ns3::XmlConfigLoad:
+ Collaboration diagram for ns3::XmlConfigLoad:

Public Member Functions

 XmlConfigLoad ()

virtual ~XmlConfigLoad ()

virtual void Attributes (void)
 Load or save the attributes values. More...

virtual void Default (void)
 Load or save the default values. More...

virtual void Global (void)
 Load or save the global values. More...

virtual void SetFilename (std::string filename)
 Set the file name. More...

- Public Member Functions inherited from ns3::FileConfig
virtual ~FileConfig ()


Private Attributes

std::string m_filename
 the file name More...


Detailed Description

A class to enable loading of configuration store from an XML file.

Definition at line 54 of file xml-config.h.

Constructor & Destructor Documentation

◆ XmlConfigLoad()

ns3::XmlConfigLoad::XmlConfigLoad ( )

Definition at line 223 of file xml-config.cc.

References NS_LOG_FUNCTION.

◆ ~XmlConfigLoad()

ns3::XmlConfigLoad::~XmlConfigLoad ( )
virtual

Definition at line 227 of file xml-config.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Attributes()

void ns3::XmlConfigLoad::Attributes ( void  )
virtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 315 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, and ns3::Config::Set().

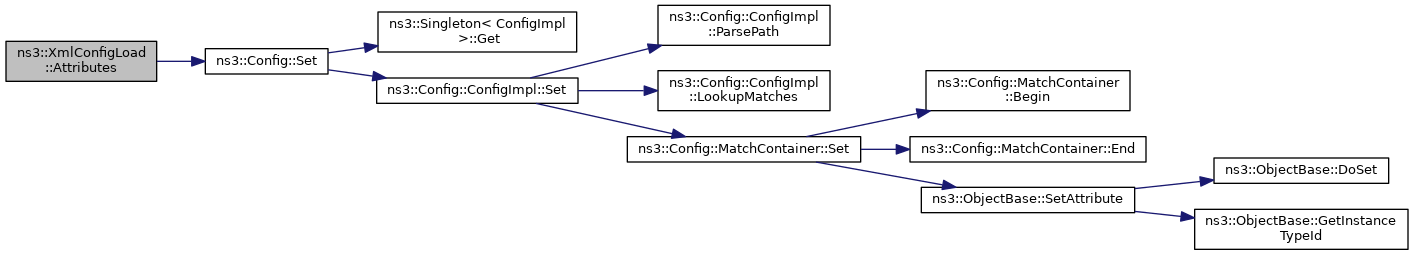

+ Here is the call graph for this function:

◆ Default()

void ns3::XmlConfigLoad::Default ( void  )
virtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 239 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, and ns3::Config::SetDefault().

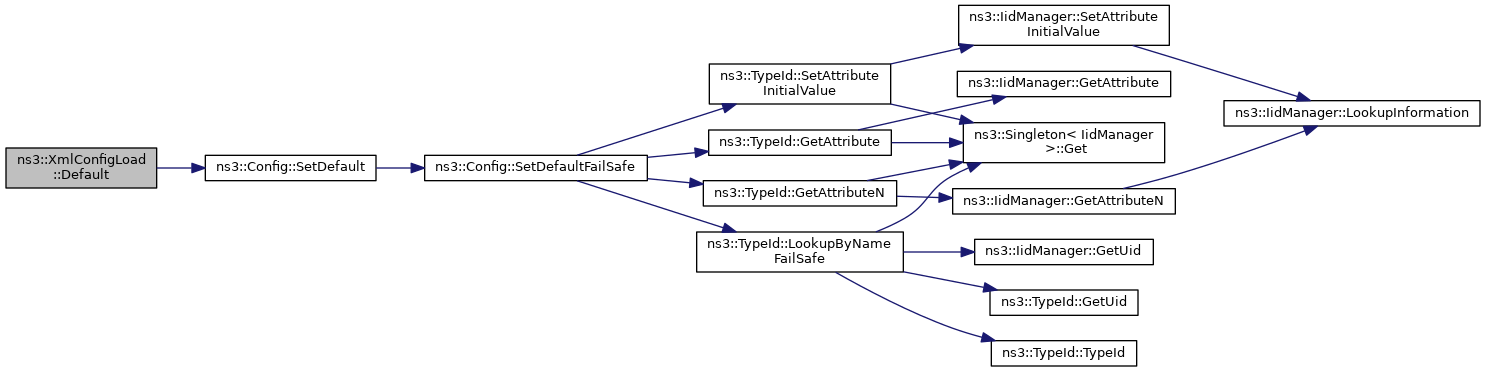

+ Here is the call graph for this function:

◆ Global()

void ns3::XmlConfigLoad::Global ( void  )
virtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 277 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, and ns3::Config::SetGlobal().

+ Here is the call graph for this function:

◆ SetFilename()

void ns3::XmlConfigLoad::SetFilename ( std::string  filename)
virtual

Set the file name.

Parameters
filenamethe filename

Implements ns3::FileConfig.

Definition at line 233 of file xml-config.cc.

References m_filename, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_filename

std::string ns3::XmlConfigLoad::m_filename
private

the file name

Definition at line 65 of file xml-config.h.

Referenced by Attributes(), Default(), Global(), and SetFilename().


The documentation for this class was generated from the following files:
