Route Request (RREQ) Message Format. More...

#include "aodv-packet.h"

Inheritance diagram for ns3::aodv::RreqHeader:

Collaboration diagram for ns3::aodv::RreqHeader:

Public Member Functions
	RreqHeader (uint8_t flags=0, uint8_t reserved=0, uint8_t hopCount=0, uint32_t requestID=0, Ipv4Address dst=Ipv4Address(), uint32_t dstSeqNo=0, Ipv4Address origin=Ipv4Address(), uint32_t originSeqNo=0)
	constructor More...

uint32_t	Deserialize (Buffer::Iterator start)

bool	GetDestinationOnly () const
	Get the Destination only flag. More...

Ipv4Address	GetDst () const
	Get the destination address. More...

uint32_t	GetDstSeqno () const
	Get the destination sequence number. More...

bool	GetGratuitousRrep () const
	Get the gratuitous RREP flag. More...

uint8_t	GetHopCount () const
	Get the hop count. More...

uint32_t	GetId () const
	Get the request ID. More...

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

Ipv4Address	GetOrigin () const
	Get the origin address. More...

uint32_t	GetOriginSeqno () const
	Get the origin sequence number. More...

uint32_t	GetSerializedSize () const

bool	GetUnknownSeqno () const
	Get the unknown sequence number flag. More...

bool	operator== (RreqHeader const &o) const
	Comparison operator. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetDestinationOnly (bool f)
	Set the Destination only flag. More...

void	SetDst (Ipv4Address a)
	Set the destination address. More...

void	SetDstSeqno (uint32_t s)
	Set the destination sequence number. More...

void	SetGratuitousRrep (bool f)
	Set the gratuitous RREP flag. More...

void	SetHopCount (uint8_t count)
	Set the hop count. More...

void	SetId (uint32_t id)
	Set the request ID. More...

void	SetOrigin (Ipv4Address a)
	Set the origin address. More...

void	SetOriginSeqno (uint32_t s)
	Set the origin sequence number. More...

void	SetUnknownSeqno (bool f)
	Set the unknown sequence number flag. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4Address	m_dst
	Destination IP Address. More...

uint32_t	m_dstSeqNo
	Destination Sequence Number. More...

uint8_t	m_flags
	\|J\|R\|G\|D\|U\| bit flags, see RFC More...

uint8_t	m_hopCount
	Hop Count. More...

Ipv4Address	m_origin
	Originator IP Address. More...

uint32_t	m_originSeqNo
	Source Sequence Number. More...

uint32_t	m_requestID
	RREQ ID. More...

uint8_t	m_reserved
	Not used (must be 0) More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Request (RREQ) Message Format.

Introspection did not find any typical Config paths.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |J|R|G|D|U|   Reserved          |   Hop Count   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                            RREQ ID                            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Destination IP Address                     |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Destination Sequence Number                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Originator IP Address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Originator Sequence Number                   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 131 of file aodv-packet.h.

Constructor & Destructor Documentation

◆ RreqHeader()

ns3::aodv::RreqHeader::RreqHeader	(	uint8_t	flags = `0`,
		uint8_t	reserved = `0`,
		uint8_t	hopCount = `0`,
		uint32_t	requestID = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		uint32_t	dstSeqNo = `0`,
		Ipv4Address	origin = `Ipv4Address ()`,
		uint32_t	originSeqNo = `0`
	)

constructor

Parameters

flags	the message flags (0)
reserved	the reserved bits (0)
hopCount	the hop count
requestID	the request ID
dst	the destination IP address
dstSeqNo	the destination sequence number
origin	the origin IP address
originSeqNo	the origin sequence number

Definition at line 142 of file aodv-packet.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::aodv::RreqHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 194 of file aodv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, m_reserved, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetDestinationOnly()

bool ns3::aodv::RreqHeader::GetDestinationOnly ( ) const

Get the Destination only flag.

Returns: the Destination only flag

Definition at line 262 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

◆ GetDst()

Ipv4Address ns3::aodv::RreqHeader::GetDst ( ) const

inline

Get the destination address.

Returns: the destination address

Definition at line 207 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

Here is the caller graph for this function:

◆ GetDstSeqno()

uint32_t ns3::aodv::RreqHeader::GetDstSeqno ( ) const

inline

Get the destination sequence number.

Returns: the destination sequence number

Definition at line 223 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

Here is the caller graph for this function:

◆ GetGratuitousRrep()

bool ns3::aodv::RreqHeader::GetGratuitousRrep ( ) const

Get the gratuitous RREP flag.

Returns: the gratuitous RREP flag

Definition at line 243 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

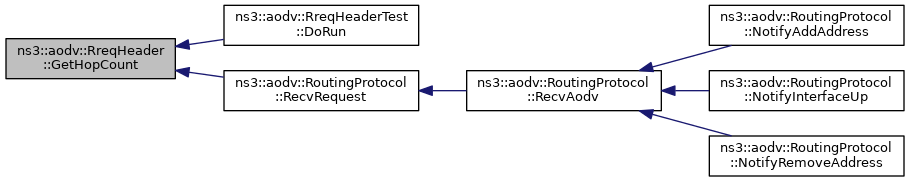

◆ GetHopCount()

uint8_t ns3::aodv::RreqHeader::GetHopCount ( ) const

inline

Get the hop count.

Returns: the hop count

Definition at line 175 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

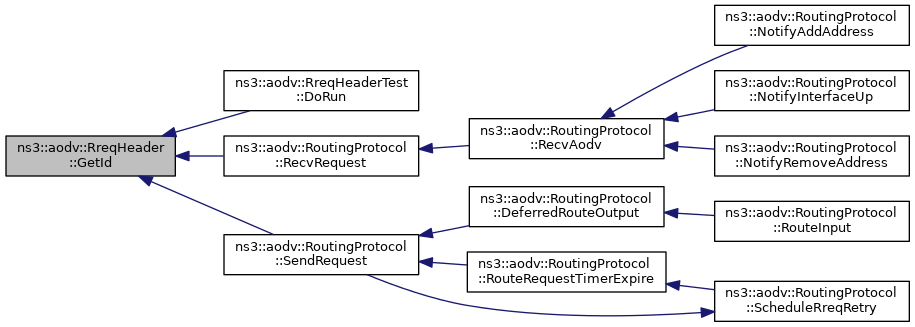

◆ GetId()

uint32_t ns3::aodv::RreqHeader::GetId ( ) const

inline

Get the request ID.

Returns: the request ID

Definition at line 191 of file aodv-packet.h.

References m_requestID.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendRequest().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::aodv::RreqHeader::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 169 of file aodv-packet.cc.

References GetTypeId().

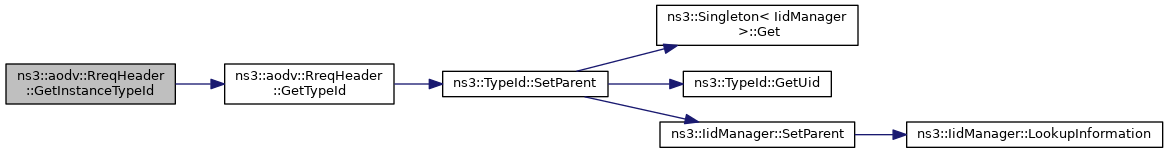

Here is the call graph for this function:

◆ GetOrigin()

Ipv4Address ns3::aodv::RreqHeader::GetOrigin ( ) const

inline

Get the origin address.

Returns: the origin address

Definition at line 239 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

◆ GetOriginSeqno()

uint32_t ns3::aodv::RreqHeader::GetOriginSeqno ( ) const

inline

Get the origin sequence number.

Returns: the origin sequence number

Definition at line 255 of file aodv-packet.h.

References m_originSeqNo.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::aodv::RreqHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 175 of file aodv-packet.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::aodv::RreqHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 158 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

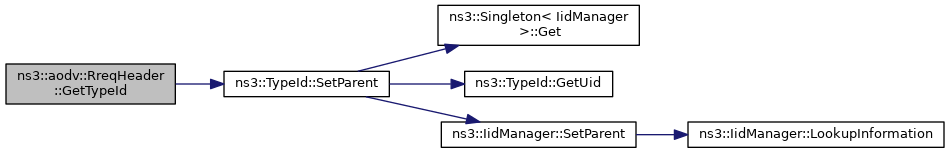

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUnknownSeqno()

bool ns3::aodv::RreqHeader::GetUnknownSeqno ( ) const

Get the unknown sequence number flag.

Returns: the unknown sequence number flag

Definition at line 281 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

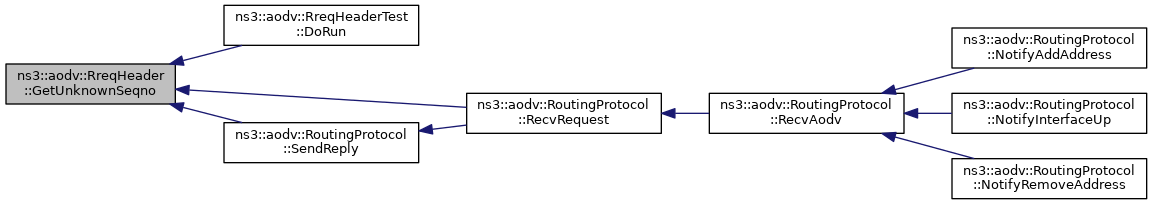

Here is the caller graph for this function:

◆ operator==()

bool ns3::aodv::RreqHeader::operator== ( RreqHeader const & o ) const

Comparison operator.

Parameters

o	RREQ header to compare

Returns: true if the RREQ headers are equal

Definition at line 287 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, and m_reserved.

◆ Print()

void ns3::aodv::RreqHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 212 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_origin, m_originSeqNo, and m_requestID.

Referenced by ns3::aodv::operator<<().

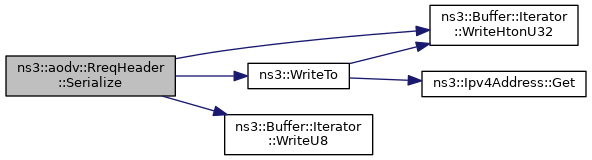

Here is the caller graph for this function:

◆ Serialize()

void ns3::aodv::RreqHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 181 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, m_reserved, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
