ns3::dot11s::MeshHeader Class Reference

Mesh Control field, see Section 8.2.4.7.3 IEEE 802.11-2012. More...

#include "dot11s-mac-header.h"

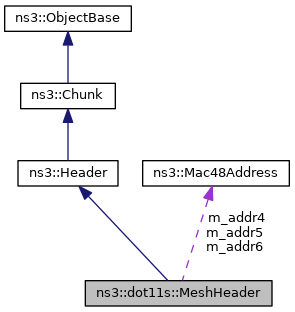

+ Inheritance diagram for ns3::dot11s::MeshHeader:
+ Collaboration diagram for ns3::dot11s::MeshHeader:

Public Member Functions

 MeshHeader ()

 ~MeshHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetAddr4 () const
 Get extended address 4. More...

Mac48Address GetAddr5 () const
 Get extended address 5. More...

Mac48Address GetAddr6 () const
 Get extended address 6. More...

uint8_t GetAddressExt () const
 Get Address Extension Mode. More...

virtual TypeId GetInstanceTypeId () const
 Get the most derived TypeId for this Object. More...

uint32_t GetMeshSeqno () const
 Get the four-byte mesh sequence number. More...

uint8_t GetMeshTtl () const
 Get mesh TTL function subfield value. More...

virtual uint32_t GetSerializedSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetAddr4 (Mac48Address address)
 Set extended address 4. More...

void SetAddr5 (Mac48Address address)
 Set extended address 5. More...

void SetAddr6 (Mac48Address address)
 Set extended address 6. More...

void SetAddressExt (uint8_t num_of_addresses)
 Set Address Extension Mode. More...

void SetMeshSeqno (uint32_t seqno)
 Set four-byte mesh sequence number. More...

void SetMeshTtl (uint8_t TTL)
 Set mesh TTL subfield corresponding to the remaining number of hops the MSDU/MMPDU is forwarded. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_addr4
 MAC address 4. More...

Mac48Address m_addr5
 MAC address 5. More...

Mac48Address m_addr6
 MAC address 6. More...

uint8_t m_meshFlags
 mesh flags More...

uint32_t m_meshSeqno
 mesh sequence no More...

uint8_t m_meshTtl
 mesh TTL More...


Friends

bool operator== (const MeshHeader &a, const MeshHeader &b)
 equality operator More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Mesh Control field, see Section 8.2.4.7.3 IEEE 802.11-2012.

Header format: | Mesh flags: 1 | TTL: 1 | Sequence number: 4 | Address ext.: 0, 6, or 12 |

Definition at line 37 of file dot11s-mac-header.h.

Constructor & Destructor Documentation

◆ MeshHeader()

ns3::dot11s::MeshHeader::MeshHeader ( )

Definition at line 40 of file dot11s-mac-header.cc.

◆ ~MeshHeader()

ns3::dot11s::MeshHeader::~MeshHeader ( )

Definition at line 45 of file dot11s-mac-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dot11s::MeshHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 142 of file dot11s-mac-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

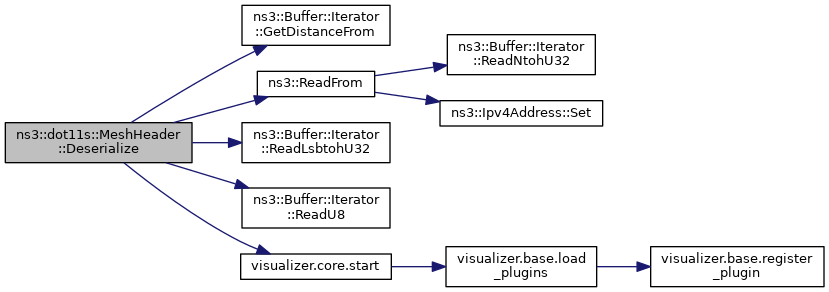

+ Here is the call graph for this function:

◆ GetAddr4()

Mac48Address ns3::dot11s::MeshHeader::GetAddr4 ( ) const

Get extended address 4.

Returns
the MAC address

Definition at line 69 of file dot11s-mac-header.cc.

References m_addr4.

◆ GetAddr5()

Mac48Address ns3::dot11s::MeshHeader::GetAddr5 ( ) const

Get extended address 5.

Returns
the MAC address

Definition at line 74 of file dot11s-mac-header.cc.

References m_addr5.

◆ GetAddr6()

Mac48Address ns3::dot11s::MeshHeader::GetAddr6 ( ) const

Get extended address 6.

Returns
the MAC address

Definition at line 79 of file dot11s-mac-header.cc.

References m_addr6.

◆ GetAddressExt()

uint8_t ns3::dot11s::MeshHeader::GetAddressExt ( ) const

Get Address Extension Mode.

Returns
the address extension mode value

Definition at line 110 of file dot11s-mac-header.cc.

References m_meshFlags.

Referenced by GetSerializedSize(), and Serialize().

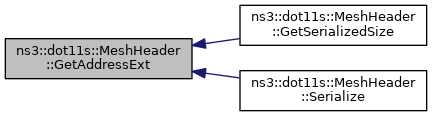

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::dot11s::MeshHeader::GetInstanceTypeId ( ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 49 of file dot11s-mac-header.cc.

References GetTypeId().

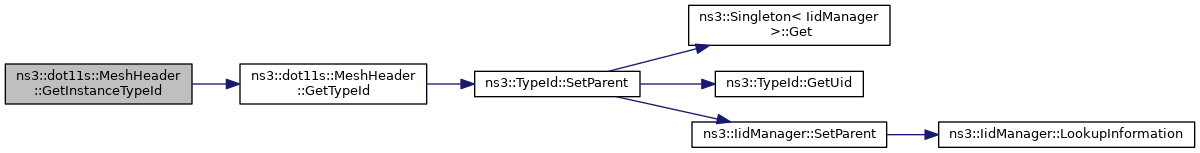

+ Here is the call graph for this function:

◆ GetMeshSeqno()

uint32_t ns3::dot11s::MeshHeader::GetMeshSeqno ( ) const

Get the four-byte mesh sequence number.

Returns
the sequence number

Definition at line 89 of file dot11s-mac-header.cc.

References m_meshSeqno.

◆ GetMeshTtl()

uint8_t ns3::dot11s::MeshHeader::GetMeshTtl ( ) const

Get mesh TTL function subfield value.

Returns
the TTL value

Definition at line 99 of file dot11s-mac-header.cc.

References m_meshTtl.

◆ GetSerializedSize()

uint32_t ns3::dot11s::MeshHeader::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 115 of file dot11s-mac-header.cc.

References GetAddressExt().

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::dot11s::MeshHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 32 of file dot11s-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

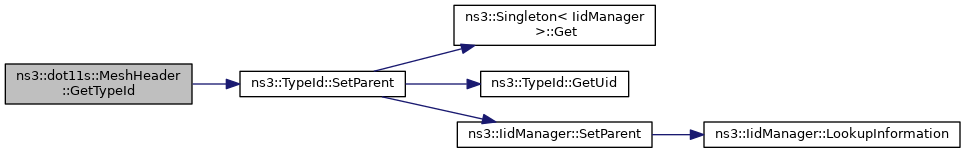

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::dot11s::MeshHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 165 of file dot11s-mac-header.cc.

References m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, and m_meshTtl.

◆ Serialize()

void ns3::dot11s::MeshHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 120 of file dot11s-mac-header.cc.

References GetAddressExt(), m_addr4, m_addr5, m_addr6, m_meshFlags, m_meshSeqno, m_meshTtl, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

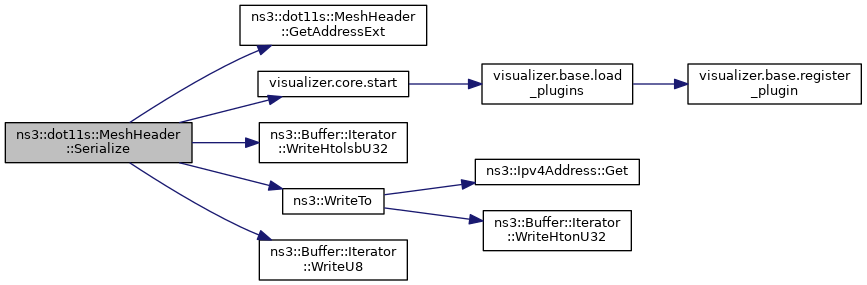

+ Here is the call graph for this function:

◆ SetAddr4()

void ns3::dot11s::MeshHeader::SetAddr4 ( Mac48Address  address)

Set extended address 4.

Parameters
addressthe MAC address to set

Definition at line 54 of file dot11s-mac-header.cc.

References first::address, and m_addr4.

Referenced by MeshHeaderTest::DoRun().

+ Here is the caller graph for this function:

◆ SetAddr5()

void ns3::dot11s::MeshHeader::SetAddr5 ( Mac48Address  address)

Set extended address 5.

Parameters
addressthe MAC address

Definition at line 59 of file dot11s-mac-header.cc.

References first::address, and m_addr5.

Referenced by MeshHeaderTest::DoRun().

+ Here is the caller graph for this function:

◆ SetAddr6()

void ns3::dot11s::MeshHeader::SetAddr6 ( Mac48Address  address)

Set extended address 6.

Parameters
addressthe MAC address

Definition at line 64 of file dot11s-mac-header.cc.

References first::address, and m_addr6.

Referenced by MeshHeaderTest::DoRun().

+ Here is the caller graph for this function:

◆ SetAddressExt()

void ns3::dot11s::MeshHeader::SetAddressExt ( uint8_t  num_of_addresses)

Set Address Extension Mode.

Parameters
num_of_addressesvalue between 0 and 3 for the two-bit field

Definition at line 104 of file dot11s-mac-header.cc.

References m_meshFlags, and NS_ASSERT.

Referenced by MeshHeaderTest::DoRun().

+ Here is the caller graph for this function:

◆ SetMeshSeqno()

void ns3::dot11s::MeshHeader::SetMeshSeqno ( uint32_t  seqno)

Set four-byte mesh sequence number.

Parameters
seqnothe sequence number to set

Definition at line 84 of file dot11s-mac-header.cc.

References m_meshSeqno.

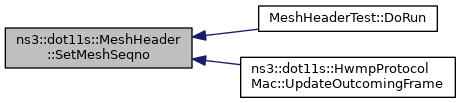

Referenced by MeshHeaderTest::DoRun(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

+ Here is the caller graph for this function:

◆ SetMeshTtl()

void ns3::dot11s::MeshHeader::SetMeshTtl ( uint8_t  TTL)

Set mesh TTL subfield corresponding to the remaining number of hops the MSDU/MMPDU is forwarded.

Parameters
TTLthe TTL value to set

Definition at line 94 of file dot11s-mac-header.cc.

References m_meshTtl.

Referenced by MeshHeaderTest::DoRun(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

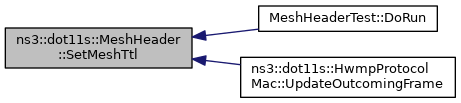

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator== ( const MeshHeader a,
const MeshHeader b
)
friend

equality operator

Parameters
aleft hand side
bright hand side
Returns
true if equal

Definition at line 172 of file dot11s-mac-header.cc.

Member Data Documentation

◆ m_addr4

Mac48Address ns3::dot11s::MeshHeader::m_addr4
private

MAC address 4.

Definition at line 123 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr4(), ns3::dot11s::operator==(), Print(), Serialize(), and SetAddr4().

◆ m_addr5

Mac48Address ns3::dot11s::MeshHeader::m_addr5
private

MAC address 5.

Definition at line 124 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr5(), ns3::dot11s::operator==(), Print(), Serialize(), and SetAddr5().

◆ m_addr6

Mac48Address ns3::dot11s::MeshHeader::m_addr6
private

MAC address 6.

Definition at line 125 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddr6(), ns3::dot11s::operator==(), Print(), Serialize(), and SetAddr6().

◆ m_meshFlags

uint8_t ns3::dot11s::MeshHeader::m_meshFlags
private

mesh flags

Definition at line 120 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetAddressExt(), ns3::dot11s::operator==(), Print(), Serialize(), and SetAddressExt().

◆ m_meshSeqno

uint32_t ns3::dot11s::MeshHeader::m_meshSeqno
private

mesh sequence no

Definition at line 122 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetMeshSeqno(), ns3::dot11s::operator==(), Print(), Serialize(), and SetMeshSeqno().

◆ m_meshTtl

uint8_t ns3::dot11s::MeshHeader::m_meshTtl
private

mesh TTL

Definition at line 121 of file dot11s-mac-header.h.

Referenced by Deserialize(), GetMeshTtl(), ns3::dot11s::operator==(), Print(), Serialize(), and SetMeshTtl().


The documentation for this class was generated from the following files:
