ns3::dot11s::PeerLinkCloseStart Class Reference

802.11s Peer link close management frame More...

#include "peer-link-frame.h"

+ Inheritance diagram for ns3::dot11s::PeerLinkCloseStart:

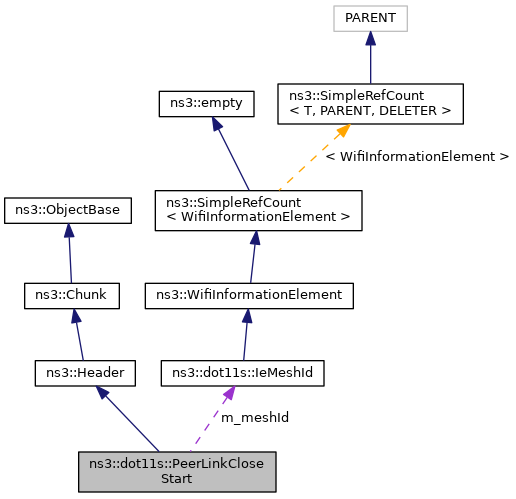

+ Collaboration diagram for ns3::dot11s::PeerLinkCloseStart:

Classes

struct  PlinkCloseStartFields
 fields: More...


Public Member Functions

 PeerLinkCloseStart ()

virtual uint32_t Deserialize (Buffer::Iterator start)

PlinkCloseStartFields GetFields () const
 Get peer link close start fields. More...

virtual TypeId GetInstanceTypeId () const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetPlinkCloseStart (PlinkCloseStartFields fields)
 Set peer link close start fields. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

 PeerLinkCloseStart (const PeerLinkCloseStart &)
 type conversion operator More...

PeerLinkCloseStartoperator= (const PeerLinkCloseStart &peer)
 assignment operator More...


Private Attributes

IeMeshId m_meshId
 mesh ID More...


Friends

bool operator== (const PeerLinkCloseStart &a, const PeerLinkCloseStart &b)
 equality operator More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

802.11s Peer link close management frame


Introspection did not find any typical Config paths.

Peer link close frame includes the following:

  • Mesh ID of mesh


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 119 of file peer-link-frame.h.

Constructor & Destructor Documentation

◆ PeerLinkCloseStart() [1/2]

ns3::dot11s::PeerLinkCloseStart::PeerLinkCloseStart ( )

Definition at line 138 of file peer-link-frame.cc.

◆ PeerLinkCloseStart() [2/2]

ns3::dot11s::PeerLinkCloseStart::PeerLinkCloseStart ( const PeerLinkCloseStart )
private

type conversion operator

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dot11s::PeerLinkCloseStart::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 190 of file peer-link-frame.cc.

References ns3::dot11s::IeMeshId::DeserializeInformationField(), ns3::dot11s::IeMeshId::ElementId(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::dot11s::IeMeshId::GetInformationFieldSize(), m_meshId, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

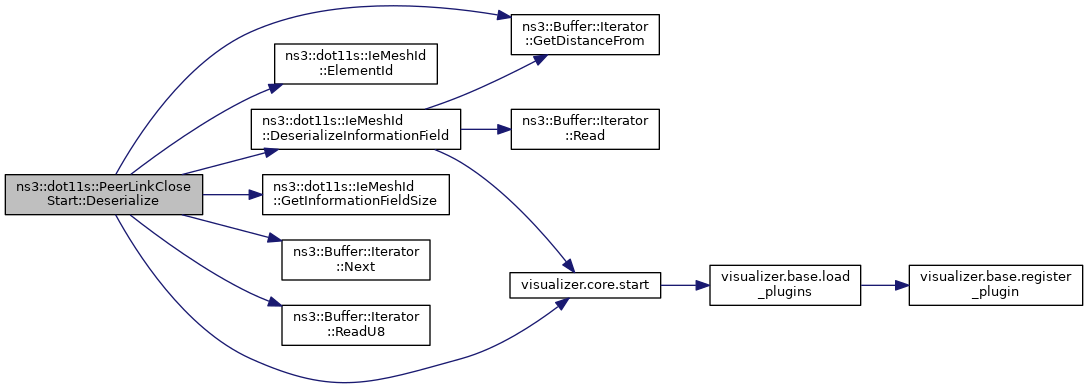

+ Here is the call graph for this function:

◆ GetFields()

PeerLinkCloseStart::PlinkCloseStartFields ns3::dot11s::PeerLinkCloseStart::GetFields ( ) const

Get peer link close start fields.

Returns
PlinkOpenStartFields
Todo:
protocol version:

Definition at line 148 of file peer-link-frame.cc.

References m_meshId, and ns3::dot11s::PeerLinkCloseStart::PlinkCloseStartFields::meshId.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::dot11s::PeerLinkCloseStart::GetInstanceTypeId ( ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 167 of file peer-link-frame.cc.

References GetTypeId().

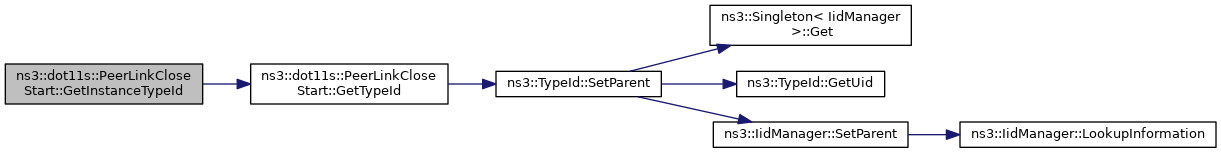

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::dot11s::PeerLinkCloseStart::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 177 of file peer-link-frame.cc.

References ns3::dot11s::IeMeshId::GetInformationFieldSize(), and m_meshId.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::dot11s::PeerLinkCloseStart::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 157 of file peer-link-frame.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

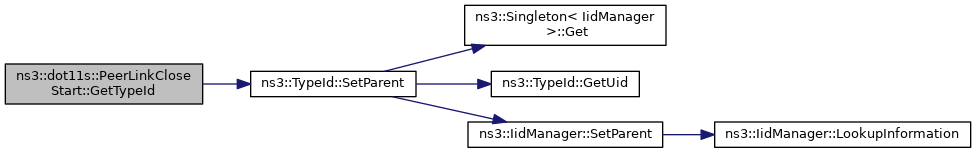

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ operator=()

PeerLinkCloseStart& ns3::dot11s::PeerLinkCloseStart::operator= ( const PeerLinkCloseStart peer)
private

assignment operator

Parameters
peerthe value to assign
Returns
the assigned value

◆ Print()

void ns3::dot11s::PeerLinkCloseStart::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 172 of file peer-link-frame.cc.

References m_meshId, and ns3::dot11s::IeMeshId::Print().

+ Here is the call graph for this function:

◆ Serialize()

void ns3::dot11s::PeerLinkCloseStart::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 184 of file peer-link-frame.cc.

References m_meshId, ns3::WifiInformationElement::Serialize(), and visualizer.core::start().

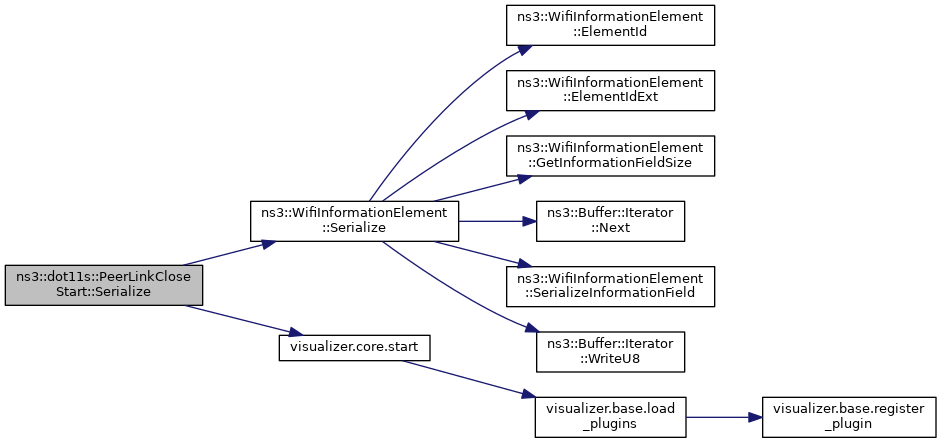

+ Here is the call graph for this function:

◆ SetPlinkCloseStart()

void ns3::dot11s::PeerLinkCloseStart::SetPlinkCloseStart ( PeerLinkCloseStart::PlinkCloseStartFields  fields)

Set peer link close start fields.

Parameters
fieldsPlinkCloseStartFields to set

Definition at line 143 of file peer-link-frame.cc.

References m_meshId, and ns3::dot11s::PeerLinkCloseStart::PlinkCloseStartFields::meshId.

Referenced by PeerLinkFrameStartTest::DoRun(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

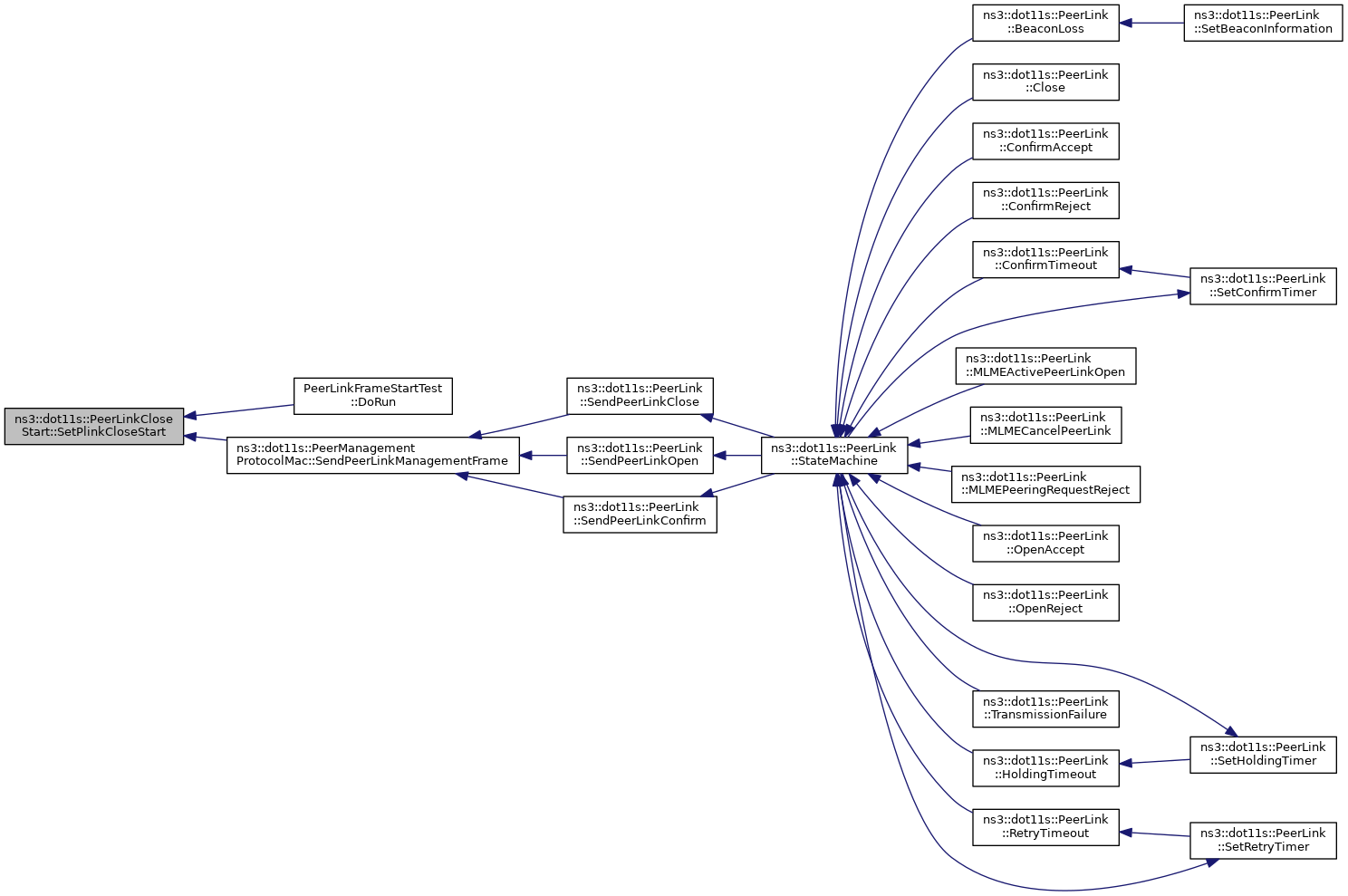

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator== ( const PeerLinkCloseStart a,
const PeerLinkCloseStart b
)
friend

equality operator

Parameters
alhs
brhs
Returns
true if equal

Definition at line 205 of file peer-link-frame.cc.

Member Data Documentation

◆ m_meshId

IeMeshId ns3::dot11s::PeerLinkCloseStart::m_meshId
private

The documentation for this class was generated from the following files:
