ns3::flame::FlameRtable Class Reference

Routing table for FLAME. More...

#include "flame-rtable.h"

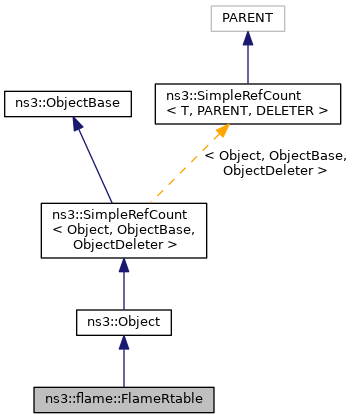

+ Inheritance diagram for ns3::flame::FlameRtable:

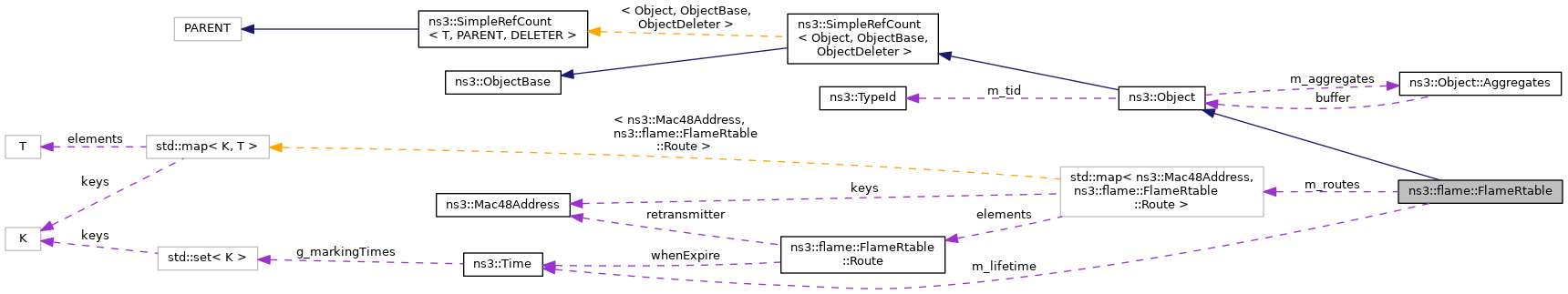

+ Collaboration diagram for ns3::flame::FlameRtable:

Classes

struct  LookupResult
 Route lookup result, return type of LookupXXX methods. More...

struct  Route
 Routing table entry. More...


Public Member Functions

 FlameRtable ()

 ~FlameRtable ()

void AddPath (const Mac48Address destination, const Mac48Address retransmitter, const uint32_t interface, const uint8_t cost, const uint16_t seqnum)
 Add path. More...

void DoDispose ()
 Destructor implementation. More...

LookupResult Lookup (Mac48Address destination)
 Lookup path to destination. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject () const

template<>
Ptr< ObjectGetObject (TypeId tid) const

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static const uint32_t INTERFACE_ANY = 0xffffffff
 Means all interfaces. More...

static const uint32_t MAX_COST = 0xff
 Maximum (the best?) path cost. More...


Private Member Functions

 FlameRtable (const FlameRtable &)
 type conversion operator More...

FlameRtableoperator= (const FlameRtable &table)
 assignment operator More...


Private Attributes

Time m_lifetime
 Lifetime parameter. More...

std::map< Mac48Address, Routem_routes
 List of routes. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Routing table for FLAME.


Introspection did not find any typical Config paths.


Attributes

  • Lifetime: The lifetime of the routing entry
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1.2e+11ns
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 36 of file flame-rtable.h.

Constructor & Destructor Documentation

◆ FlameRtable() [1/2]

ns3::flame::FlameRtable::FlameRtable ( )

Definition at line 52 of file flame-rtable.cc.

◆ ~FlameRtable()

ns3::flame::FlameRtable::~FlameRtable ( )

Definition at line 56 of file flame-rtable.cc.

◆ FlameRtable() [2/2]

ns3::flame::FlameRtable::FlameRtable ( const FlameRtable )
private

type conversion operator

Member Function Documentation

◆ AddPath()

void ns3::flame::FlameRtable::AddPath ( const Mac48Address  destination,
const Mac48Address  retransmitter,
const uint32_t  interface,
const uint8_t  cost,
const uint16_t  seqnum
)

Add path.

Parameters
destinationthe destination address
retransmitterthe retransmitter address
interfacethe interface
costthe cost
seqnumthe sequence number

Definition at line 65 of file flame-rtable.cc.

References ns3::flame::FlameRtable::Route::cost, ns3::flame::FlameRtable::Route::interface, m_lifetime, m_routes, ns3::Simulator::Now(), NS_ASSERT, ns3::flame::FlameRtable::Route::retransmitter, ns3::flame::FlameRtable::Route::seqnum, and ns3::flame::FlameRtable::Route::whenExpire.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), FlameRtableTest::TestAddPath(), and FlameRtableTest::TestLookup().

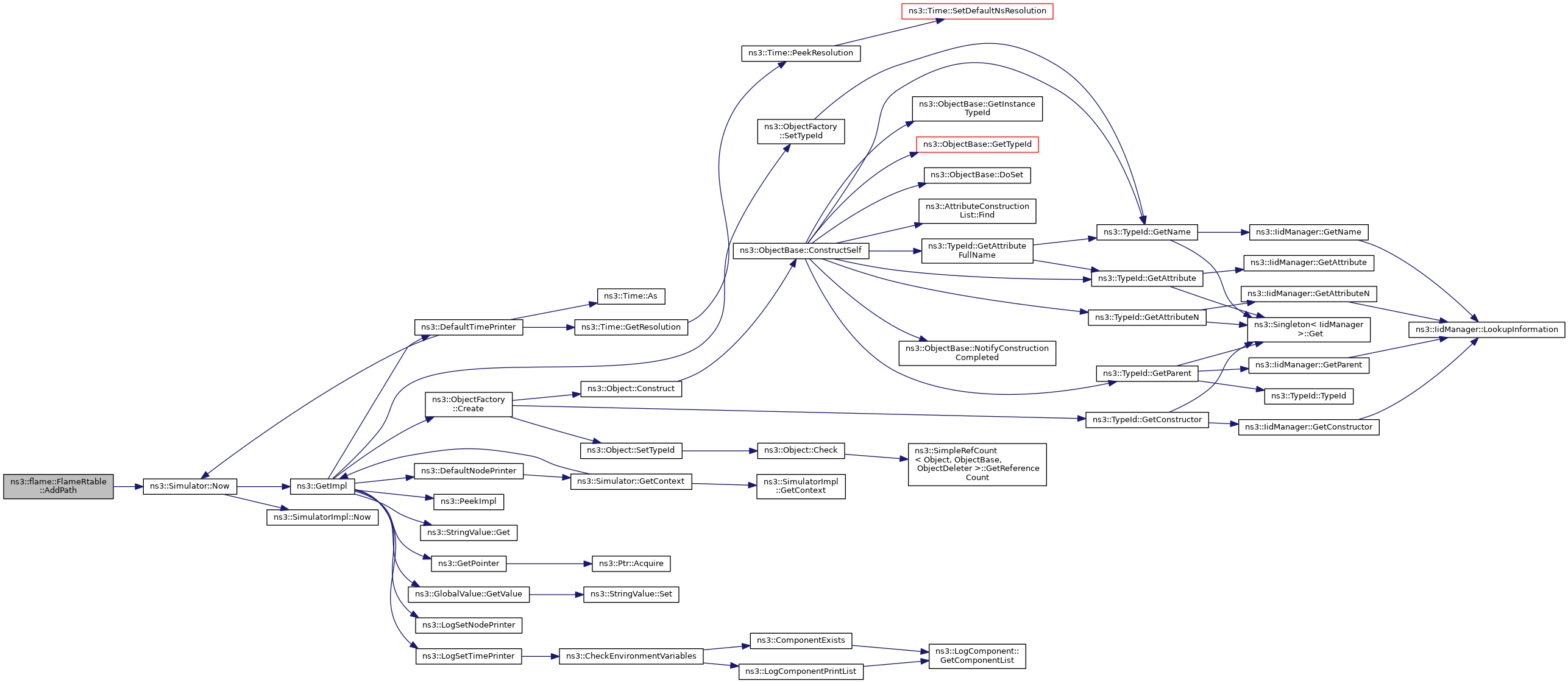

+ Here is the call graph for this function:

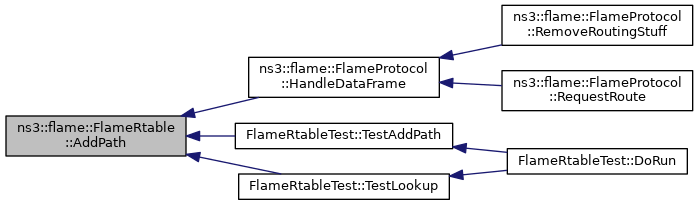

+ Here is the caller graph for this function:

◆ DoDispose()

void ns3::flame::FlameRtable::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 60 of file flame-rtable.cc.

References m_routes.

◆ GetTypeId()

TypeId ns3::flame::FlameRtable::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 36 of file flame-rtable.cc.

References m_lifetime, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

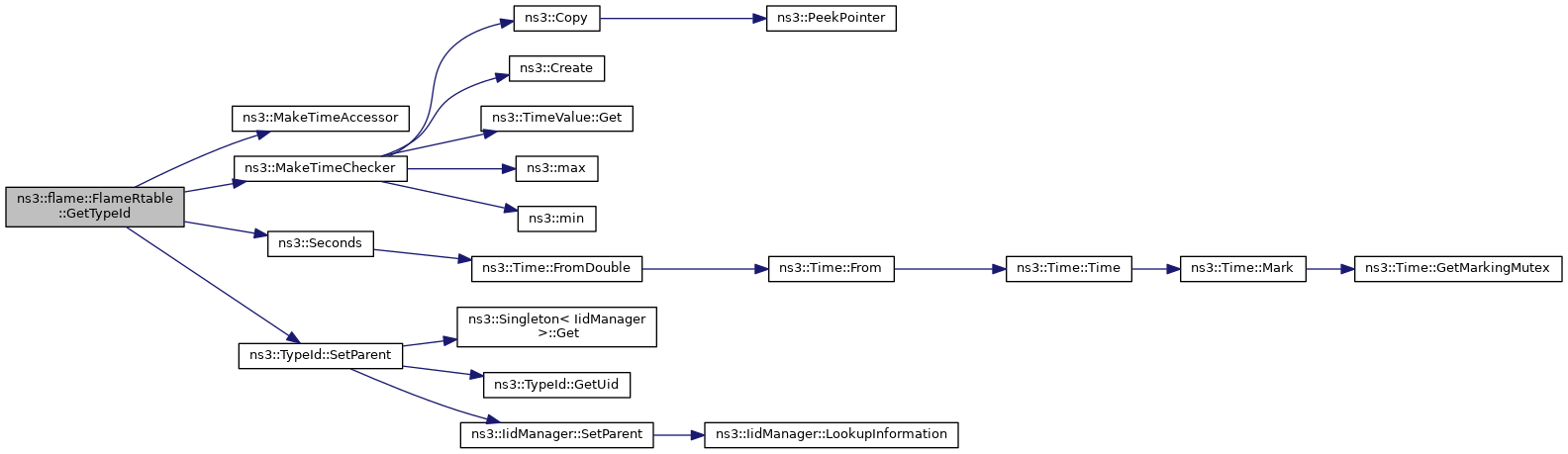

+ Here is the call graph for this function:

◆ Lookup()

FlameRtable::LookupResult ns3::flame::FlameRtable::Lookup ( Mac48Address  destination)

Lookup path to destination.

Parameters
destination
Returns
Broadcast if not found

Definition at line 88 of file flame-rtable.cc.

References m_routes, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameProtocol::RequestRoute(), FlameRtableTest::TestExpire(), and FlameRtableTest::TestLookup().

+ Here is the call graph for this function:

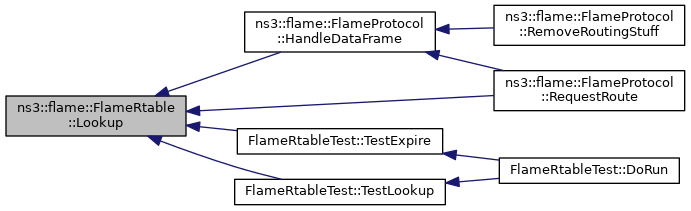

+ Here is the caller graph for this function:

◆ operator=()

FlameRtable& ns3::flame::FlameRtable::operator= ( const FlameRtable table)
private

assignment operator

Parameters
tablethe flame table to assign
Returns
the assigned value

Member Data Documentation

◆ INTERFACE_ANY

const uint32_t ns3::flame::FlameRtable::INTERFACE_ANY = 0xffffffff
static

Means all interfaces.

Definition at line 40 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid(), and ns3::flame::FlameProtocol::RequestRoute().

◆ m_lifetime

Time ns3::flame::FlameRtable::m_lifetime
private

Lifetime parameter.

Definition at line 134 of file flame-rtable.h.

Referenced by AddPath(), and GetTypeId().

◆ m_routes

std::map<Mac48Address, Route> ns3::flame::FlameRtable::m_routes
private

List of routes.

Definition at line 136 of file flame-rtable.h.

Referenced by AddPath(), DoDispose(), and Lookup().

◆ MAX_COST

const uint32_t ns3::flame::FlameRtable::MAX_COST = 0xff
static

Maximum (the best?) path cost.

Definition at line 42 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid().


The documentation for this class was generated from the following files:
