Demonstration of a Learning controller. More...

#include "openflow-interface.h"

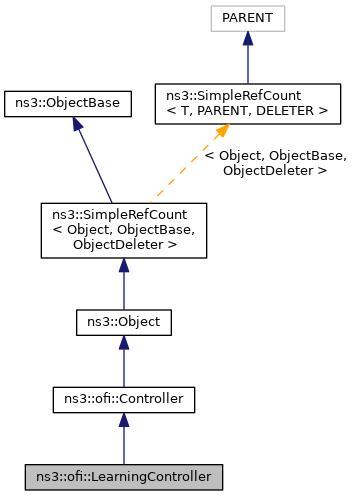

Inheritance diagram for ns3::ofi::LearningController:

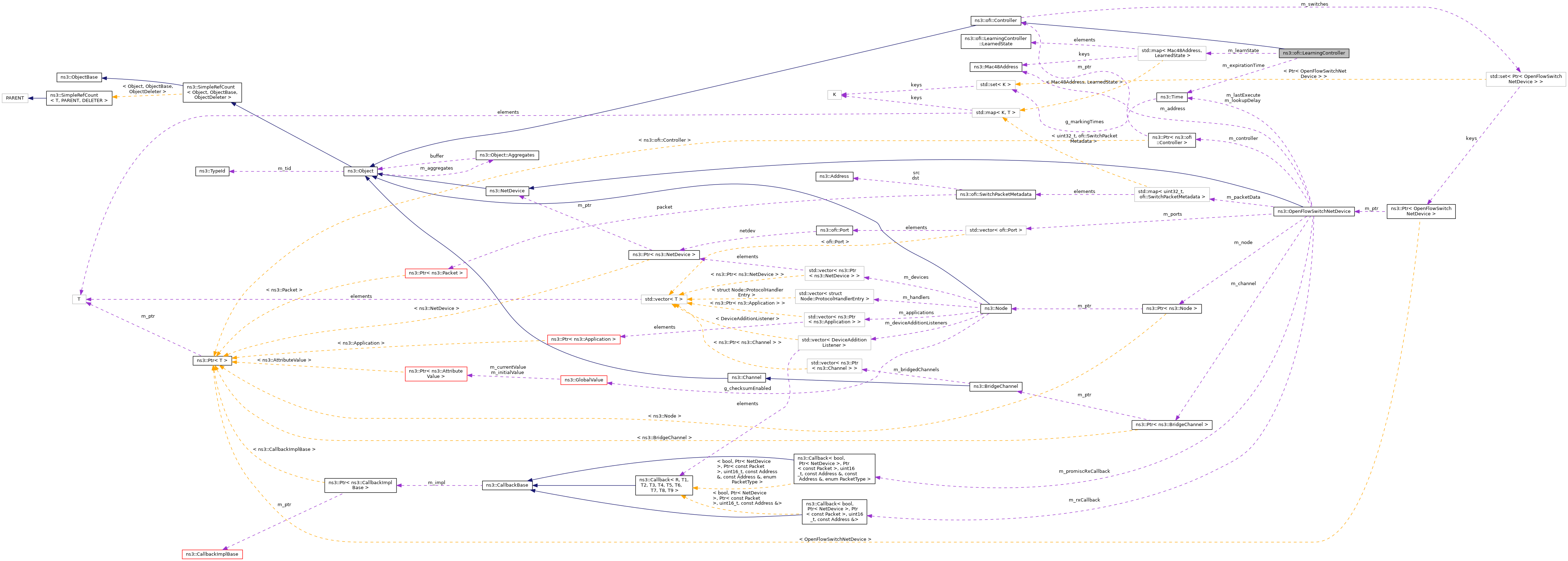

Collaboration diagram for ns3::ofi::LearningController:

Classes
struct	LearnedState

Public Member Functions
virtual	~LearningController ()

void	ReceiveFromSwitch (Ptr< OpenFlowSwitchNetDevice > swtch, ofpbuf *buffer)
	A switch calls this method to pass a message on to the Controller. More...

Public Member Functions inherited from ns3::ofi::Controller
virtual	~Controller ()
	Destructor. More...

virtual void	AddSwitch (Ptr< OpenFlowSwitchNetDevice > swtch)
	Adds a switch to the controller. More...

void	StartDump (StatsDumpCallback *cb)
	Starts a callback-based, reliable, possibly multi-message reply to a request made by the controller. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ofi::Controller
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::map< Mac48Address, LearnedState >	LearnState_t

Protected Types inherited from ns3::ofi::Controller
typedef std::set< Ptr< OpenFlowSwitchNetDevice > >	Switches_t

Protected Attributes
Time	m_expirationTime
	Time it takes for learned MAC state entry/created flow to expire. More...

LearnState_t	m_learnState
	Learned state data. More...

Protected Attributes inherited from ns3::ofi::Controller
Switches_t	m_switches
	The collection of switches registered to this controller. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ofi::Controller
ofp_flow_mod *	BuildFlow (sw_flow_key key, uint32_t buffer_id, uint16_t command, void *acts, size_t actions_len, int idle_timeout, int hard_timeout)
	Construct flow data from a matching key to build a flow entry for adding, modifying, or deleting a flow. More...

uint8_t	GetPacketType (ofpbuf *buffer)
	Get the packet type on the buffer, which can then be used to determine how to handle the buffer. More...

virtual void	SendToSwitch (Ptr< OpenFlowSwitchNetDevice > swtch, void *msg, size_t length)
	However the controller is implemented, this method is to be used to pass a message on to a switch. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Demonstration of a Learning controller.

When a connected switch passes it a packet the switch doesn't recognize, the controller delves into its learned states and figures out if we know what port the packet is supposed to go to, flooding if unknown, and adjusts the switch's flow table accordingly.

Definition at line 455 of file openflow-interface.h.

Member Typedef Documentation

◆ LearnState_t

typedef std::map<Mac48Address, LearnedState> ns3::ofi::LearningController::LearnState_t

protected

Definition at line 477 of file openflow-interface.h.

Constructor & Destructor Documentation

◆ ~LearningController()

virtual ns3::ofi::LearningController::~LearningController ( )

inlinevirtual

Definition at line 464 of file openflow-interface.h.

References m_learnState.

Member Function Documentation

◆ GetTypeId()

static TypeId ns3::ofi::LearningController::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

◆ ReceiveFromSwitch()

void ns3::ofi::LearningController::ReceiveFromSwitch	(	Ptr< OpenFlowSwitchNetDevice >	swtch,
		ofpbuf *	buffer
	)

virtual

A switch calls this method to pass a message on to the Controller.

Parameters

swtch	The switch the message was received from.
buffer	The message.

Reimplemented from ns3::ofi::Controller.

Member Data Documentation

◆ m_expirationTime

Time ns3::ofi::LearningController::m_expirationTime

protected

Time it takes for learned MAC state entry/created flow to expire.

Definition at line 476 of file openflow-interface.h.

◆ m_learnState

LearnState_t ns3::ofi::LearningController::m_learnState

protected

Learned state data.

Definition at line 478 of file openflow-interface.h.

Referenced by ~LearningController().

The documentation for this class was generated from the following file:

src/openflow/model/openflow-interface.h
