Public Member Functions
def	__init__ (self, visualizer, node_index)

def	add_link (self, link)
	Add link function. More...

def	get_position (self)
	Get position function. More...

def	has_mobility (self)
	Has mobility function. More...

def	on_enter_notify_event (self, view, target, event)
	On Enter event handle. More...

def	on_leave_notify_event (self, view, target, event)
	On Leave event handle. More...

def	remove_link (self, link)
	Remove link function. More...

def	set_color (self, color)
	Set color function. More...

def	set_label (self, label)
	Set a label for the node. More...

def	set_position (self, x, y)
	Set position function. More...

def	set_size (self, size)
	Set size function. More...

def	set_svg_icon (self, file_base_name, width=None, height=None, align_x=0.5, align_y=0.5)
	Set a background SVG icon for the node. More...

def	tooltip_query (self, tooltip)
	Query tooltip. More...

Public Member Functions inherited from visualizer.base.PyVizObject
def	tooltip_query (self, tooltip)
	Returns tooltip text string. More...

Public Attributes
	canvas_item
	canvas item More...

	links
	links More...

	menu
	menu More...

	node_index
	node index More...

	svg_align_x
	svg align X More...

	svg_align_y
	svg align Y More...

	svg_item
	svg item More...

	visualizer
	visualier object More...

Properties
	highlighted = property(_get_highlighted, _set_highlighted)
	highlighted property More...

	selected = property(_get_selected, _set_selected)
	selected property More...

Private Member Functions
def	_get_highlighted (self)
	Get highlighted function. More...

def	_get_selected (self)
	Get selected function. More...

def	_set_highlighted (self, value)
	Set highlighted function. More...

def	_set_selected (self, value)
	Set selected function. More...

def	_update_appearance (self)
	Update the node aspect to reflect the selected/highlighted state. More...

def	_update_position (self)
	Update position function. More...

def	_update_svg_position (self, x, y)
	Update svg position. More...

Private Attributes
	_color
	color More...

	_has_mobility
	has mobility model More...

	_highlighted
	is highlighted More...

	_label
	label More...

	_label_canvas_item
	label canvas More...

	_selected
	is selected More...

	_size
	size More...

Static Private Attributes
dictionary	__gsignals__
	signal emitted whenever a tooltip is about to be shown for the node the first signal parameter is a python list of strings, to which information can be appended More...

Detailed Description

Node class.

Definition at line 78 of file core.py.

Constructor & Destructor Documentation

◆ init()

def visualizer.core.Node.__init__	(	self,
		visualizer,
		node_index
	)

Initialize function.
@param self The object pointer.
@param visualizer: visualizer object
@param node_index: node index

Definition at line 120 of file core.py.

Member Function Documentation

◆ _get_highlighted()

def visualizer.core.Node._get_highlighted ( self )

private

Get highlighted function.

Parameters

self	class object.

Returns: highlighted status

Definition at line 339 of file core.py.

References visualizer.core.Node._highlighted.

◆ _get_selected()

def visualizer.core.Node._get_selected ( self )

private

Get selected function.

Parameters

self	class object.

Returns: selected status

Definition at line 318 of file core.py.

References visualizer.core.Node._selected.

◆ _set_highlighted()

def visualizer.core.Node._set_highlighted	(	self,
		value
	)

private

Set highlighted function.

Parameters

self	class object.
value	selected value

Returns: none

Definition at line 329 of file core.py.

References visualizer.core.Node._highlighted, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

◆ _set_selected()

def visualizer.core.Node._set_selected	(	self,
		value
	)

private

Set selected function.

Parameters

self	class object.
value	selected value

Returns: none

Definition at line 308 of file core.py.

References visualizer.core.Node._selected, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

◆ _update_appearance()

def visualizer.core.Node._update_appearance ( self )

private

Update the node aspect to reflect the selected/highlighted state.

Parameters

self	class object.

Returns: none

Definition at line 361 of file core.py.

References visualizer.core.Node._color, visualizer.core.Node._label, visualizer.core.Node._label_canvas_item, visualizer.core.Node._selected, visualizer.core.Node._size, visualizer.core.Node._update_position(), visualizer.core.Node.canvas_item, visualizer.core.Node.highlighted, visualizer.core.Node.svg_item, visualizer.base.transform_distance_simulation_to_canvas(), and visualizer.core.Node.visualizer.

Referenced by visualizer.core.Node._set_highlighted(), visualizer.core.Node._set_selected(), visualizer.core.Node.set_color(), visualizer.core.Node.set_label(), visualizer.core.Node.set_size(), and visualizer.core.Node.set_svg_icon().

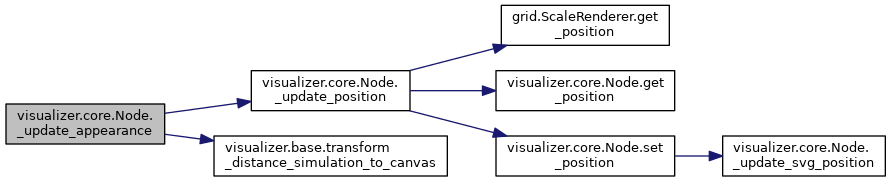

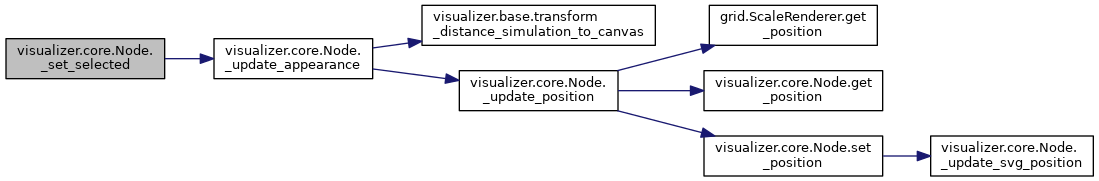

Here is the call graph for this function:

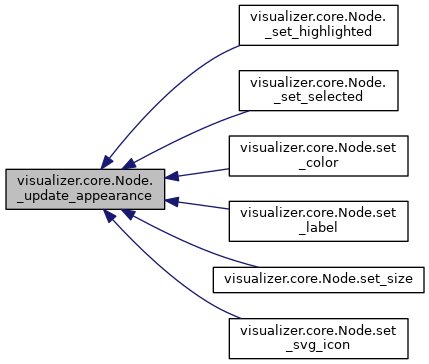

Here is the caller graph for this function:

◆ _update_position()

def visualizer.core.Node._update_position ( self )

private

Update position function.

Parameters

self	class object.

Returns: none

Definition at line 451 of file core.py.

References visualizer.core.Node.get_position(), grid.ScaleRenderer.get_position(), and visualizer.core.Node.set_position().

Referenced by visualizer.core.Node._update_appearance().

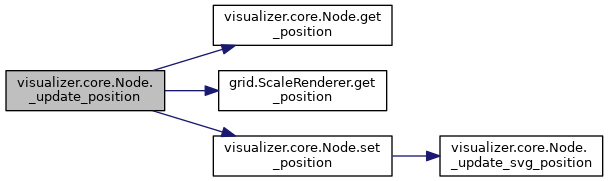

Here is the call graph for this function:

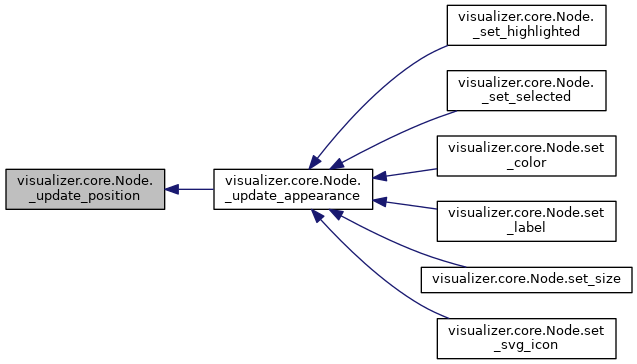

Here is the caller graph for this function:

◆ _update_svg_position()

def visualizer.core.Node._update_svg_position	(	self,
		x,
		y
	)

private

Update svg position.

Parameters

self	class object.
x	x position
y	y position

Returns: none

Definition at line 208 of file core.py.

References visualizer.core.Node.svg_align_x, visualizer.core.Node.svg_align_y, and visualizer.core.Node.svg_item.

Referenced by visualizer.core.Node.set_position(), and visualizer.core.Node.set_svg_icon().

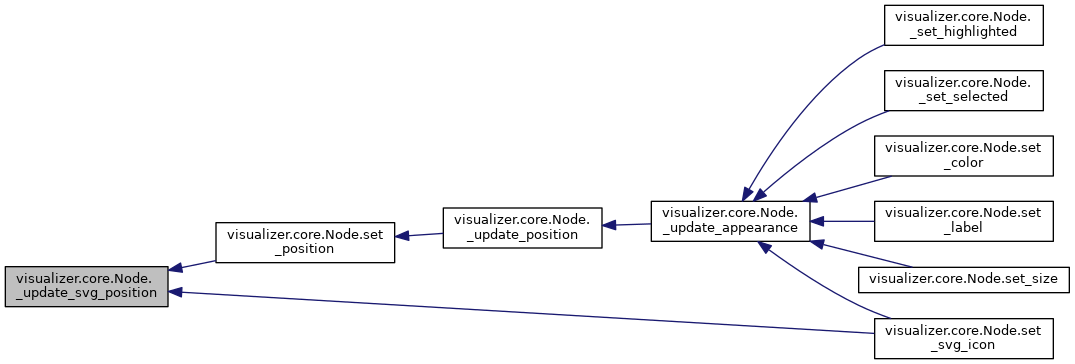

Here is the caller graph for this function:

◆ add_link()

def visualizer.core.Node.add_link	(	self,
		link
	)

Add link function.

Parameters

self	class object.
link	link to add.

Returns: none

Definition at line 475 of file core.py.

References visualizer.core.Node.links.

◆ get_position()

def visualizer.core.Node.get_position ( self )

Get position function.

Parameters

self	class object.

Returns: x and y position

Definition at line 442 of file core.py.

References visualizer.core.Node.canvas_item.

Referenced by visualizer.core.Node._update_position().

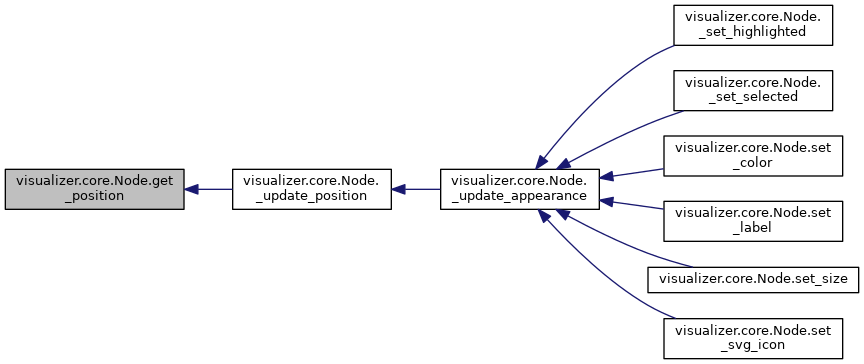

Here is the caller graph for this function:

◆ has_mobility()

def visualizer.core.Node.has_mobility ( self )

Has mobility function.

Parameters

self	class object.

Returns: modility option

Definition at line 498 of file core.py.

References visualizer.core.Node._has_mobility, and visualizer.core.Node.node_index.

◆ on_enter_notify_event()

def visualizer.core.Node.on_enter_notify_event	(	self,
		view,
		target,
		event
	)

On Enter event handle.

Parameters

self	class object.
view	view
target	target
event	event

Returns: none

Definition at line 285 of file core.py.

References visualizer.core.Node.highlighted.

◆ on_leave_notify_event()

def visualizer.core.Node.on_leave_notify_event	(	self,
		view,
		target,
		event
	)

On Leave event handle.

Parameters

self	class object.
view	view
target	target
event	event

Returns: none

Definition at line 296 of file core.py.

References visualizer.core.Node.highlighted.

◆ remove_link()

def visualizer.core.Node.remove_link	(	self,
		link
	)

Remove link function.

Parameters

self	class object.
link	link to add.

Returns: none

Definition at line 486 of file core.py.

References visualizer.core.Node.links.

◆ set_color()

def visualizer.core.Node.set_color	(	self,
		color
	)

Set color function.

Parameters

self	class object.
color	color to set.

Returns: none

Definition at line 461 of file core.py.

References visualizer.core.Node._color, and visualizer.core.Node._update_appearance().

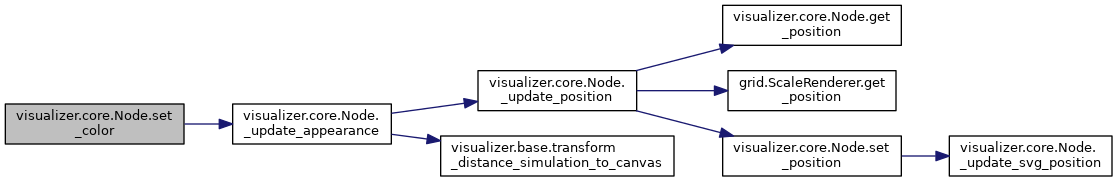

Here is the call graph for this function:

◆ set_label()

def visualizer.core.Node.set_label	(	self,
		label
	)

Set a label for the node.

Parameters

self	class object.
label	label to set

Returns: : an exception if invalid parameter.

Definition at line 195 of file core.py.

References visualizer.core.Node._label, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

◆ set_position()

def visualizer.core.Node.set_position	(	self,
		x,
		y
	)

Set position function.

Parameters

self	class object.
x	x position
y	y position

Returns: none

Definition at line 402 of file core.py.

References visualizer.core.Node._label_canvas_item, visualizer.core.Node._size, visualizer.core.Node._update_svg_position(), visualizer.core.Node.canvas_item, visualizer.core.Node.links, max, min, visualizer.core.Node.svg_item, and visualizer.core.Node.visualizer.

Referenced by visualizer.core.Node._update_position().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_size()

def visualizer.core.Node.set_size	(	self,
		size
	)

Set size function.

Parameters

self	class object.
size	selected size

Returns: none

Definition at line 350 of file core.py.

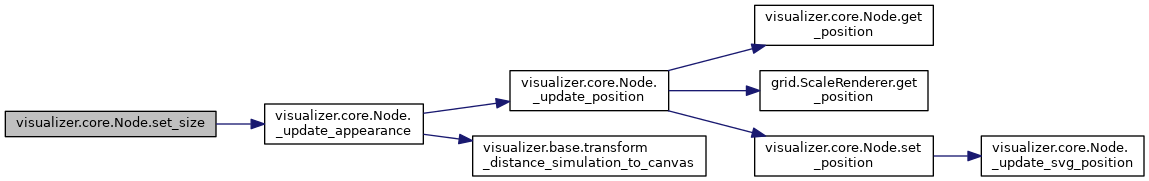

References visualizer.core.Node._size, and visualizer.core.Node._update_appearance().

Here is the call graph for this function:

◆ set_svg_icon()

def visualizer.core.Node.set_svg_icon	(	self,
		file_base_name,
		width = `None`,
		height = `None`,
		align_x = `0.5`,
		align_y = `0.5`
	)

Set a background SVG icon for the node.

Parameters

file_base_name	base file name, including .svg extension, of the svg file. Place the file in the folder src/contrib/visualizer/resource.
width	scale to the specified width, in meters
height	scale to the specified height, in meters
align_x	horizontal alignment of the icon relative to the node position, from 0 (icon fully to the left of the node) to 1.0 (icon fully to the right of the node)
align_y	vertical alignment of the icon relative to the node position, from 0 (icon fully to the top of the node) to 1.0 (icon fully to the bottom of the node)

Returns: a ValueError exception if invalid dimensions.

Definition at line 149 of file core.py.

References visualizer.core.Node._update_appearance(), visualizer.core.Node._update_svg_position(), visualizer.core.Node.canvas_item, visualizer.core.Node.svg_align_x, visualizer.core.Node.svg_align_y, visualizer.core.Node.svg_item, visualizer.base.transform_distance_simulation_to_canvas(), and visualizer.core.Node.visualizer.

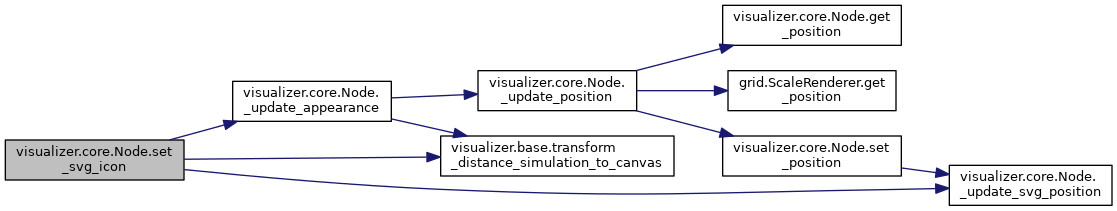

Here is the call graph for this function:

◆ tooltip_query()

def visualizer.core.Node.tooltip_query	(	self,
		tooltip
	)

Query tooltip.

Parameters

self	class object.
tooltip	tooltip

Returns: none

Definition at line 223 of file core.py.

References visualizer.core.Node.node_index, and visualizer.core.Node.visualizer.

Member Data Documentation

◆ gsignals

visualizer.core.Node.__gsignals__

staticprivate

Initial value:

=  {
        'query-extra-tooltip-info': (GObject.SignalFlags.RUN_LAST, None, (object,)),
        }

signal emitted whenever a tooltip is about to be shown for the node the first signal parameter is a python list of strings, to which information can be appended

Definition at line 116 of file core.py.

◆ _color

visualizer.core.Node._color

private

color

Definition at line 136 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), and visualizer.core.Node.set_color().

◆ _has_mobility

visualizer.core.Node._has_mobility

private

has mobility model

Definition at line 133 of file core.py.

Referenced by visualizer.core.Node.has_mobility().

◆ _highlighted

visualizer.core.Node._highlighted

private

is highlighted

Definition at line 135 of file core.py.

Referenced by visualizer.core.Node._get_highlighted(), and visualizer.core.Node._set_highlighted().

◆ _label

visualizer.core.Node._label

private

label

Definition at line 144 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), and visualizer.core.Node.set_label().

◆ _label_canvas_item

visualizer.core.Node._label_canvas_item

private

label canvas

Definition at line 145 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), and visualizer.core.Node.set_position().

◆ _selected

visualizer.core.Node._selected

private

is selected

Definition at line 134 of file core.py.

Referenced by visualizer.core.Node._get_selected(), visualizer.core.Node._set_selected(), and visualizer.core.Node._update_appearance().

◆ _size

visualizer.core.Node._size

private

size

Definition at line 137 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), visualizer.core.Node.set_position(), and visualizer.core.Node.set_size().

◆ canvas_item

visualizer.core.Node.canvas_item

canvas item

Definition at line 130 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), wifi_intrastructure_link.WifiLink.destroy(), visualizer.core.Node.get_position(), visualizer.core.Channel.get_position(), wifi_intrastructure_link.WifiLink.set_ap(), visualizer.core.Node.set_position(), visualizer.core.Channel.set_position(), visualizer.core.Node.set_svg_icon(), and visualizer.core.WiredLink.update_points().

◆ links

visualizer.core.Node.links

links

Definition at line 132 of file core.py.

Referenced by visualizer.core.Node.add_link(), visualizer.core.Node.remove_link(), visualizer.core.Node.set_position(), and visualizer.core.Channel.set_position().

◆ menu

visualizer.core.Node.menu

menu

Definition at line 140 of file core.py.

◆ node_index

visualizer.core.Node.node_index

node index

Definition at line 129 of file core.py.

Referenced by visualizer.core.Node.has_mobility(), visualizer.core.Node.tooltip_query(), olsr.ShowOlsrRoutingTable.update(), ipv4_routing_table.ShowIpv4RoutingTable.update(), and interface_statistics.ShowInterfaceStatistics.update().

◆ svg_align_x

visualizer.core.Node.svg_align_x

svg align X

Definition at line 142 of file core.py.

Referenced by visualizer.core.Node._update_svg_position(), and visualizer.core.Node.set_svg_icon().

◆ svg_align_y

visualizer.core.Node.svg_align_y

svg align Y

Definition at line 143 of file core.py.

Referenced by visualizer.core.Node._update_svg_position(), and visualizer.core.Node.set_svg_icon().

◆ svg_item

visualizer.core.Node.svg_item

svg item

Definition at line 141 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), visualizer.core.Node._update_svg_position(), visualizer.core.Node.set_position(), and visualizer.core.Node.set_svg_icon().

◆ visualizer

visualizer.core.Node.visualizer

visualier object

Definition at line 128 of file core.py.

Referenced by olsr.ShowOlsrRoutingTable._response_cb(), ipv4_routing_table.ShowIpv4RoutingTable._response_cb(), interface_statistics.ShowInterfaceStatistics._response_cb(), show_last_packets.ShowLastPackets._response_cb(), visualizer.core.Node._update_appearance(), interface_statistics.StatisticsCollector.get_interface_statistics(), visualizer.core.Node.set_position(), visualizer.core.Node.set_svg_icon(), visualizer.core.Node.tooltip_query(), and show_last_packets.ShowLastPackets.update().

Property Documentation

◆ highlighted

visualizer.core.Node.highlighted = property(_get_highlighted, _set_highlighted)

static

highlighted property

Definition at line 348 of file core.py.

Referenced by visualizer.core.Node._update_appearance(), visualizer.core.Node.on_enter_notify_event(), and visualizer.core.Node.on_leave_notify_event().

◆ selected

visualizer.core.Node.selected = property(_get_selected, _set_selected)

static

selected property

Definition at line 327 of file core.py.

The documentation for this class was generated from the following file:

src/visualizer/visualizer/core.py

Public Member Functions

Public Attributes

Properties

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ __init__()

Member Function Documentation

◆ _get_highlighted()

◆ _get_selected()

◆ _set_highlighted()

◆ _set_selected()

◆ _update_appearance()

◆ _update_position()

◆ _update_svg_position()

◆ add_link()

◆ get_position()

◆ has_mobility()

◆ on_enter_notify_event()

◆ on_leave_notify_event()

◆ remove_link()

◆ set_color()

◆ set_label()

◆ set_position()

◆ set_size()

◆ set_svg_icon()

◆ tooltip_query()

Member Data Documentation

◆ __gsignals__

◆ _color

◆ _has_mobility

◆ _highlighted

◆ _label

◆ _label_canvas_item

◆ _selected

◆ _size

◆ canvas_item

◆ links

◆ menu

◆ node_index

◆ svg_align_x

◆ svg_align_y

◆ svg_item

◆ visualizer

Property Documentation

◆ highlighted

◆ selected

◆ init()

◆ gsignals
