lte-spectrum-value-helper.cc File Reference

#include <map>
#include <cmath>
#include <ns3/log.h>
#include <ns3/fatal-error.h>
#include "lte-spectrum-value-helper.h"

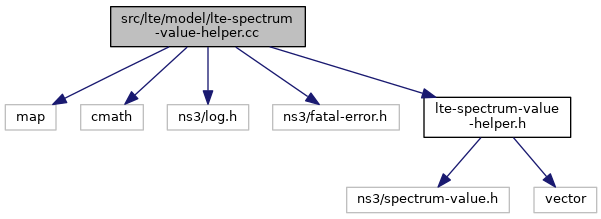

Include dependency graph for lte-spectrum-value-helper.cc:

Go to the source code of this file.

Classes
struct	ns3::EutraChannelNumbers
	Table 5.7.3-1 "E-UTRA channel numbers" from 3GPP TS 36.101 The table was converted to C syntax doing a cut & paste from TS 36.101 and running the following filter: awk '{if ((NR % 7) == 1) printf("{"); printf ("%s",$0); if ((NR % 7) == 0) printf("},\n"); else printf(", ");}' | sed 's/ – /, /g'. More...
struct	ns3::LteSpectrumModelId
	LteSpectrumModelId structure. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	NUM_EUTRA_BANDS   (sizeof (g_eutraChannelNumbers) / sizeof (EutraChannelNumbers))
	number of EUTRA bands More...

Functions
bool	ns3::operator< (const LteSpectrumModelId &a, const LteSpectrumModelId &b)
	Constructor. More...
ostream &	std::operator<< (ostream &os, const vector< int > &v)

Variables
static const struct ns3::EutraChannelNumbers	ns3::g_eutraChannelNumbers []
	eutra channel numbers More...
static std::map< LteSpectrumModelId, Ptr< SpectrumModel > >	ns3::g_lteSpectrumModelMap
	LTE spectrum model map. More...

Macro Definition Documentation

NUM_EUTRA_BANDS

#define NUM_EUTRA_BANDS   (sizeof (g_eutraChannelNumbers) / sizeof (EutraChannelNumbers))

number of EUTRA bands

Definition at line 99 of file lte-spectrum-value-helper.cc.

Referenced by ns3::LteSpectrumValueHelper::GetDownlinkCarrierBand(), ns3::LteSpectrumValueHelper::GetDownlinkCarrierFrequency(), ns3::LteSpectrumValueHelper::GetUplinkCarrierBand(), and ns3::LteSpectrumValueHelper::GetUplinkCarrierFrequency().

Function Documentation

operator<<()

ostream& std::operator<<	(	ostream &	os,
		const vector< int > &	v
	)

Definition at line 34 of file lte-spectrum-value-helper.cc.
