qos-utils.h File Reference
#include "ns3/ptr.h"
+ Include dependency graph for qos-utils.h:

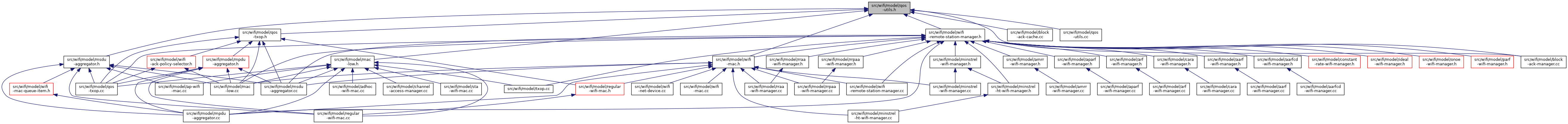

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces

 ns3
 Every class exported by the ns3 library is enclosed in the ns3 namespace.


Enumerations

enum  ns3::AcIndex {
  ns3::AC_BE = 0, ns3::AC_BK = 1, ns3::AC_VI = 2, ns3::AC_VO = 3,
  ns3::AC_BE_NQOS = 4, ns3::AC_UNDEF
}
 This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012). More...


Functions

uint8_t ns3::GetTid (Ptr< const Packet > packet, const WifiMacHeader hdr)
 Extraction operator for TypeId. More...

uint8_t ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
 If a QoS tag is attached to the packet, returns a value < 8. More...

bool ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
 This function checks if packet with sequence number seqNumber is an "old" packet. More...

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
 Next function is useful to correctly sort buffered packets under block ack. More...

AcIndex ns3::QosUtilsMapTidToAc (uint8_t tid)
 Maps TID (Traffic ID) to Access classes. More...

uint8_t ns3::SelectQueueByDSField (Ptr< QueueItem > item)
 Determine the TX queue for a given packet. More...
