ns3::McpsDataIndicationParams Struct Reference

MCPS-DATA.indication params. More...

#include "lr-wpan-mac.h"

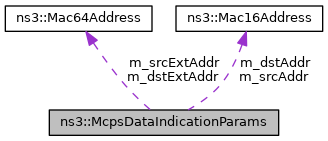

Collaboration diagram for ns3::McpsDataIndicationParams:

Public Attributes
uint8_t	m_dsn
	The DSN of the received data frame. More...
Mac16Address	m_dstAddr
	Destination address. More...
uint8_t	m_dstAddrMode
	Destination address mode. More...
Mac64Address	m_dstExtAddr
	Destination extended address. More...
uint16_t	m_dstPanId
	Destination PAN identifier. More...
uint8_t	m_mpduLinkQuality
	LQI value measured during reception of the MPDU. More...
Mac16Address	m_srcAddr
	Source address. More...
uint8_t	m_srcAddrMode
	Source address mode. More...
Mac64Address	m_srcExtAddr
	Source extended address. More...
uint16_t	m_srcPanId
	Source PAN identifier. More...

Detailed Description

MCPS-DATA.indication params.

See 7.1.1.3

Definition at line 270 of file lr-wpan-mac.h.

Member Data Documentation

m_dsn

uint8_t ns3::McpsDataIndicationParams::m_dsn

The DSN of the received data frame.

Definition at line 281 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_dstAddr

Mac16Address ns3::McpsDataIndicationParams::m_dstAddr

Destination address.

Definition at line 278 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_dstAddrMode

uint8_t ns3::McpsDataIndicationParams::m_dstAddrMode

Destination address mode.

Definition at line 276 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_dstExtAddr

Mac64Address ns3::McpsDataIndicationParams::m_dstExtAddr

Destination extended address.

Definition at line 279 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_dstPanId

uint16_t ns3::McpsDataIndicationParams::m_dstPanId

Destination PAN identifier.

Definition at line 277 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_mpduLinkQuality

uint8_t ns3::McpsDataIndicationParams::m_mpduLinkQuality

LQI value measured during reception of the MPDU.

Definition at line 280 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_srcAddr

Mac16Address ns3::McpsDataIndicationParams::m_srcAddr

Source address.

Definition at line 274 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanNetDevice::McpsDataIndication(), and ns3::LrWpanMac::PdDataIndication().

m_srcAddrMode

uint8_t ns3::McpsDataIndicationParams::m_srcAddrMode

Source address mode.

Definition at line 272 of file lr-wpan-mac.h.

Referenced by LrWpanAckTestCase::DataIndication(), LrWpanAckTestCase::ExtendedAddressingDataIndication(), and ns3::LrWpanMac::PdDataIndication().

m_srcExtAddr

Mac64Address ns3::McpsDataIndicationParams::m_srcExtAddr

Source extended address.

Definition at line 275 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_srcPanId

uint16_t ns3::McpsDataIndicationParams::m_srcPanId

Source PAN identifier.

Definition at line 273 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanNetDevice::McpsDataIndication(), and ns3::LrWpanMac::PdDataIndication().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
