ns3::RrpaaWifiRemoteStation Struct Reference

Hold per-remote-station state for RRPAA Wifi manager. More...

Inheritance diagram for ns3::RrpaaWifiRemoteStation:

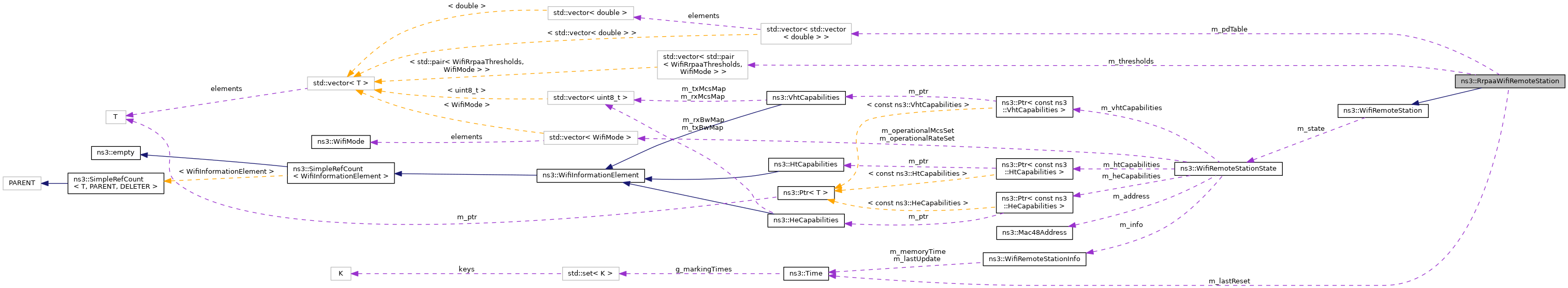

Collaboration diagram for ns3::RrpaaWifiRemoteStation:

Public Attributes
bool	m_adaptiveRtsOn
	Check if Adaptive RTS mechanism is on. More...
uint32_t	m_adaptiveRtsWnd
	Window size for the Adaptive RTS mechanism. More...
uint32_t	m_counter
	Counter for transmission attempts. More...
bool	m_initialized
	For initializing variables. More...
bool	m_lastFrameFail
	Flag if the last frame sent has failed. More...
Time	m_lastReset
	Time of the last reset. More...
uint32_t	m_nFailed
	Number of failed transmission attempts. More...
uint8_t	m_nRate
	Number of supported rates. More...
RrpaaProbabilitiesTable	m_pdTable
	Probability table for power and rate changes. More...
uint8_t	m_powerLevel
	Current power level. More...
uint8_t	m_prevPowerLevel
	Power level of the previous transmission. More...
uint8_t	m_prevRateIndex
	Rate index of the previous transmission. More...
uint8_t	m_rateIndex
	Current rate index. More...
uint32_t	m_rtsCounter
	Counter for RTS transmission attempts. More...
RrpaaThresholdsTable	m_thresholds
	RRPAA thresholds for this station. More...
Public Attributes inherited from ns3::WifiRemoteStation
WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

Hold per-remote-station state for RRPAA Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the APARF Wifi manager

Definition at line 42 of file rrpaa-wifi-manager.cc.

Member Data Documentation

m_adaptiveRtsOn

bool ns3::RrpaaWifiRemoteStation::m_adaptiveRtsOn

Check if Adaptive RTS mechanism is on.

Definition at line 49 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::DoCreateStation(), ns3::RrpaaWifiManager::DoNeedRts(), and ns3::RrpaaWifiManager::RunAdaptiveRtsAlgorithm().

m_adaptiveRtsWnd

uint32_t ns3::RrpaaWifiRemoteStation::m_adaptiveRtsWnd

Window size for the Adaptive RTS mechanism.

Definition at line 46 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::DoCreateStation(), and ns3::RrpaaWifiManager::RunAdaptiveRtsAlgorithm().

m_counter

uint32_t ns3::RrpaaWifiRemoteStation::m_counter

Counter for transmission attempts.

Definition at line 44 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckTimeout(), ns3::RrpaaWifiManager::DoReportDataFailed(), ns3::RrpaaWifiManager::DoReportDataOk(), ns3::RrpaaWifiManager::ResetCountersBasic(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_initialized

bool ns3::RrpaaWifiRemoteStation::m_initialized

For initializing variables.

Definition at line 51 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), and ns3::RrpaaWifiManager::DoCreateStation().

m_lastFrameFail

bool ns3::RrpaaWifiRemoteStation::m_lastFrameFail

Flag if the last frame sent has failed.

Definition at line 50 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::DoCreateStation(), ns3::RrpaaWifiManager::DoReportDataFailed(), ns3::RrpaaWifiManager::DoReportDataOk(), and ns3::RrpaaWifiManager::RunAdaptiveRtsAlgorithm().

m_lastReset

Time ns3::RrpaaWifiRemoteStation::m_lastReset

Time of the last reset.

Definition at line 48 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckTimeout(), and ns3::RrpaaWifiManager::ResetCountersBasic().

m_nFailed

uint32_t ns3::RrpaaWifiRemoteStation::m_nFailed

Number of failed transmission attempts.

Definition at line 45 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::DoReportDataFailed(), ns3::RrpaaWifiManager::ResetCountersBasic(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_nRate

uint8_t ns3::RrpaaWifiRemoteStation::m_nRate

Number of supported rates.

Definition at line 52 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), ns3::RrpaaWifiManager::InitThresholds(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_pdTable

RrpaaProbabilitiesTable ns3::RrpaaWifiRemoteStation::m_pdTable

Probability table for power and rate changes.

Definition at line 58 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_powerLevel

uint8_t ns3::RrpaaWifiRemoteStation::m_powerLevel

Current power level.

Definition at line 56 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), ns3::RrpaaWifiManager::DoGetDataTxVector(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_prevPowerLevel

uint8_t ns3::RrpaaWifiRemoteStation::m_prevPowerLevel

Power level of the previous transmission.

Definition at line 55 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), and ns3::RrpaaWifiManager::DoGetDataTxVector().

m_prevRateIndex

uint8_t ns3::RrpaaWifiRemoteStation::m_prevRateIndex

Rate index of the previous transmission.

Definition at line 53 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), and ns3::RrpaaWifiManager::DoGetDataTxVector().

m_rateIndex

uint8_t ns3::RrpaaWifiRemoteStation::m_rateIndex

Current rate index.

Definition at line 54 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), ns3::RrpaaWifiManager::DoGetDataTxVector(), ns3::RrpaaWifiManager::ResetCountersBasic(), and ns3::RrpaaWifiManager::RunBasicAlgorithm().

m_rtsCounter

uint32_t ns3::RrpaaWifiRemoteStation::m_rtsCounter

Counter for RTS transmission attempts.

Definition at line 47 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::DoCreateStation(), and ns3::RrpaaWifiManager::RunAdaptiveRtsAlgorithm().

m_thresholds

RrpaaThresholdsTable ns3::RrpaaWifiRemoteStation::m_thresholds

RRPAA thresholds for this station.

Definition at line 57 of file rrpaa-wifi-manager.cc.

Referenced by ns3::RrpaaWifiManager::CheckInit(), ns3::RrpaaWifiManager::GetThresholds(), and ns3::RrpaaWifiManager::InitThresholds().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rrpaa-wifi-manager.cc
