wifi-phy-test.cc File Reference

#include "ns3/packet.h"
#include "ns3/constant-position-mobility-model.h"
#include "ns3/simulator.h"
#include "ns3/command-line.h"
#include "ns3/flow-id-tag.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-phy.h"
#include "ns3/propagation-loss-model.h"
#include "ns3/propagation-delay-model.h"
#include "ns3/nist-error-rate-model.h"
#include "ns3/wifi-psdu.h"

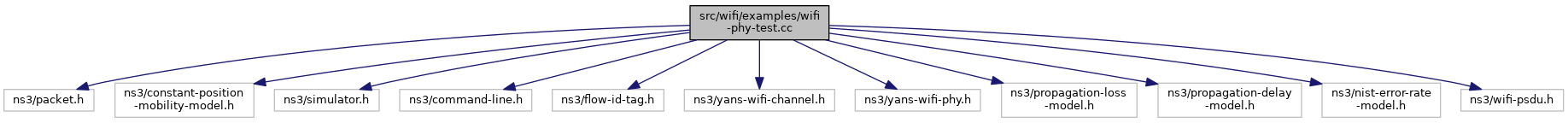

Include dependency graph for wifi-phy-test.cc:

Go to the source code of this file.

Classes
class	CollisionExperiment
	CollisionExperiment. More...
struct	CollisionExperiment::Input
	Input structure. More...
struct	PsrExperiment::Input
	Input structure. More...
struct	CollisionExperiment::Output
	Output struture. More...
struct	PsrExperiment::Output
	Output structure. More...
class	PsrExperiment
	PsrExperiment. More...

Functions
double	CalcPsr (struct PsrExperiment::Output output, struct PsrExperiment::Input input)
static void	PrintPsr (int argc, char *argv[])
static void	PrintPsrVsCollisionInterval (int argc, char *argv[])
static void	PrintPsrVsDistance (int argc, char *argv[])
static void	PrintSizeVsRange (int argc, char *argv[])

Function Documentation

CalcPsr()

double CalcPsr	(	struct PsrExperiment::Output	output,
		struct PsrExperiment::Input	input
	)

Definition at line 343 of file wifi-phy-test.cc.

References PsrExperiment::Input::nPackets, and PsrExperiment::Output::received.

Referenced by PrintPsrVsDistance(), and PrintSizeVsRange().

Here is the caller graph for this function:

PrintPsr()

static void PrintPsr ( int  argc, char *  argv[]  )

static

Definition at line 321 of file wifi-phy-test.cc.

References second::cmd, PsrExperiment::Input::distance, experiment(), PsrExperiment::Input::nPackets, PsrExperiment::Input::packetSize, PsrExperiment::Input::txMode, and PsrExperiment::Input::txPowerLevel.

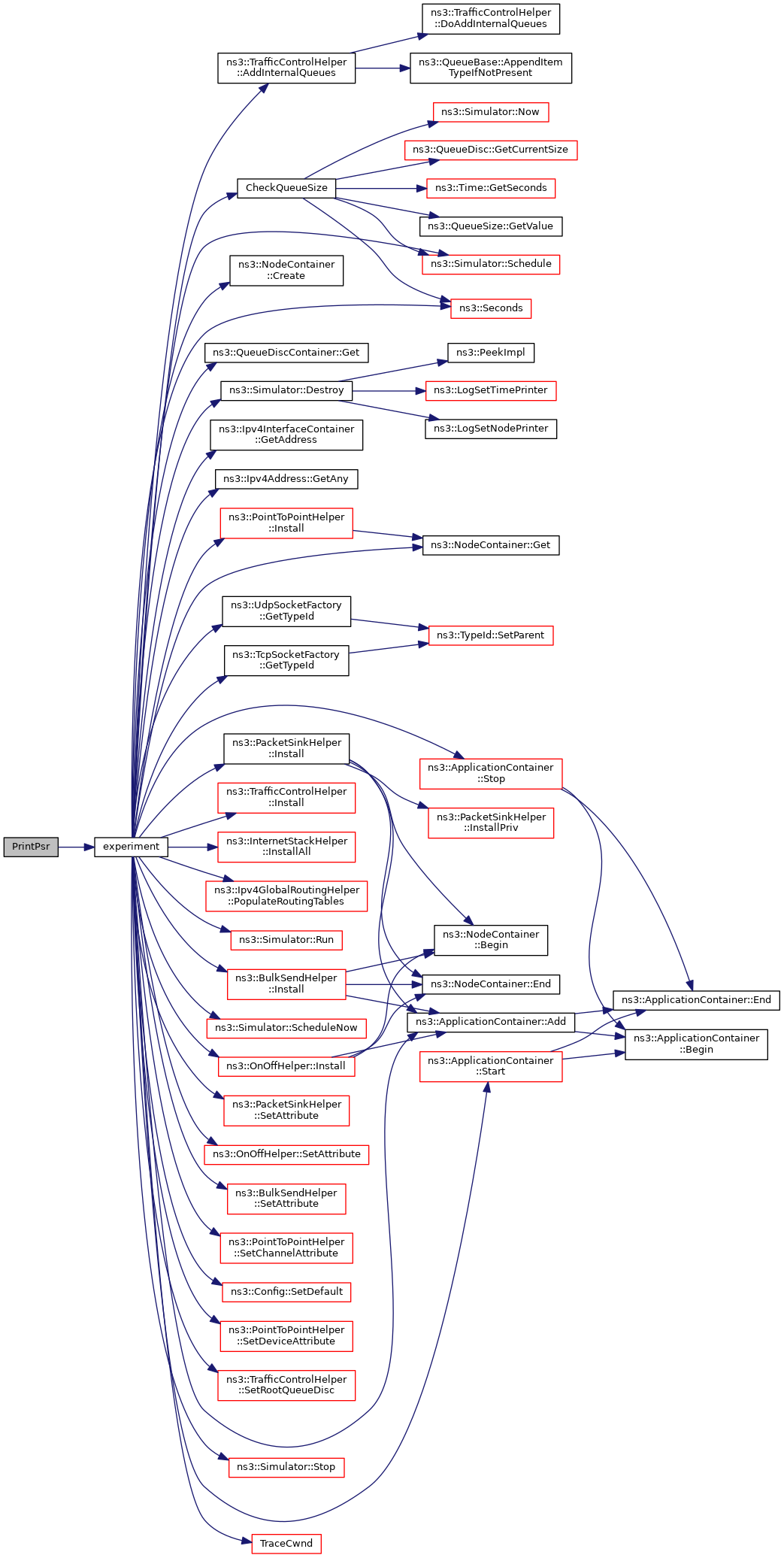

Here is the call graph for this function:

PrintPsrVsCollisionInterval()

static void PrintPsrVsCollisionInterval ( int  argc, char *  argv[]  )

static

Definition at line 439 of file wifi-phy-test.cc.

References second::cmd, experiment(), CollisionExperiment::Input::interval, ns3::MicroSeconds(), CollisionExperiment::Input::nPackets, CollisionExperiment::Output::receivedA, CollisionExperiment::Output::receivedB, CollisionExperiment::Input::xA, and CollisionExperiment::Input::xB.

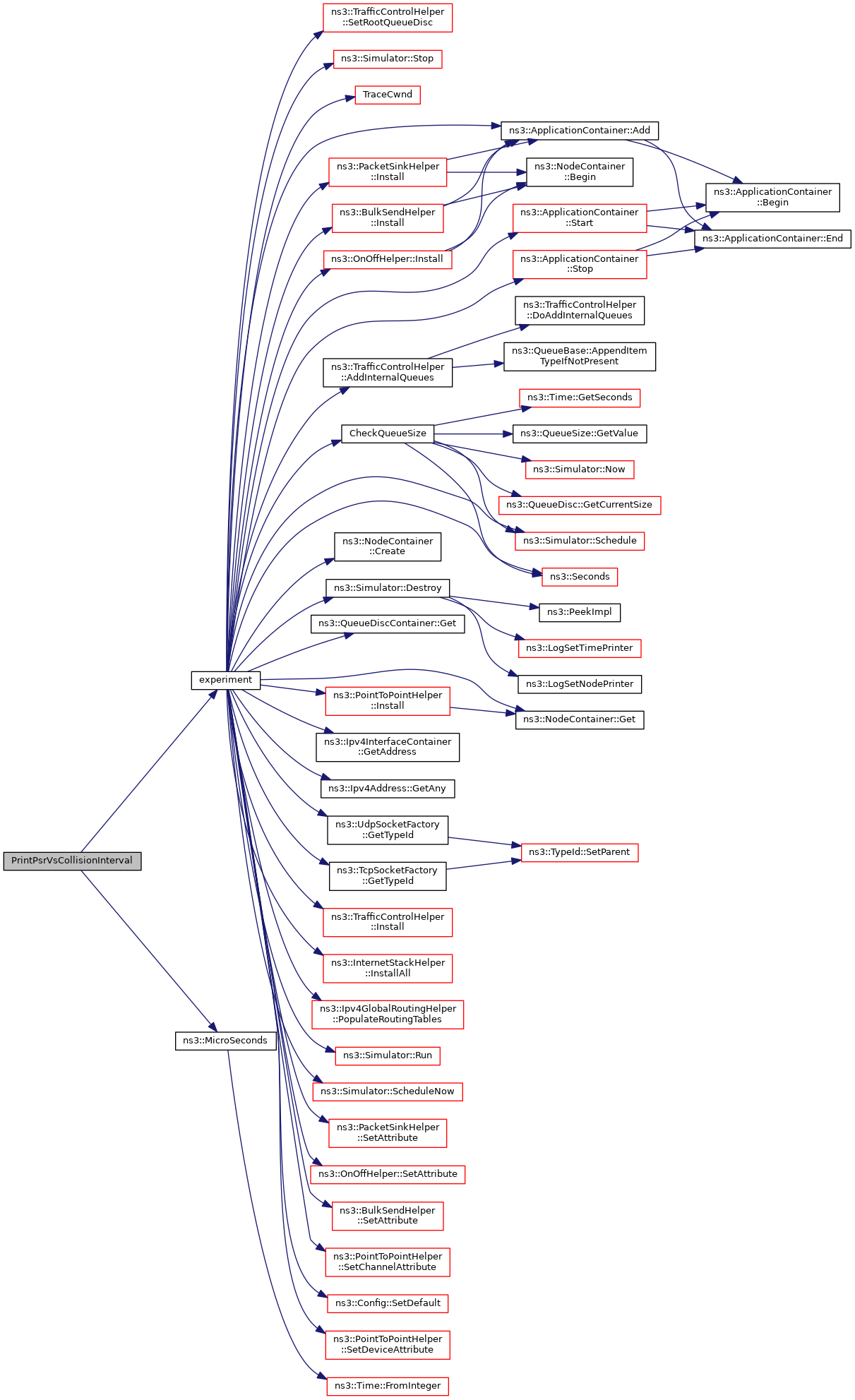

Here is the call graph for this function:

PrintPsrVsDistance()

static void PrintPsrVsDistance ( int  argc, char *  argv[]  )

static

Definition at line 350 of file wifi-phy-test.cc.

References CalcPsr(), second::cmd, PsrExperiment::Input::distance, experiment(), PsrExperiment::Input::nPackets, PsrExperiment::Input::packetSize, PsrExperiment::Input::txMode, and PsrExperiment::Input::txPowerLevel.

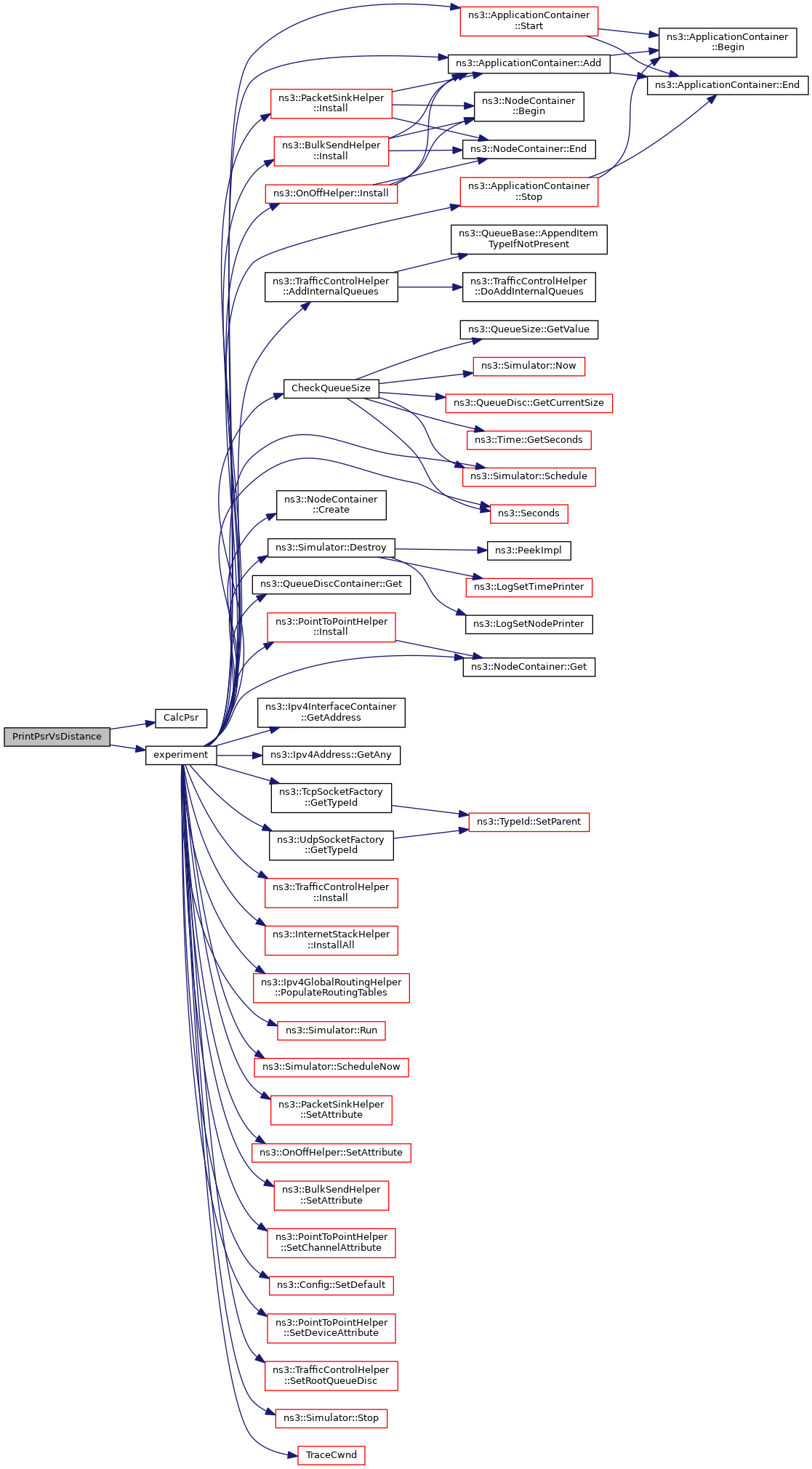

Here is the call graph for this function:

PrintSizeVsRange()

static void PrintSizeVsRange ( int  argc, char *  argv[]  )

static

Definition at line 402 of file wifi-phy-test.cc.

References CalcPsr(), second::cmd, PsrExperiment::Input::distance, experiment(), PsrExperiment::Input::nPackets, PsrExperiment::Input::packetSize, PsrExperiment::Input::txMode, and PsrExperiment::Input::txPowerLevel.

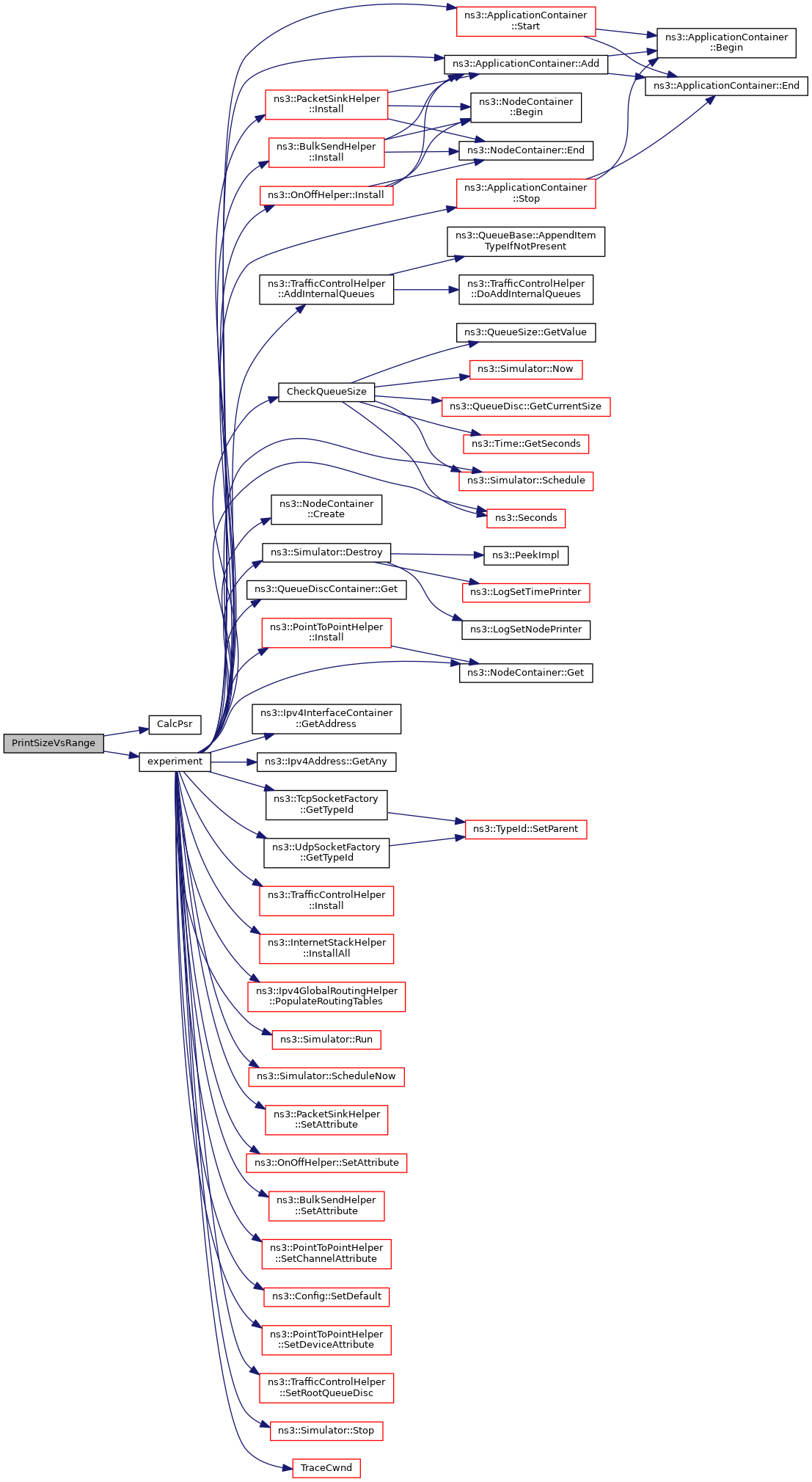

Here is the call graph for this function:
