wifi-phy.h File Reference

#include "ns3/event-id.h"
#include "ns3/error-model.h"
#include "wifi-mpdu-type.h"
#include "wifi-standards.h"
#include "interference-helper.h"
#include "wifi-phy-state-helper.h"

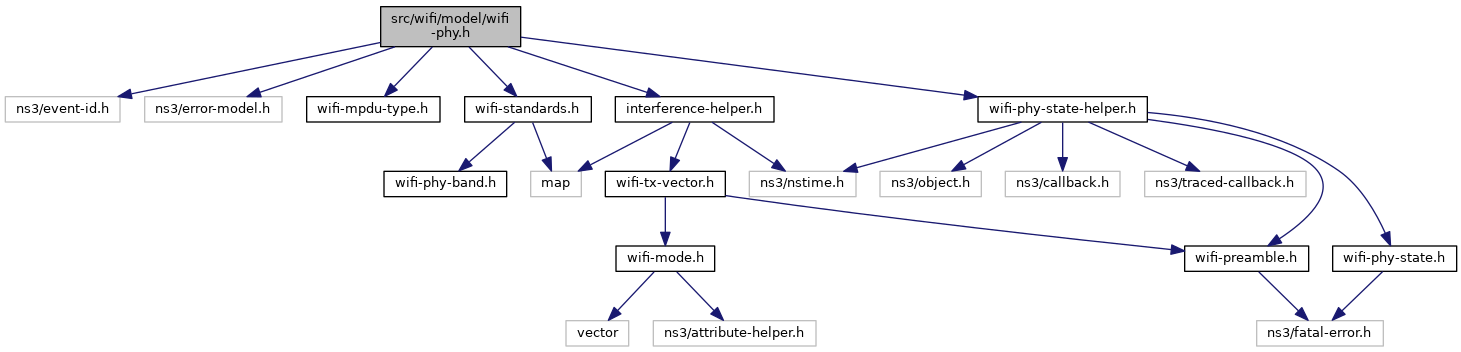

Include dependency graph for wifi-phy.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::HePreambleParameters
	Parameters for receive HE preamble. More...
struct	ns3::MpduInfo
	MpduInfo structure. More...
struct	ns3::SignalNoiseDbm
	SignalNoiseDbm structure. More...
class	ns3::WifiPhy
	802.11 PHY layer model More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	HE_PHY   125
#define	HT_PHY   127
#define	VHT_PHY   126

Enumerations
enum	ns3::WifiPhyRxfailureReason {   ns3::UNKNOWN = 0, ns3::UNSUPPORTED_SETTINGS, ns3::CHANNEL_SWITCHING, ns3::RXING,   ns3::TXING, ns3::SLEEPING, ns3::BUSY_DECODING_PREAMBLE, ns3::PREAMBLE_DETECT_FAILURE,   ns3::RECEPTION_ABORTED_BY_TX, ns3::L_SIG_FAILURE, ns3::SIG_A_FAILURE, ns3::PREAMBLE_DETECTION_PACKET_SWITCH,   ns3::FRAME_CAPTURE_PACKET_SWITCH, ns3::OBSS_PD_CCA_RESET }
	Enumeration of the possible reception failure reasons. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, WifiPhyRxfailureReason reason)
	Stream insertion operator. More...

Macro Definition Documentation

HE_PHY

#define HE_PHY   125

Definition at line 34 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211ax().

HT_PHY

#define HT_PHY   127

Definition at line 36 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211n(), and ns3::WifiPhy::ConfigureHtDeviceMcsSet().

VHT_PHY

#define VHT_PHY   126

Definition at line 35 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211ac().
