wifi-standards.h File Reference

#include <map>
#include "wifi-phy-band.h"

Include dependency graph for wifi-standards.h:

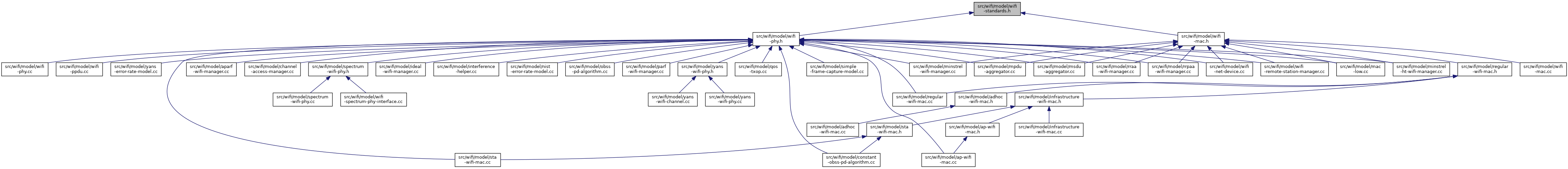

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::WifiStandardInfo
	hold PHY and MAC information based on the selected standard. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Enumerations
enum	ns3::WifiMacStandard { ns3::WIFI_MAC_STANDARD_80211, ns3::WIFI_MAC_STANDARD_80211n, ns3::WIFI_MAC_STANDARD_80211ac, ns3::WIFI_MAC_STANDARD_80211ax }
	Identifies the MAC specification that a Wifi device is configured to use. More...
enum	ns3::WifiPhyStandard {   ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211_10MHZ,   ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211p, ns3::WIFI_PHY_STANDARD_holland, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ,   ns3::WIFI_PHY_STANDARD_80211n_5GHZ, ns3::WIFI_PHY_STANDARD_80211n, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax,   ns3::WIFI_PHY_STANDARD_UNSPECIFIED }
	Identifies the PHY specification that a Wifi device is configured to use. More...
enum	ns3::WifiStandard {   ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211p,   ns3::WIFI_STANDARD_holland, ns3::WIFI_STANDARD_80211n_2_4GHZ, ns3::WIFI_STANDARD_80211n_5GHZ, ns3::WIFI_STANDARD_80211ac,   ns3::WIFI_STANDARD_80211ax_2_4GHZ, ns3::WIFI_STANDARD_80211ax_5GHZ, ns3::WIFI_STANDARD_80211ax_6GHZ }
	Identifies the allowed configurations that a Wifi device is configured to use. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, WifiPhyStandard standard)
	Stream insertion operator. More...
std::ostream &	ns3::operator<< (std::ostream &os, WifiMacStandard standard)
	Stream insertion operator. More...
std::ostream &	ns3::operator<< (std::ostream &os, WifiStandard standard)
	Stream insertion operator. More...

Variables
const std::map< WifiStandard, WifiStandardInfo >	ns3::wifiStandards
	map a given standard configured by the user to the corresponding WifiStandardInfo More...
