CobaltQueueDiscDropTest Class Reference

Test 2: Cobalt Queue Disc Drop Test Item. More...

Inheritance diagram for CobaltQueueDiscDropTest:

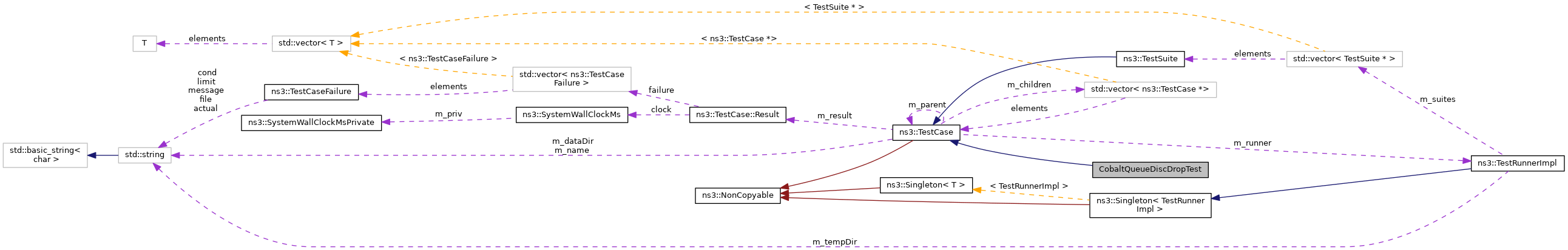

Collaboration diagram for CobaltQueueDiscDropTest:

Public Member Functions
	CobaltQueueDiscDropTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	Enqueue (Ptr< CobaltQueueDisc > queue, uint32_t size, uint32_t nPkt)
	Enqueue function. More...
void	EnqueueWithDelay (Ptr< CobaltQueueDisc > queue, uint32_t size, uint32_t nPkt)
void	RunDropTest (QueueSizeUnit mode)
	Run Cobalt test function. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test 2: Cobalt Queue Disc Drop Test Item.

Definition at line 228 of file cobalt-queue-disc-test-suite.cc.

Constructor & Destructor Documentation

CobaltQueueDiscDropTest()

CobaltQueueDiscDropTest::CobaltQueueDiscDropTest

(

)

Definition at line 250 of file cobalt-queue-disc-test-suite.cc.

Member Function Documentation

DoRun()

void CobaltQueueDiscDropTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 319 of file cobalt-queue-disc-test-suite.cc.

References ns3::BYTES, ns3::PACKETS, and RunDropTest().

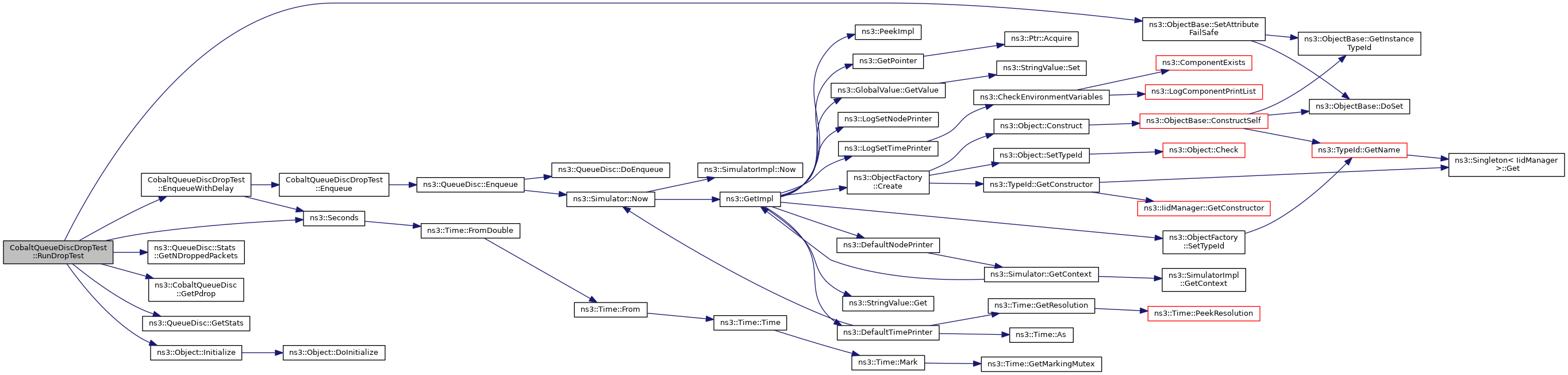

Here is the call graph for this function:

Enqueue()

void CobaltQueueDiscDropTest::Enqueue	(	Ptr< CobaltQueueDisc >	queue,
		uint32_t	size,
		uint32_t	nPkt
	)

Enqueue function.

Parameters

queue	the queue disc
size	the size
nPkt	the number of packets

Definition at line 309 of file cobalt-queue-disc-test-suite.cc.

References ns3::QueueDisc::Enqueue().

Referenced by EnqueueWithDelay().

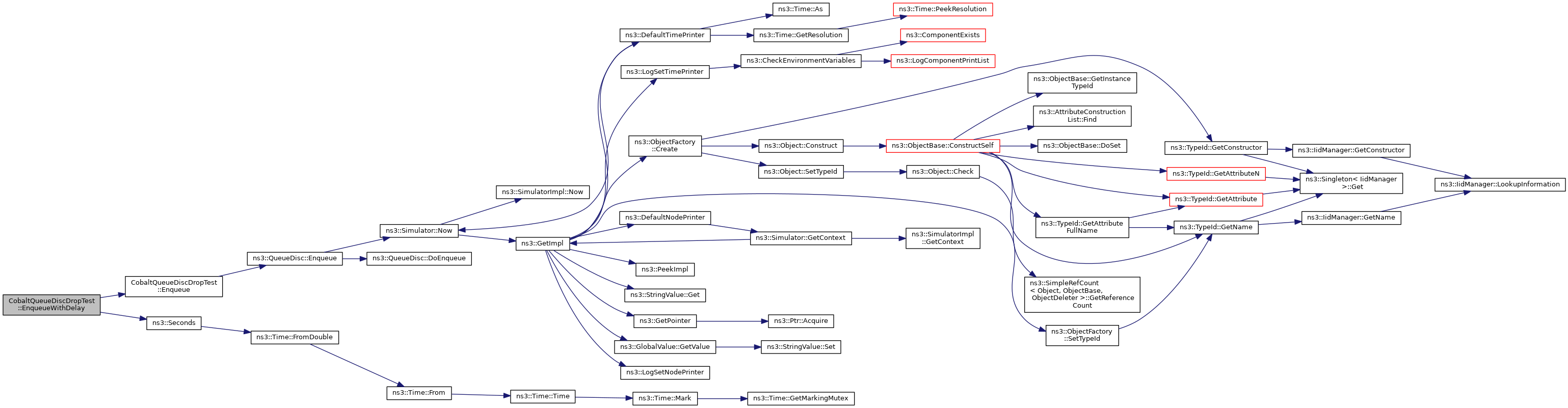

Here is the call graph for this function:

Here is the caller graph for this function:

EnqueueWithDelay()

void CobaltQueueDiscDropTest::EnqueueWithDelay	(	Ptr< CobaltQueueDisc >	queue,
		uint32_t	size,
		uint32_t	nPkt
	)

Definition at line 298 of file cobalt-queue-disc-test-suite.cc.

References Enqueue(), and ns3::Seconds().

Referenced by RunDropTest().

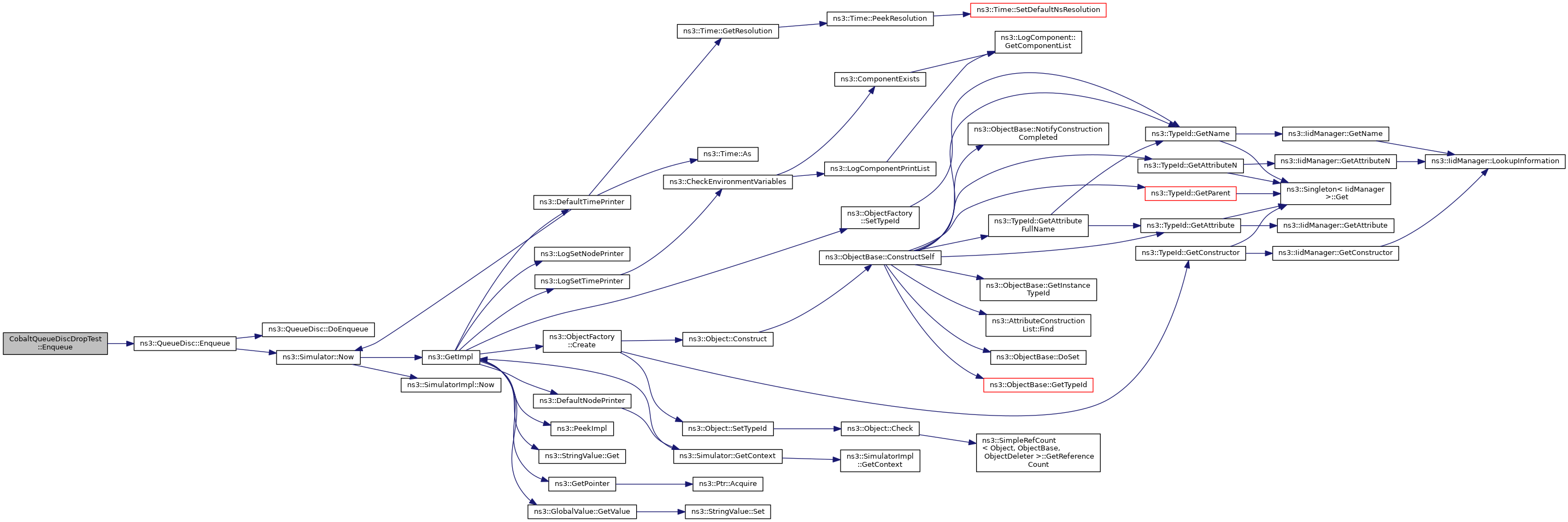

Here is the call graph for this function:

Here is the caller graph for this function:

RunDropTest()

void CobaltQueueDiscDropTest::RunDropTest

(

QueueSizeUnit

mode

)

Run Cobalt test function.

Parameters

mode

the mode

Definition at line 256 of file cobalt-queue-disc-test-suite.cc.

References ns3::BYTES, EnqueueWithDelay(), ns3::QueueDisc::Stats::GetNDroppedPackets(), ns3::CobaltQueueDisc::GetPdrop(), ns3::QueueDisc::GetStats(), ns3::Object::Initialize(), NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, ns3::PACKETS, pktSize, ns3::Seconds(), and ns3::ObjectBase::SetAttributeFailSafe().

Referenced by DoRun().

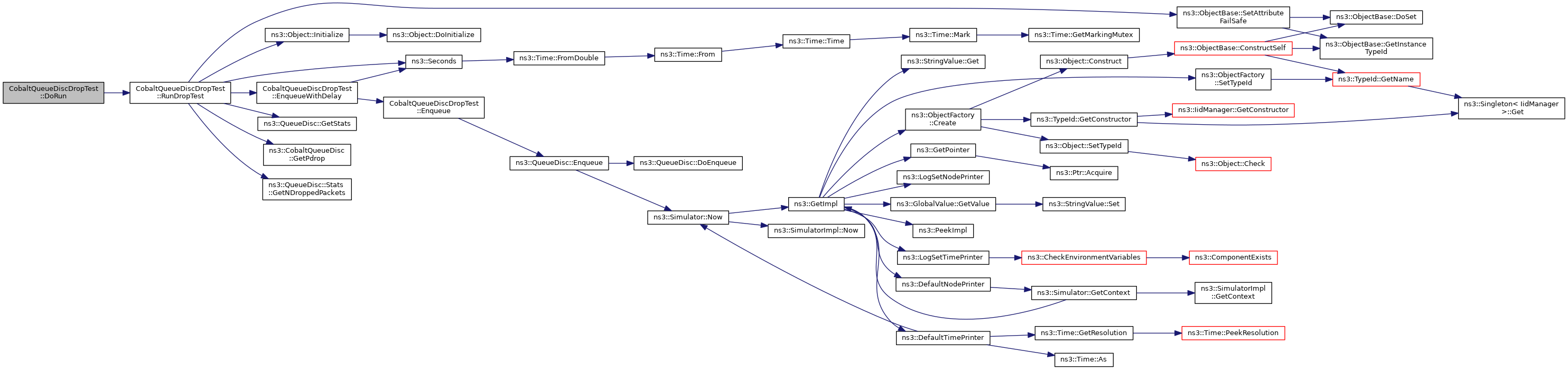

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/traffic-control/test/cobalt-queue-disc-test-suite.cc
