Helper class for UAN CW MAC example. More...

#include "uan-animation.h"

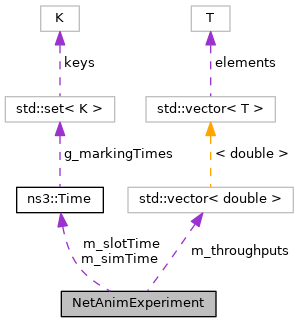

Collaboration diagram for NetAnimExperiment:

Public Member Functions
	NetAnimExperiment ()
	the experiment More...

void	IncrementCw (uint32_t cw)
	Increment CW function. More...

void	ReceivePacket (Ptr< Socket > socket)
	Receive packet function. More...

void	ResetData ()
	Reset data function. More...

void	Run (UanHelper &uan)
	Run function. More...

void	UpdatePositions (NodeContainer &nodes)
	Update positions function. More...

Public Attributes
uint32_t	m_avgs
	averages More...

double	m_boundary
	boundary More...

uint32_t	m_bytesTotal
	bytes total More...

uint32_t	m_cwMax
	CW maximum. More...

uint32_t	m_cwMin
	CW minimum. More...

uint32_t	m_cwStep
	CW step. More...

uint32_t	m_dataRate
	data rate More...

double	m_depth
	depth More...

uint32_t	m_numNodes
	number of nodes More...

uint32_t	m_packetSize
	packet size More...

Time	m_simTime
	simulation time More...

Time	m_slotTime
	slot time More...

std::vector< double >	m_throughputs
	throughputs More...

Detailed Description

Helper class for UAN CW MAC example.

Definition at line 34 of file uan-animation.h.

Constructor & Destructor Documentation

◆ NetAnimExperiment()

NetAnimExperiment::NetAnimExperiment ( )

the experiment

Definition at line 52 of file uan-animation.cc.

Member Function Documentation

◆ IncrementCw()

void NetAnimExperiment::IncrementCw ( uint32_t cw )

Increment CW function.

Parameters

cw the CW

Definition at line 77 of file uan-animation.cc.

References m_avgs, m_cwStep, m_throughputs, NS_ASSERT, NS_LOG_DEBUG, and ns3::Config::Set().

Referenced by Run().

Here is the call graph for this function:

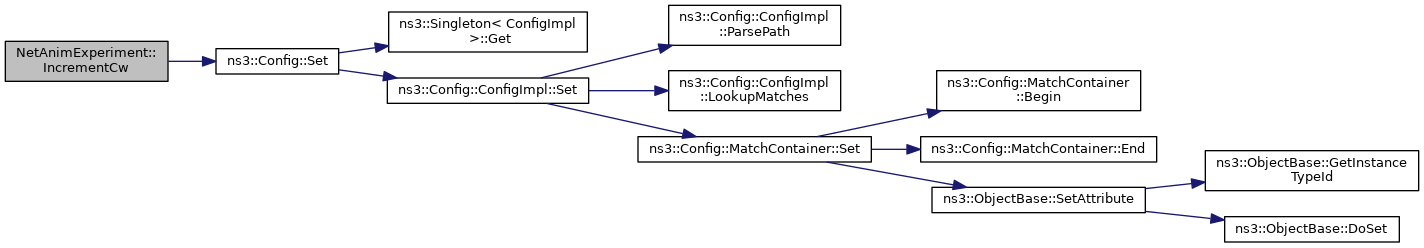

Here is the caller graph for this function:

◆ ReceivePacket()

void NetAnimExperiment::ReceivePacket ( Ptr< Socket > socket )

Receive packet function.

Parameters

socket the socket to receive from

Definition at line 112 of file uan-animation.cc.

References ns3::Packet::GetSize(), m_bytesTotal, and ns3::Socket::Recv().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetData()

void NetAnimExperiment::ResetData ( )

Reset data function.

Definition at line 69 of file uan-animation.cc.

References ns3::Time::GetSeconds(), m_bytesTotal, m_simTime, m_throughputs, ns3::Now(), and NS_LOG_DEBUG.

Referenced by Run().

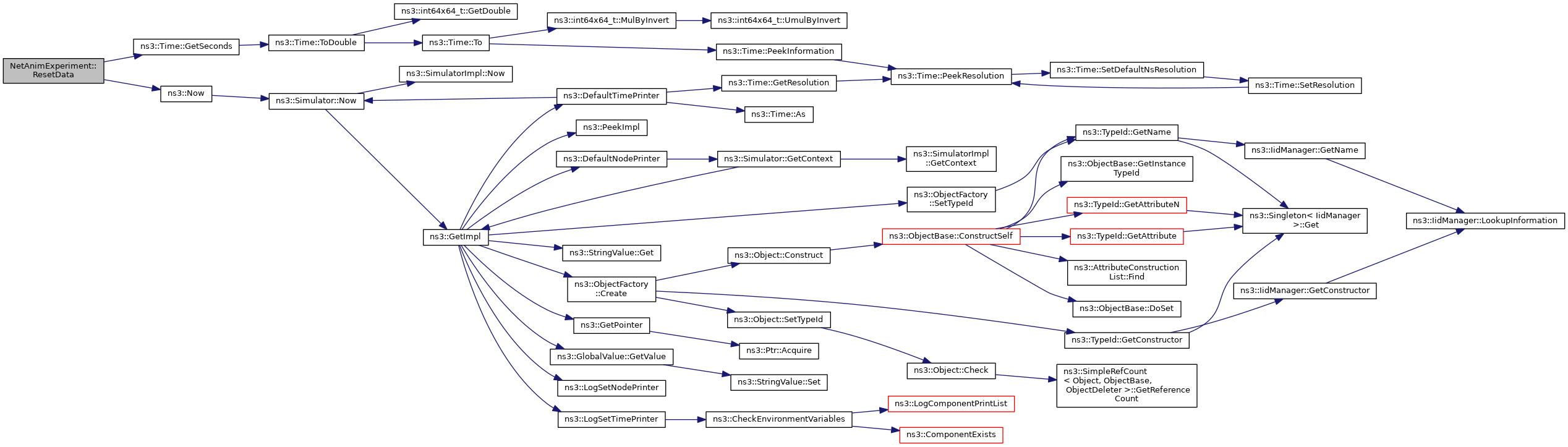

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Run()

void NetAnimExperiment::Run ( UanHelper & uan )

Run function.

Parameters

uan	the UAN helper

Definition at line 124 of file uan-animation.cc.

References ns3::ListPositionAllocator::Add(), ns3::Object::AggregateObject(), ns3::Socket::Bind(), third::channel, ns3::NodeContainer::Create(), first::devices, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), GetPosition(), ns3::UniformRandomVariable::GetValue(), IncrementCw(), ns3::PacketSocketHelper::Install(), ns3::OnOffHelper::Install(), ns3::UanHelper::Install(), m_avgs, m_boundary, m_bytesTotal, m_cwMax, m_cwMin, m_cwStep, m_dataRate, m_depth, m_numNodes, m_packetSize, m_simTime, m_slotTime, ns3::MakeCallback(), min, third::mobility, NS_LOG_DEBUG, ReceivePacket(), ResetData(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::ObjectBase::SetAttribute(), ns3::UanHelper::SetMac(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), UpdatePositions(), and sample-rng-plot::x.

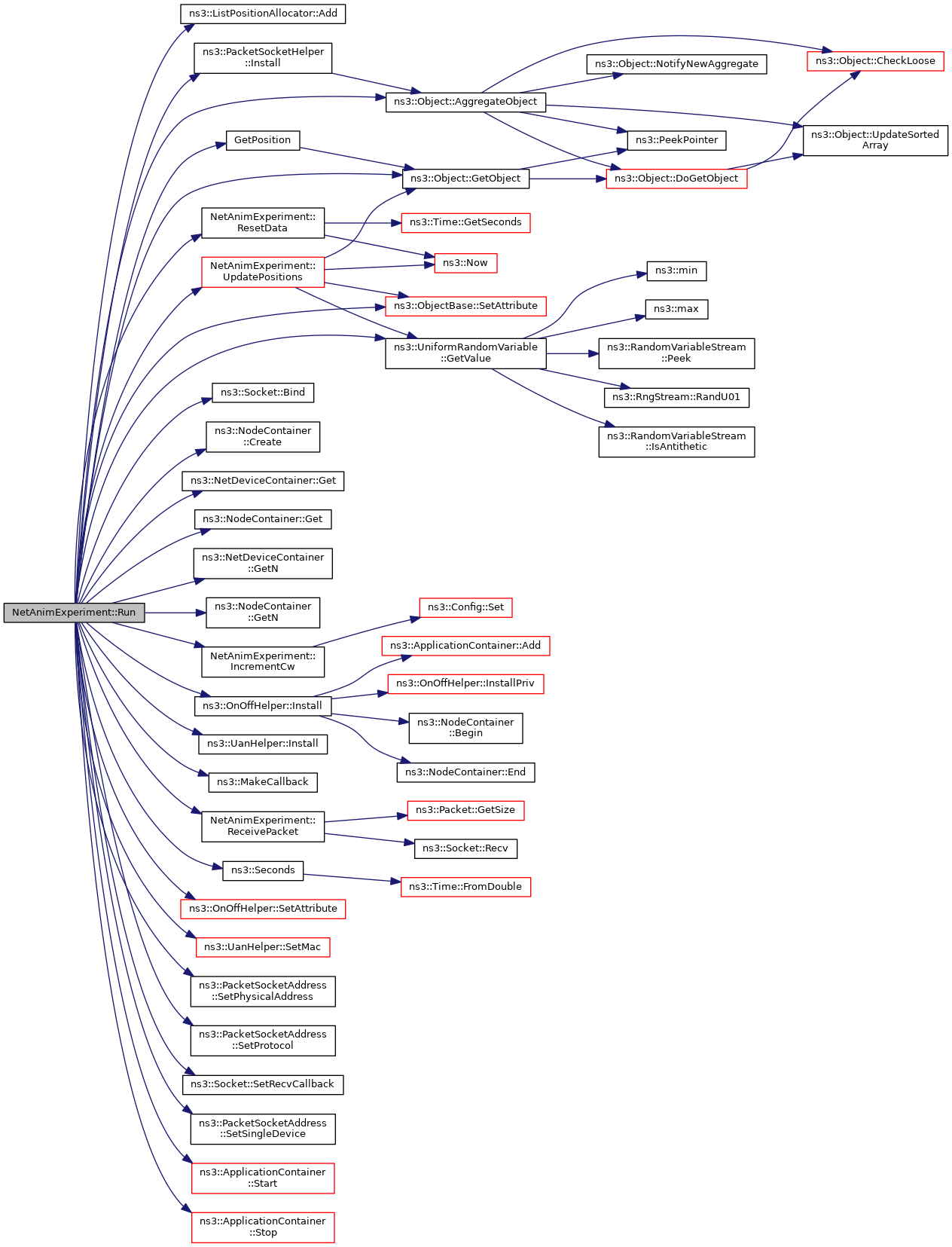

Here is the call graph for this function:

◆ UpdatePositions()

void NetAnimExperiment::UpdatePositions ( NodeContainer & nodes )

Update positions function.

Parameters

nodes the collection of nodes

Definition at line 96 of file uan-animation.cc.

References ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), m_boundary, first::nodes, ns3::Now(), NS_LOG_DEBUG, ns3::ObjectBase::SetAttribute(), and ns3::MobilityModel::SetPosition().

Referenced by Run().

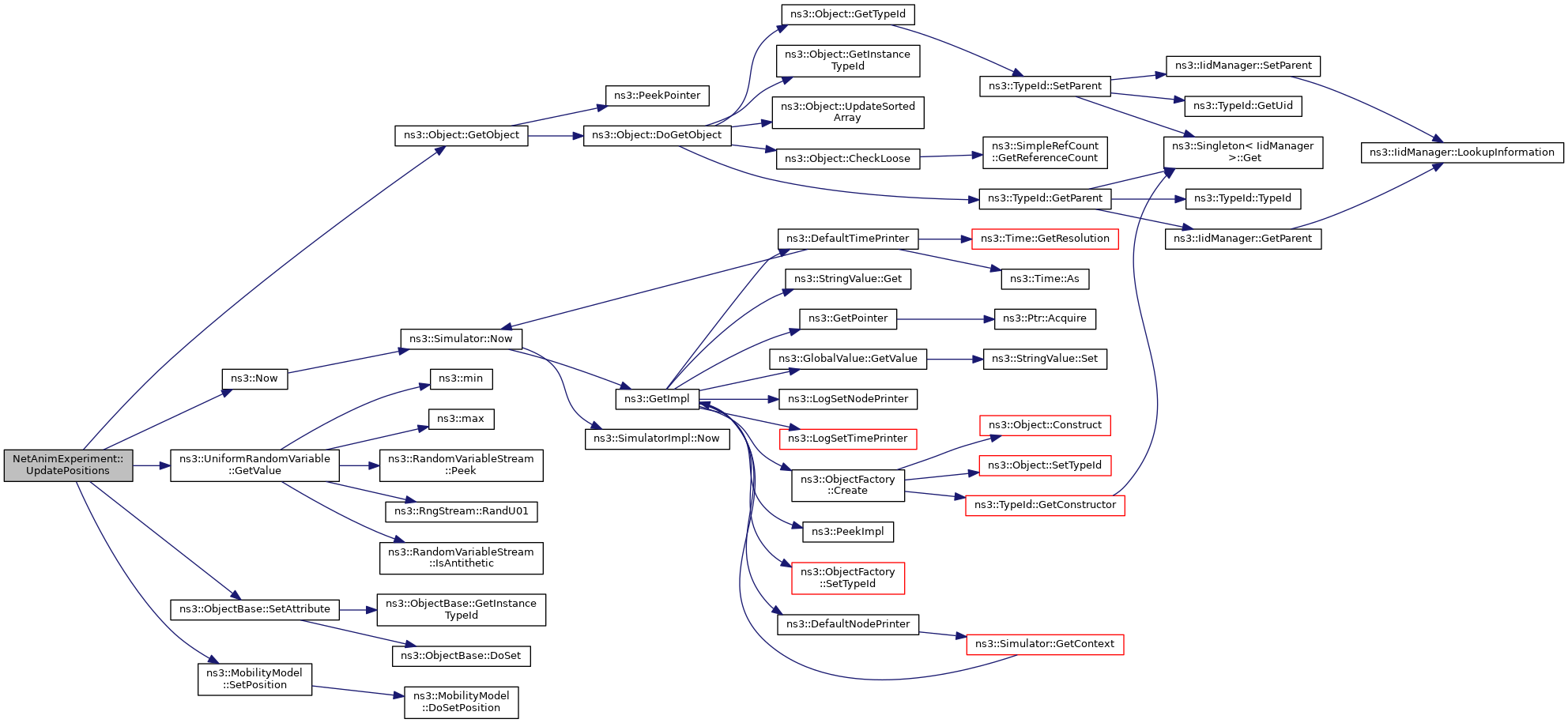

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_avgs

uint32_t NetAnimExperiment::m_avgs

averages

Definition at line 68 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

◆ m_boundary

double NetAnimExperiment::m_boundary

boundary

Definition at line 62 of file uan-animation.h.

Referenced by Run(), and UpdatePositions().

◆ m_bytesTotal

uint32_t NetAnimExperiment::m_bytesTotal

bytes total

Definition at line 64 of file uan-animation.h.

Referenced by ReceivePacket(), ResetData(), and Run().

◆ m_cwMax

uint32_t NetAnimExperiment::m_cwMax

CW maximum.

Definition at line 66 of file uan-animation.h.

Referenced by Run().

◆ m_cwMin

uint32_t NetAnimExperiment::m_cwMin

CW minimum.

Definition at line 65 of file uan-animation.h.

Referenced by Run().

◆ m_cwStep

uint32_t NetAnimExperiment::m_cwStep

CW step.

Definition at line 67 of file uan-animation.h.

Referenced by IncrementCw(), and Run().

◆ m_dataRate

uint32_t NetAnimExperiment::m_dataRate

data rate

Definition at line 60 of file uan-animation.h.

Referenced by Run().

◆ m_depth

double NetAnimExperiment::m_depth

depth

Definition at line 61 of file uan-animation.h.

Referenced by Run().

◆ m_numNodes

uint32_t NetAnimExperiment::m_numNodes

number of nodes

Definition at line 59 of file uan-animation.h.

Referenced by Run().

◆ m_packetSize

uint32_t NetAnimExperiment::m_packetSize

packet size

Definition at line 63 of file uan-animation.h.

Referenced by Run().

◆ m_simTime

Time NetAnimExperiment::m_simTime

simulation time

Definition at line 71 of file uan-animation.h.

Referenced by ResetData(), and Run().

◆ m_slotTime

Time NetAnimExperiment::m_slotTime

slot time

Definition at line 70 of file uan-animation.h.

Referenced by Run().

◆ m_throughputs

std::vector<double> NetAnimExperiment::m_throughputs

throughputs

Definition at line 73 of file uan-animation.h.

Referenced by IncrementCw(), and ResetData().

The documentation for this class was generated from the following files:

src/netanim/examples/uan-animation.h
src/netanim/examples/uan-animation.cc
