SpectrumWifiPhyFilterTest Class Reference

Spectrum Wifi Phy Filter Test. More...

Inheritance diagram for SpectrumWifiPhyFilterTest:

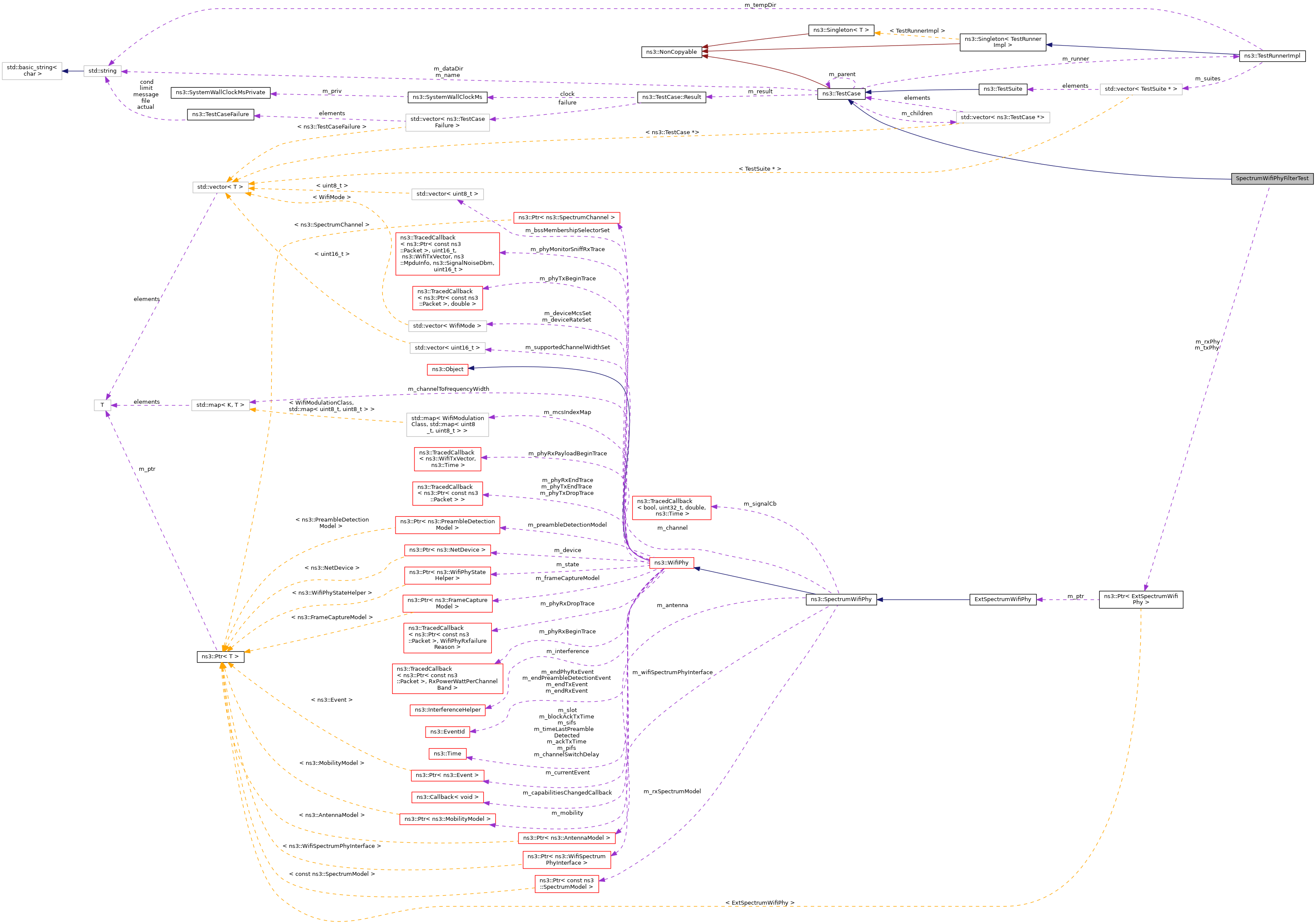

Collaboration diagram for SpectrumWifiPhyFilterTest:

Public Member Functions
	SpectrumWifiPhyFilterTest ()
	SpectrumWifiPhyFilterTest (std::string name)
	Constructor. More...
virtual	~SpectrumWifiPhyFilterTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
virtual void	DoSetup (void)
	Implementation to do any local setup required for this TestCase. More...
void	RunOne ()
	Run one function. More...
void	RxCallback (Ptr< const Packet > p, RxPowerWattPerChannelBand rxPowersW)
	Callback triggered when a packet is received by the PHYs. More...
void	SendPpdu (void)
	Send PPDU function. More...

Private Attributes
uint16_t	m_rxChannelWidth
	RX channel width (MHz) More...
Ptr< ExtSpectrumWifiPhy >	m_rxPhy
	RX PHY. More...
uint16_t	m_txChannelWidth
	TX channel width (MHz) More...
Ptr< ExtSpectrumWifiPhy >	m_txPhy
	TX PHY. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Spectrum Wifi Phy Filter Test.

Definition at line 324 of file spectrum-wifi-phy-test.cc.

Constructor & Destructor Documentation

SpectrumWifiPhyFilterTest() [1/2]

SpectrumWifiPhyFilterTest::SpectrumWifiPhyFilterTest

(

)

Definition at line 365 of file spectrum-wifi-phy-test.cc.

SpectrumWifiPhyFilterTest() [2/2]

SpectrumWifiPhyFilterTest::SpectrumWifiPhyFilterTest

(

std::string

name

)

Constructor.

Parameters

name	reference name

Definition at line 372 of file spectrum-wifi-phy-test.cc.

~SpectrumWifiPhyFilterTest()

SpectrumWifiPhyFilterTest::~SpectrumWifiPhyFilterTest ( )

virtual

Definition at line 391 of file spectrum-wifi-phy-test.cc.

References m_rxPhy, and m_txPhy.

Member Function Documentation

DoRun()

void SpectrumWifiPhyFilterTest::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 561 of file spectrum-wifi-phy-test.cc.

References m_rxChannelWidth, m_txChannelWidth, and RunOne().

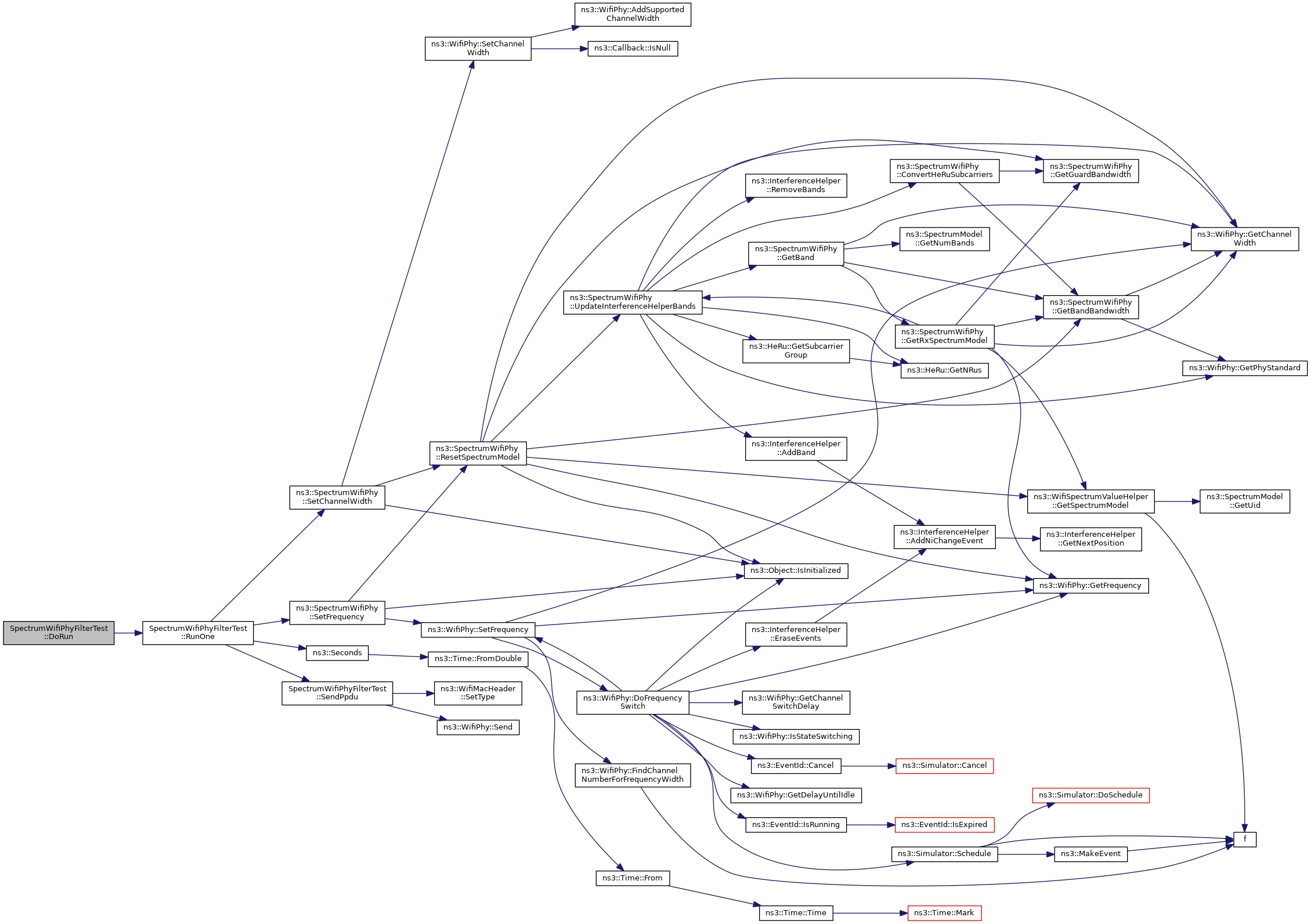

Here is the call graph for this function:

DoSetup()

void SpectrumWifiPhyFilterTest::DoSetup ( void  )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 470 of file spectrum-wifi-phy-test.cc.

References ns3::Node::AddDevice(), ns3::SpectrumChannel::AddPropagationLossModel(), ns3::Object::AggregateObject(), ns3::SpectrumWifiPhy::ConfigureStandardAndBand(), ns3::SpectrumWifiPhy::CreateWifiSpectrumPhyInterface(), m_rxPhy, m_txPhy, ns3::MakeCallback(), RxCallback(), ns3::SpectrumWifiPhy::SetChannel(), ns3::WifiPhy::SetDevice(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetMobility(), ns3::SpectrumChannel::SetPropagationDelayModel(), ns3::ObjectBase::TraceConnectWithoutContext(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_STANDARD_80211ax.

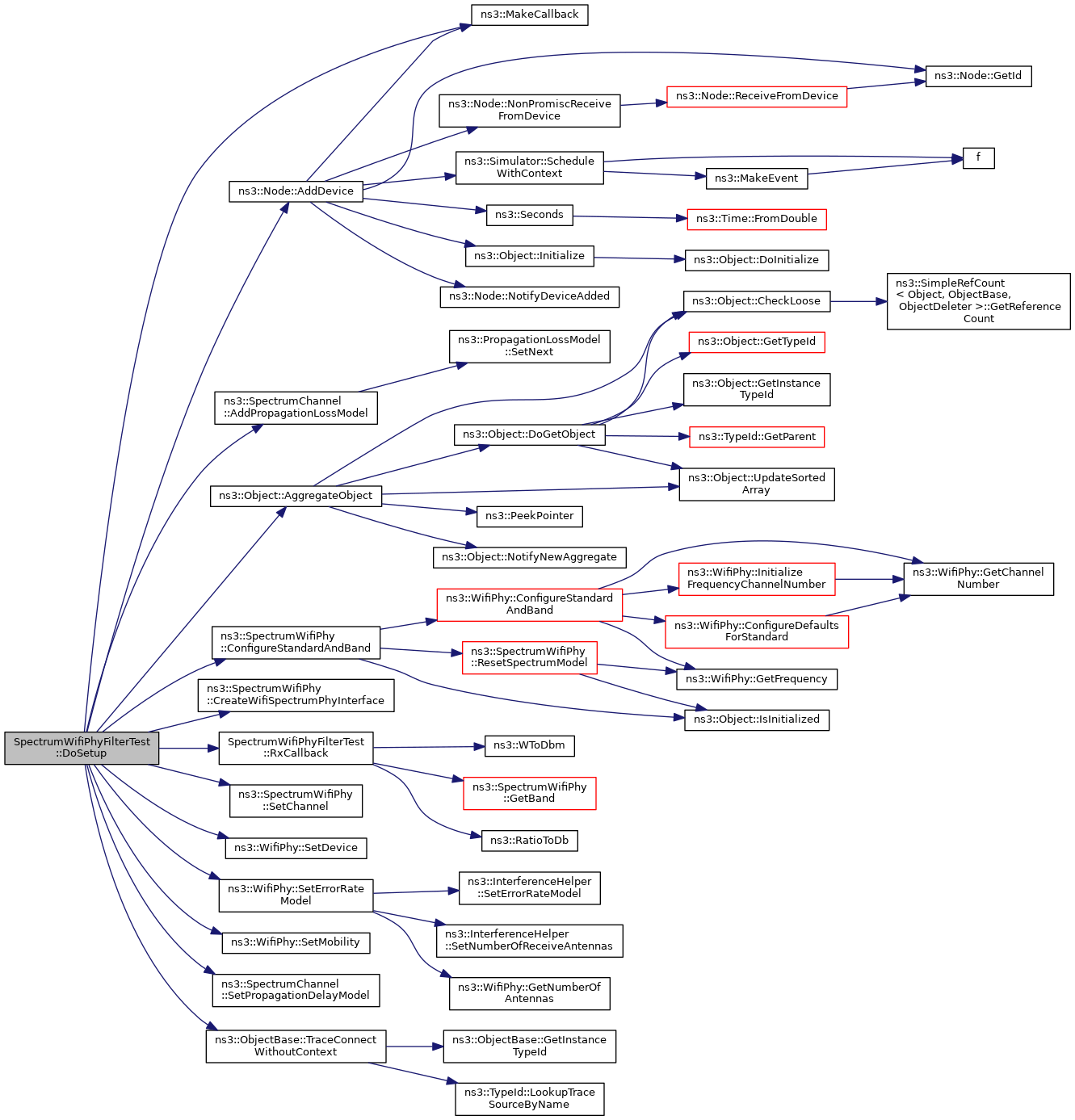

Here is the call graph for this function:

RunOne()

void SpectrumWifiPhyFilterTest::RunOne ( void  )

private

Run one function.

Definition at line 513 of file spectrum-wifi-phy-test.cc.

References m_rxChannelWidth, m_rxPhy, m_txChannelWidth, m_txPhy, ns3::Seconds(), SendPpdu(), ns3::SpectrumWifiPhy::SetChannelWidth(), and ns3::SpectrumWifiPhy::SetFrequency().

Referenced by DoRun().

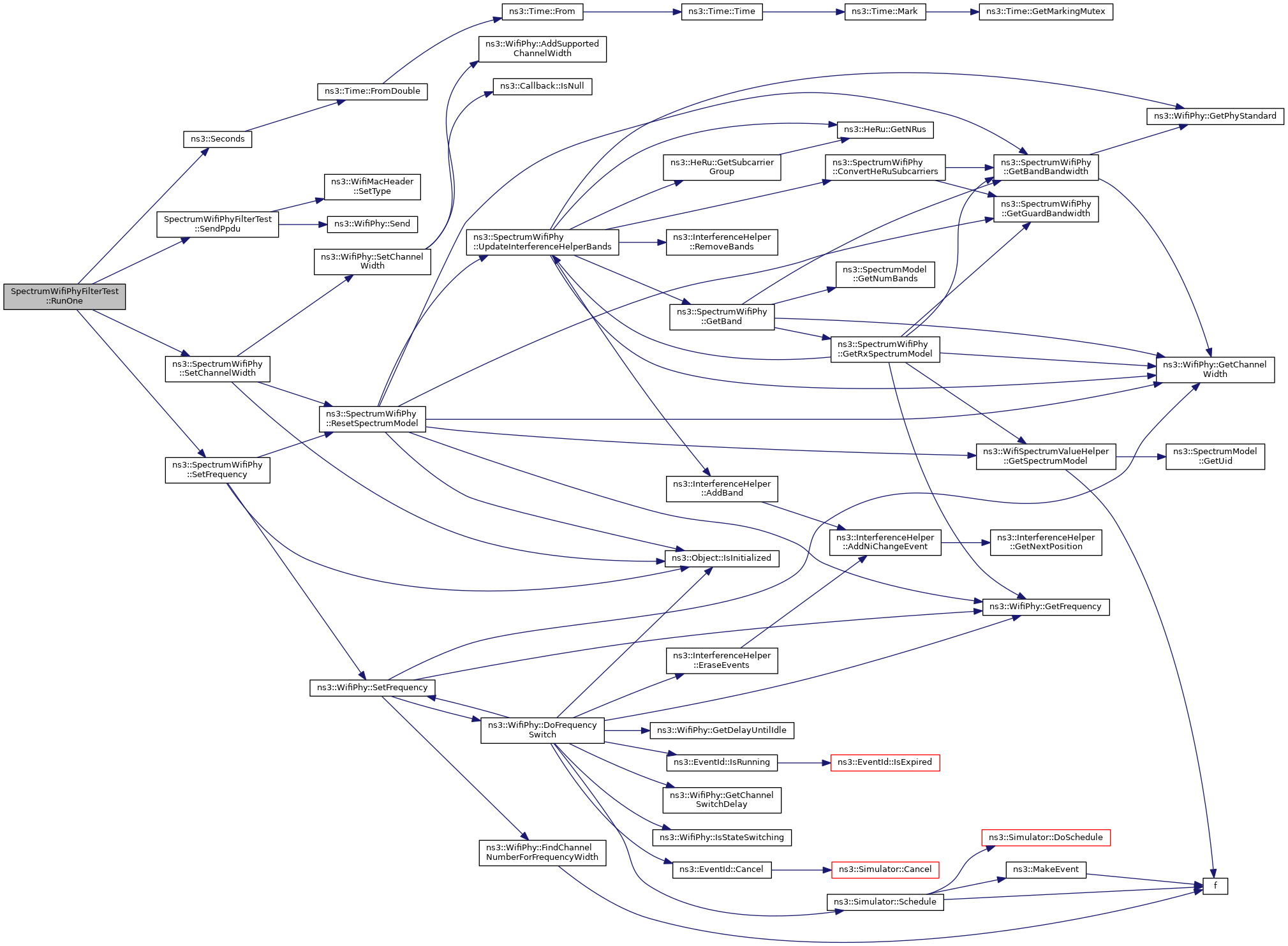

Here is the call graph for this function:

Here is the caller graph for this function:

RxCallback()

void SpectrumWifiPhyFilterTest::RxCallback ( Ptr< const Packet >  p, RxPowerWattPerChannelBand  rxPowersW  )

private

Callback triggered when a packet is received by the PHYs.

Parameters

context	the context
p	the received packet
rxPowersW	the received power per channel band in watts

Definition at line 398 of file spectrum-wifi-phy-test.cc.

References ns3::SpectrumWifiPhy::GetBand(), m_rxChannelWidth, m_rxPhy, m_txChannelWidth, max, min, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, ns3::RatioToDb(), and ns3::WToDbm().

Referenced by DoSetup().

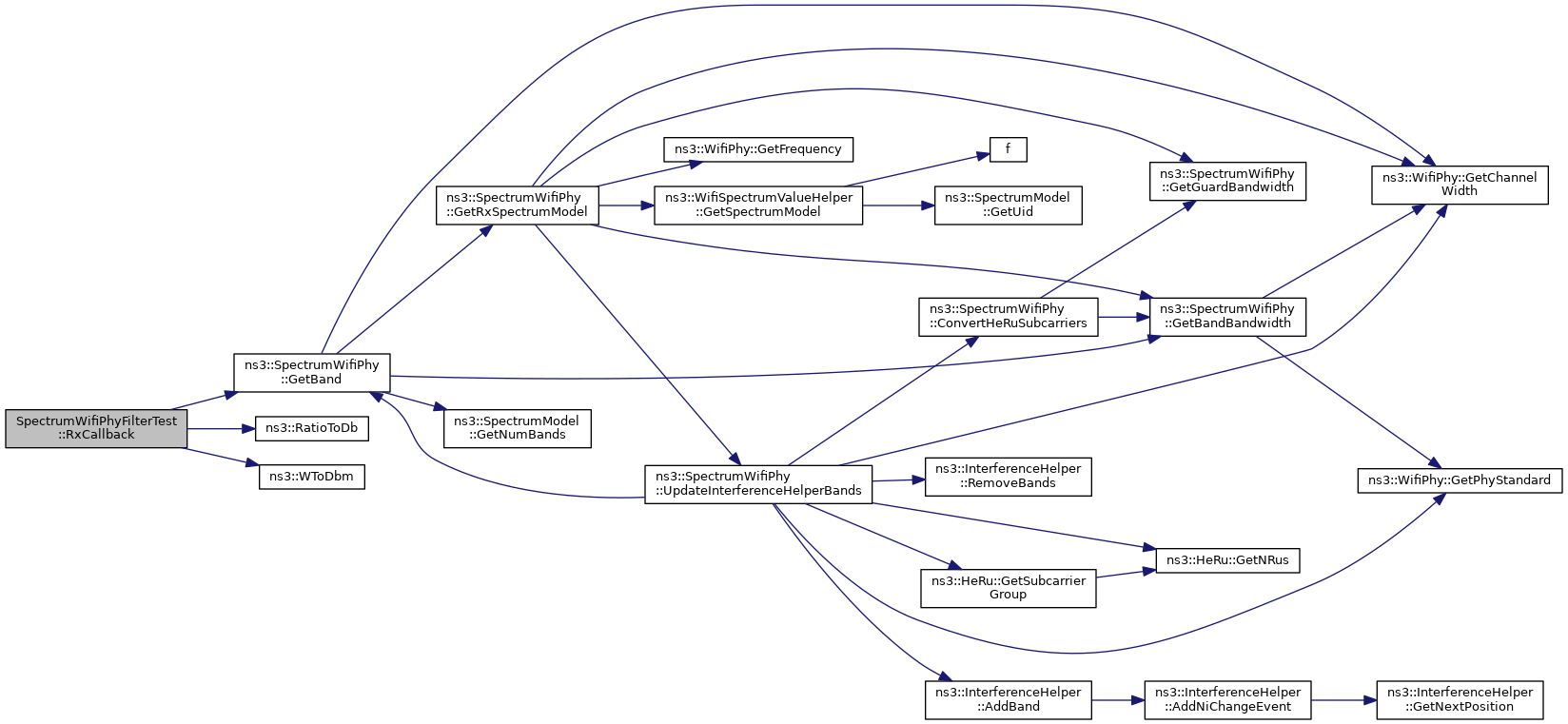

Here is the call graph for this function:

Here is the caller graph for this function:

SendPpdu()

void SpectrumWifiPhyFilterTest::SendPpdu ( void  )

private

Send PPDU function.

Definition at line 378 of file spectrum-wifi-phy-test.cc.

References m_txChannelWidth, m_txPhy, ns3::WifiPhy::Send(), ns3::WifiMacHeader::SetType(), SU_STA_ID, ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_SU.

Referenced by RunOne().

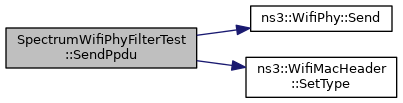

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_rxChannelWidth

uint16_t SpectrumWifiPhyFilterTest::m_rxChannelWidth

private

RX channel width (MHz)

Definition at line 362 of file spectrum-wifi-phy-test.cc.

Referenced by DoRun(), RunOne(), and RxCallback().

m_rxPhy

Ptr<ExtSpectrumWifiPhy> SpectrumWifiPhyFilterTest::m_rxPhy

private

RX PHY.

Definition at line 359 of file spectrum-wifi-phy-test.cc.

Referenced by DoSetup(), RunOne(), RxCallback(), and ~SpectrumWifiPhyFilterTest().

m_txChannelWidth

uint16_t SpectrumWifiPhyFilterTest::m_txChannelWidth

private

TX channel width (MHz)

Definition at line 361 of file spectrum-wifi-phy-test.cc.

Referenced by DoRun(), RunOne(), RxCallback(), and SendPpdu().

m_txPhy

Ptr<ExtSpectrumWifiPhy> SpectrumWifiPhyFilterTest::m_txPhy

private

TX PHY.

Definition at line 358 of file spectrum-wifi-phy-test.cc.

Referenced by DoSetup(), RunOne(), SendPpdu(), and ~SpectrumWifiPhyFilterTest().

---

The documentation for this class was generated from the following file:

• src/wifi/test/spectrum-wifi-phy-test.cc
