This class has the purpose to encode Information Elements according to ASN.1 syntax, as defined in ITU-T X-691. More...

#include "lte-asn1-header.h"

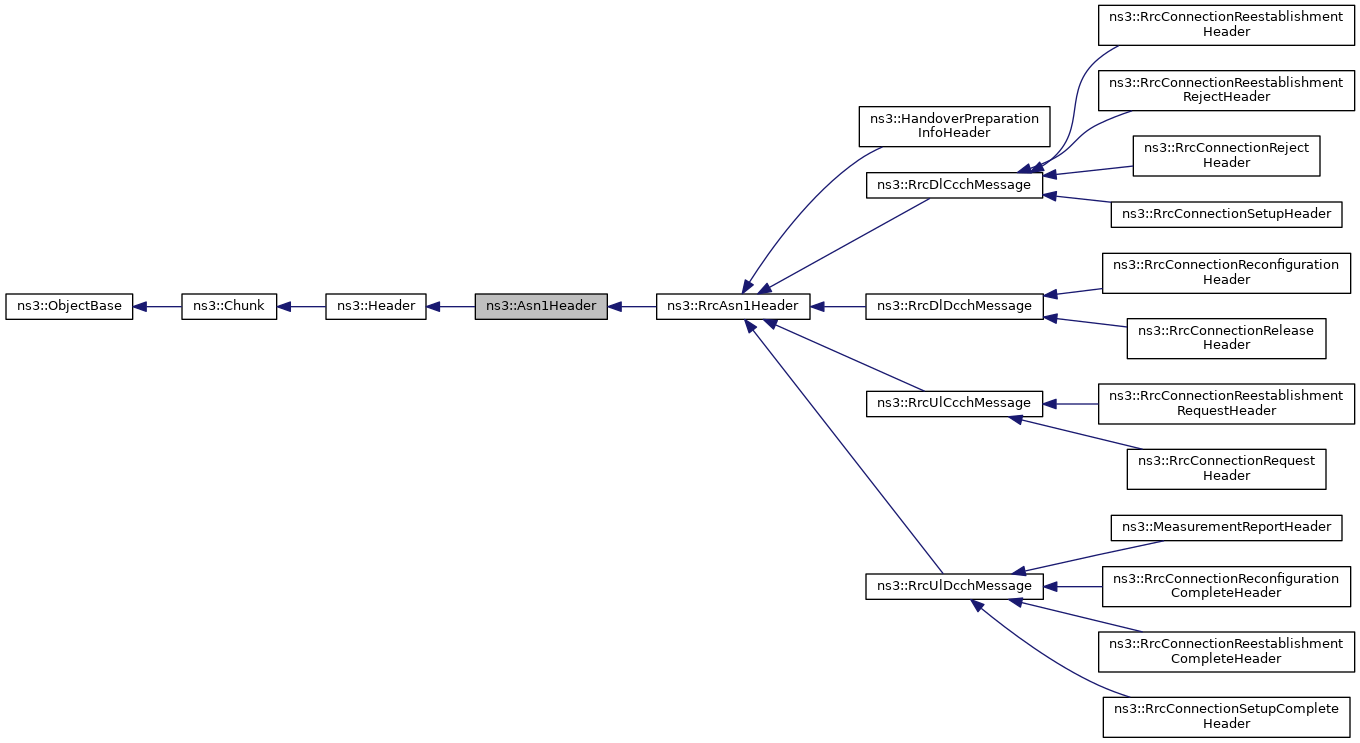

Inheritance diagram for ns3::Asn1Header:

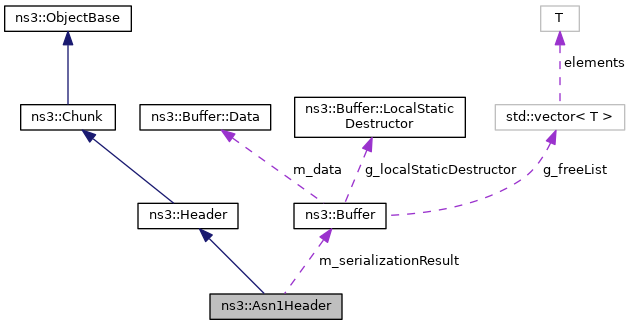

Collaboration diagram for ns3::Asn1Header:

Public Member Functions
	Asn1Header ()

virtual	~Asn1Header ()

virtual uint32_t	Deserialize (Buffer::Iterator bIterator)=0

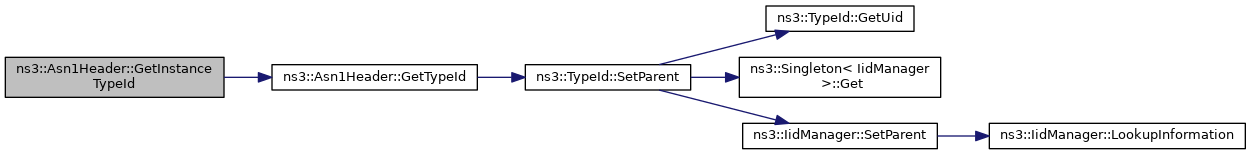

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

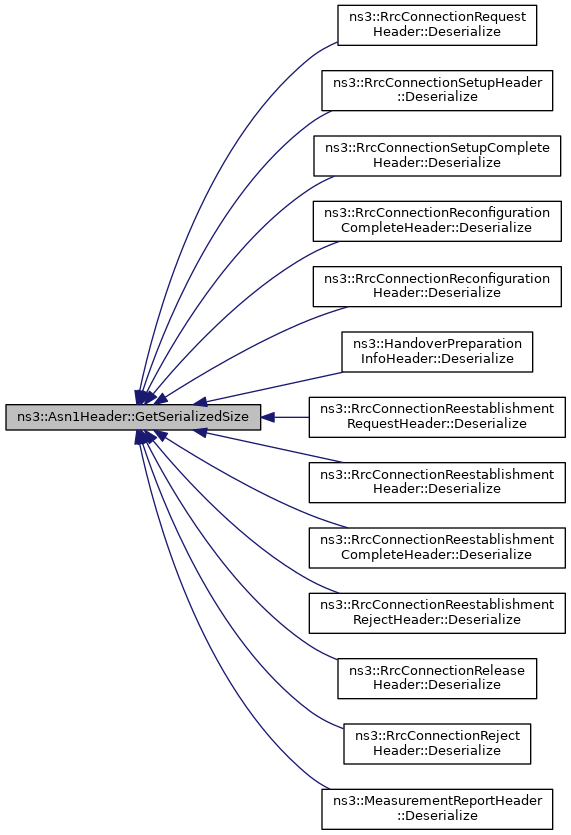

uint32_t	GetSerializedSize (void) const

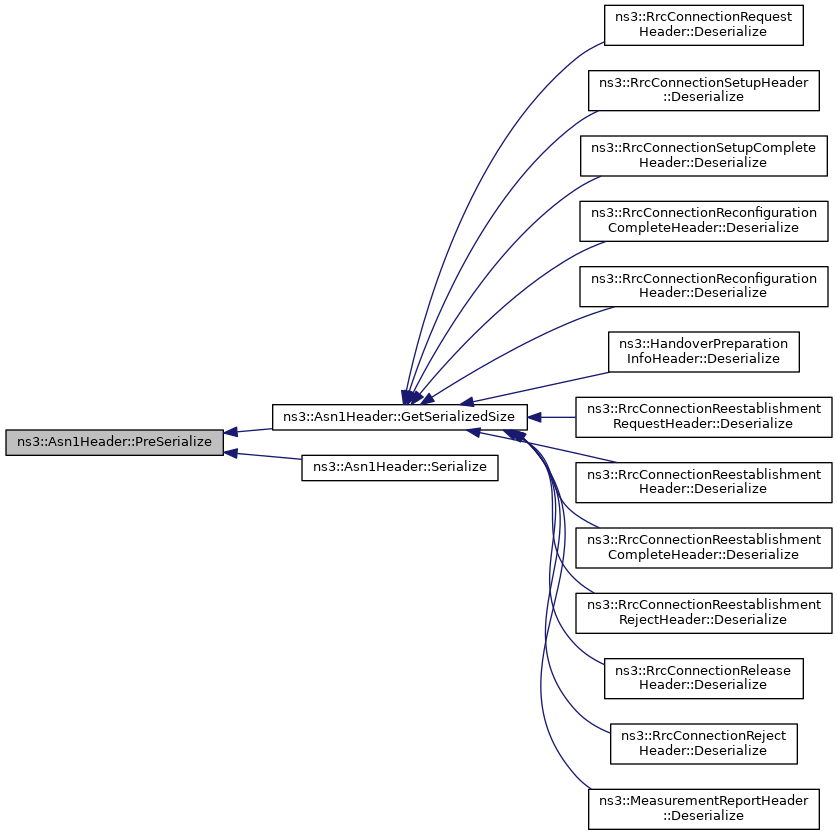

virtual void	PreSerialize (void) const =0
	This function serializes class attributes to m_serializationResult local Buffer. More...

virtual void	Print (std::ostream &os) const =0

void	Serialize (Buffer::Iterator bIterator) const

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

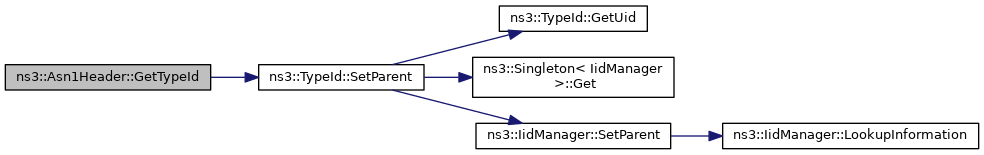

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
template<int N>
Buffer::Iterator	DeserializeBitset (std::bitset< N > *data, Buffer::Iterator bIterator)
	Deserialize a bitset. More...

Buffer::Iterator	DeserializeBitset (std::bitset< 8 > *data, Buffer::Iterator bIterator)
	Deserialize a bitset. More...

template<int N>
Buffer::Iterator	DeserializeBitstring (std::bitset< N > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 1 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 2 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 8 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 10 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 16 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 27 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 28 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBitstring (std::bitset< 32 > *bitstring, Buffer::Iterator bIterator)
	Deserialize a bitstring. More...

Buffer::Iterator	DeserializeBoolean (bool *value, Buffer::Iterator bIterator)
	Deserialize a boolean. More...

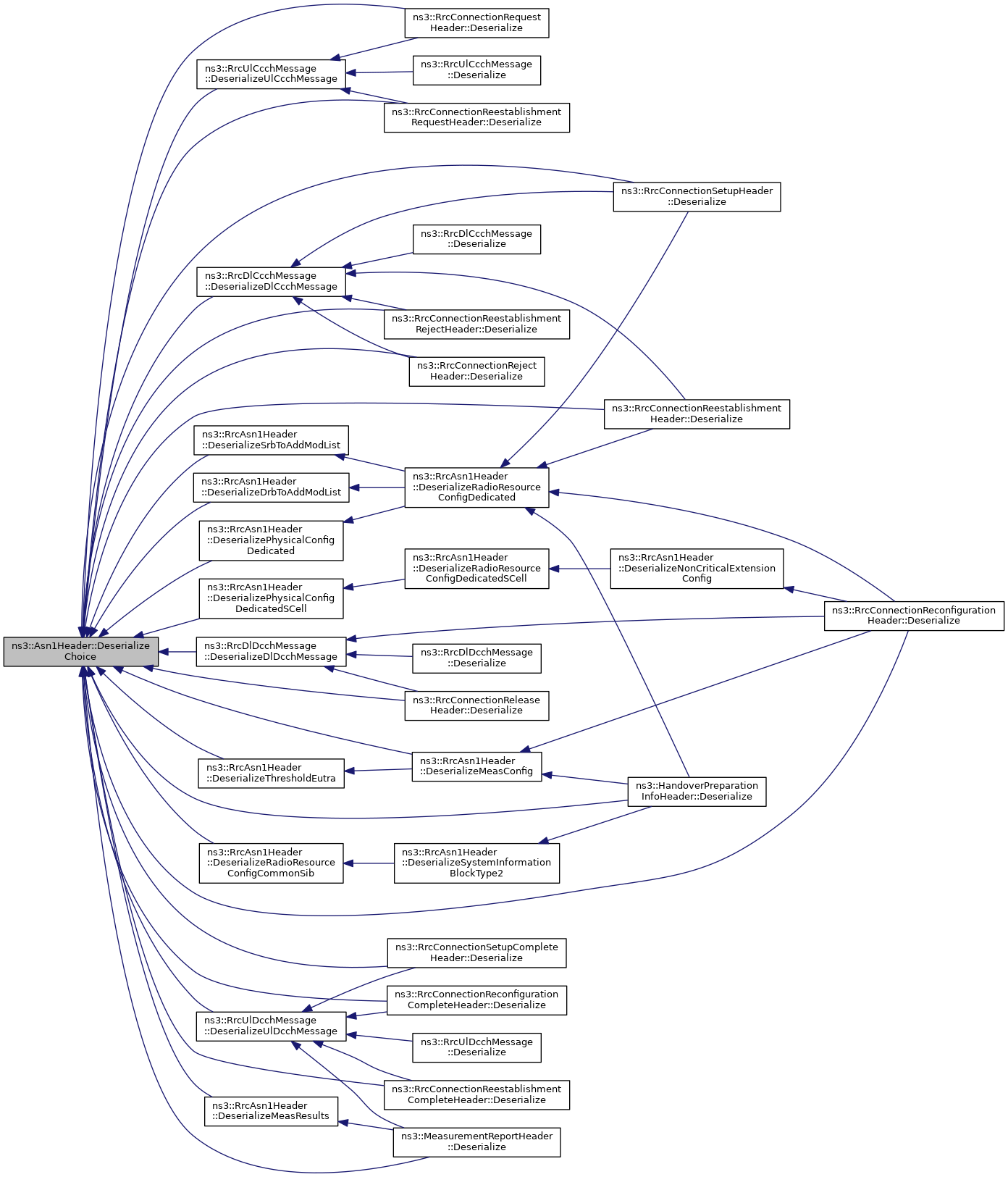

Buffer::Iterator	DeserializeChoice (int numOptions, bool isExtensionMarkerPresent, int *selectedOption, Buffer::Iterator bIterator)
	Deserialize a Choice (set of options) More...

Buffer::Iterator	DeserializeEnum (int numElems, int *selectedElem, Buffer::Iterator bIterator)
	Deserialize an Enum. More...

Buffer::Iterator	DeserializeInteger (int *n, int nmin, int nmax, Buffer::Iterator bIterator)
	Deserialize an integer. More...

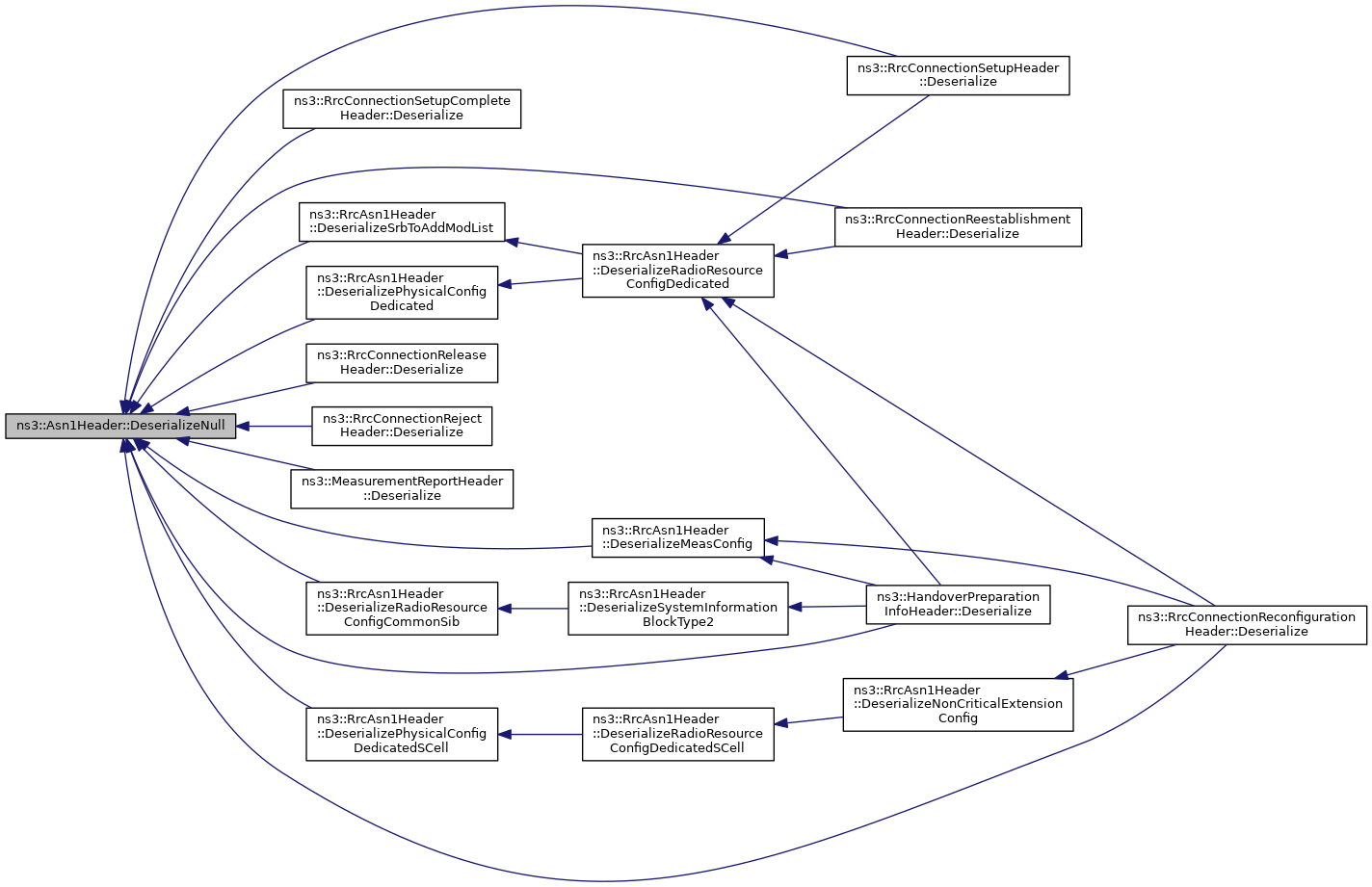

Buffer::Iterator	DeserializeNull (Buffer::Iterator bIterator)
	Deserialize nothing (null op) More...

template<int N>
Buffer::Iterator	DeserializeSequence (std::bitset< N > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 0 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 1 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 2 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 3 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 4 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 5 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 6 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 7 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 9 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 10 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

Buffer::Iterator	DeserializeSequence (std::bitset< 11 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
	Deserialize a sequence. More...

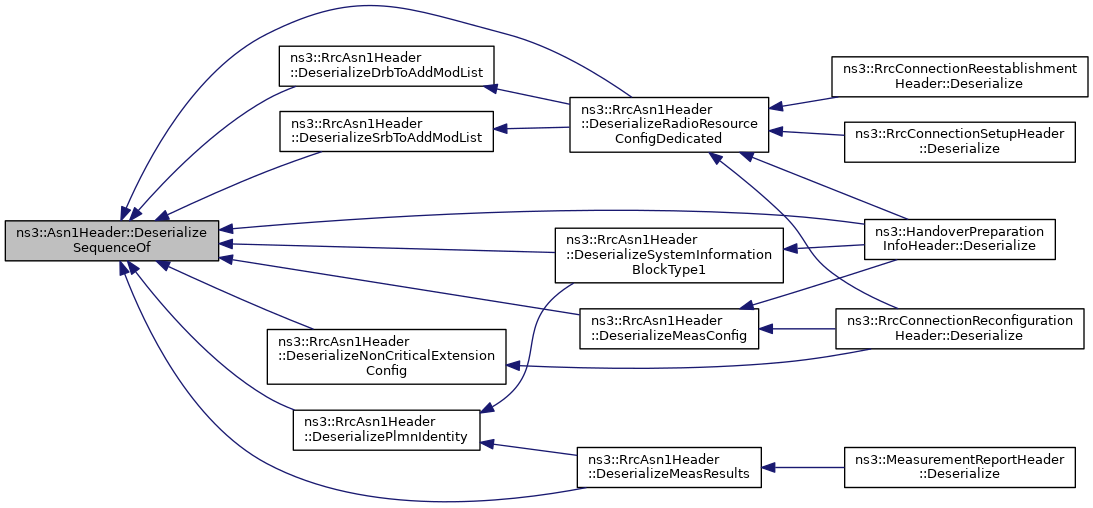

Buffer::Iterator	DeserializeSequenceOf (int *numElems, int nMax, int nMin, Buffer::Iterator bIterator)
	Deserialize a Sequence. More...

void	FinalizeSerialization () const
	Finalizes an in progress serialization. More...

template<int N>
void	SerializeBitset (std::bitset< N > data) const
	Serialize a bitset. More...

template<int N>
void	SerializeBitstring (std::bitset< N > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 1 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 2 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 8 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 10 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 16 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 27 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 28 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBitstring (std::bitset< 32 > bitstring) const
	Serialize a bitstring. More...

void	SerializeBoolean (bool value) const
	Serialize a bool. More...

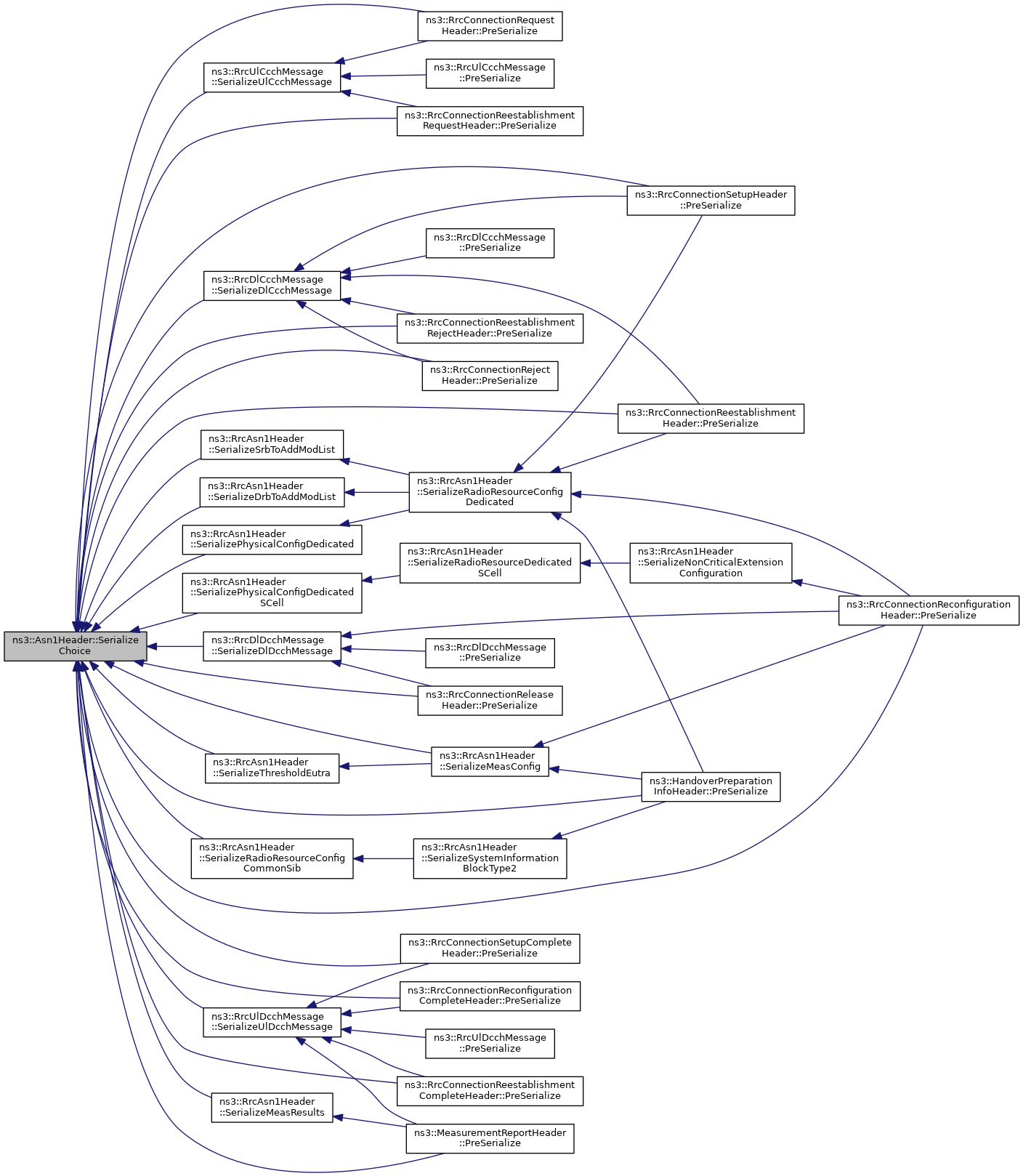

void	SerializeChoice (int numOptions, int selectedOption, bool isExtensionMarkerPresent) const
	Serialize a Choice (set of options) More...

void	SerializeEnum (int numElems, int selectedElem) const
	Serialize an Enum. More...

void	SerializeInteger (int n, int nmin, int nmax) const
	Serialize an Integer. More...

void	SerializeNull () const
	Serialize nothing (null op) More...

template<int N>
void	SerializeSequence (std::bitset< N > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 0 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 1 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 2 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 3 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 4 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 5 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 6 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 7 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 9 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 10 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequence (std::bitset< 11 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
	Serialize a sequence. More...

void	SerializeSequenceOf (int numElems, int nMax, int nMin) const
	Serialize a Sequence. More...

void	WriteOctet (uint8_t octet) const
	Function to write in m_serializationResult, after resizing its size. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
bool	m_isDataSerialized
	true if data is serialized More...

uint8_t	m_numSerializationPendingBits
	number of pending bits More...

uint8_t	m_serializationPendingBits
	pending bits More...

Buffer	m_serializationResult
	serialization result More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class has the purpose to encode Information Elements according to ASN.1 syntax, as defined in ITU-T X-691.

Introspection did not find any typical Config paths.

IMPORTANT: The encoding is done following the UNALIGNED variant.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 36 of file lte-asn1-header.h.

Constructor & Destructor Documentation

◆ Asn1Header()

ns3::Asn1Header::Asn1Header ( )

Definition at line 50 of file lte-asn1-header.cc.

References m_isDataSerialized, m_numSerializationPendingBits, and m_serializationPendingBits.

◆ ~Asn1Header()

ns3::Asn1Header::~Asn1Header ( )

virtual

Definition at line 57 of file lte-asn1-header.cc.

Member Function Documentation

◆ Deserialize()

virtual uint32_t ns3::Asn1Header::Deserialize ( Buffer::Iterator start )

pure virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

◆ DeserializeBitset() [1/2]

template<int N>

Buffer::Iterator ns3::Asn1Header::DeserializeBitset	(	std::bitset< N > *	data,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitset.

Parameters

data	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 428 of file lte-asn1-header.cc.

References data, m_numSerializationPendingBits, m_serializationPendingBits, and ns3::Buffer::Iterator::ReadU8().

Here is the call graph for this function:

◆ DeserializeBitset() [2/2]

Buffer::Iterator ns3::Asn1Header::DeserializeBitset	(	std::bitset< 8 > *	data,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitset.

Parameters

data	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

◆ DeserializeBitstring() [1/9]

template<int N>

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< N > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 481 of file lte-asn1-header.cc.

References data.

Referenced by ns3::RrcConnectionRequestHeader::Deserialize(), ns3::RrcConnectionReconfigurationHeader::Deserialize(), ns3::HandoverPreparationInfoHeader::Deserialize(), ns3::RrcConnectionReestablishmentRequestHeader::Deserialize(), ns3::RrcAsn1Header::DeserializeMeasConfig(), ns3::RrcAsn1Header::DeserializeMeasResults(), and ns3::RrcAsn1Header::DeserializeSystemInformationBlockType1().

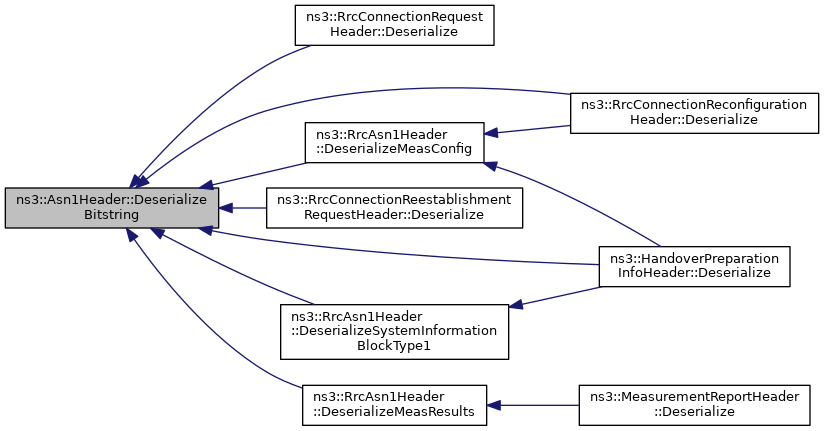

Here is the caller graph for this function:

◆ DeserializeBitstring() [2/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 1 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 486 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [3/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 2 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 491 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [4/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 8 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 496 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [5/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 10 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 501 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [6/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 16 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 506 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [7/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 27 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 511 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [8/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 28 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 516 of file lte-asn1-header.cc.

References data.

◆ DeserializeBitstring() [9/9]

Buffer::Iterator ns3::Asn1Header::DeserializeBitstring	(	std::bitset< 32 > *	bitstring,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a bitstring.

Parameters

bitstring	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 521 of file lte-asn1-header.cc.

References data.

◆ DeserializeBoolean()

Buffer::Iterator ns3::Asn1Header::DeserializeBoolean	(	bool *	value,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a boolean.

Parameters

value	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 526 of file lte-asn1-header.cc.

Referenced by DeserializeChoice(), ns3::RrcAsn1Header::DeserializeMeasConfig(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicated(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigCommon(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigCommonSib(), DeserializeSequence(), and ns3::RrcAsn1Header::DeserializeSystemInformationBlockType1().

Here is the caller graph for this function:

◆ DeserializeChoice()

Buffer::Iterator ns3::Asn1Header::DeserializeChoice	(	int	numOptions,
		bool	isExtensionMarkerPresent,
		int *	selectedOption,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a Choice (set of options)

Parameters

numOptions	number of options
isExtensionMarkerPresent	true if extension mark is present
selectedOption	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 668 of file lte-asn1-header.cc.

References DeserializeBoolean(), and DeserializeInteger().

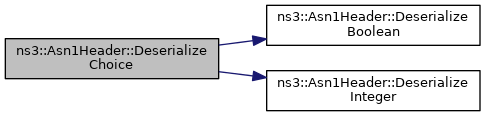

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeserializeEnum()

Buffer::Iterator ns3::Asn1Header::DeserializeEnum	(	int	numElems,
		int *	selectedElem,
		Buffer::Iterator	bIterator
	)

protected

Deserialize an Enum.

Parameters

numElems	number of elements in the enum
selectedElem	buffer to store the result
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 678 of file lte-asn1-header.cc.

References DeserializeInteger().

Here is the call graph for this function:

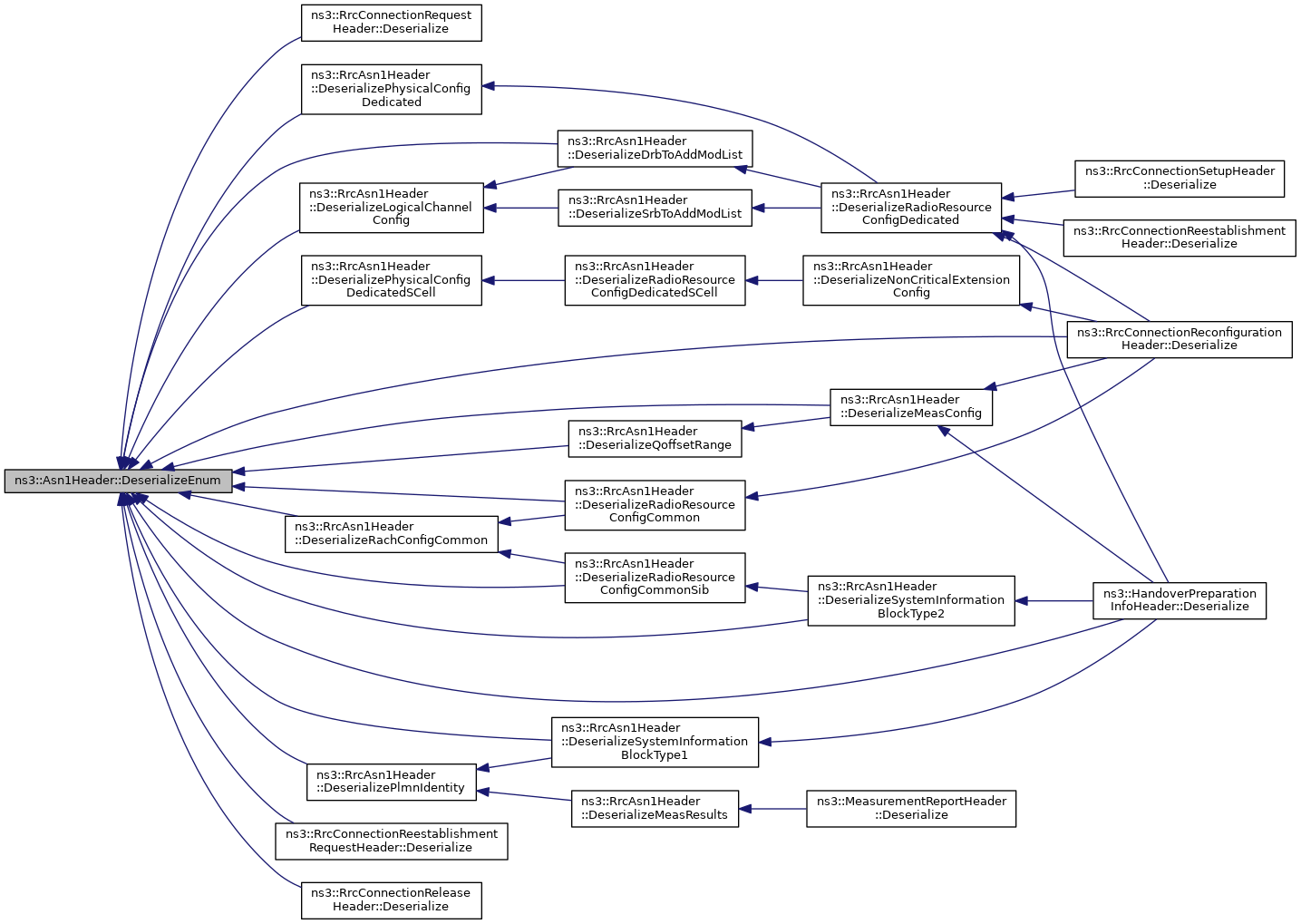

Here is the caller graph for this function:

◆ DeserializeInteger()

Buffer::Iterator ns3::Asn1Header::DeserializeInteger	(	int *	n,
		int	nmin,
		int	nmax,
		Buffer::Iterator	bIterator
	)

protected

Deserialize an integer.

Parameters

n	buffer to store the result
nmin	min value to serialize
nmax	max value to serialize
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 534 of file lte-asn1-header.cc.

References sample-rng-plot::n.

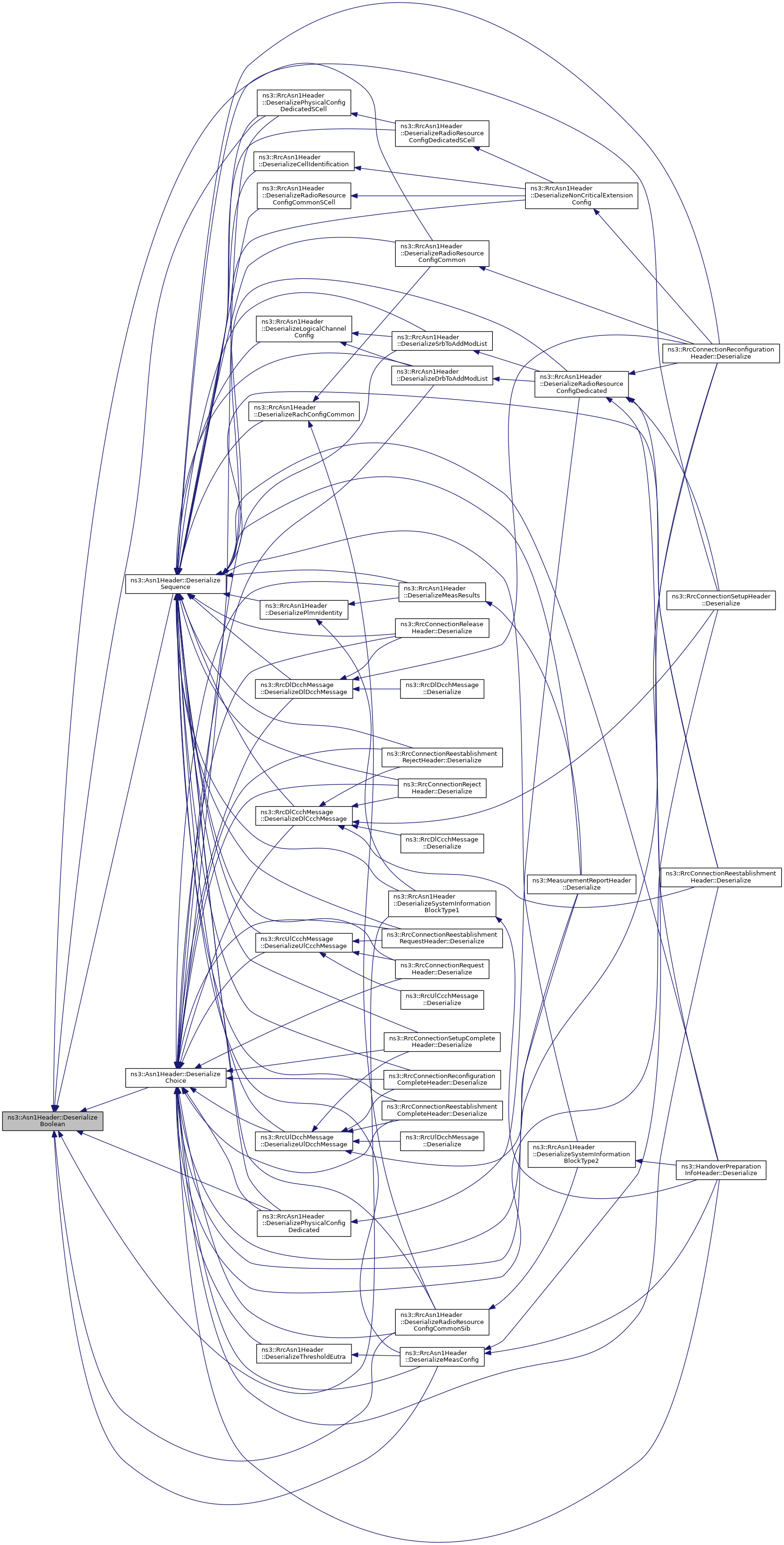

Here is the caller graph for this function:

◆ DeserializeNull()

Buffer::Iterator ns3::Asn1Header::DeserializeNull ( Buffer::Iterator bIterator )

protected

Deserialize nothing (null op)

Parameters

bIterator buffer iterator

Returns: the modified buffer iterator

Definition at line 750 of file lte-asn1-header.cc.

Here is the caller graph for this function:

◆ DeserializeSequence() [1/12]

template<int N>

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< N > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator Deserialize a sequence

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 684 of file lte-asn1-header.cc.

References DeserializeBoolean().

Here is the call graph for this function:

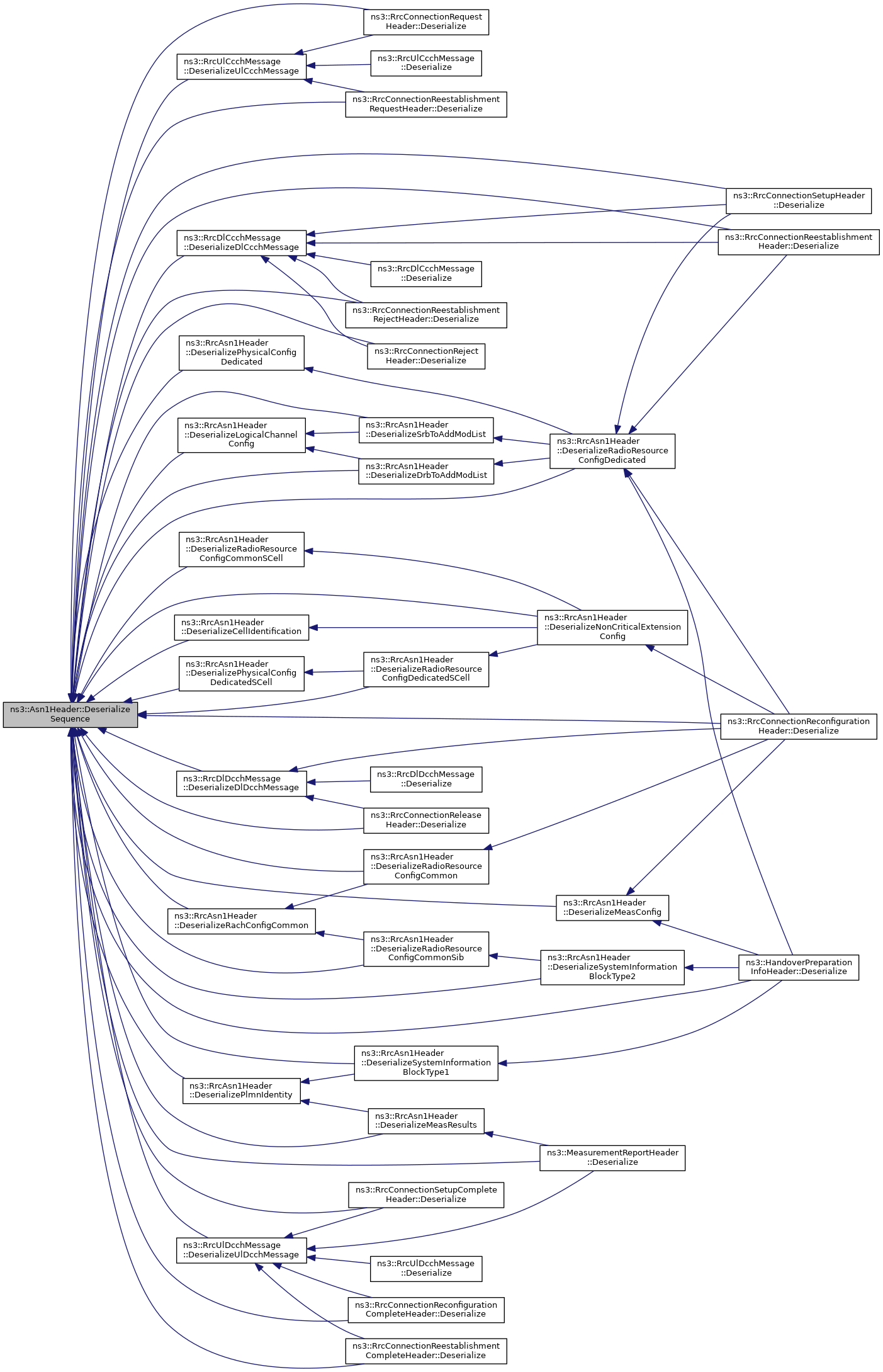

Here is the caller graph for this function:

◆ DeserializeSequence() [2/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 0 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 695 of file lte-asn1-header.cc.

◆ DeserializeSequence() [3/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 1 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 700 of file lte-asn1-header.cc.

◆ DeserializeSequence() [4/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 2 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 705 of file lte-asn1-header.cc.

◆ DeserializeSequence() [5/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 3 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 710 of file lte-asn1-header.cc.

◆ DeserializeSequence() [6/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 4 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 715 of file lte-asn1-header.cc.

◆ DeserializeSequence() [7/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 5 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 720 of file lte-asn1-header.cc.

◆ DeserializeSequence() [8/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 6 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 725 of file lte-asn1-header.cc.

◆ DeserializeSequence() [9/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 7 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 730 of file lte-asn1-header.cc.

◆ DeserializeSequence() [10/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 9 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 735 of file lte-asn1-header.cc.

◆ DeserializeSequence() [11/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 10 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 740 of file lte-asn1-header.cc.

◆ DeserializeSequence() [12/12]

Buffer::Iterator ns3::Asn1Header::DeserializeSequence	(	std::bitset< 11 > *	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a sequence.

Parameters

optionalOrDefaultMask	buffer to store the result
isExtensionMarkerPresent	true if Extension Marker is present
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 745 of file lte-asn1-header.cc.

◆ DeserializeSequenceOf()

Buffer::Iterator ns3::Asn1Header::DeserializeSequenceOf	(	int *	numElems,
		int	nMax,
		int	nMin,
		Buffer::Iterator	bIterator
	)

protected

Deserialize a Sequence.

Parameters

numElems	buffer to store the result
nMax	max value to serialize
nMin	min value to serialize
bIterator	buffer iterator

Returns: the modified buffer iterator

Definition at line 755 of file lte-asn1-header.cc.

References DeserializeInteger().

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), ns3::RrcAsn1Header::DeserializeDrbToAddModList(), ns3::RrcAsn1Header::DeserializeMeasConfig(), ns3::RrcAsn1Header::DeserializeMeasResults(), ns3::RrcAsn1Header::DeserializeNonCriticalExtensionConfig(), ns3::RrcAsn1Header::DeserializePlmnIdentity(), ns3::RrcAsn1Header::DeserializeRadioResourceConfigDedicated(), ns3::RrcAsn1Header::DeserializeSrbToAddModList(), and ns3::RrcAsn1Header::DeserializeSystemInformationBlockType1().

Here is the call graph for this function:

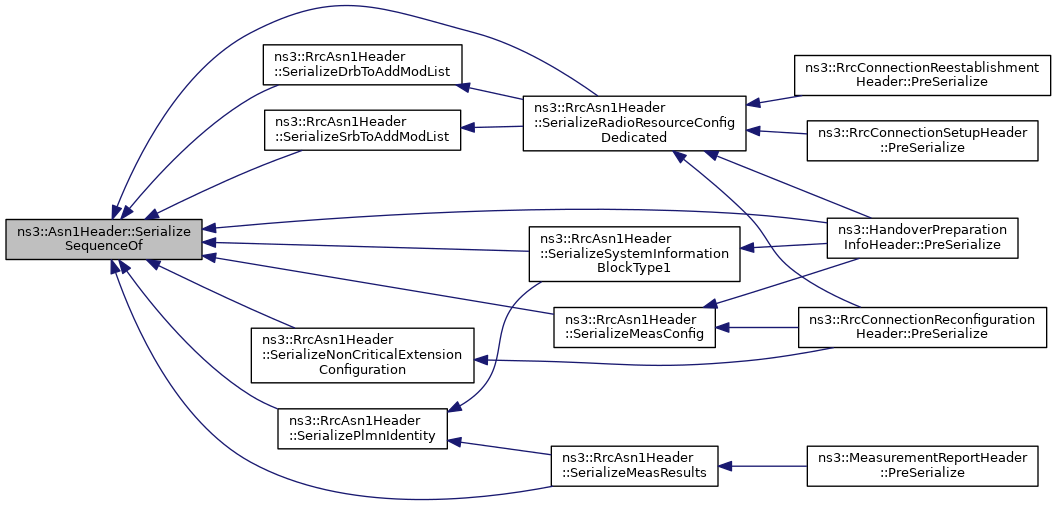

Here is the caller graph for this function:

◆ FinalizeSerialization()

void ns3::Asn1Header::FinalizeSerialization ( ) const

protected

Finalizes an in progress serialization.

Definition at line 417 of file lte-asn1-header.cc.

References m_isDataSerialized, m_numSerializationPendingBits, and m_serializationPendingBits.

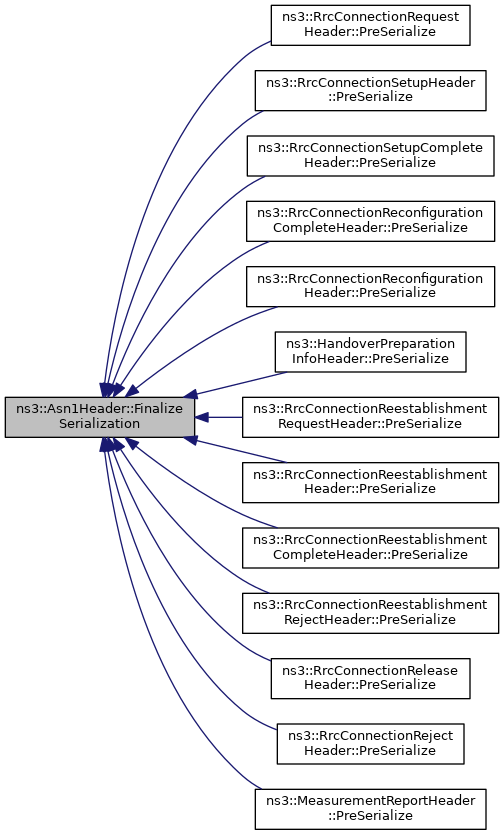

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Asn1Header::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Reimplemented in ns3::RrcAsn1Header.

Definition at line 45 of file lte-asn1-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Asn1Header::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 62 of file lte-asn1-header.cc.

References ns3::Buffer::GetSize(), m_isDataSerialized, m_serializationResult, and PreSerialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Asn1Header::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 35 of file lte-asn1-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PreSerialize()

virtual void ns3::Asn1Header::PreSerialize ( void ) const

pure virtual

This function serializes class attributes to m_serializationResult local Buffer.

As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meaningful information elements are in the subclasses.

Referenced by GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

◆ Print()

virtual void ns3::Asn1Header::Print ( std::ostream & os ) const

pure virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

◆ Serialize()

void ns3::Asn1Header::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 71 of file lte-asn1-header.cc.

References ns3::Buffer::Begin(), ns3::Buffer::End(), m_isDataSerialized, m_serializationResult, PreSerialize(), and ns3::Buffer::Iterator::Write().

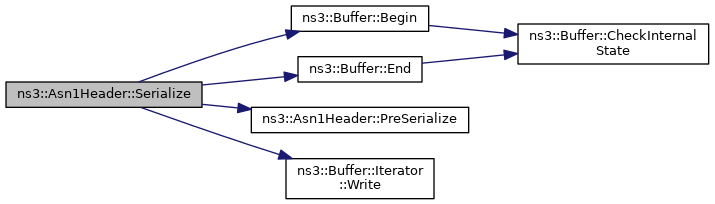

Here is the call graph for this function:

◆ SerializeBitset()

template<int N>

void ns3::Asn1Header::SerializeBitset ( std::bitset< N > data ) const

protected

Serialize a bitset.

Parameters

data	data to serialize

Definition at line 89 of file lte-asn1-header.cc.

References data, m_numSerializationPendingBits, m_serializationPendingBits, and WriteOctet().

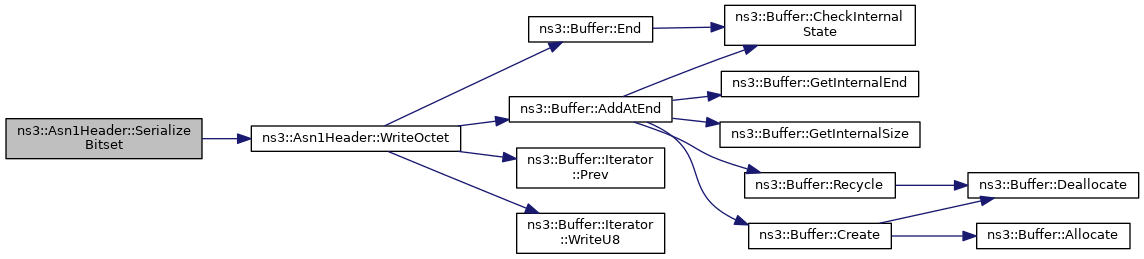

Here is the call graph for this function:

◆ SerializeBitstring() [1/9]

template<int N>

void ns3::Asn1Header::SerializeBitstring ( std::bitset< N > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 173 of file lte-asn1-header.cc.

References data.

Referenced by ns3::RrcConnectionRequestHeader::PreSerialize(), ns3::RrcConnectionReconfigurationHeader::PreSerialize(), ns3::HandoverPreparationInfoHeader::PreSerialize(), ns3::RrcConnectionReestablishmentRequestHeader::PreSerialize(), ns3::RrcAsn1Header::SerializeMeasConfig(), ns3::RrcAsn1Header::SerializeMeasResults(), and ns3::RrcAsn1Header::SerializeSystemInformationBlockType1().

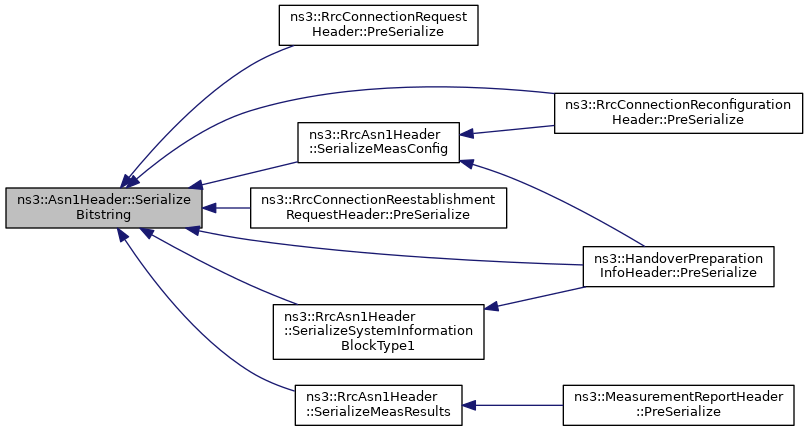

Here is the caller graph for this function:

◆ SerializeBitstring() [2/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 1 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 179 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [3/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 2 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 184 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [4/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 8 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 189 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [5/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 10 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 194 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [6/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 16 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 199 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [7/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 27 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 204 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [8/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 28 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 209 of file lte-asn1-header.cc.

References data.

◆ SerializeBitstring() [9/9]

void ns3::Asn1Header::SerializeBitstring ( std::bitset< 32 > bitstring ) const

protected

Serialize a bitstring.

Parameters

bitstring bitstring to serialize

Definition at line 214 of file lte-asn1-header.cc.

References data.

◆ SerializeBoolean()

void ns3::Asn1Header::SerializeBoolean ( bool value ) const

protected

Serialize a bool.

Parameters

value value to serialize

Definition at line 219 of file lte-asn1-header.cc.

Referenced by SerializeChoice(), ns3::RrcAsn1Header::SerializeMeasConfig(), ns3::RrcAsn1Header::SerializePhysicalConfigDedicated(), ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell(), ns3::RrcAsn1Header::SerializeRadioResourceConfigCommon(), ns3::RrcAsn1Header::SerializeRadioResourceConfigCommonSib(), SerializeSequence(), and ns3::RrcAsn1Header::SerializeSystemInformationBlockType1().

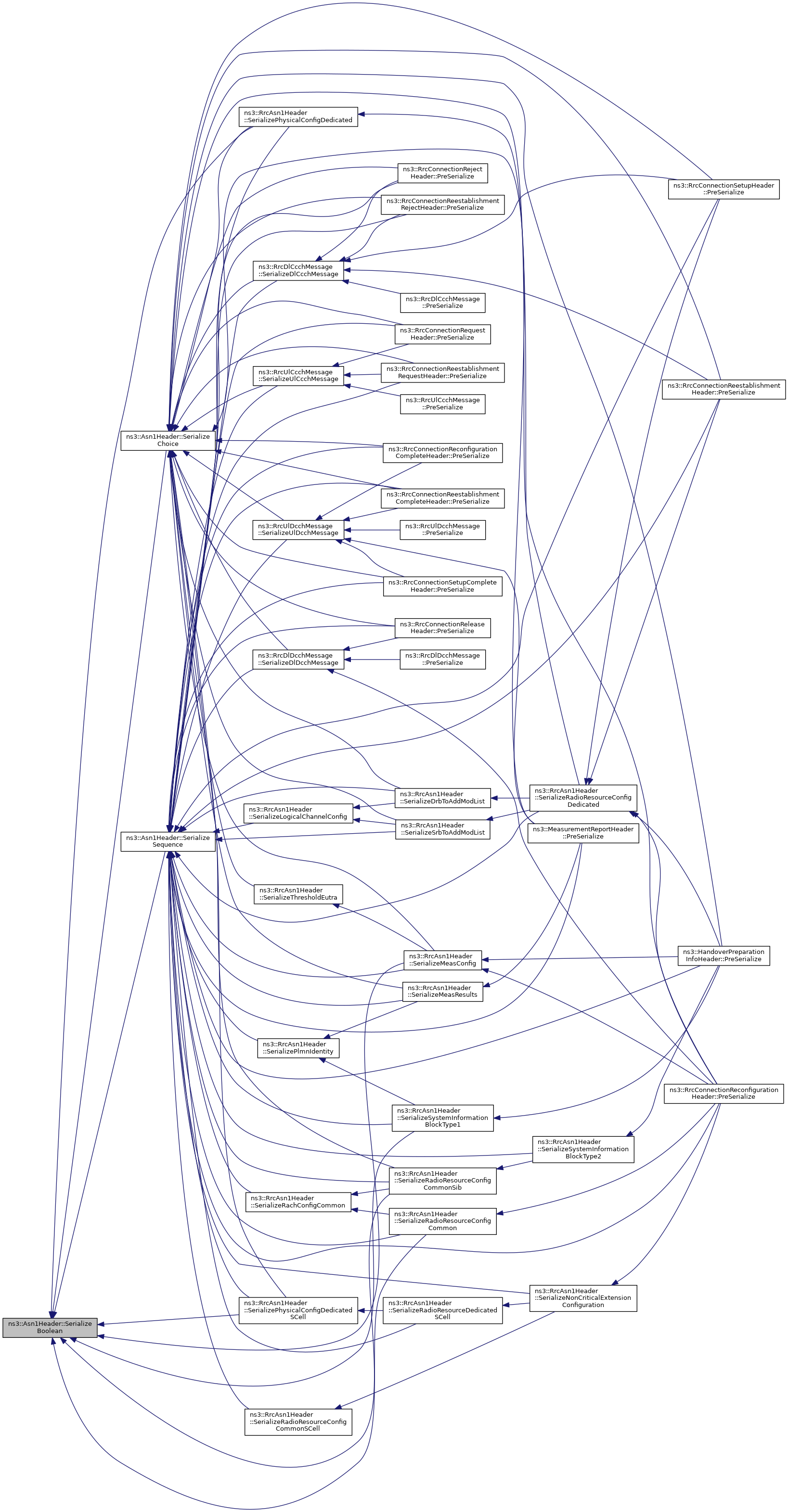

Here is the caller graph for this function:

◆ SerializeChoice()

void ns3::Asn1Header::SerializeChoice	(	int	numOptions,
		int	selectedOption,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a Choice (set of options)

Parameters

numOptions	number of options
selectedOption	selected option
isExtensionMarkerPresent	true if extension mark is present

Definition at line 305 of file lte-asn1-header.cc.

References SerializeBoolean(), and SerializeInteger().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeEnum()

void ns3::Asn1Header::SerializeEnum	(	int	numElems,
		int	selectedElem
	)		const

protected

Serialize an Enum.

Parameters

numElems	number of elements in the enum
selectedElem	selected element

Definition at line 299 of file lte-asn1-header.cc.

References SerializeInteger().

Here is the call graph for this function:

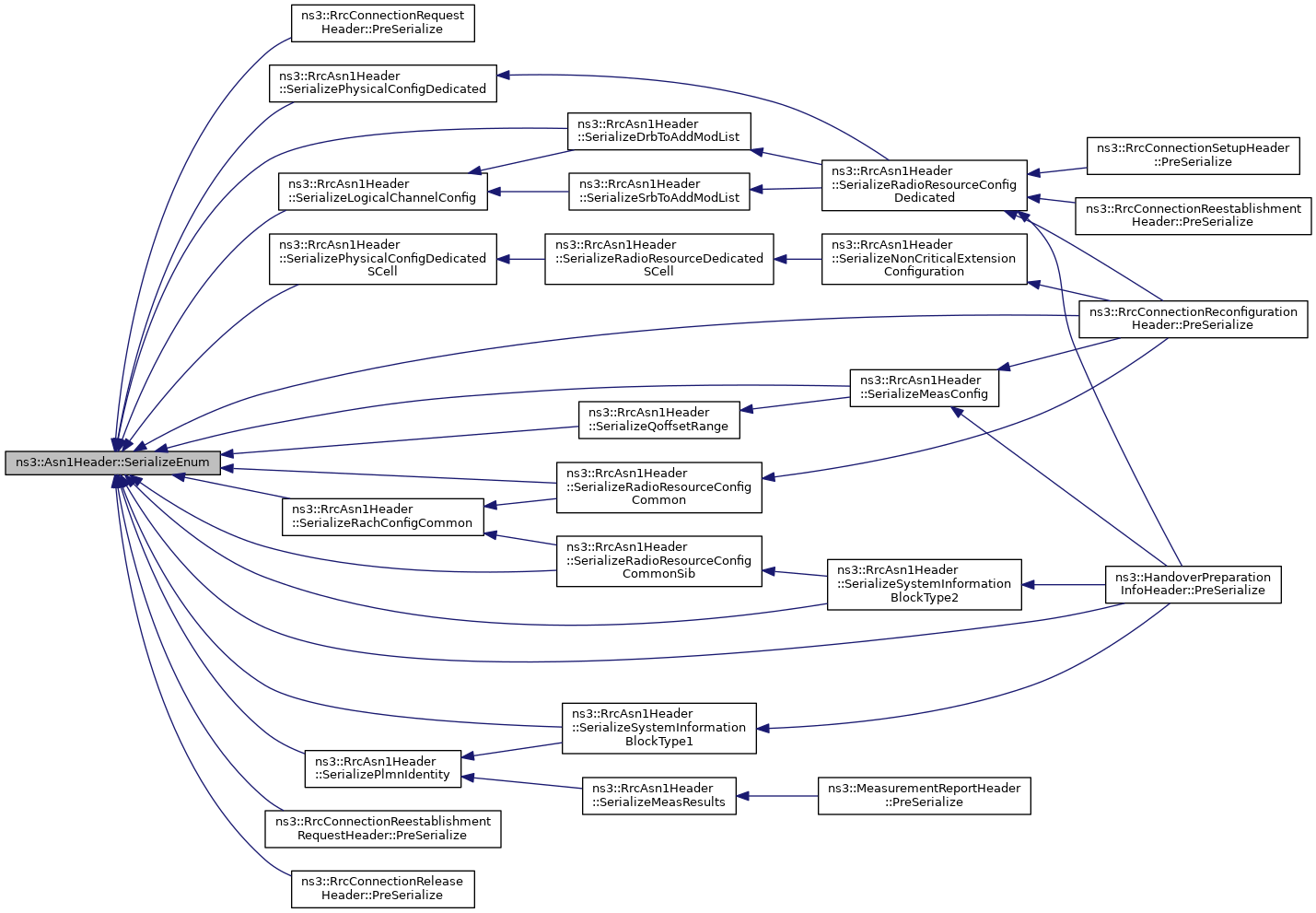

Here is the caller graph for this function:

◆ SerializeInteger()

void ns3::Asn1Header::SerializeInteger	(	int	n,
		int	nmin,
		int	nmax
	)		const

protected

Serialize an Integer.

Parameters

n	value to serialize
nmin	min value to serialize
nmax	max value to serialize

Definition at line 322 of file lte-asn1-header.cc.

References sample-rng-plot::n, and NS_ASSERT_MSG.

Here is the caller graph for this function:

◆ SerializeNull()

void ns3::Asn1Header::SerializeNull ( ) const

protected

Serialize nothing (null op)

Definition at line 411 of file lte-asn1-header.cc.

Referenced by ns3::RrcConnectionSetupCompleteHeader::PreSerialize(), ns3::RrcAsn1Header::SerializeMeasConfig(), ns3::RrcAsn1Header::SerializePhysicalConfigDedicated(), ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializeRadioResourceConfigCommonSib().

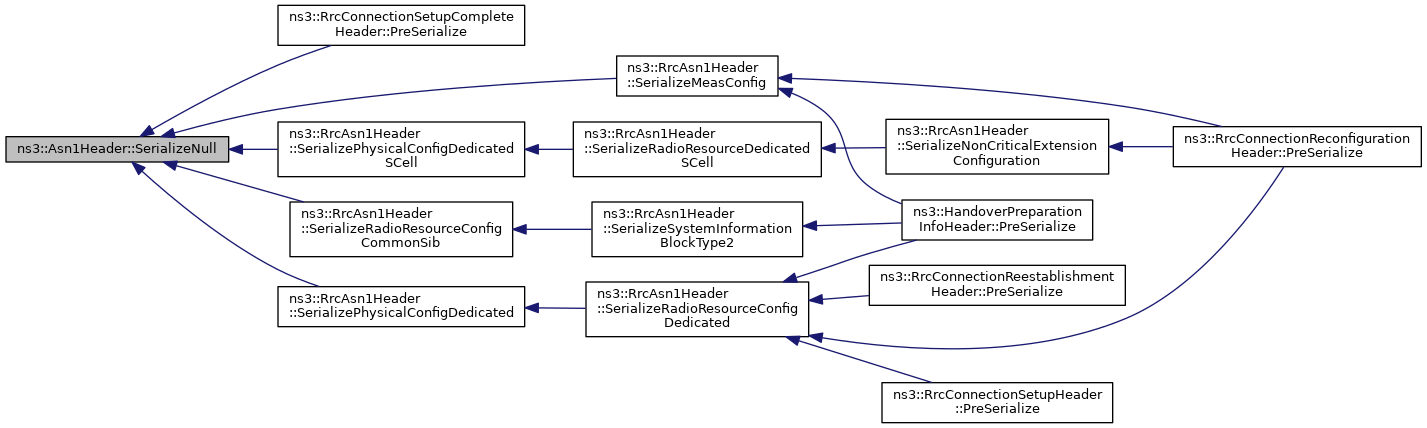

Here is the caller graph for this function:

◆ SerializeSequence() [1/12]

template<int N>

void ns3::Asn1Header::SerializeSequence	(	std::bitset< N >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 228 of file lte-asn1-header.cc.

References SerializeBoolean().

Here is the call graph for this function:

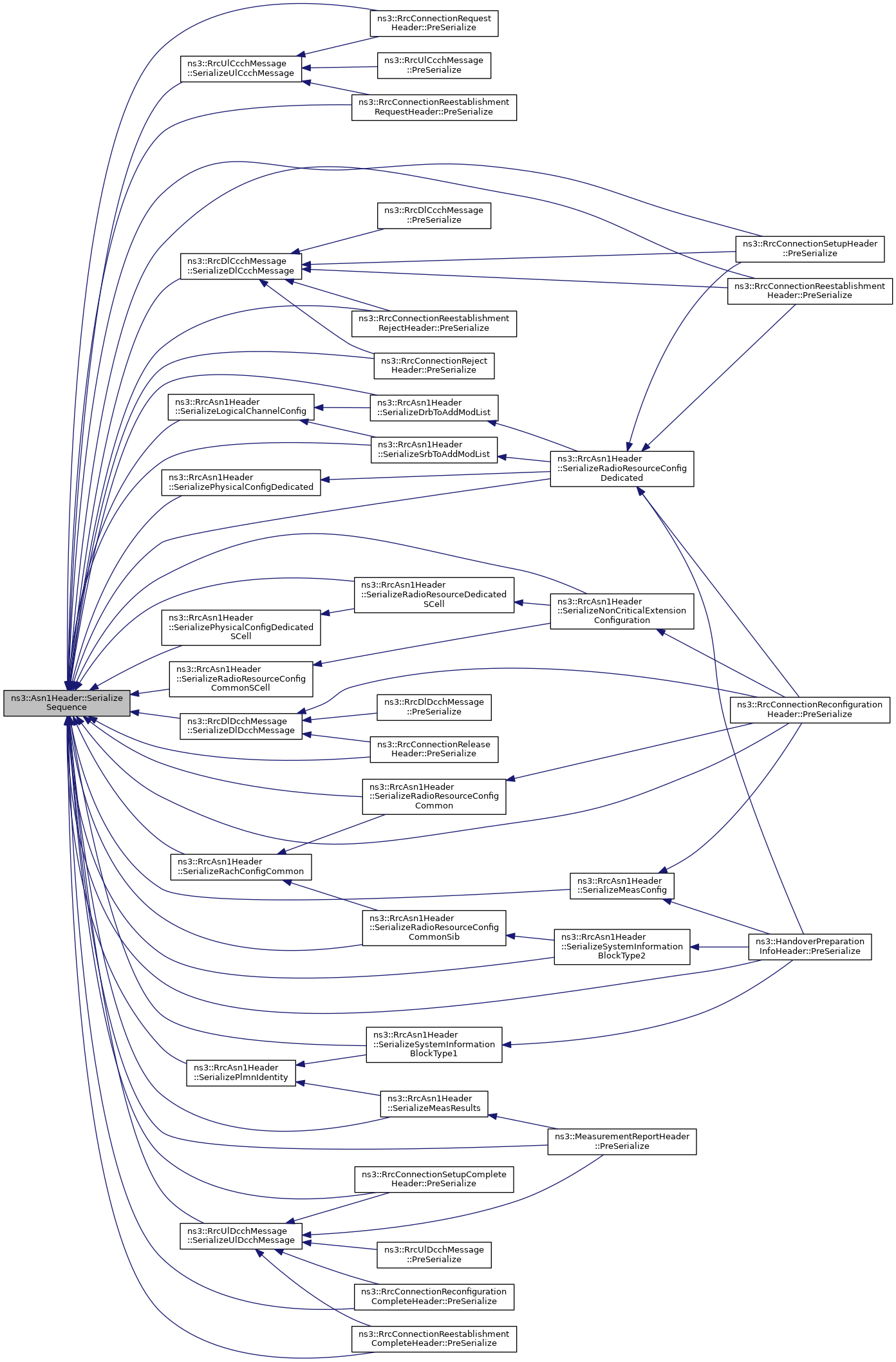

Here is the caller graph for this function:

◆ SerializeSequence() [2/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 0 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 238 of file lte-asn1-header.cc.

◆ SerializeSequence() [3/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 1 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 243 of file lte-asn1-header.cc.

◆ SerializeSequence() [4/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 2 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 248 of file lte-asn1-header.cc.

◆ SerializeSequence() [5/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 3 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 253 of file lte-asn1-header.cc.

◆ SerializeSequence() [6/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 4 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 258 of file lte-asn1-header.cc.

◆ SerializeSequence() [7/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 5 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 263 of file lte-asn1-header.cc.

◆ SerializeSequence() [8/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 6 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 268 of file lte-asn1-header.cc.

◆ SerializeSequence() [9/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 7 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 273 of file lte-asn1-header.cc.

◆ SerializeSequence() [10/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 9 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 278 of file lte-asn1-header.cc.

◆ SerializeSequence() [11/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 10 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 283 of file lte-asn1-header.cc.

◆ SerializeSequence() [12/12]

void ns3::Asn1Header::SerializeSequence	(	std::bitset< 11 >	optionalOrDefaultMask,
		bool	isExtensionMarkerPresent
	)		const

protected

Serialize a sequence.

Parameters

optionalOrDefaultMask	Mask to serialize
isExtensionMarkerPresent	true if Extension Marker is present

Definition at line 288 of file lte-asn1-header.cc.

◆ SerializeSequenceOf()

void ns3::Asn1Header::SerializeSequenceOf	(	int	numElems,
		int	nMax,
		int	nMin
	)		const

protected

Serialize a Sequence.

Parameters

numElems	element number to serialize
nMax	max value to serialize
nMin	min value to serialize

Definition at line 293 of file lte-asn1-header.cc.

References SerializeInteger().

Referenced by ns3::HandoverPreparationInfoHeader::PreSerialize(), ns3::RrcAsn1Header::SerializeDrbToAddModList(), ns3::RrcAsn1Header::SerializeMeasConfig(), ns3::RrcAsn1Header::SerializeMeasResults(), ns3::RrcAsn1Header::SerializeNonCriticalExtensionConfiguration(), ns3::RrcAsn1Header::SerializePlmnIdentity(), ns3::RrcAsn1Header::SerializeRadioResourceConfigDedicated(), ns3::RrcAsn1Header::SerializeSrbToAddModList(), and ns3::RrcAsn1Header::SerializeSystemInformationBlockType1().

Here is the call graph for this function:

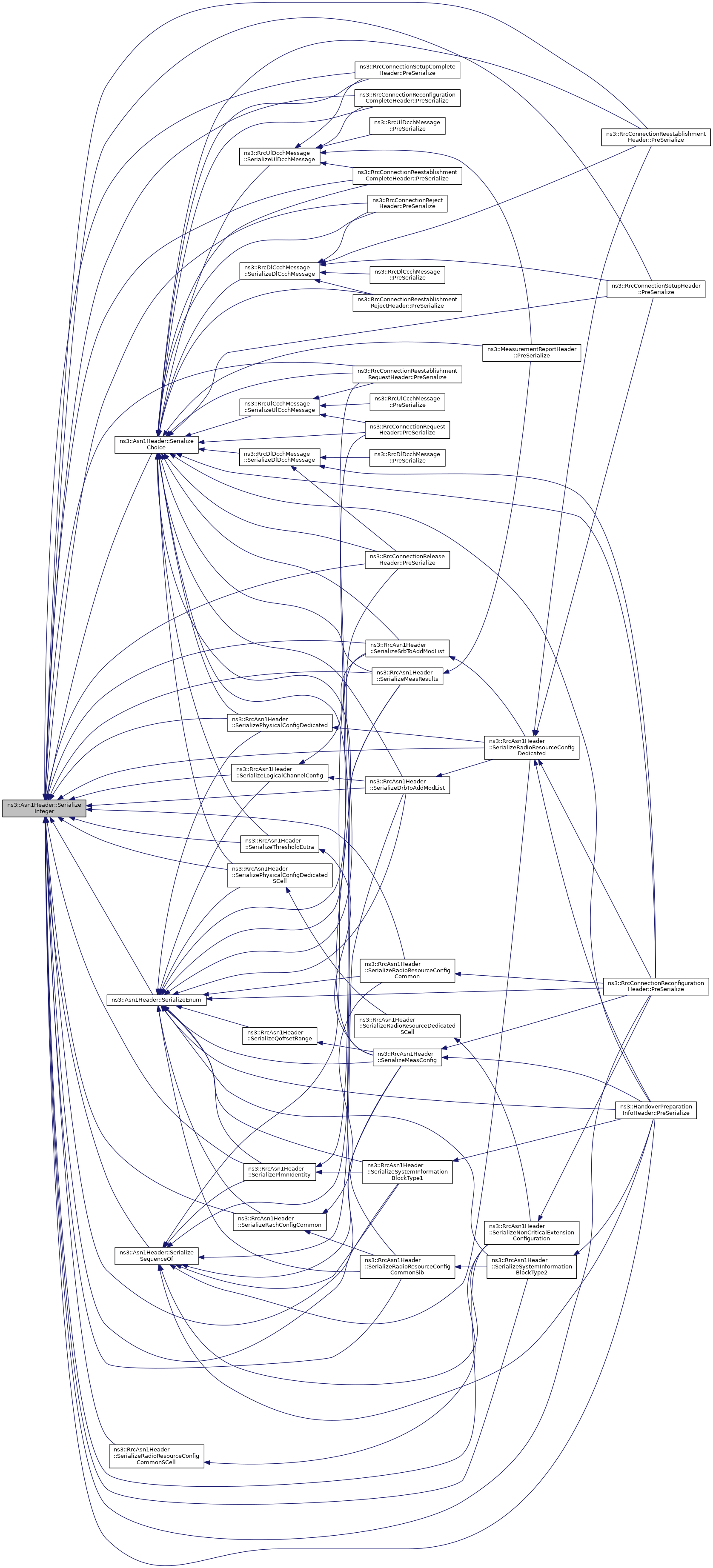

Here is the caller graph for this function:

◆ WriteOctet()

void ns3::Asn1Header::WriteOctet ( uint8_t octet ) const

protected

Function to write in m_serializationResult, after resizing its size.

Parameters

octet bits to write

Definition at line 80 of file lte-asn1-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::End(), m_serializationResult, ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::WriteU8().

Referenced by SerializeBitset().

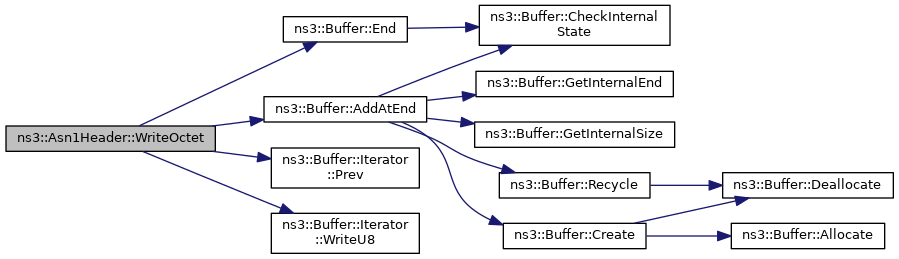

Here is the call graph for this function:

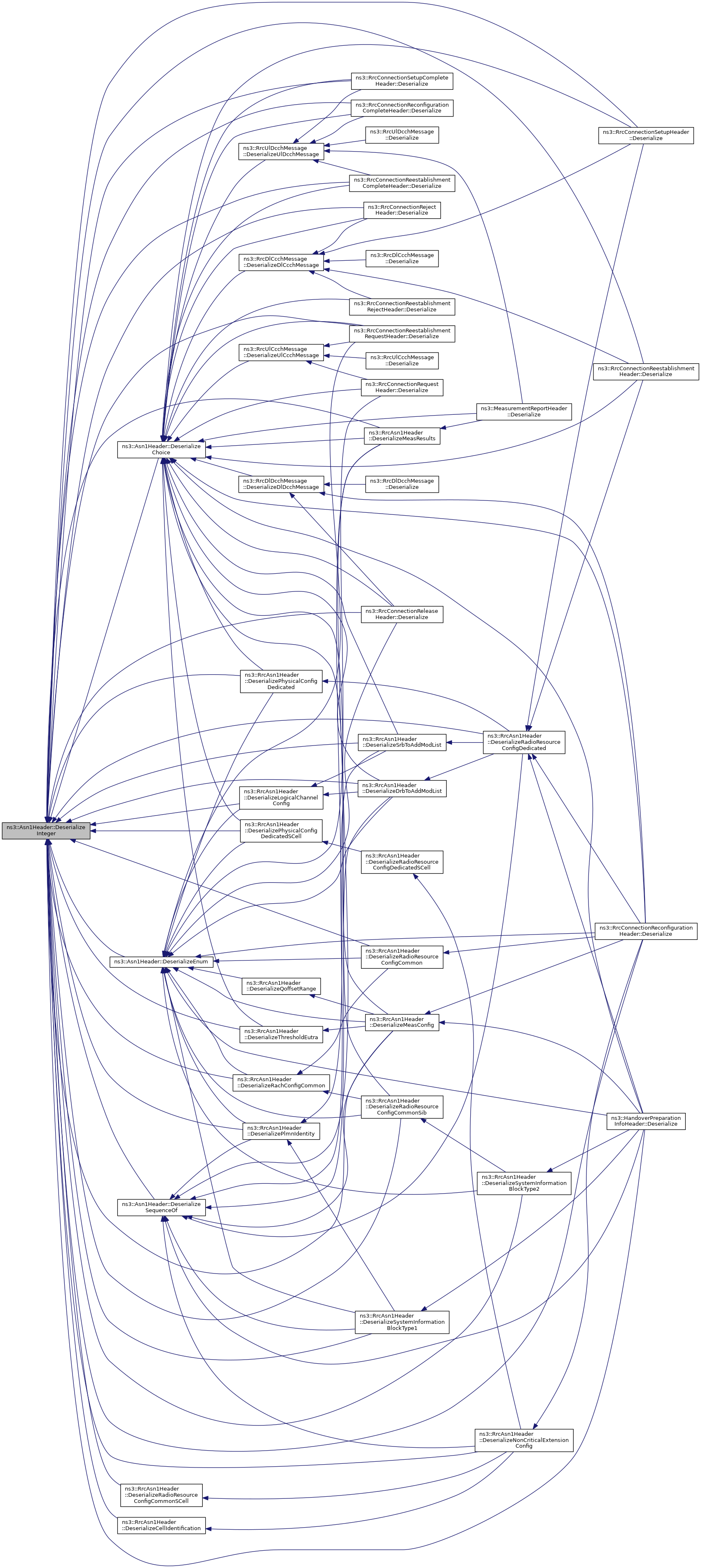

Here is the caller graph for this function:

Member Data Documentation

◆ m_isDataSerialized

bool ns3::Asn1Header::m_isDataSerialized

mutableprotected

true if data is serialized

Definition at line 70 of file lte-asn1-header.h.

◆ m_numSerializationPendingBits

uint8_t ns3::Asn1Header::m_numSerializationPendingBits

mutableprotected

number of pending bits

Definition at line 69 of file lte-asn1-header.h.

Referenced by Asn1Header(), DeserializeBitset(), FinalizeSerialization(), and SerializeBitset().

◆ m_serializationPendingBits

uint8_t ns3::Asn1Header::m_serializationPendingBits

mutableprotected

pending bits

Definition at line 68 of file lte-asn1-header.h.

Referenced by Asn1Header(), DeserializeBitset(), FinalizeSerialization(), and SerializeBitset().

◆ m_serializationResult

Buffer ns3::Asn1Header::m_serializationResult

mutableprotected

serialization result

Definition at line 71 of file lte-asn1-header.h.

The documentation for this class was generated from the following files:

src/lte/model/lte-asn1-header.h
src/lte/model/lte-asn1-header.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Asn1Header()

◆ ~Asn1Header()

Member Function Documentation

◆ Deserialize()

◆ DeserializeBitset() [1/2]

◆ DeserializeBitset() [2/2]

◆ DeserializeBitstring() [1/9]

◆ DeserializeBitstring() [2/9]

◆ DeserializeBitstring() [3/9]

◆ DeserializeBitstring() [4/9]

◆ DeserializeBitstring() [5/9]

◆ DeserializeBitstring() [6/9]

◆ DeserializeBitstring() [7/9]

◆ DeserializeBitstring() [8/9]

◆ DeserializeBitstring() [9/9]

◆ DeserializeBoolean()

◆ DeserializeChoice()

◆ DeserializeEnum()

◆ DeserializeInteger()

◆ DeserializeNull()

◆ DeserializeSequence() [1/12]

◆ DeserializeSequence() [2/12]

◆ DeserializeSequence() [3/12]

◆ DeserializeSequence() [4/12]

◆ DeserializeSequence() [5/12]

◆ DeserializeSequence() [6/12]

◆ DeserializeSequence() [7/12]

◆ DeserializeSequence() [8/12]

◆ DeserializeSequence() [9/12]

◆ DeserializeSequence() [10/12]

◆ DeserializeSequence() [11/12]

◆ DeserializeSequence() [12/12]

◆ DeserializeSequenceOf()

◆ FinalizeSerialization()

◆ GetInstanceTypeId()

◆ GetSerializedSize()

◆ GetTypeId()

◆ PreSerialize()

◆ Print()

◆ Serialize()

◆ SerializeBitset()

◆ SerializeBitstring() [1/9]

◆ SerializeBitstring() [2/9]

◆ SerializeBitstring() [3/9]

◆ SerializeBitstring() [4/9]

◆ SerializeBitstring() [5/9]

◆ SerializeBitstring() [6/9]

◆ SerializeBitstring() [7/9]

◆ SerializeBitstring() [8/9]

◆ SerializeBitstring() [9/9]

◆ SerializeBoolean()

◆ SerializeChoice()

◆ SerializeEnum()

◆ SerializeInteger()

◆ SerializeNull()

◆ SerializeSequence() [1/12]

◆ SerializeSequence() [2/12]

◆ SerializeSequence() [3/12]

◆ SerializeSequence() [4/12]

◆ SerializeSequence() [5/12]

◆ SerializeSequence() [6/12]

◆ SerializeSequence() [7/12]

◆ SerializeSequence() [8/12]

◆ SerializeSequence() [9/12]

◆ SerializeSequence() [10/12]

◆ SerializeSequence() [11/12]

◆ SerializeSequence() [12/12]

◆ SerializeSequenceOf()

◆ WriteOctet()

Member Data Documentation

◆ m_isDataSerialized

◆ m_numSerializationPendingBits

◆ m_serializationPendingBits
