ns3::Event Class Reference

handles interference calculations More...

#include "interference-helper.h"

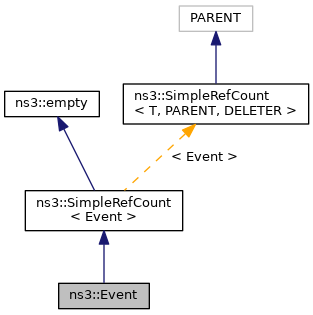

Inheritance diagram for ns3::Event:

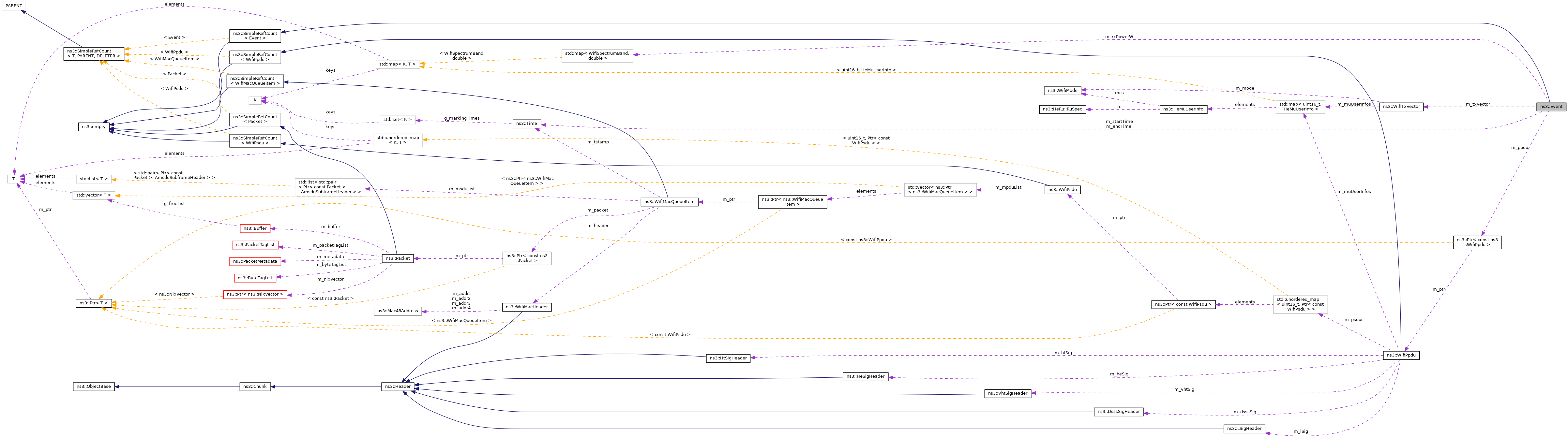

Collaboration diagram for ns3::Event:

Public Member Functions
	Event (Ptr< const WifiPpdu > ppdu, WifiTxVector txVector, Time duration, RxPowerWattPerChannelBand rxPower)
	Create an Event with the given parameters. More...
	~Event ()
Time	GetDuration (void) const
	Return the duration of the signal. More...
Time	GetEndTime (void) const
	Return the end time of the signal. More...
Ptr< const WifiPpdu >	GetPpdu (void) const
	Return the PPDU. More...
double	GetRxPowerW (void) const
	Return the total received power (W). More...
double	GetRxPowerW (WifiSpectrumBand band) const
	Return the received power (W) for a given band. More...
RxPowerWattPerChannelBand	GetRxPowerWPerBand (void) const
	Return the received power (W) for all bands. More...
Time	GetStartTime (void) const
	Return the start time of the signal. More...
WifiTxVector	GetTxVector (void) const
	Return the TXVECTOR of the PPDU. More...
Public Member Functions inherited from ns3::SimpleRefCount< Event >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Time	m_endTime
	end time More...
Ptr< const WifiPpdu >	m_ppdu
	PPDU. More...
RxPowerWattPerChannelBand	m_rxPowerW
	received power in watts per band More...
Time	m_startTime
	start time More...
WifiTxVector	m_txVector
	TXVECTOR. More...

Detailed Description

handles interference calculations

signal event for a PPDU.

Definition at line 45 of file interference-helper.h.

Constructor & Destructor Documentation

Event()

ns3::Event::Event	(	Ptr< const WifiPpdu >	ppdu,
		WifiTxVector	txVector,
		Time	duration,
		RxPowerWattPerChannelBand	rxPower
	)

Create an Event with the given parameters.

Parameters

ppdu	the PPDU
txVector	the TXVECTOR
duration	duration of the PPDU
rxPower	the received power per band (W)

Definition at line 42 of file interference-helper.cc.

~Event()

ns3::Event::~Event

(

)

Definition at line 51 of file interference-helper.cc.

Member Function Documentation

GetDuration()

Time ns3::Event::GetDuration

(

void

)

const

Return the duration of the signal.

Returns

the duration of the signal

Definition at line 74 of file interference-helper.cc.

References m_endTime, and m_startTime.

GetEndTime()

Time ns3::Event::GetEndTime

(

void

)

const

Return the end time of the signal.

Returns

the end time of the signal

Definition at line 68 of file interference-helper.cc.

References m_endTime.

GetPpdu()

Ptr< const WifiPpdu > ns3::Event::GetPpdu

(

void

)

const

Return the PPDU.

Returns

the PPDU

Definition at line 56 of file interference-helper.cc.

References m_ppdu.

GetRxPowerW() [1/2]

double ns3::Event::GetRxPowerW

(

void

)

const

Return the total received power (W).

Returns

the total received power (W)

Definition at line 80 of file interference-helper.cc.

References m_rxPowerW, and NS_ASSERT.

GetRxPowerW() [2/2]

double ns3::Event::GetRxPowerW

(

WifiSpectrumBand

band

)

const

Return the received power (W) for a given band.

Parameters

band	the band for which the power should be returned

Returns

the received power (W) for a given band

Definition at line 92 of file interference-helper.cc.

References m_rxPowerW, and NS_ASSERT.

GetRxPowerWPerBand()

RxPowerWattPerChannelBand ns3::Event::GetRxPowerWPerBand

(

void

)

const

Return the received power (W) for all bands.

Returns

the received power (W) for all bands.

Definition at line 100 of file interference-helper.cc.

References m_rxPowerW.

GetStartTime()

Time ns3::Event::GetStartTime

(

void

)

const

Return the start time of the signal.

Returns

the start time of the signal

Definition at line 62 of file interference-helper.cc.

References m_startTime.

GetTxVector()

WifiTxVector ns3::Event::GetTxVector

(

void

)

const

Return the TXVECTOR of the PPDU.

Returns

the TXVECTOR of the PPDU

Definition at line 106 of file interference-helper.cc.

References m_txVector.

Member Data Documentation

m_endTime

Time ns3::Event::m_endTime

private

end time

Definition at line 114 of file interference-helper.h.

Referenced by GetDuration(), and GetEndTime().

m_ppdu

Ptr<const WifiPpdu> ns3::Event::m_ppdu

private

PPDU.

Definition at line 111 of file interference-helper.h.

Referenced by GetPpdu().

m_rxPowerW

RxPowerWattPerChannelBand ns3::Event::m_rxPowerW

private

received power in watts per band

Definition at line 115 of file interference-helper.h.

Referenced by GetRxPowerW(), and GetRxPowerWPerBand().

m_startTime

Time ns3::Event::m_startTime

private

start time

Definition at line 113 of file interference-helper.h.

Referenced by GetDuration(), and GetStartTime().

m_txVector

WifiTxVector ns3::Event::m_txVector

private

TXVECTOR.

Definition at line 112 of file interference-helper.h.

Referenced by GetTxVector().

---

The documentation for this class was generated from the following files:

• src/wifi/model/interference-helper.h
• src/wifi/model/interference-helper.cc
