Implements the IEEE 802.11ax HE-SIG PHY header (HE-SIG-A1/A2/B) More...

#include "wifi-phy-header.h"

Inheritance diagram for ns3::HeSigHeader:

Collaboration diagram for ns3::HeSigHeader:

Public Member Functions
	HeSigHeader ()

virtual	~HeSigHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

uint8_t	GetBssColor (void) const
	Return the BSS Color field in the HE-SIG-A1. More...

uint16_t	GetChannelWidth (void) const
	Return the channel width (in MHz). More...

uint16_t	GetGuardInterval (void) const
	Return the guard interval (in nanoseconds). More...

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint8_t	GetMcs (void) const
	Return the MCS field of HE-SIG-A1. More...

uint8_t	GetNStreams (void) const
	Return the number of streams. More...

uint32_t	GetSerializedSize (void) const

bool	IsLdpcCoding (void) const
	Return whether LDPC is used or not. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetBssColor (uint8_t bssColor)
	Fill the BSS Color field of HE-SIG-A1. More...

void	SetChannelWidth (uint16_t channelWidth)
	Fill the channel width field of HE-SIG-A1 (in MHz). More...

void	SetCoding (bool ldpc)
	Fill the coding field of HE-SIG-A2. More...

void	SetGuardIntervalAndLtfSize (uint16_t gi, uint8_t ltf)
	Fill the GI + LTF size field of HE-SIG-A1. More...

void	SetMcs (uint8_t mcs)
	Fill the MCS field of HE-SIG-A1. More...

void	SetMuFlag (bool mu)
	Set the Multi-User (MU) flag. More...

void	SetNStreams (uint8_t nStreams)
	Fill the number of streams field of HE-SIG-A1. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_bandwidth
	Bandwidth field. More...

uint8_t	m_bssColor
	BSS color field. More...

uint8_t	m_coding
	Coding (0 for BCC, 1 for LDPC) More...

uint8_t	m_format
	Format bit. More...

uint8_t	m_gi_ltf_size
	GI+LTF Size field. More...

uint8_t	m_mcs
	MCS field. More...

bool	m_mu
	This is used to decide whether MU SIG-B should be added or not. More...

uint8_t	m_nsts
	NSTS. More...

uint8_t	m_spatialReuse
	Spatial Reuse field. More...

uint8_t	m_ul_dl
	UL/DL bit. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the IEEE 802.11ax HE-SIG PHY header (HE-SIG-A1/A2/B)

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 372 of file wifi-phy-header.h.

Constructor & Destructor Documentation

◆ HeSigHeader()

ns3::HeSigHeader::HeSigHeader ( )

Definition at line 711 of file wifi-phy-header.cc.

◆ ~HeSigHeader()

ns3::HeSigHeader::~HeSigHeader ( )

virtual

Definition at line 724 of file wifi-phy-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::HeSigHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 940 of file wifi-phy-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_bandwidth, m_bssColor, m_coding, m_format, m_gi_ltf_size, m_mcs, m_mu, m_nsts, m_spatialReuse, m_ul_dl, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

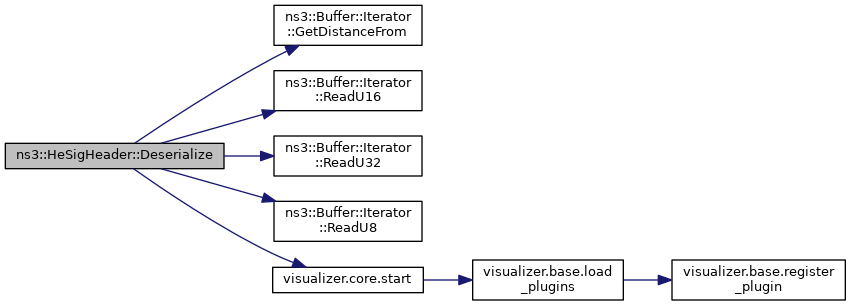

Here is the call graph for this function:

◆ GetBssColor()

uint8_t ns3::HeSigHeader::GetBssColor ( void ) const

Return the BSS Color field in the HE-SIG-A1.

Returns: the BSS Color field in the HE-SIG-A1

Definition at line 797 of file wifi-phy-header.cc.

References m_bssColor.

Referenced by ns3::WifiPpdu::GetPsdu(), and ns3::WifiPpdu::GetTxVector().

Here is the caller graph for this function:

◆ GetChannelWidth()

uint16_t ns3::HeSigHeader::GetChannelWidth ( void ) const

Return the channel width (in MHz).

Returns: the channel width (in MHz)

Definition at line 824 of file wifi-phy-header.cc.

References m_bandwidth.

Referenced by ns3::WifiPpdu::GetTxVector(), and Print().

Here is the caller graph for this function:

◆ GetGuardInterval()

uint16_t ns3::HeSigHeader::GetGuardInterval ( void ) const

Return the guard interval (in nanoseconds).

Returns: the guard interval (in nanoseconds)

Definition at line 866 of file wifi-phy-header.cc.

References m_gi_ltf_size.

Referenced by ns3::WifiPpdu::GetTxVector(), and Print().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::HeSigHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 740 of file wifi-phy-header.cc.

References GetTypeId().

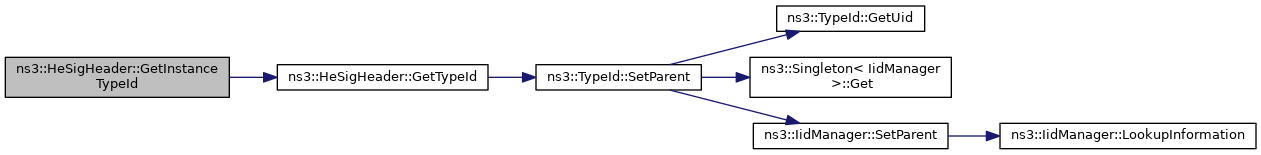

Here is the call graph for this function:

◆ GetMcs()

uint8_t ns3::HeSigHeader::GetMcs ( void ) const

Return the MCS field of HE-SIG-A1.

Returns: the MCS field of HE-SIG-A1

Definition at line 784 of file wifi-phy-header.cc.

References m_mcs.

Referenced by ns3::WifiPpdu::GetTxVector().

Here is the caller graph for this function:

◆ GetNStreams()

uint8_t ns3::HeSigHeader::GetNStreams ( void ) const

Return the number of streams.

Returns: the number of streams

Definition at line 891 of file wifi-phy-header.cc.

References m_nsts.

Referenced by ns3::WifiPpdu::GetTxVector().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::HeSigHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 758 of file wifi-phy-header.cc.

References m_mu.

◆ GetTypeId()

TypeId ns3::HeSigHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 729 of file wifi-phy-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

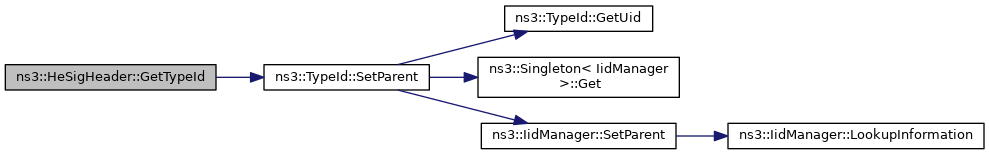

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsLdpcCoding()

bool ns3::HeSigHeader::IsLdpcCoding ( void ) const

Return whether LDPC is used or not.

Returns: whether LDPC is used or not

Definition at line 903 of file wifi-phy-header.cc.

References m_coding.

Referenced by ns3::WifiPpdu::GetTxVector().

Here is the caller graph for this function:

◆ Print()

void ns3::HeSigHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 746 of file wifi-phy-header.cc.

References GetChannelWidth(), GetGuardInterval(), m_bssColor, m_coding, m_mcs, m_mu, and m_nsts.

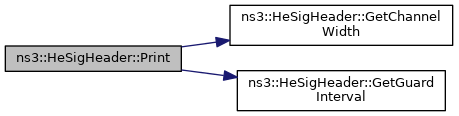

Here is the call graph for this function:

◆ Serialize()

void ns3::HeSigHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 910 of file wifi-phy-header.cc.

References m_bandwidth, m_bssColor, m_coding, m_format, m_gi_ltf_size, m_mcs, m_mu, m_nsts, m_spatialReuse, m_ul_dl, and visualizer.core::start().
